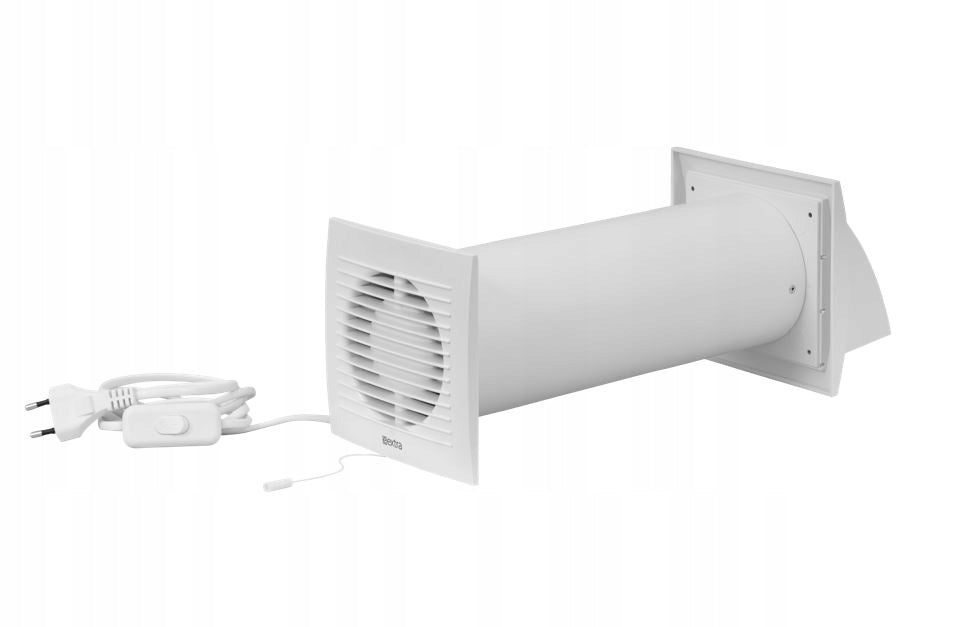

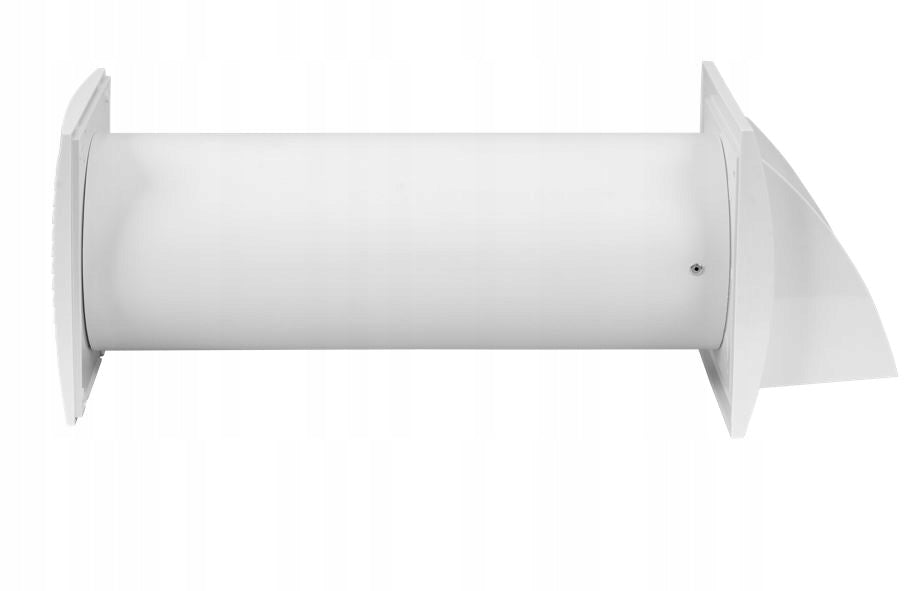

Sieninis rekuperatorius 125 mm su kištuku ir jungikliu

Trumpai apie prekę

Prekė: Sieninis rekuperatorius 125 mm su kištuku ir jungikliu. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: no brand
• Modelis: EER125WP

Wall recuperator Extra EER 125 mm with ceramic exchanger

Modern heat recovery unit for constant ventilation of rooms

Looking for an effective solution for ventilation of your home or apartment?

The Extra EER wall recuperator is a device designed for continuous air exchange with heat recovery, which provides comfort, savings and fresh air throughout the year.

Most important features:

✔ Diameter 125 mm – ideal size for compact rooms (e.g. bedroom, living room, study)

✔ Ceramic exchanger – high efficiency of heat recovery (up to 90%)

✔ Continuous operation – ensures constant air exchange without energy losses

✔ Energy saving – low energy consumption with high efficiency

✔ Silent work – ideal for rooms where you value peace of mind

✔ Compact design – modern design that will fit into any interior

✔ Easy operation and installation – quick installation

Model: E-Extra

Energy consumption class: A

Air flow max: 30 m3/h

Power max. 3,4 IN

Sound pressure: from 22 dB(A)/ 3mb

Mounting hole diameter: 125 mm

Voltage: 220-240 V

Frequency: 50 Hz

Airflow: 20 / 30 m3/h

Air flow in heat recovery mode: 10/15 m3/h

Maximum thermal efficiency: 90%

Weight: 1,9 kg

Place of manufacture: EU

BENEFITS FOR THE USER:

• Clean air in all rooms economically and intelligently.
• Introduction of fresh and filtered air from the outside and removal of mustiness from the inside.
• Energy recovery from exhaust air thanks to a high-efficiency heat exchanger, which translates into savings.
• Elegant and harmonious design that blends beautifully with any interior.
• High efficiency, reaching 90% heat transfer efficiency with minimal noise.
• Quiet operation, comparable to a whisper at a distance of 1 meter.
• Low energy consumption of less than 3,4 W at maximum flow rate.

BENEFITS FOR THE INSTALLER

Easy installation

Low weight: 1,9 kg

Universal connection diameters fi 125 mm.

Can be mounted on perimeter walls with thickness from 300 mm to 555 mm.

No need for condensate drainage.

Easy maintenance

Simple access to internal components.

We provide full support in the selection of a recuperator for your room.

Principle of operation – how does a wall recuperator with a ceramic exchanger work?

The device works fully autonomously – 24 hours a day, 365 days a year, without the need for user intervention. The ventilation process takes place in two alternating cycles, each lasting 70 seconds.

Stage 1 – air extraction from the room

The fan starts working by removing used, warm air from the interior of the building.

This air passes through the heat exchanger – a special ceramic cartridge with a mesh structure, which stores thermal energy.

Stage 2 – fresh air supply from outside

After 70 seconds, the direction of air flow automatically changes.

The fan sucks fresh air from the outside, which, passing through a previously heated ceramic exchanger, receives heat from it.

Thanks to this, the room receives air already heated – without energy loss!

Specifications
