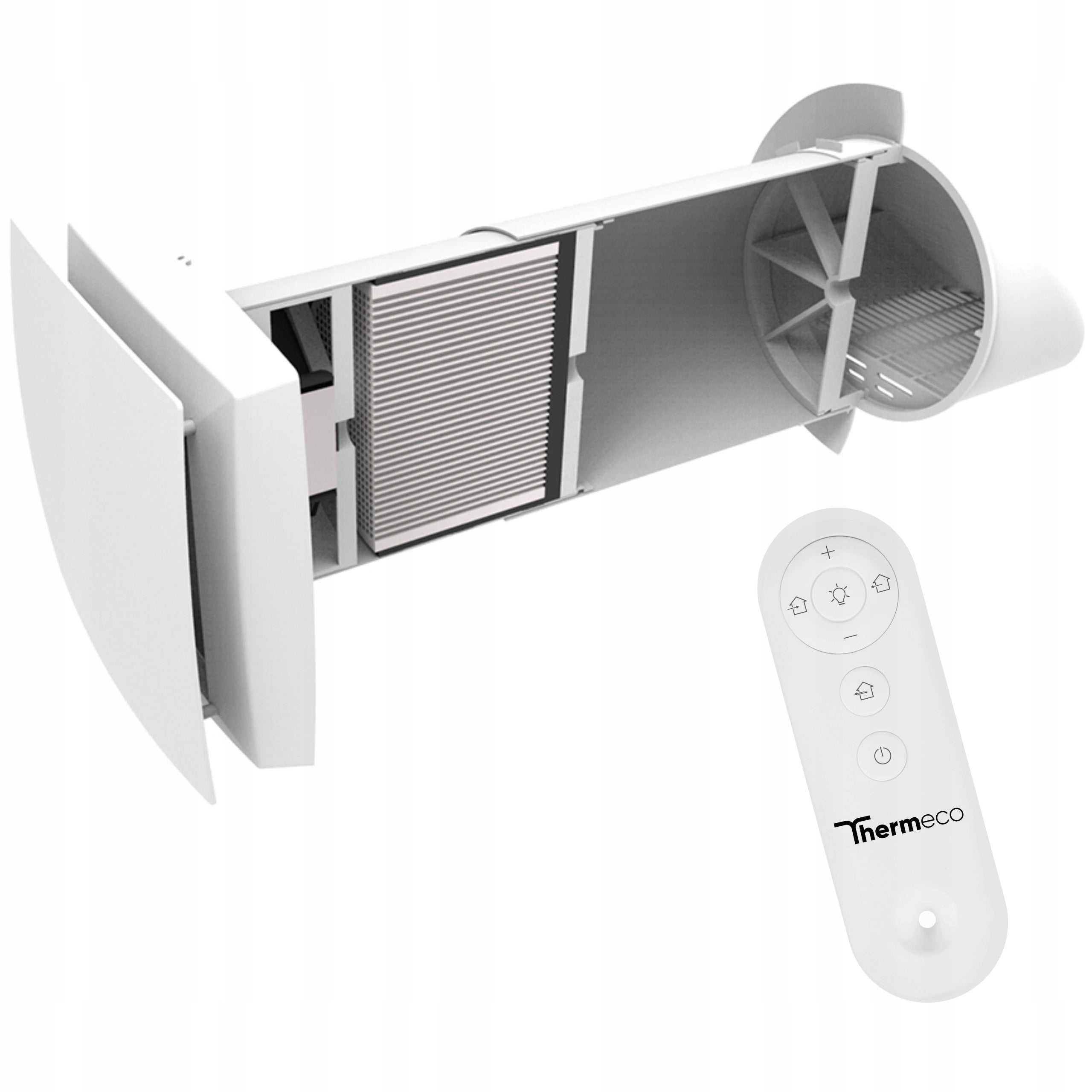

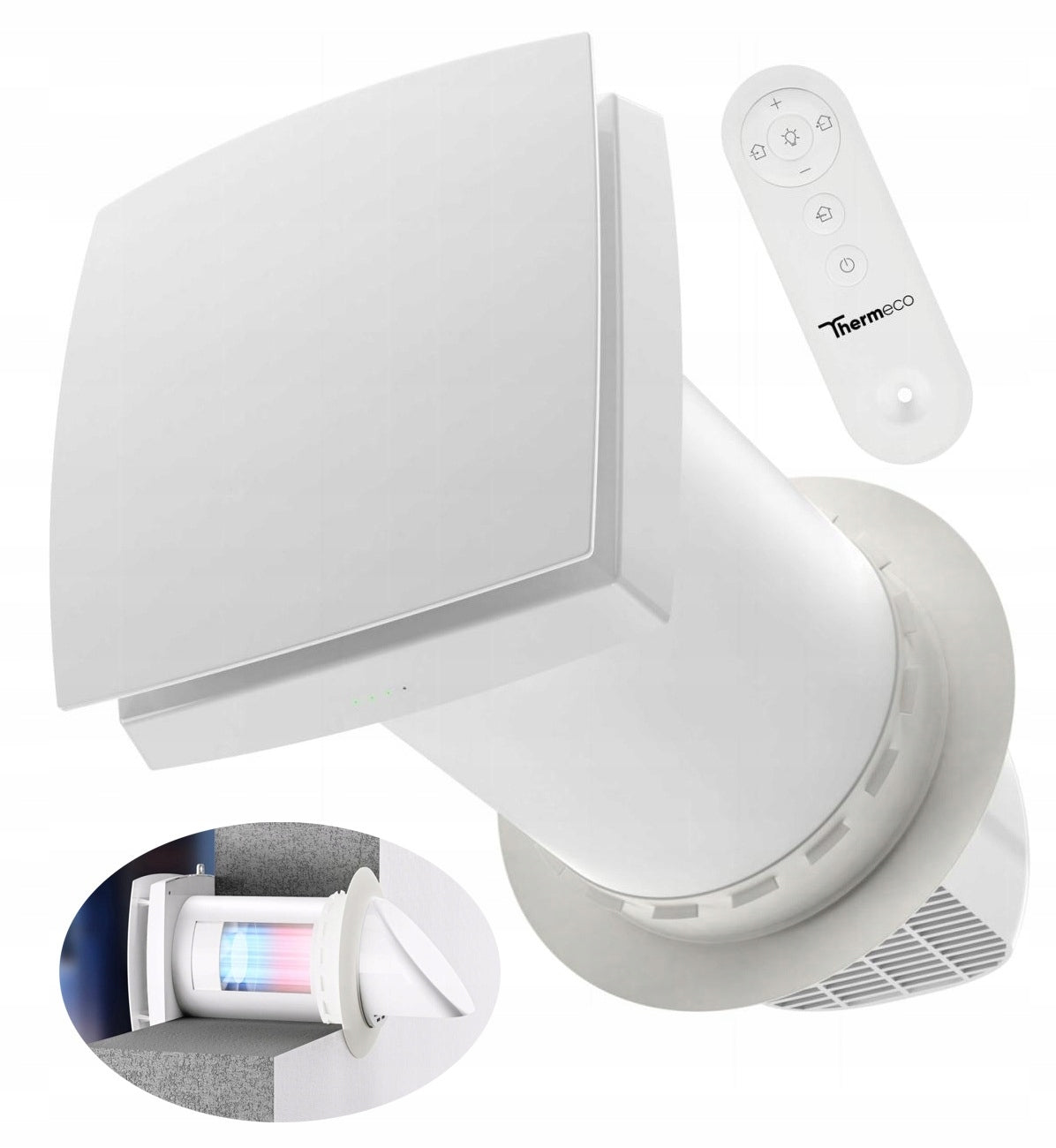

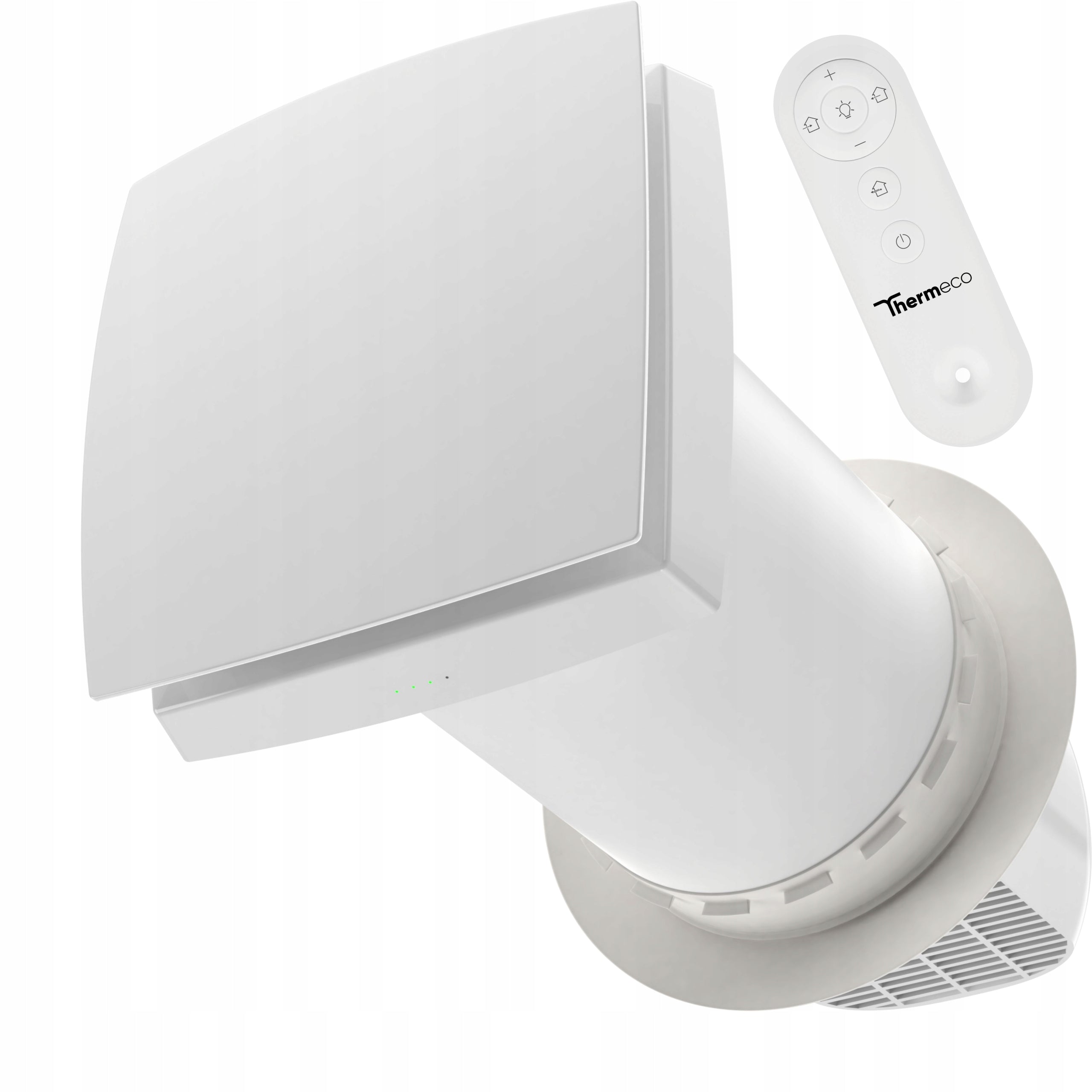

Sieninis rekuperatorius AIR VENT PLUS 160, 60 m³/val., su nuotolinio valdymo pultu, Thermeco

Trumpai apie prekę

Prekė: Sieninis rekuperatorius AIR VENT PLUS 160, 60 m³/val., su nuotolinio valdymo pultu, Thermeco. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Thermeco
• Modelis: 5904326935761

✔ Energy class A

✔ Heat recovery efficiency up to 97%

✔ Quiet operation

✔ LED operating controls

✔ 3 speed levels

✔ FREECOOLING

✔ Automatic throttle blinds

✔ Filter G3

✔ Possibility to install F7 filter

Its main function is to replace spent air saturated with carbon dioxide with fresh air from the outside, while recovering heat, which ensures comfort and energy savings.

• Diameter: 160mm
• Energy class: A
• Max. airflow: 64m3/h
• Channel Length: 420mm
• Power: 11,3W
• Power supply: 100V~240V AC /50-60Hz
• Maximum efficiency: 97%
• Ambient temperature: from - 20ºC to + 50ºC
• Degree of protection: IP22
• Noise level: 31,9dBA
• Dimensions: 205 x 205 x 425 mm
• Minimum channel length: 230 mm
• Weight: 3,4 kg

High-quality ceramic thermal energy exchanger with recovery efficiency up to 97% recovers heat from the exhaust air, heating the supply air. Thanks to its unique cellular structure, it provides a large surface area of contact with air and excellent thermal conductivity and accumulation properties. The regenerator is covered with an antibacterial coating, which prevents the growth of bacteria for 10 years, ensuring hygienic and effective operation of the device.

The fan is designed both to operate in alternating mode with energy regeneration, as well as in air supply or exhaust mode. The fan operates in two-cycle heat recovery mode, which saves more than 30% energy compared to a conventional exhaust fan. The efficiency of heat recovery is up to 97% when the air enters the heat exchanger for the first time. It can recover energy from the room and reduce the load on the heating system in winter.

• Supply mode (green): The device supplies external air for a specified period of time.
• Recovery mode (yellow): The device operates in two cycles of 75 seconds, ensuring heat and moisture regeneration.
• Exhaust mode (red): The device removes air for a specified period of time.

Two integrated air filters with a total filtration rate of G3 ensure filtration of supply and exhaust air. Filters prevent dust and insects from entering the supply air and contaminating parts of the fan. Filters also have an antibacterial coating. Cleaning the filter is done with a vacuum cleaner or rinsing with water. The antibacterial solution is not removed. The recuperator can also use an F7 filter but after installation reduces air flow to 40 m3/h.

✔ 3 operating modes

✔ Remote control

✔ Filter G3

✔ Possibility of mounting the F7 filter

✔ Antibacterial coating inside the channel

✔ Prevention of mould formation

✔ High performance

✔ Easy installation

✔ Elegant appearance

✔ Quiet operation

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Thermeco
Parametry	Kind	heat recovery ventilator
Parametry	Product weight with unit packaging	7 kg
Parametry	Manufacturer code	5904326935761
Parametry	Range of energy efficiency classes	A+ - G
Parametry	Energy efficiency class	A
Parametry	Certificates of conformity	CE
