Signalizacijos komplektas SATEL Integra 64 su INT-TSI-B, ETHM-1 Plus ir OPU-3 P

Trumpai apie prekę

Prekė: Signalizacijos komplektas SATEL Integra 64 su INT-TSI-B, ETHM-1 Plus ir OPU-3 P. Kategorija: Išoriniai moduliai.

• Gamintojas: Satel
• Modelis: Integra 64

The auction concerns:

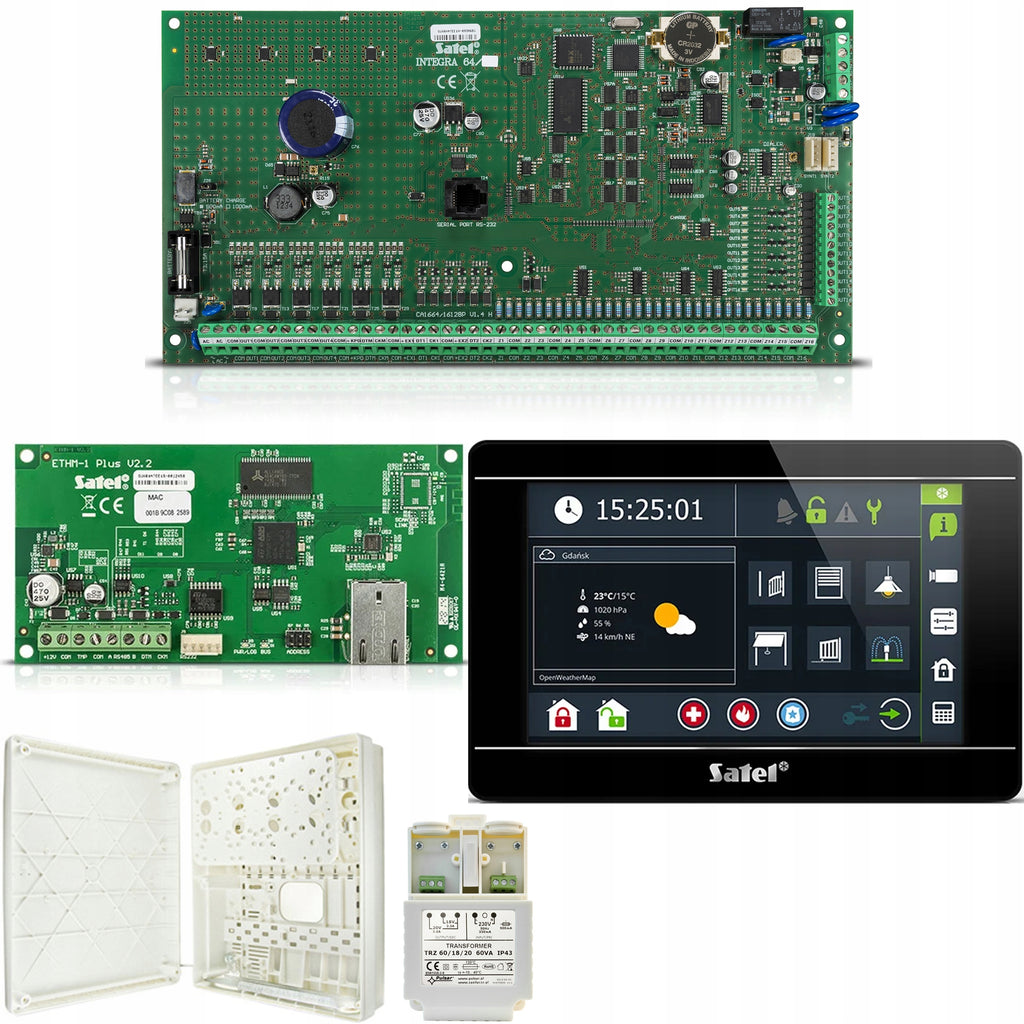

Complete [ 83b ] :

- Integra 64 control panel SATEL

- INT-TSI-B manipulator

- ETHM-1 Plus

- OPU-3 P housing

- AWT682 transformer

In the description when issuing FV will be the above notation.

The set is designed for possible further expansion.

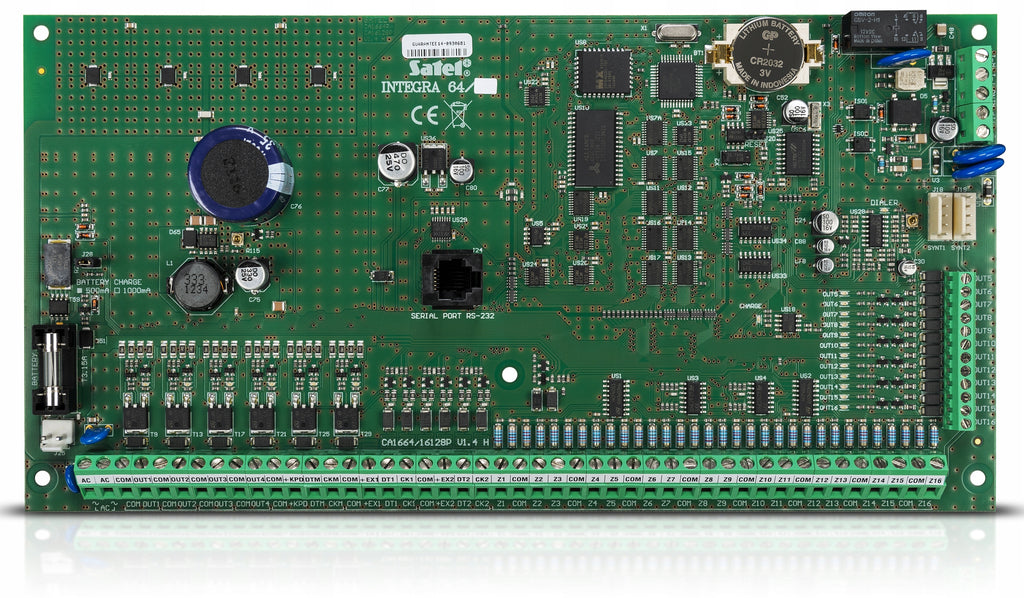

1. INTEGRA 64 - control panel motherboard from 16 to 64 inputs / outputs

Advanced control panels offering, in addition to alarm functions, also the possibility of implementing home automation systems and access control. Thanks to a wide range of expansion modules, their capabilities can be adapted to current needs – from small systems to extensive installations. A big advantage of INTEGRA control panels are their communication capabilities in combination with additional modules – GSM and TCP/IP.

• support from 16 to 64 inputs
• possibility of dividing the system into 32 zones, 8 partitions
• Support 16 to 64 programmable outputs
• Communication buses for connecting keypads and expansion modules
• built-in telephone communicator with monitoring, voice notification and remote control
• Operation of the system using LCD keypads, zone keyboards, remote controls and proximity cards and remotely using a computer or mobile phone
• 64 independent timers for automatic control
• Access control and home automation functions
• memory of 5887 events with print function
• Support up to 192+8+1 users
• RS-232 port - RJ socket
• possibility of updating the software using a computer
• built-in switching power supply with a capacity of 3 A with functions: battery charging and diagnostics
• option not to report possible problems with connection to the SATEL server as a failure

Technical data:

• Environmental Class: II
• Protection Class: S
• Maximum Battery Capacity: 24 Ah
• Control panel power supply voltage (±10%): 13,8 V DC
• Load capacity of low current programmable outputs: 50 mA
• Load capacity of high current programmable outputs (±10%): 3000 mA
• Power Supply Current Capacity: 3 A
• Electronics Board Dimensions: 264 x 134 mm
• Operating temperature range: -10...+55 °C
• Motherboard supply voltage (±15%): 20 V AC, 50-60 Hz - from the recommended 60VA transformer
• Standby Current Consumption: 149 mA
• Maximum current consumption: 337 mA

2. INT-TSI-B - keypad - touch screen 7" - housing color BLACK.

Characteristic:

• The INT-TSI manipulator is a real control center for an intelligent alarm system. Thanks to the possibility of adjusting the interface individually for each user, it is an excellent solution both for people who expect simple operation as well as advanced users using the extensive functionality of the system.
• Capacitive glass touch screen with 7" display
• graphical, intuitive user interface with the possibility of individual personalization for each user
• the ability to choose from several graphic designs
• MACRO functionality that allows you to perform sequences of actions with a single key
• the ability to view images from IP cameras (MJPG after HTTP and in v1.04: MPEG-4, H.264 after RTSP)
• An additional keypad can be connected to each keypad connected to the bus via Ethernet – which gives the possibility of doubling the number of keypads in the system
• A wide range of dedicated widgets with various functions, m.in. weather widget
• Scaling widget size
• ability to present the state of the system when a screensaver is displayed
• photo frame function
• the ability to save user interface configuration directly from TSI Builder to the keypad over Ethernet
• available in white (INT-TSI-W) and black (INT-TSI-B)

Technical data:

• Supply voltage (±15%): 12 V DC
• Operating temperature range: -10°C...+55°C
• Standby Current Consumption: 500 mA
• Maximum current consumption: 620 mA
• Weight: 430 g
• Maximum humidity: 93±3%
• Environmental class according to EN50130-5: II
• Supported memory cards: microSD, micro SDHC
• Housing dimensions (width x height x thickness): 196 x 129 x 22 mm

Technical data:

• Supply voltage (±15%)12 V DC
• Operating temperature range -10°C...+55°C
• Current consumption in standby 350mA
• Maximum current consumption 450mA
• Maximum humidity 93±3%
• Environmental class according to EN50130-5II
• Degree of protection according to EN 50131Grade 3
• Supported microSD, micro SDHC memory cards
• Housing dimensions (width x height x thickness)196 x 129 x 22 mm
• Weight400 g

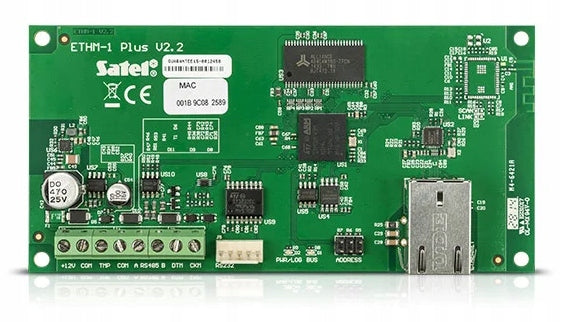

ETHM-1 Plus

Ethernet communication module

The ETHM-1 Plus communication module offers the possibility of using Ethernet communication in control panels from the following families: INTEGRA, INTEGRA Plus and VERSA. It enables monitoring and remote programming of control panels. It offers the functionality of remote control of the system via the Internet using a computer, tablet or smartphone.

• cooperation with emergency control panels from families: INTEGRA, INTEGRA Plus and VERSA
• TCP/IP or UDP monitoring
• possibility of cooperation with INT-GSM module (ETHM-1 Plus version 2.05 or higher) or INT-GSM LTE (ETHM-1 Plus version 2.07 or higher):

  Dual Path Reporting, compliant with EN 50136

  spare communication path

• programming with DLOADX
• INTEGRA system supervision with GUARDX
• system support from the web browser
• Operation of the system from a mobile phone using the application: INTEGRA CONTROL, VERSA CONTROL
• ability to notify events via e-mail (INTEGRA Plus* and VERSA only)
• data transmission encoding
• Support for automatic DHCP address configuration
• open protocol for integration with other systems via TCP/IP (details available in the documentation below)

For remote connection to the INTEGRA control panel required DLOADX in min v1.12.004 version

* available with INTEGRA Firmware v1.13

Technical data:

Supply voltage (±15%) 12 V DC

Operating temperature range -10...+55 °C

Current consumption at standby 70 mA

Maximum current consumption 80 mA

Weight 64 g

Maximum humidity 93±3%

Dimensions 68 x 140 mm

Environmental class according to EN50130-5 II

3. OPU-3 P plastic housing - surface mounted.

Note! - the base (rear) of the housing can also be flush-mounted.

OPU-3 P is a durable surface-mounted housing, made of polystyrene in white. Thanks to its aesthetic appearance, it is possible to use it in utility rooms, in plain sight. The base of the housing can be embedded into the wall, so that the housing itself will take up less space. The universal nature and extensive dimensions of the housing allow the installation of alarm control panels, expansion modules, communication modules, controllers and many other devices inside it. The use of special dismantled mounting panels further facilitates the installation and maintenance of system components. OPU-3 P is equipped with double tamper protection: against opening the lid and detachment from the wall.

The housing has a place for mounting 40 or 60 VA mains transformers and a 12V battery with a maximum capacity of 18Ah.

It does not block or weaken the radio signal, so wireless devices with antennas can be placed inside it.

Data:

• Tamper protection against opening and detachment from the ground
• dismantled two mounting plates for easy system installation and maintenance
• possibility of installing wireless devices with antennas inside the housing
• space for transformer: 40 or 60 VA and battery max. 18Ah
• possibility of mounting the APS-412 power supply in place of the transformer
• dimensions: 324 x 382 x 108 mm
• weight 1850 g
• included are all mounting accessories: pegs, screws, tamper switches, etc.

The presented photo of the case with accessories is illustrative.

The picture shows a profiled battery support sheet that has been replaced with a strong plastic base.

4. AWT682 transformer 230/18/20VAC - 60VA
