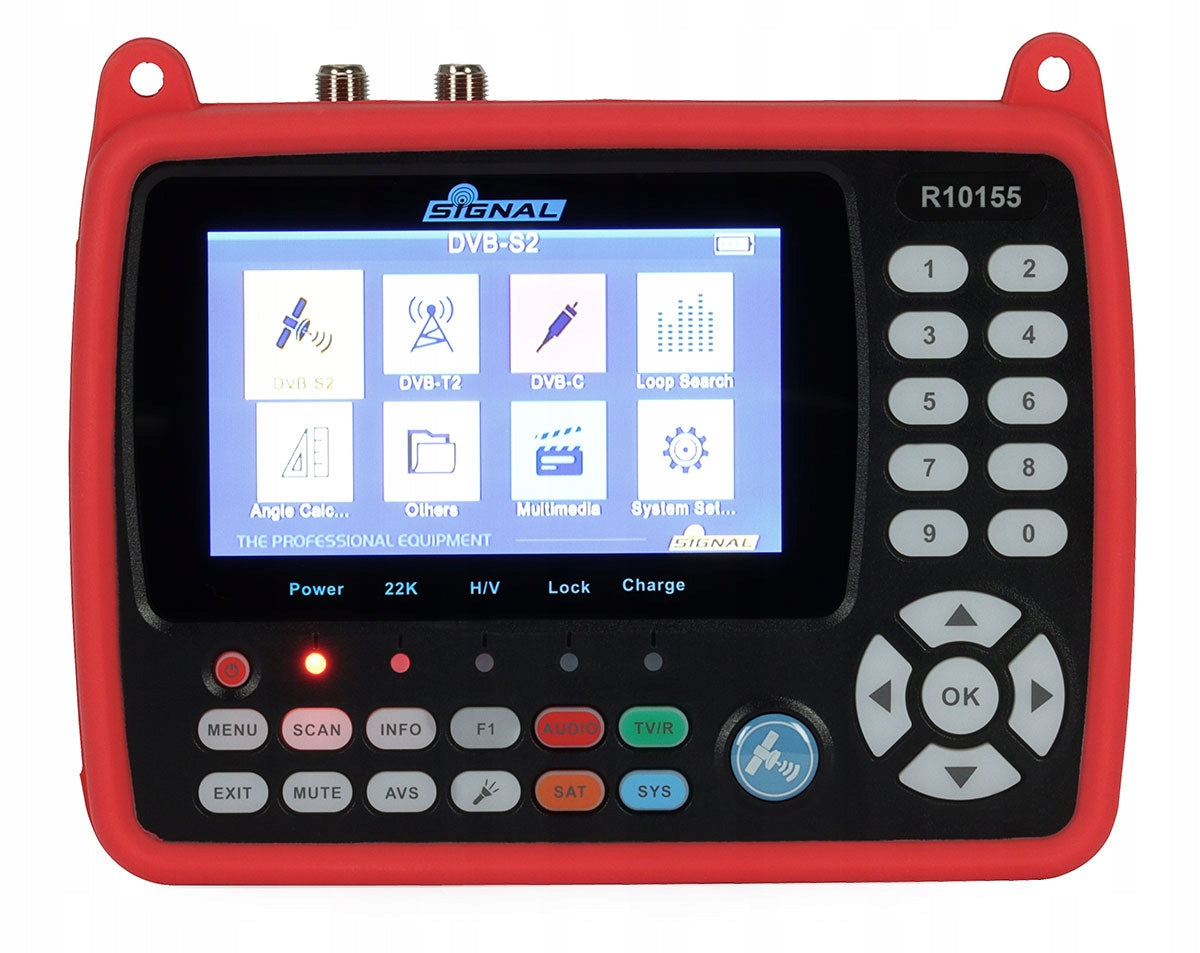

Signalo matuoklis SIGNAL ST-5155, DVB-T2 (HEVC 10 bit), DVB-C, DVB-S2X/S2/S

Trumpai apie prekę

Prekė: Signalo matuoklis SIGNAL ST-5155, DVB-T2 (HEVC 10 bit), DVB-C, DVB-S2X/S2/S. Kategorija: Matuokliai, signalo stiprintuvai.

• Gamintojas: Signal
• Modelis: ST-5155

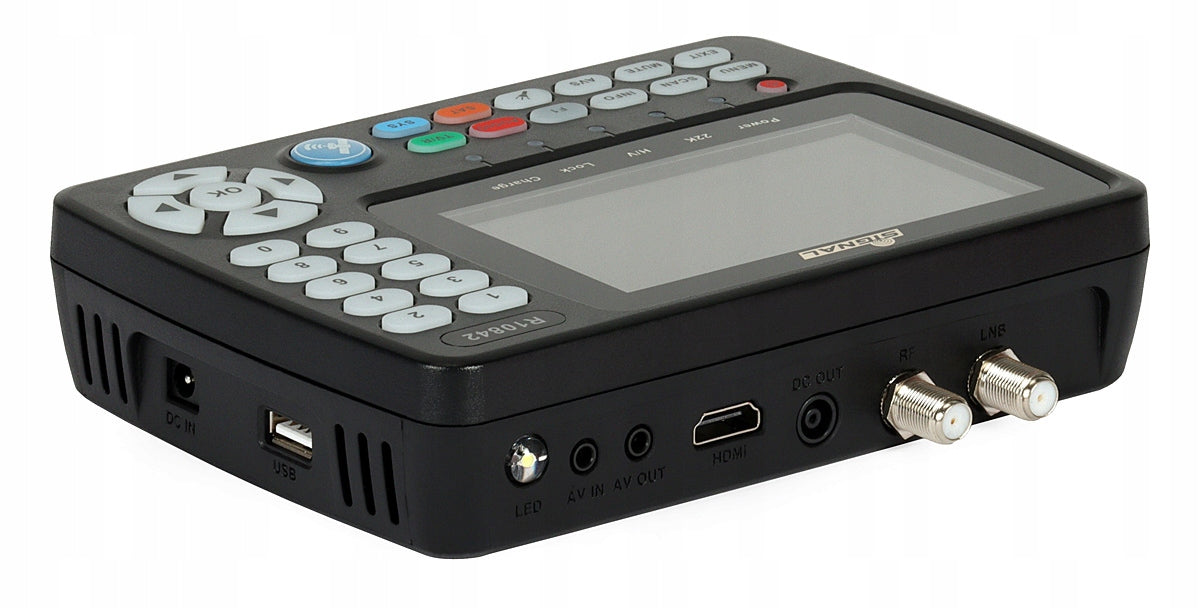

View from the connector side: LNB signal - S2X/S2/S input, RF signal - DVB-T/T2/C input, USB, HDMI (TV signal output to external monitor, TV)

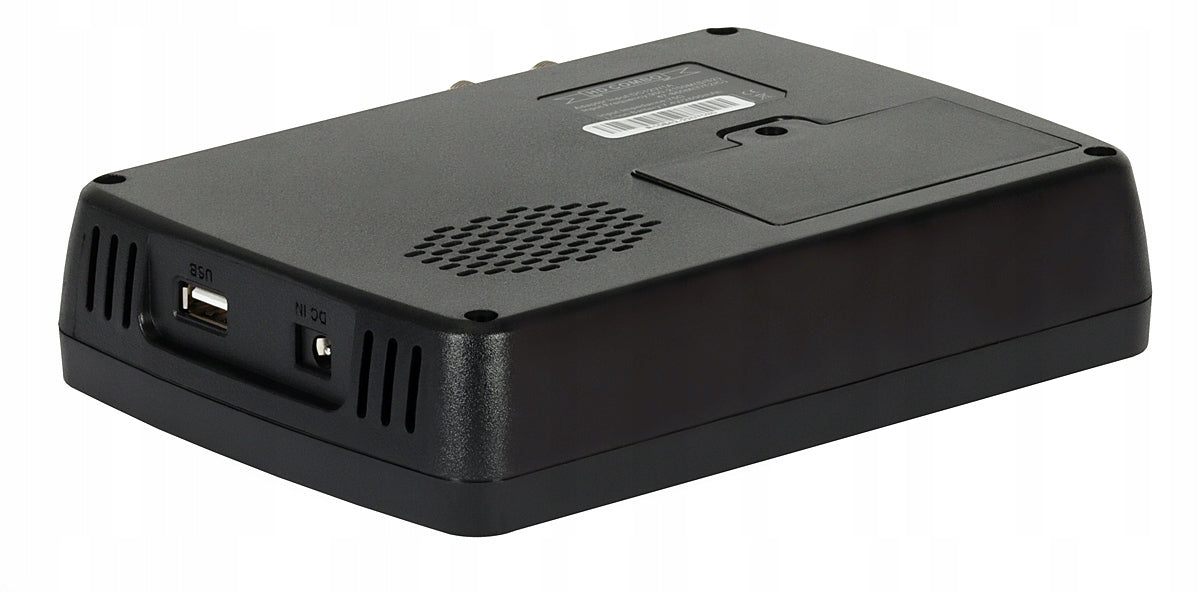

View from the back

Accessories included

Distinguishing features:

• DVB-T/T2/C and DVB-S2X/S2/S signal measurement (fully compatible with MPEG-2/MPEG-4)
• DVB-T2 support with H.265/HEVC
• preview of the received channel on the LCD display
• embedded video decoder: MPEG-2/H.264/H.265/HEVC 10 bit
• percentage indication of signal strength and quality
• measurement of all necessary signal parameters such as: signal level expressed in dBμV, C/N, BER, MER
• Li-On battery 7.4 V/2600 mAh
• possibility of editing satellite, transponder, frequency
• Support for DiSEqC: 1.0, 1.1, 0/22 kHz Tone, Unicable (dSCR), wideband
• USB connector (supported file format: wma,mp3,mp4,avi,jpg,jpeg,bmp,img)
• Short circuit protection in satellite track (LNB)

The ST-5155 signal meter allows you to measure DVB-S2X/S2/S (HD) satellite signal, DVB-T/DVB-T2 (HD) terrestrial TV signal in HEVC 10 Bit compression and DVB-C cable. It has a color LCD display made in TFT technology. Ideal for running any TV/SAT installation. It allows you to set any terrestrial and satellite TV antenna, tuning filters, selecting amplifiers, etc. The meter has a built-in tuner for constant viewing of the set FTA channel. Preview of channels on the screen and intuitive operation is a guarantee of quick implementation of each installation. An undoubted advantage of the device is a clear menu, which facilitates the work of people who do not have much experience in this field. The external HDMI output allows you to connect the signal source and display the image on the TV via an HDMI cable. The device allows you to measure such parameters as: signal level expressed in dBμV, C/N, MER.

The HEVC 10-bit video codec is a high-performance video codec that uses 10 bits to represent the color of each pixel instead of the standard 8 bits. This information provides more accurate color reproduction and image quality, but also requires more bandwidth. DVB-T2 digital terrestrial television provides for the possibility of using 10-bit encoding. The built-in 10-bit HEVC video decoder in the R10155 allows you to view channels in both 8-bit and 10-bit HEVC standards.

Attention! Measurement of signals from the Wideband satellite converter is possible in the IF 950-2150 MHz band.

Technical data:

Type of product: Meter

Type: Combo

Model: ST-5155

Brand: Signal

Measured parameters: Signal power level, MER, BER, C/N

Preview of channels:

• Display [px]: 800x480
• Supported video codec: HEVC, MPEG-2, MPEG-4/H.264, H.265
• Supported audio codec: Dolby AC3/AC3+, MPEG-1/2 Layer I/II/III

DVB-T/T2/C tuner:

• Frequency range [MHz]: 48...862
• Signal level [dBμV]: > 30 (DVB-T/T2), > 42 (DVB-C)
• Antenna power supply [V]: 5, 12
• Modulation: QPSK, 16QAM, 64QAM, 256QAM
• Connector: F socket

DVB-S/S2 tuner:

• Frequency range [MHz]: 950...2150
• Signal level [dBμV]: 44...85
• Supported converters: Fullband, Unicable (dCSS), Unicable (dSCR), Wideband
• DiSEqC: Yes - 1.0, 1.1
• Converter power supply [V]: 13/18 (max. 350 mA)
• modulation: QPSK, 8PSK, 16APSK, 32APSK
• Connector: F socket

Connections: LNB, RF, USB, DC IN, DC OUT, output. HDMI, in. /howl. AV

Battery: Li-Ion 7.4 V: 2600 mAh

Power consumption: max. 10 W

Additional connectors: A/V, HDMI, USB

Accessories: AC charger

Mass: 1kg

Dimensions: 170x120x40 mm
