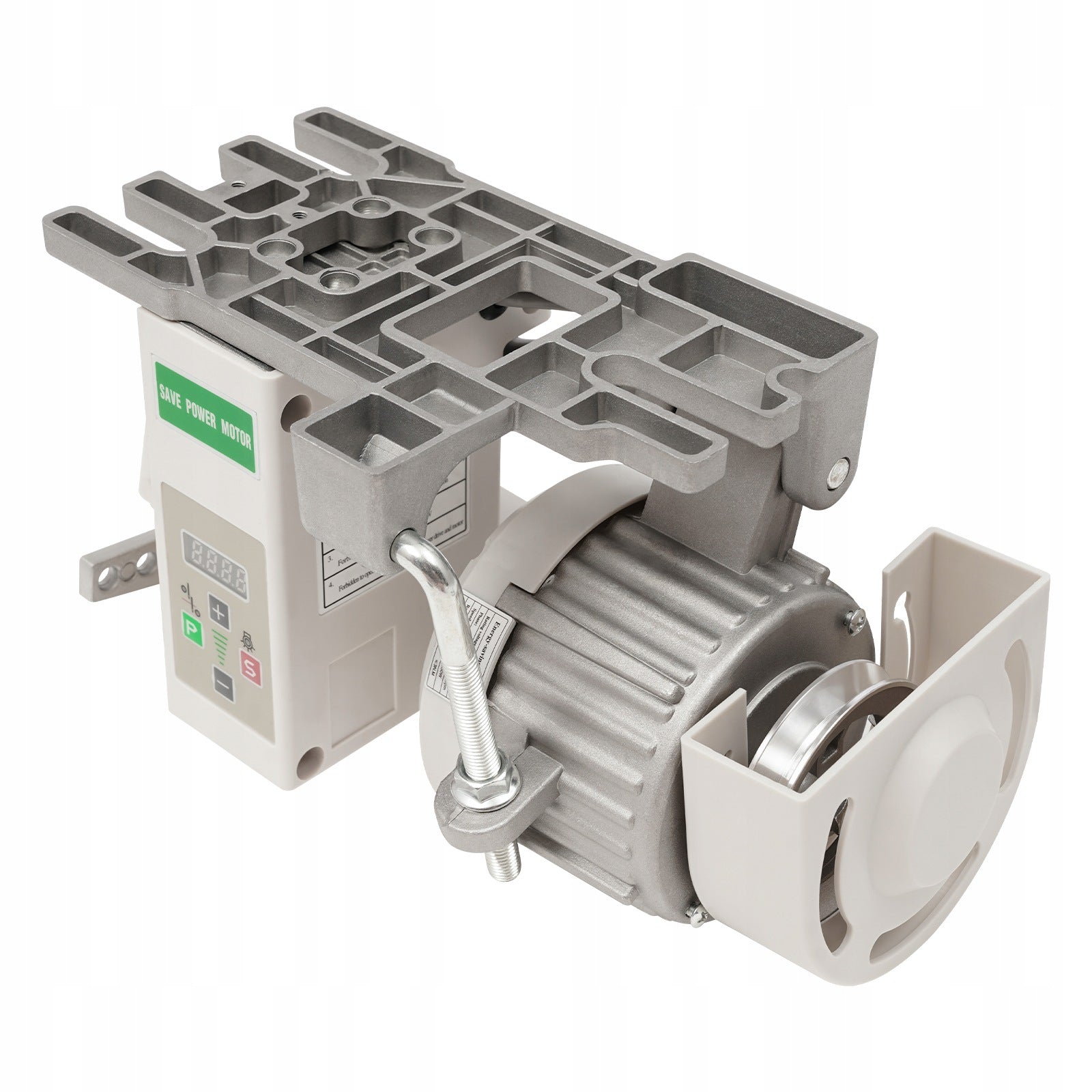

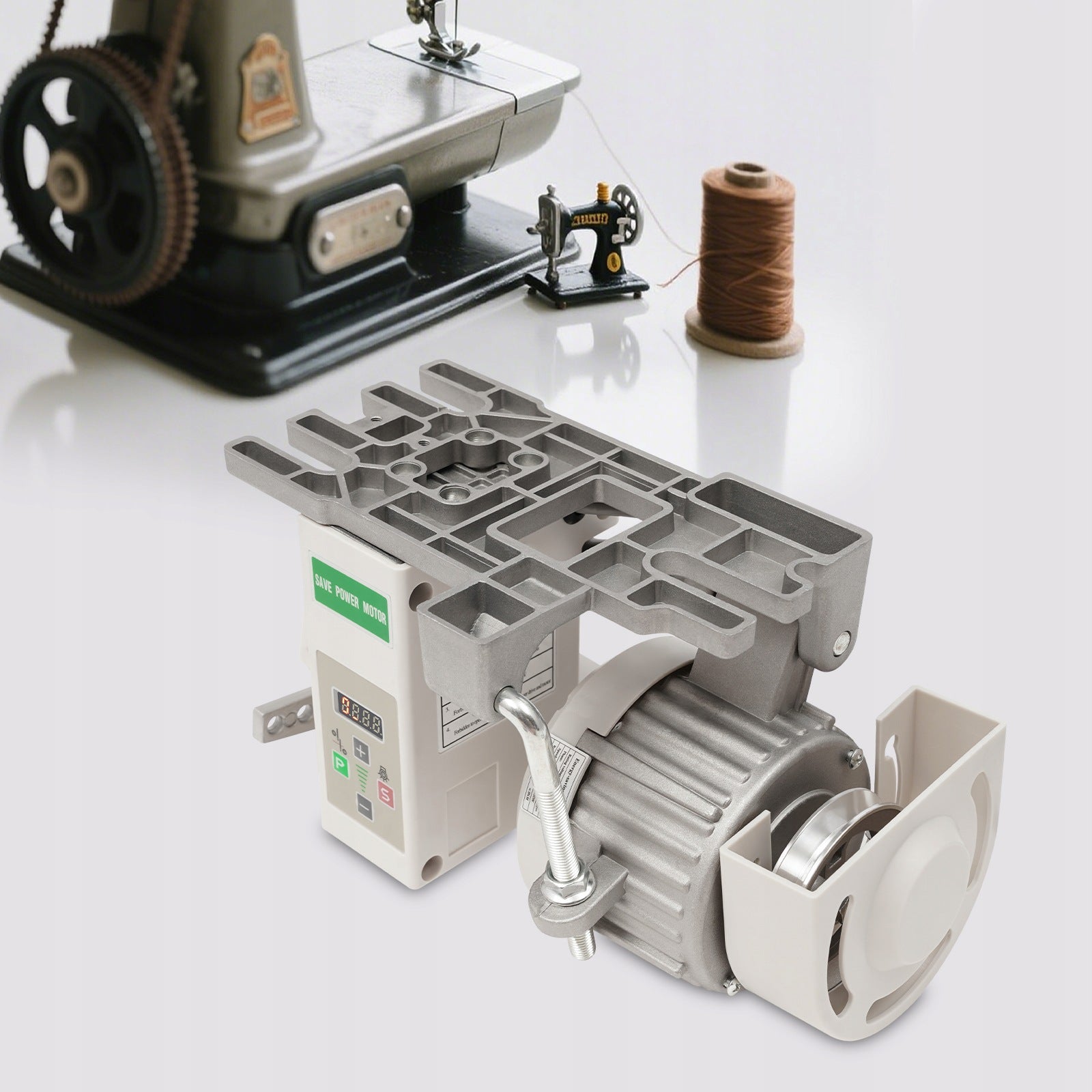

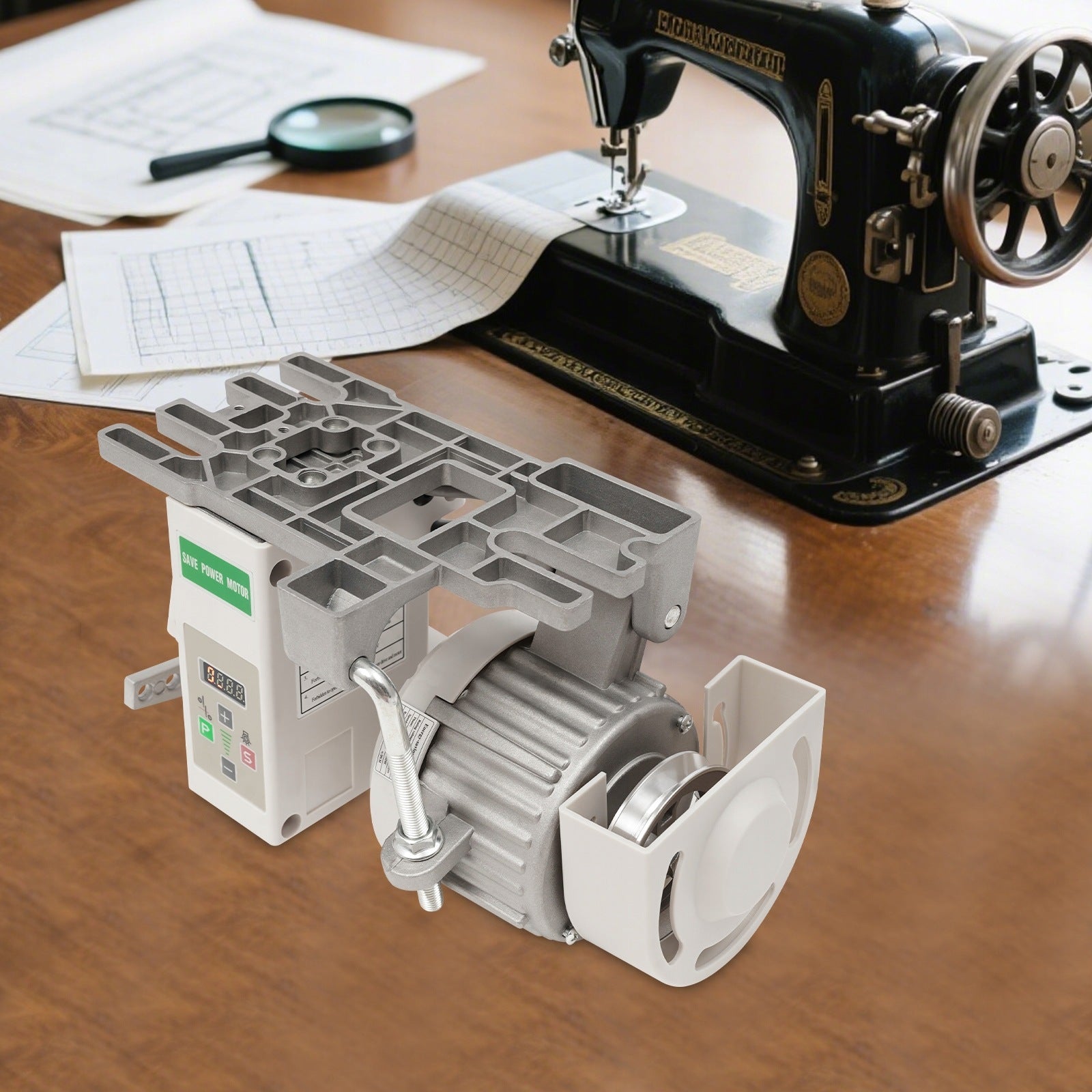

Siuvimo mašinos variklis 550W, bešepetėlis, energiją taupantis servo

Trumpai apie prekę

Prekė: Siuvimo mašinos variklis 550W, bešepetėlis, energiją taupantis servo. Kategorija: Siuvimo mašinos.

• Gamintojas: no brand
• Modelis: ELECTRIC SEWING MACHINE MOTOR

✅Application

The product is suitable for sewing machines with belts attached and is suitable for home textiles, industrial manufacturing, and more. It is suitable for industrial sewing equipment such as flat sewing machines, electric sewing machines, straight stitch machines, high head machines, blind stitch machines, zigzag stitch machines, synchronous carriages, double-needle machines, herringbone carriages, and hemming machines.

✅Specifications

• Color: White
• Material: Plastic, Aluminum, Copper
• Motor Type: Brushless Servo Copper Motor
• Style: Modern
• Power Source: Corded Electric
• Plug Type: EU Standard
• Voltage: AC 220V
• Rating Power: 550W
• Frequency: 50-60HZ
• Motor Speed: 200-6000rpm
• Motor Torque: ≤3 N.M
• Horsepower: 3/5HP
• Insulation Class: F
• Control Mode: Foot Pedal Speed Regulation, Adjustment Keys
• Power Cable Length: About ＜3m/9.84ft
• Product Size: 27*11*15.5 cm/10.63*4.33*6.1 in
• Package Size: 28.5*19.5*16 cm/11.22*7.68*6.3 in
• Gross Weight: 3.8 kg/8.38 lbs
• Net Weight: 3.61 kg/7.96 lbs

✅Package Included

• 1*Sewing Machine Motor
• 1*Belt Cover
• 1* English Manual
• All Accessories for Assembly

✅Notes

1. Please carefully read the English instruction before use, and pay particular attention to the safety precautions therein.

2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

✅Details

Power Switch: The independent power switch can quickly cut off the power when needed, providing excellent safety. It also offers convenience and ease of control management.

Long Power Cord: This design reduces usage restrictions and further protects your safety.

Belt Cover: The belt cover can effectively prevent the belt and other moving parts from being exposed, reducing the risk of accidental contact and injury. It also helps to keep dust and dirt out, reduces noise levels, improves efficiency, and enhances aesthetic appeal.

✅Key Features

Premium Material: It is mainly made of high-class aluminum, plastic, and copper, which is impact-resistant, heat-resistant, and scratch-resistant, with high durability and reliability, ensuring long-term use.

High Efficiency: With an output of up to 550W and a speed of up to 6000 rpm, this product will run efficiently on most sewing machines.

Adjustable Speed: The high-sensitivity governor and the buttons allow you to adjust the speed from 200-6000rpm to meet your different sewing needs.

Security Protection: It has overcurrent, overload, overvoltage, undervoltage, locked rotor protection, and short-circuit protection, ensuring stability and safety under long-time operation.

Energy-saving:  By optimizing the design of the copper coil, the product has achieved a significant improvement in energy efficiency. Compared with similar mechanical motors, its energy consumption has been greatly reduced, achieving a higher energy utilization efficiency.

Low Noise: The brushless copper motor ensures that this product operates with low noise, ensuring a relatively quiet sewing environment while not causing interference to others. The connection part adopts one-piece casting, which is more solid and makes less noise.

Thoughtful Design: The aluminum bracket is lightweight due to its low density, and has corrosion resistance and high strength, making the product easy to install and move. When you press the adjustment keys(＋, -),the display briefly shows the speed. When you don't press the adjustment keys, zero is displayed on the display screen.
