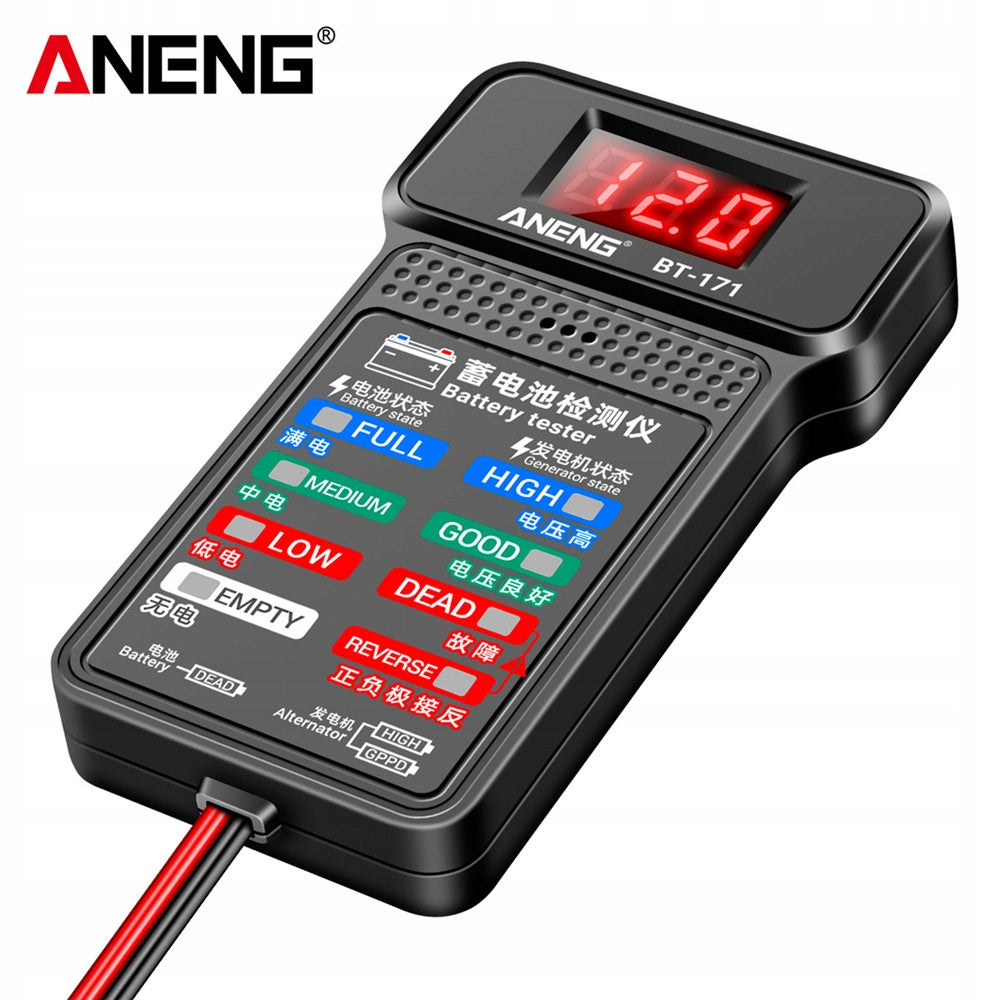

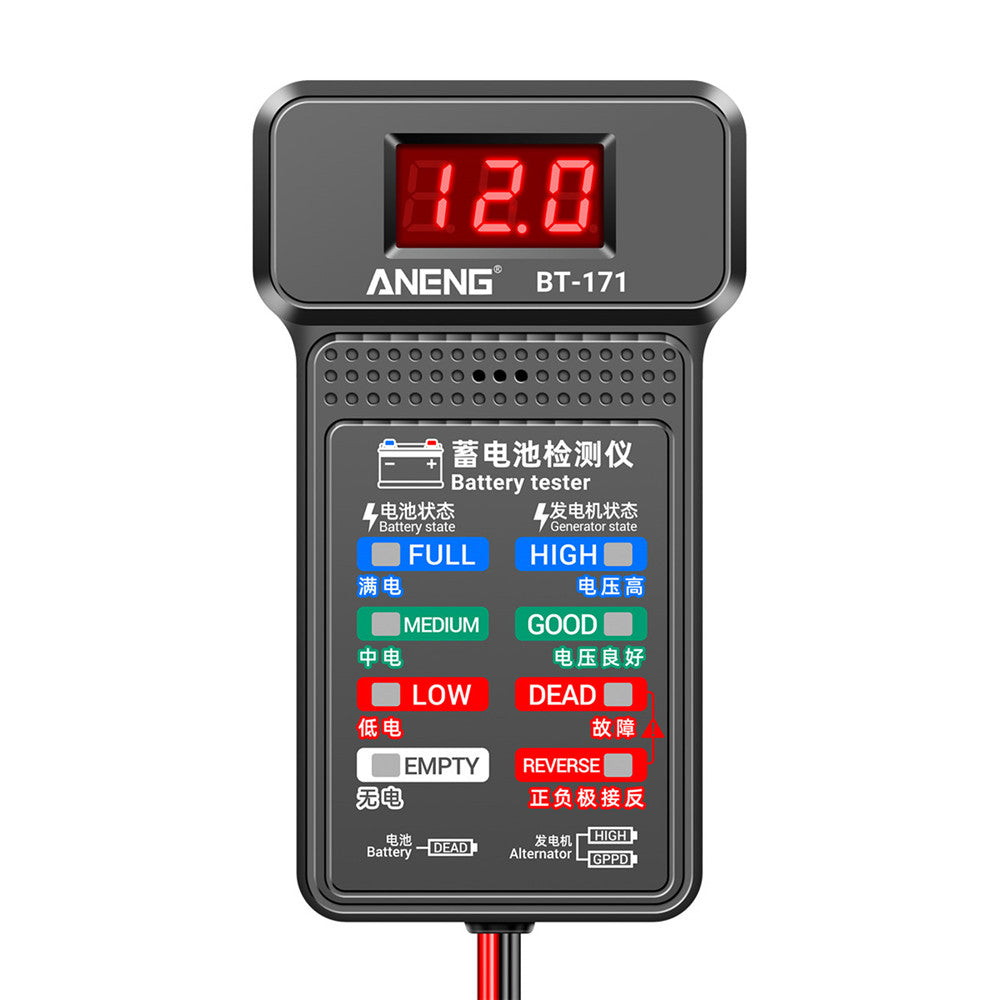

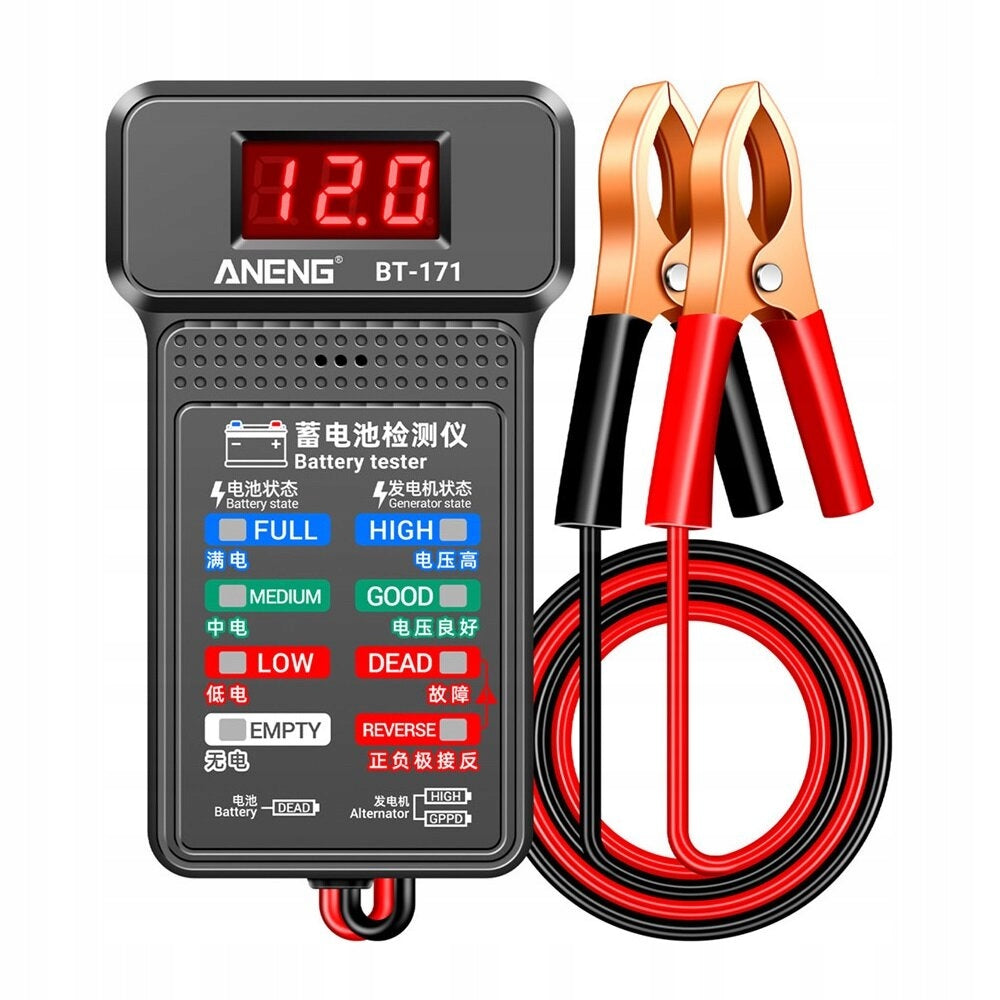

Skaitmeninis 12V akumuliatoriaus testeris ANENG BT-172 su LCD ekranu

Trumpai apie prekę

Prekė: Skaitmeninis 12V akumuliatoriaus testeris ANENG BT-172 su LCD ekranu. Kategorija: Baterijų testeriai.

• Gamintojas: Aneng
• Modelis: BT171

Battery voltage meter with LED display and battery status indicator

Designed for checking the voltage of a 12V battery or the voltage of a charging system

With LED display and battery status indicator

Features rubber housing with crocodile clamps for connection

With reverse connection alarm and overvoltage protection function

• FULL: battery in good condition
• MEDIUM: should be recharged
• LOW: battery almost discharged, be sure to charge
• EMPTY: battery completely discharged
• HIGH: too high charging voltage
• GOOD: suitable charging voltage
• REVERSE: replaced polarity +/-

Connect the instrument correctly to the battery terminals, the red contact is connected to the positive terminal "+", the black contact is connected to the negative terminal "-"

If the reverse connection is connected, the LED display will not light up, the REVERSE indicator will light up and a warning signal will be displayed

When properly connected, the LED display will show the voltage of the tested battery in real time, and the LED indicator will light up, indicating the state of the battery

When testing the generator charging system, connect the battery tester and terminals correctly, then start the generator, the output voltage will be displayed on the LED display screen, and the right LED indicator will light up, indicating the status of the alternator

115 x 70 x 20 mm

Specifications
