Skaitmeninis 12V akumuliatoriaus testeris su LCD ekranu

Trumpai apie prekę

Prekė: Skaitmeninis 12V akumuliatoriaus testeris su LCD ekranu. Kategorija: Baterijų testeriai.

• Gamintojas: Launch
• Modelis: BST-560

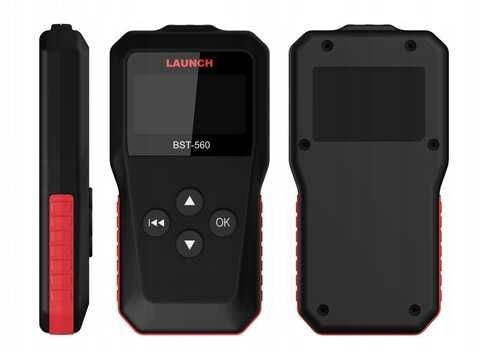

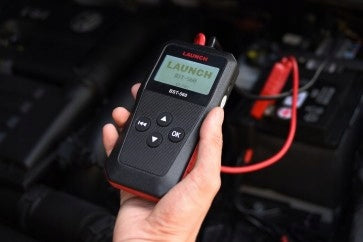

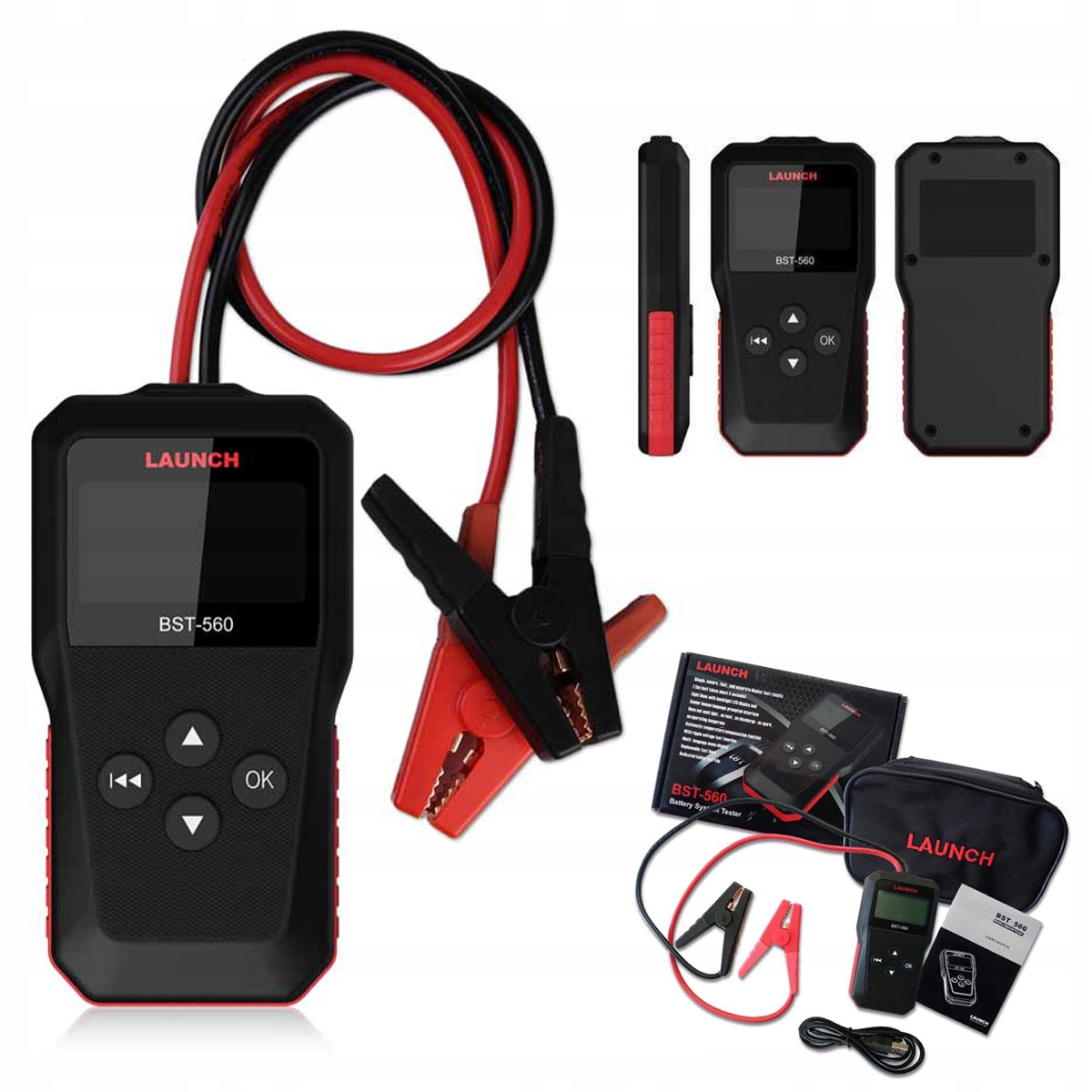

Launch BST-560 battery tester – professional diagnostic tool

Launch BST-560 is a modern, portable battery tester, supporting 12 V voltage. The device allows you to quickly and accurately assess the condition of the battery without having to charge it first.

A key advantage of this model is the combination of ease of use with a wide range of diagnostic functions. The Launch BST-560 battery tester allows for immediate analysis of the condition of the battery, which makes it an indispensable tool in every car workshop and in stores dealing with the sale of batteries.

Additional functionality, including testing of the charging system and boot system, significantly increases the capabilities of the device.

Supported types of tests:

• Measurement of voltage pulsation;

• Measurement of electrical conductivity;

• Battery charging system test;

• Diagnosis of the battery itself;

• Test of the start-up system;

• Battery voltage measurement.

• Battery voltage: 12 V

• Application: Passenger cars, light commercial transport

• Support for lead-acid, AGM, gel batteries

• Testing the start-up and charging system

• Inrush current measurement range (CCA): 100-2000

• Test cable length: 0,5 m

• Screen: LCD with backlight, 4-line

• Connections: USB

• Working temperature: -20°C – 55°C

• Connection type: Wired

Battery Testing Standards:

• BCI: 100-2000

• CA: 100-2000

• MCA: 100-2000

• JIS: 26A17-245H52

• DIN: 100-1400

• IEC: 100-1400

• EN: 100-2000

• SAE: 100-2000

• GB: 30-220 Ah

Multi-language support, the user can choose different languages, including:

Polish, English, Russian, French, Italian, German.

⠀

Instruction in Polish, Czech, Slovak and Hungarian.

Key features of the device:

✔ No need to disassemble or disconnect the battery from the vehicle – quick and convenient diagnostics.

✔ Instant test results – accurate measurements within seconds.

✔ Accurate identification of damaged battery cells – increases the effectiveness of diagnostics.

✔ Measurement of battery charging voltage – control of charging status.

✔ Safety of use – the tester does not cause sparks, heating or discharging of the battery.

✔ The ability to test low voltage batteries – the device operates even at voltages below 8 V.

✔ Export of test results via USB – easy archiving of diagnostic data.

✔ Automatic temperature compensation – precise results in different climatic conditions.

✔ Advanced battery diagnostics – continuous and repeatable testing mode.

✔ Intuitive menu in many languages – simplicity of use for every user.

Launch BST-560 is a professional tool that will work both in car workshops and among private users who want to take care of the condition of their battery.

LAUNCH Tech Co was founded in 1992 as the first company in China to develop, manufacture and sell diagnostic equipment and workshop equipment.

Today, LAUNCH has more than 20 years of success, millions of devices sold, innovative technologies and more than 80 patents in the field of vehicle diagnostics and repair. The company has won numerous awards and ISO9001:2000 quality certificate, and its products are valued all over the world.

Specifications
