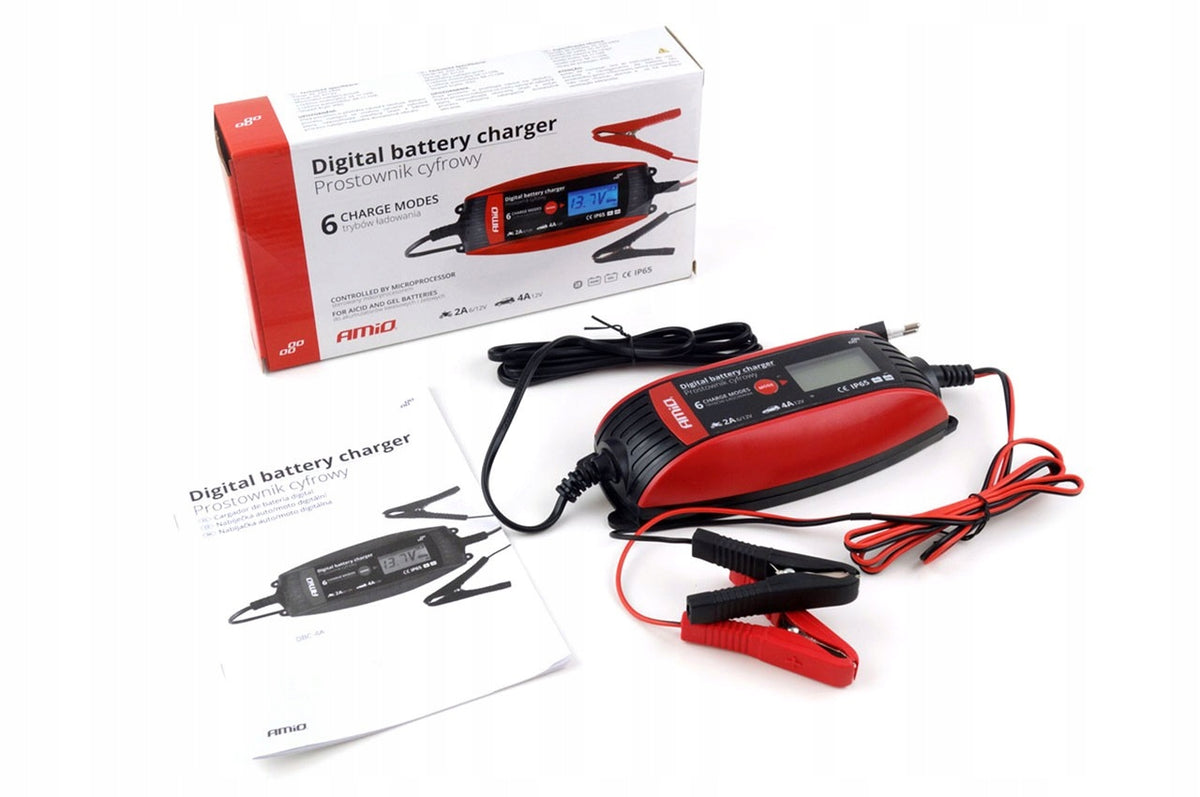

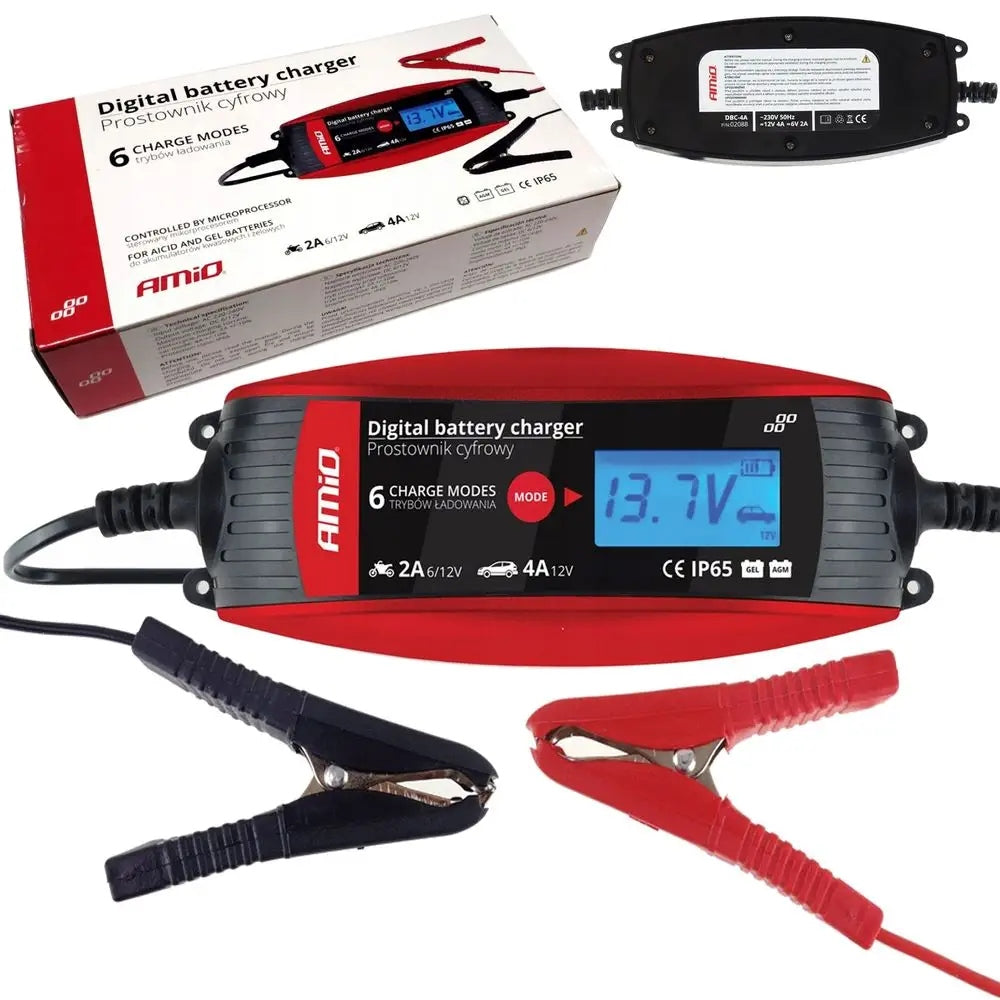

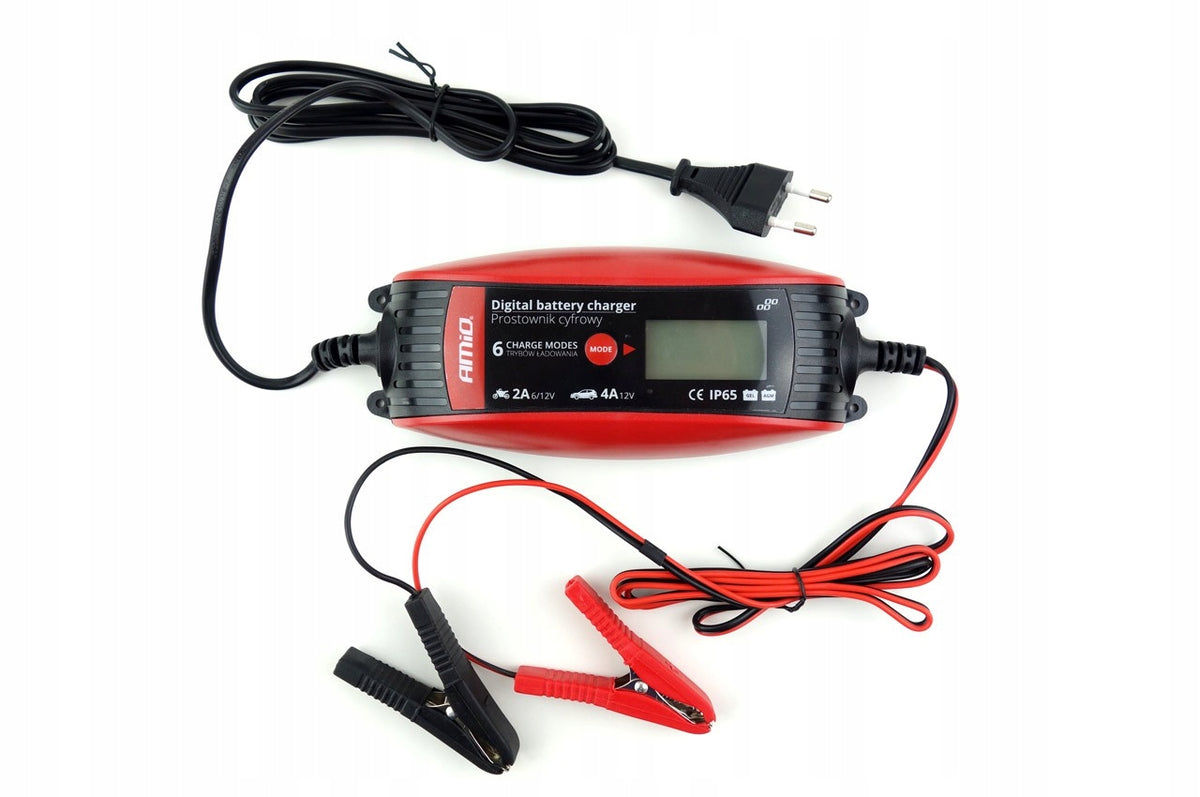

Skaitmeninis akumuliatoriaus įkroviklis 6V/12V, 2A/4A, AMIO-02088

Trumpai apie prekę

Prekė: Skaitmeninis akumuliatoriaus įkroviklis 6V/12V, 2A/4A, AMIO-02088. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Amio
• Modelis: DBC-4A

➡ The DBC-4A rectifier can charge lead-acid batteries (regular and MF), Ca/Ca, AGM and gel batteries. It is a microprocessor rectifier, made in accordance with the IP65 standard, which means resistance to dust and splashes and low pressure water jet dousing. It has protection against:

• short circuit
• reverse battery connection (reverse polarity)
• open circuit
• protection against sparks
• battery overcharging
• rectifier overload
• overheating of the rectifier

➡ Specification:

• Supply Voltage 230V 50 Hz
• Output Voltage: 6/12V
• Power consumption: about 60W (1W standby)

➡ Maximum charging voltage:

• 7.4V (6V batteries)
• 14.7V (12V batteries)

➡ Maximum charging current :

• 2A +/- 10%,
• 4A +/- 10%

➡ Supported battery capacities:

• 6V - 1,2Ah to 14Ah
• 12V - 1,2Ah to 14Ah and 14Ah to 120Ah

Degree of protection: IP65

6 charging programs switched by the "WORKING MODE"

Display backlight

Gel batteries with a capacity of up to 14Ah used in motorcycles and scooters should be charged by selecting a program with the motorcycle icon on the display.

Charging with more current can damage the battery.

➡ CHARGING MODES:

6V to 14Ah batteries

• 7.2V to 2A
• 7.4V to 2A (low temperature charging)

12V to 14Ah batteries and deeply discharged

• 14.3V to 2A
• 14.7V to 2A (low temperature charging)

12V batteries over 14Ah

• 14.3V to 4A
• 14.7V to 4A (low temperature charging)

It shows the battery voltage and the degree of charge on an ongoing basis and adjusts the charging current depending on its needs. Once charged, it displays a FULL message and maintains the voltage on the battery.
