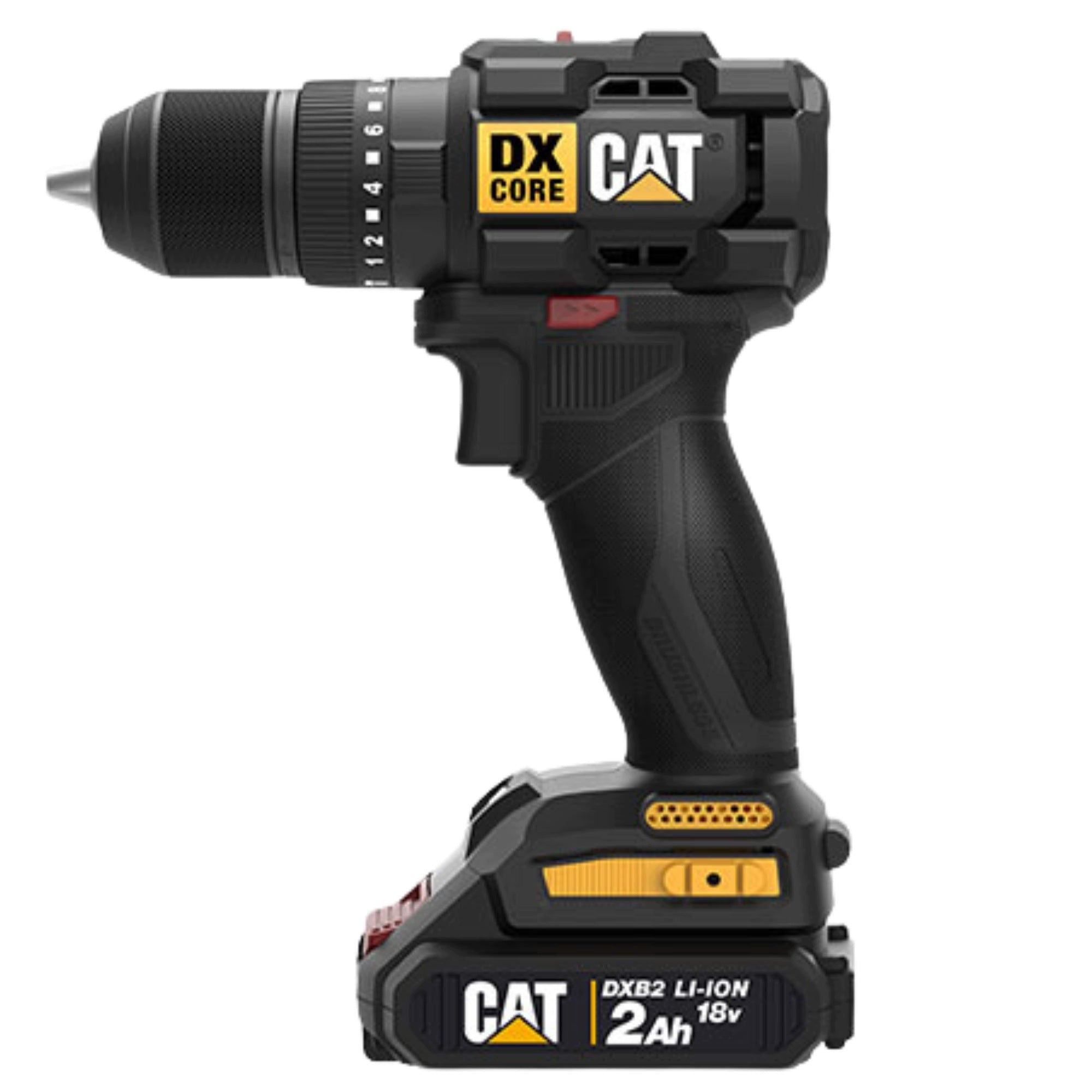

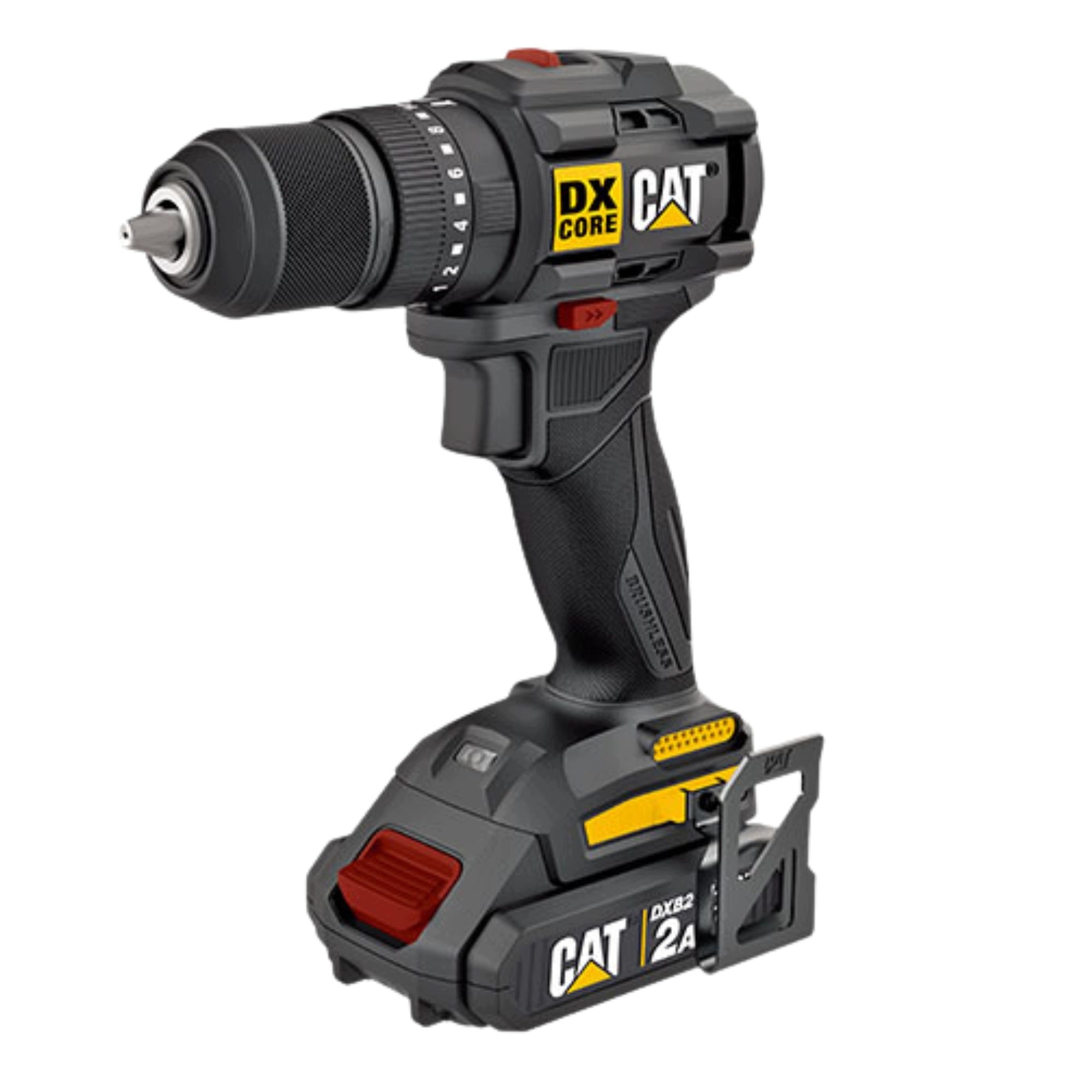

Smūginis gręžtuvas CAT DX1010, 18V, 250 Nm

Trumpai apie prekę

Prekė: Smūginis gręžtuvas CAT DX1010, 18V, 250 Nm. Kategorija: Gręžimo staklės.

• Gamintojas: CAT
• Modelis: DX1010

Impact Wrench CAT DX7070B 18V 250 Nm

CAT DX7070B is an 18 V cordless impact wrench designed for tightening and unscrewing bolts, nuts and other threaded connections. The maximum torque of 250 Nm makes the tool well suited to the needs of assembly, service and workshop work, where it is important to quickly overcome the resistance of the connection without manually applying a lot of force. The impact mechanism supports rotation when working with more firmly embedded fasteners, so that the user can work more efficiently and with less effort.

No battery or charger included!

THE MOST IMPORTANT PARAMETERS

• Type: wireless impact wrench CAT DX7070B
• Voltage: 18 V
• Maximum torque: 250 Nm
• No-load speed: 0 – 2900 rpm. /min
• Frequency of stroke: 0 – 3000 thighs. /min
• Handle size: 1/2" (13 mm)
• Weight of the device: 1,33 kg
• Speed control: smooth, with trigger
• Brake: yes
• Direction of rotation: right/left
• On/off switch lock: yes, center position of direction switch
• Workplace lighting: LED
• Overload protection: yes
• Battery temperature protection: electronic shutdown after exceeding 75°C

Speed 0 to 2900 rpm min and up to 3000 thighs. /min – pace adjusted to the task

Impact wrench CAT DX7070B reaches a speed without load from 0 to 2900 rpm. /min and stroke frequency up to 3000 thighs. /min. Such parameters allow you to quickly go through the subsequent stages of tightening and unscrewing, while maintaining control over the work. In practice, this means less time spent handling a single connection and more convenience for repetitive tasks, for example during assembly or service work.

Smooth speed control and brake – more control over tightening

The CAT DX7070B switch acts as a trigger with smooth speed control. The harder it is pressed, the more speed and torque the tool can generate. This makes it easier to start working with less intensity and gradually increase the power depending on the resistance of the screw or nut. When the trigger is released quickly, the brake function immediately stops the handle, which facilitates efficient transition between successive operating points and improves control over the tool.

1/2" (13 mm) handle – convenient work with caps

Model DX7070B is equipped with 1/2" (13 mm) handle, which allows you to use properly selected sockets. Installation and disassembly of the cap is carried out directly on the tool holder, which simplifies the preparation of the key for the next task. The cap is not indicated in the manual as part of the standard equipment, so it should be selected according to the work performed.

Changing the direction of rotation and switch lock – convenient operation

The rotation direction switch allows you to quickly switch from tightening to unscrewing. When it is placed in the middle position, the switch is locked, which reduces the risk of accidentally starting the tool when moving, putting away or changing accessories. This simple solution improves the comfort of everyday work and allows you to operate the key in a more predictable way.

LED light – better visibility of the workplace

Impact wrench CAT DX7070B is equipped with LED light. This solution helps to illuminate the work area when working in places with limited access to light, for example with elements located deeper in the structure or in shaded areas of the station. Better visibility of the screw or nut makes it easier to properly position the cap and start working precisely.

Overload and temperature protection – electronics control operating conditions

CAT DX7070B has overload protection. If the load becomes too high, the engine stops, which helps protect the components from the effects of working outside the proper range. In addition, the electronic system reacts to too high battery temperature. After exceeding 75°C, the tool is turned off until the temperature returns to the optimal range. For the user, this means additional support in protecting the power tool and power source during demanding tasks.

Low weight 1,33 kg and belt clip – more mobility

The CAT DX7070B weighs 1,33 kg. The low weight makes it easier to operate the wrench when working in different positions and reduces the load on the hand when moving the tool frequently between positions. The standard equipment of the DX7070B version includes a belt clip that can be attached to a belt or pocket. The battery and charger are not included with the DX7070B variant, so the user can choose the power supply elements according to their CAT 18 V system.

Specifications
