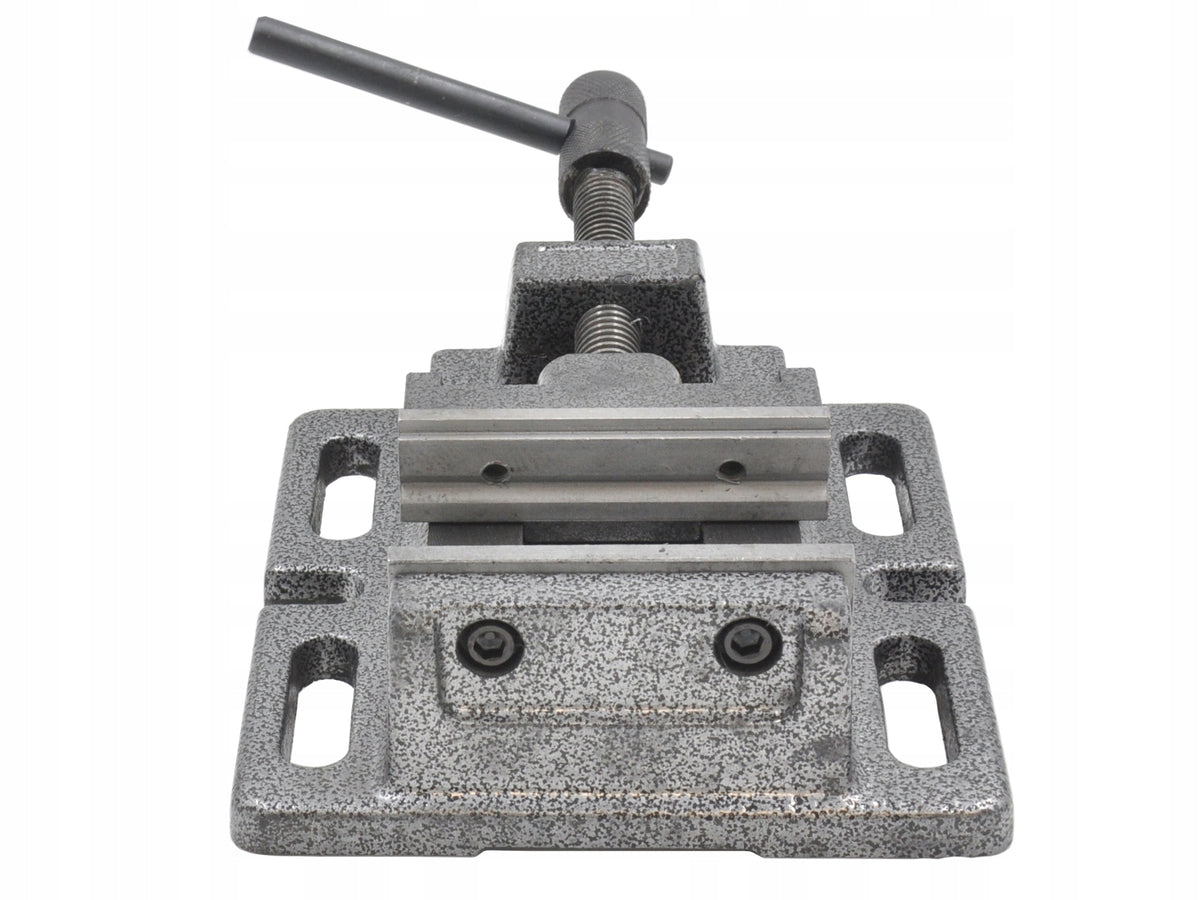

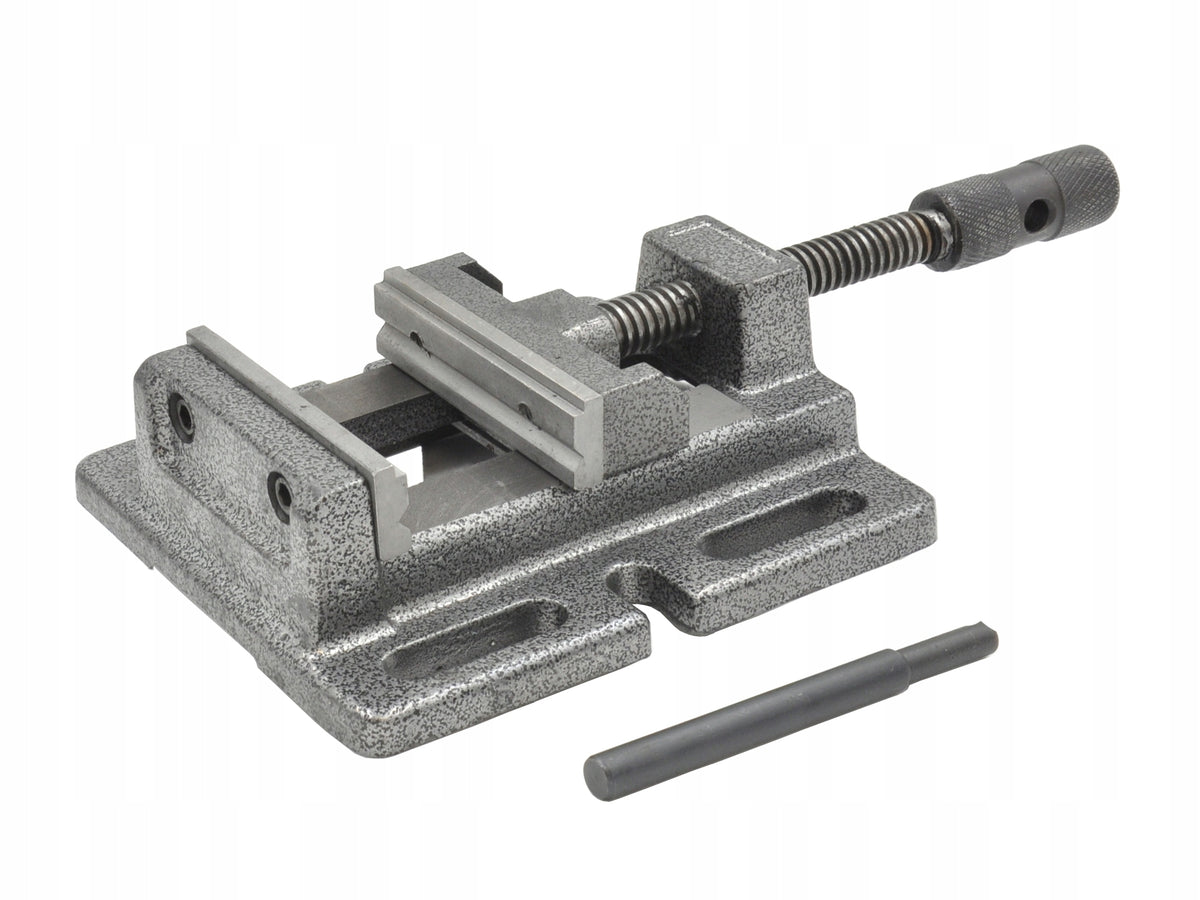

80 MM WORKSHOP DRILL TABLE VISE FOR DV 80/65 TABLE DRILL
80 MM WORKSHOP DRILL TABLE VISE FOR DV 80/65 TABLE DRILL Packaging status original
80 MM WORKSHOP DRILL TABLE VISE FOR DV 80/65 TABLE DRILL Manufacturer code DV 80/65
Lai tuvinātu, virziet kursoru virs attēla Noklikšķiniet uz attēla, lai tuvinātu
80 MM WORKSHOP DRILL TABLE VISE FOR DV 80/65 TABLE DRILL80 MM WORKSHOP DRILL TABLE VISE FOR DV 80/65 TABLE DRILL Packaging status original80 MM WORKSHOP DRILL TABLE VISE FOR DV 80/65 TABLE DRILL Manufacturer code DV 80/65

Spaustuvai gręžimo staklėms, 80 mm, tinka DV 80/65

Cena:
€40,58
Noliktava:
Pieejams noliktavā

Apraksts

Trumpai apie prekę

Prekė: Spaustuvai gręžimo staklėms, 80 mm, tinka DV 80/65. Kategorija: Spaustuvai.

  • Gamintojas: Promot
  • Modelis: DV 80/65

Producer: PROMOT

Model: DV 80/65

DESCRIPTION:

Longitudinal mounting holes allow wide adjustment of the vice position on the work table, ensuring an optimal fit to individual needs. The knurled handle with additional pin hole allows for easy and precise tightening of the pull screw. The flat design of the vice is perfect for limited workspace. The adjustable pad on the bottom of the bed allows you to adjust the jaw clearance according to the operator's preferences, making the work even more comfortable. Compact, flat design and adjustable pad for convenient operation in limited workspace.

Product Features:

High quality workmanship

  • The body made of durable cast iron ensures stability and resistance to deformation.

Precision guide screw

  • allows smooth and accurate positioning of the jaws.

Wide jaws 80 mm

  • ideal for hobby and professional work.

Maximum spacing 65 mm

  • allows you to attach many types of elements.

Assembly grooves in the base

  • allow you to easily and stably screw the vise to a table or table drill.

Additional rotary pin

  • The set makes it easy to tighten comfortably.

Technical specification:

  • jaw width (S): 80 mm
  • jaw opening (a): 65 mm
  • jaw height with step from bed (h): 22 mm
  • jaw height without step (h1): 19 mm
  • body width (A): 140 mm
  • Minimum overall length (Lmin): 223 mm
  • maximum overall length (Lmax): 289 mm
  • height (H): 47 mm
  • mounting screw spacing (k/l1): 111/112 mm
  • mounting hole (d): 10,5 mm
  • handle axis (h2): 37 mm
  • the distance of the mounting hole from the forehead (l2): 78 mm
  • body length (L): 156 mm
  • weight: 2,0 kg

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Brand Promot
Parametry Vise type machine
Parametry Maximum jaw spacing 65 mm
Parametry Manufacturer code DV 80/65
Parametry EAN (GTIN) 5906818546127
Parametry Packaging status original

Piegādes termiņš visā Lietuvā: 5-7 darba dienas.
Piegādes cena uz norādīto adresi: 3 eiro
