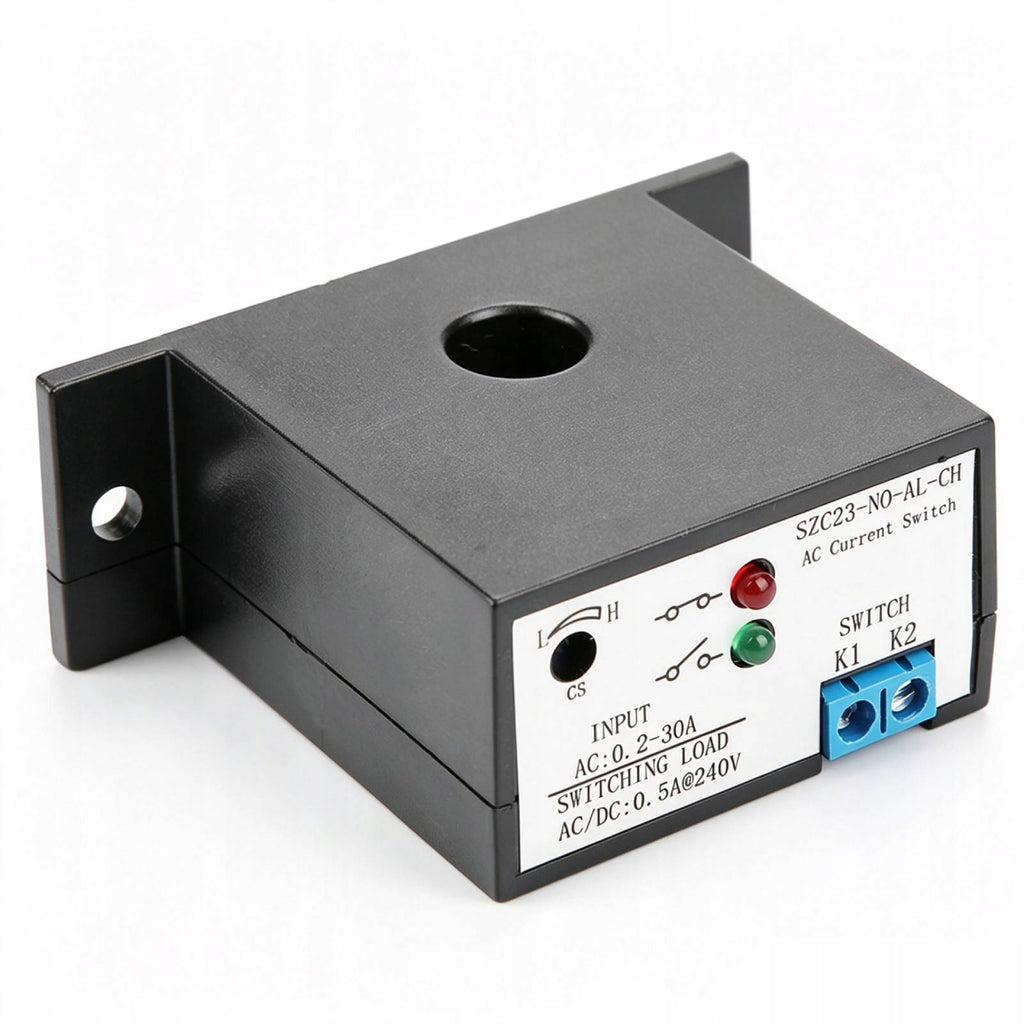

Srovės jutiklio jungiklis, atviras kontaktas, AC 0,2–30A

Trumpai apie prekę

Prekė: Srovės jutiklio jungiklis, atviras kontaktas, AC 0,2–30A. Kategorija: Jutikliai.

• Gamintojas: no brand
• Modelis: GS09674

The SZC23 series AC sensor switch is designed and manufactured with AC monitoring in mind.

It uses the principle of mutual inductance to measure the alternating current flowing perpendicularly, isolate the alternating current and generate a switching signal normally open or normally closed, which allows direct control of various industrial automation devices such as flashes, buzzers, relays, single-processor circuits and other high-power devices.

Compared with traditional mutual coils, thermal protection and other devices, the use of this device allows not only to get more accurate and faster control, but also to greatly simplify the design and reduce costs.

Features:

• Automatic power supply, no external power source required.
• Action current 0,2 – 30 A AC, adjustable by potentiometer.
• The LED indicator conveniently and intuitively indicates the operating status of the switch.
• Contactless electronic switch with high power MOS lamp.
• The switch has no limits on the number of openings and closures, and the response rate reaches milliseconds.
• Through-through design, insulation withstanding voltage up to 2000 V.
• Hysteresis below 1%, which allows use in conditions of strong magnetic field.
• The outer casing is made of self-extinguishing ABS plastic.
• It is suitable for alternating current measurement and monitoring, alternating current motor overload protection, electronic automatic control system switch, etc.

Specification:

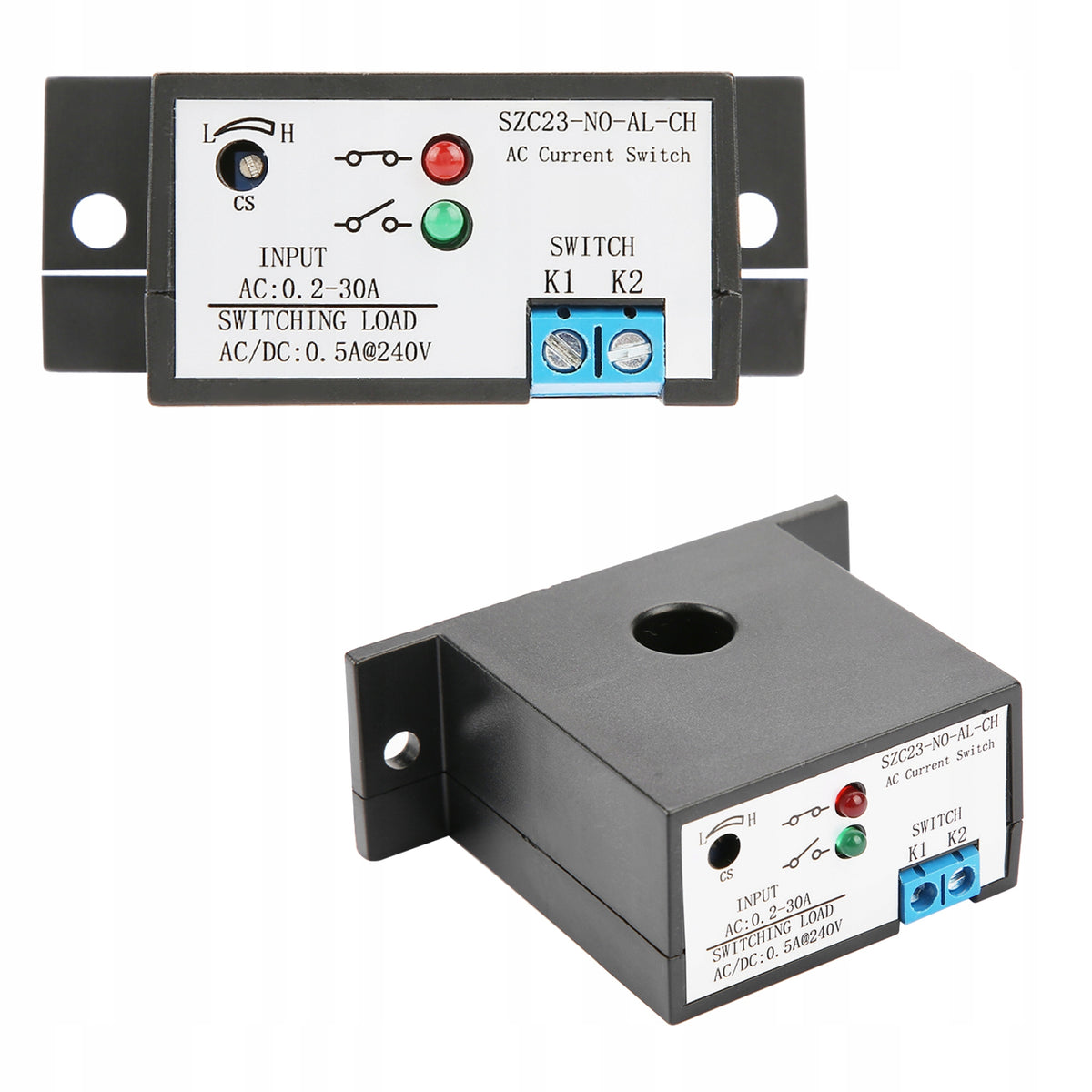

• Model: SZC23-NO-AL-CH
• Power Supply: Not Required
• Rated load: ≤ 0,5 A at 240 V AC/DC
• Input Current: 0,2-30 A AC
• Minimum switching current: 0,5 ± 0,2 A
• Maximum overload: 100%
• Leakage current: ≤ 0,1 A
• Accuracy: 1%
• Hysteresis: ≤ 1%
• Response time: ≤ 200 ms
• Repeatability: 100%
• Operating temperature: -20~60°C
• Waterproof: IP30

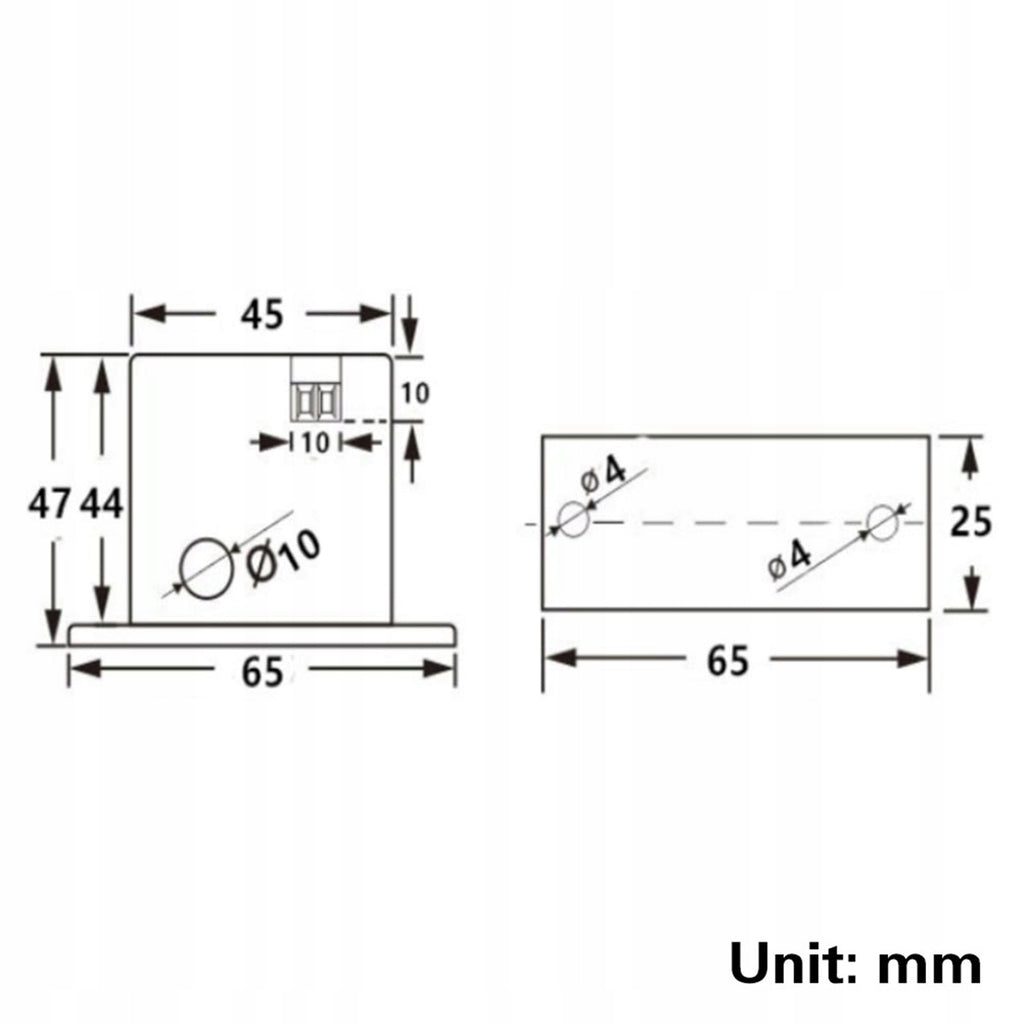

• Dimensions: 65 x 25 x 47 mm / 2,56 x 0,98 x 1,85 inches
• Hole diameter: 10 mm / 0,4 inch
• Package weight: approx. 56 g/2,0 oz

List of contents of the package:

• 1 x Current Measurement Switch

Note:

Due to differences in monitor settings and lighting effects, photos may not reflect the actual color of the item.

Please take into account minor measurement errors resulting from manual measurement. Thank you for your understanding.
