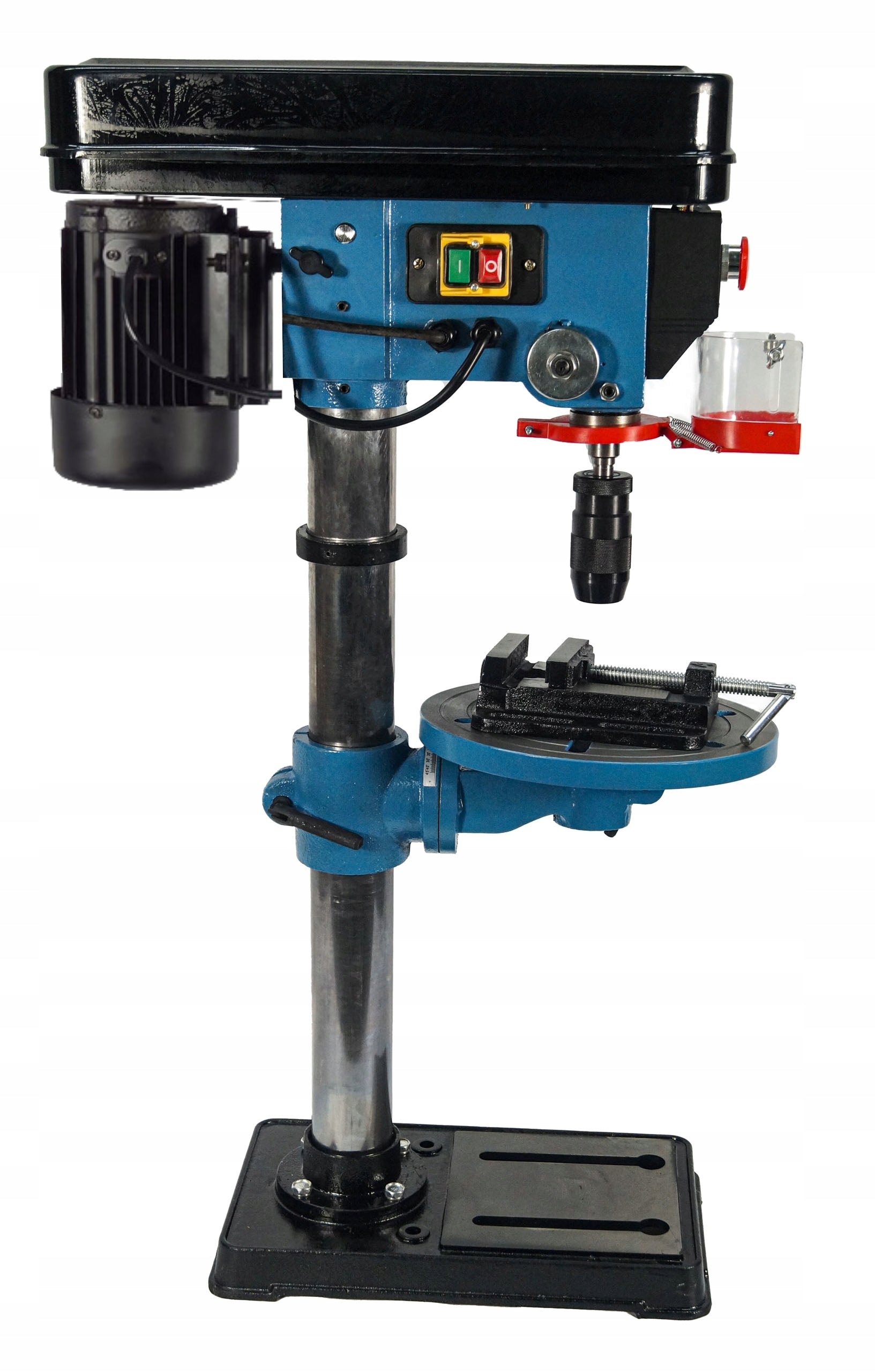

Stalinė gręžimo staklės MAGNUM, 400V, 2000W

Trumpai apie prekę

Prekė: Stalinė gręžimo staklės MAGNUM, 400V, 2000W. Kategorija: Gręžimo staklės.

• Gamintojas: Magnum
• Modelis: MG-WS-002-400V

In addition, a frontal emergency switch.

MUFF INCLUDED

Perfect device for stationary drilling holes in metal, wood, plastics, etc.

Three pulleys are used in the drill, thanks to which we can achieve rotations in the range from 200-2800 rpm by changing the drive belts. The change is done in a very simple way thanks to the use of a tensioner.

A three-armed handle is mounted in the body, which smoothly extends the drill, as well as a graduated ring that allows you to set the drilling depth.

The working table has the ability to adjust up/down through the crank. Additionally, a convenient clamp is used, thanks to which we can immobilize the table after setting the desired height.

The device can also be drilled at an angle of 45 degrees to the right and left by tilting the worktop.

TECHNICAL DATA:

• Voltage: 400 V/50HZ
• Engine power 2000W
• Rotation range: 200-2800/min.
• 16MM HANDLE
• Drill chuck: 16mm (possibility of putting a drill on a 2" walrus cone with a size of 23mm)
• 80MM OPERATING RANGE
• TOTAL HEIGHT OF THE DRILL 100CM
• WEIGHT :42KG
• Tilt range of the moving table +/- 45 degrees
• Clearance - 330mm
• Size of the bottom table - 290x290mm
• Number of rotational speeds 12
• Spindle stroke: 63 mm
• thick column does not bend!!!!
• very good quality (all cast and not as in cheaper stamped sheet)
• wheels metal!!!!

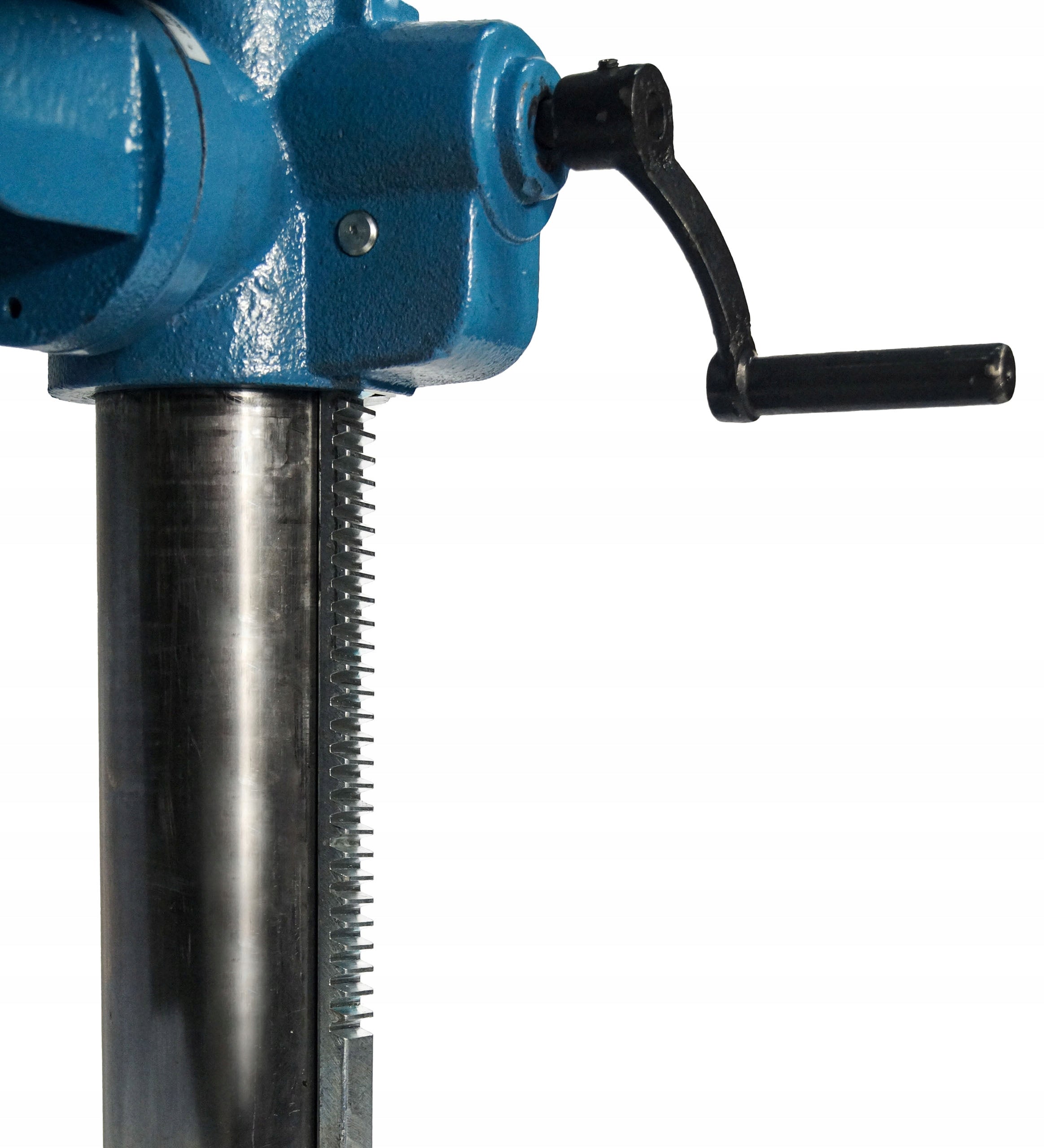

• lifting the table on a SOLID gear bar with a crank
• solid top!!!

• Auxiliary vise 13 cm x 12,5 cm
• Round work table: diameter 29 cm
• Base dimensions: 41 cm x 240 cm
• Column diameter: 70
• Height of the drill: 100 cm
• Diameter of the working table: 29 cm
• Spindle extension: 7,5 cm
• Distance from spindle attachment to bottom table: 65 cm
• Distance from column to center of spindle: 17 cm
• Transmission chamber length: 51 cm
• Transmission chamber width: 16 cm
• Engine height with transmission chamber: 31 cm

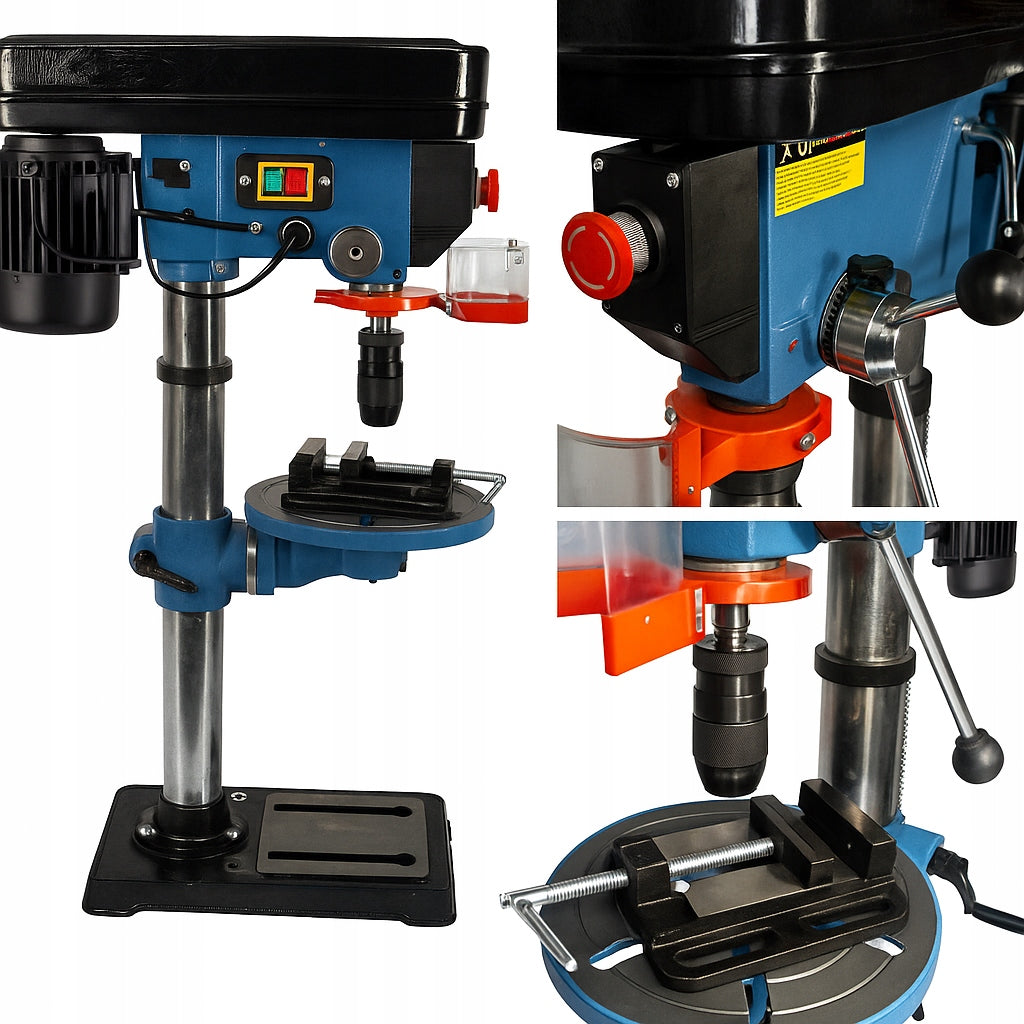

The robust MAGNUM column drill with a capacity of 2000W allows drilling in steel and wood. Equipped with a quiet brushless motor, a V-belt driven drill. Equipped with a very comfortable and ergonomic handle and spindle cover ensures high comfort of work. Additionally, it has a stable and strong working table and a machine vise. Smooth adjustment of table height and drilling depth.

SPEED ON INDIVIDUAL GEARS :

1) 200

2)250

3) 300

4) 350

5) 450

6) 550

7) 630

8) 700

9) 850

10) 1010

11) 1200

12) 1350

13) 1680

14) 1950

15) 2460

16) 2800

ADJUSTABLE TOP

In addition to the angular adjustment of the worktop (360 degrees), the drill has a height adjustment.

For convenience, the manufacturer has provided a crank that allows you to precisely position the work table at the desired height.

REGULATION OF TURNOVER

The drill has a rotation adjustment - by changing the position of the drive belts.

Additional Emergency Frontal Switch!
