Stalinė gręžimo staklės PROMA PTB-16B/230

Trumpai apie prekę

Prekė: Stalinė gręžimo staklės PROMA PTB-16B/230. Kategorija: Gręžimo staklės.

• Gamintojas: Proma
• Modelis: 25333520
• Galia: up to 550 W

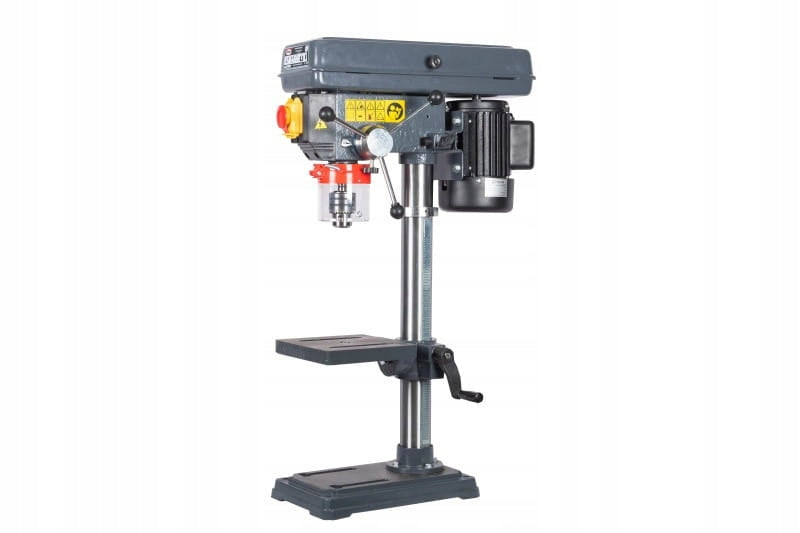

TABLE DRILL PROMA PTB-16B/230

The drill is designed for recessing and drilling holes in various materials

The spindle with ball bearings is embedded with a Mk II cone, to which the drill head or other tools can be attached

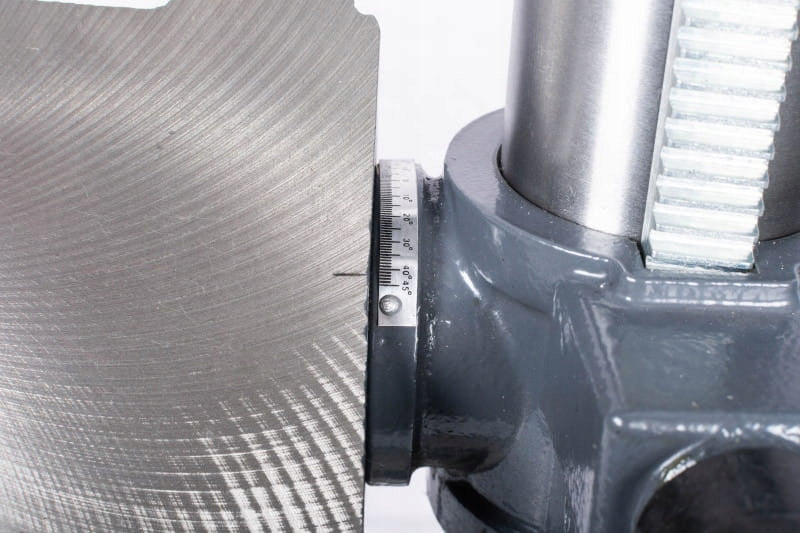

The work table can be rotated 360° and tilted +/-45°, allowing drilling holes at different angles

TECHNICAL DATA:

Total height 840 mm

Head-handle 3 - 16 mm

Number of degrees of rotation adjustment 12 degrees(s)

Maximum spindle distance from base 540 mm

Maximum spindle distance from the table 420 mm

Maximum drilling diameter 16 mm

Net / gross weight 32 / 34 kg

Connection power 450 W

Voltage 230 V

Spindle feed 60 mm

Table size 198 x 198 mm

Package Dimensions (L. x width x H ) 760 x 490 x 260 mm

Base dimensions 340 x 210 mm

Spindle reach (spindle distance from column) 127 mm

Speed range 210 / 280, 320 / 420, 500 / 540, 830 / 1,290, 1,350 / 1,580, 2,180 / 2,580 rpm /min.

Column diameter 60 mm

"T" table grooves 14 mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Proma
Parametry	Type	drill
Parametry	Kind	table
Parametry	Manufacturer code	25333520
Parametry	EAN (GTIN)	8595105402009
Parametry	Series	PR 25333520
Parametry	Power	up to 550 W
Parametry	Rotational speed	2580 RPM
Parametry	Number of gears	1
Parametry	Handle type	toothed
Parametry	Motor type	brushed motor
Parametry	Maximum drilling diameter in concrete	16 mm
Parametry	Maximum drilling diameter in wood	16 mm
Parametry	Maximum drilling diameter in metal	20 mm
Parametry	Voltage (V)	230 V
Parametry	Maximum power	450 W
Parametry	Power cord length	2 m
Parametry	Drill weight	38 kg
Parametry	Product weight with unit packaging	40 kg
Parametry	Additional information	not applicable
