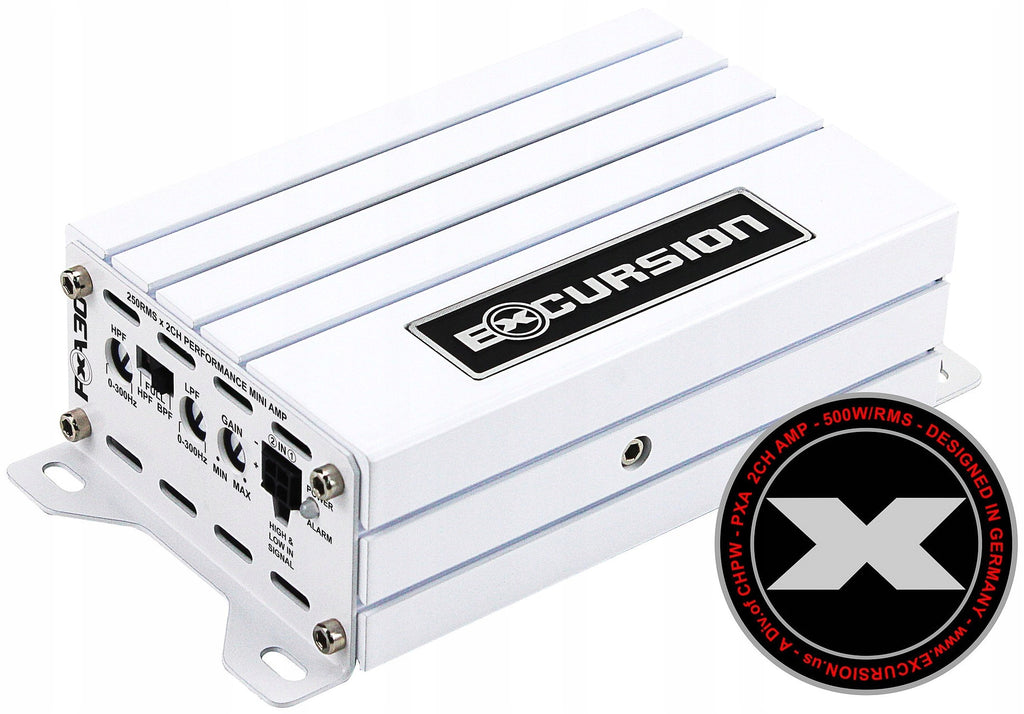

Stiprintuvas 2 kanalų Plug&Play Mini Excursion PXA-30, OEM sistemoms

Trumpai apie prekę

Prekė: Stiprintuvas 2 kanalų Plug&Play Mini Excursion PXA-30, OEM sistemoms. Kategorija: Stiprintuvai.

• Gamintojas: Excursion
• Modelis: PXA-30

✳ ✳ ✳ Excursion PXA-30 - 2-channel mini car amplifier for factory audio systems - RMS power: 2x175-250 / 1x500W, FRD class, in. High/Low, Auto On/Off.

✴ ✴ ✴ Excursion PXA-30 is one of the most versatile amplifiers on the market in the Micro segment. It is designed to be the perfect solution for any mounting scenario. Regardless of whether we want to expand the serial sound system or build a professional system based on a non-factory unit. Thanks to its miniature form and high power RMS: 2x175-250 / 1x500W, it will easily fit into any interior, offering a solid sound.

⭐ ⭐ ⭐ The biggest advantage of the PXA-30 model is its flexibility in selecting the signal source. The device can handle any variant:

➡ Factory Systems (OEM): Thanks to the High-Level input and the intelligent Auto Turn-On function, the amplifier can be connected directly to the speaker cables of the serial radio. The device itself will detect the signal and start automatically, making it an ideal choice for modern cars where replacing the radio is very expensive or impossible.

➡ Non-factory Systems (Aftermarket): If you have a radio with preamplifier outputs, the PXA-30 offers a traditional Low-Level (RCA) connection. This ensures the purest possible signal transmission and allows you to fully exploit the potential of sound processors or advanced units.

⚙ BASIC TECHNICAL DATA ⚙

• Number of Channels: 2
• Power howl. RMS/4Ω (e.g. power. 14,4V): 2x175 W
• Power howl. RMS/2Ω (e.g. power. 14,4V): 2x250 W
• Power howl. RMS/4Ω bridge (e.g. power. 14,4V): 1x500 W
• Minimum load impedance: 2 Ω
• Frequency Response: 15 - 22 000 Hz
• Max. distortion level THD/4Ω : 0,05 %
• Signal/Noise (S/N Ratio): >85 dB
• Audio signal inputs: 2-channels with LOW or HIGH level (RCA signal level or speaker level)
• Signal Input Sensitivity Adjustment (LOW/HIGH Input): 0,2 - 8,0V
• LP filter with smooth adjustment: 0 - 300 Hz
• HP filter with smooth adjustment: 0 - 300 Hz, also in Band Pass Filter (Subsonic) mode
• Efficiency /4Ω: >90 %
• Operating voltage: 8 - 15,5 V max.
• Fuse: 40 A (on the motherboard inside the case)
• High temperature protection: more than 84 °C
• Low supply voltage protection: less than 8V
• Overload and short circuit protection at speaker output

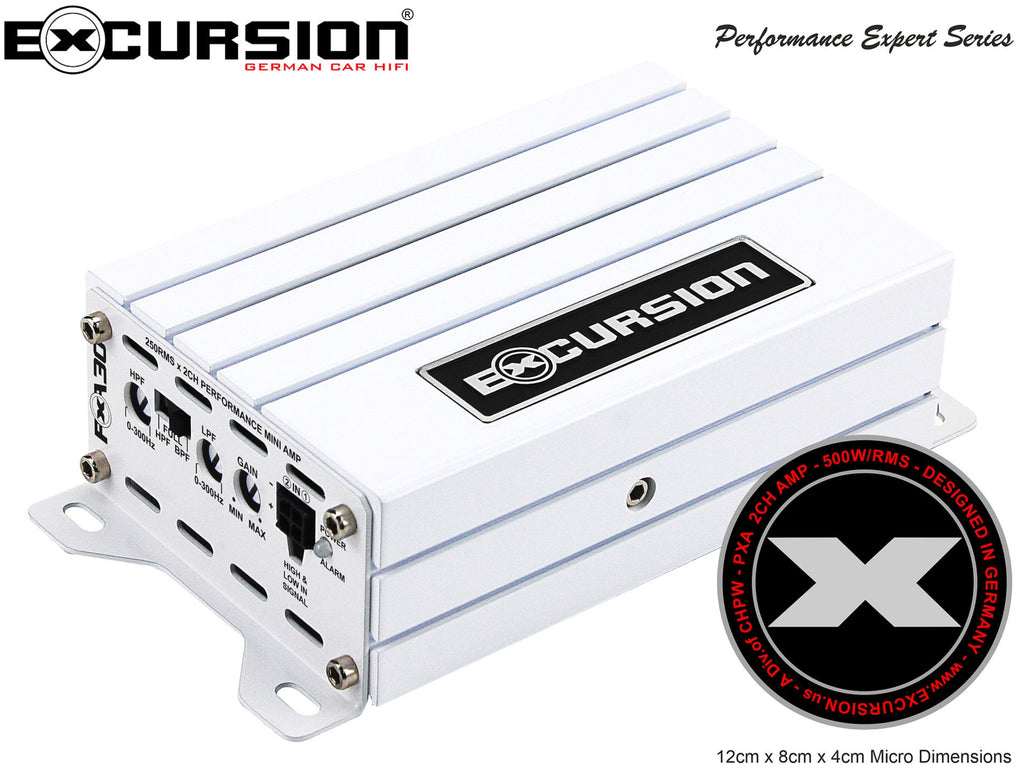

• Housing dimensions without connections (width. /h. /l. ): 80 / 40 / 120 mm
• Work in full-band RFD (Full Range Digital) digital class.
• Double-sided PCB board with SMD components.
• Filter switch operating modes: FULL / HPF / BPF (both HP and LP filters are enabled in BPF mode).
• Common "HIGH/LOW" audio signal inputs with a wide range of adjustments supporting speaker level (High) signal and RCA (Low) signal.
• "HIGH / LOW" signal input via connector / adapter with 2xRCA sockets connected to the amplifier.
• Speaker signal output via connector/adapter connected to the amplifier for connecting speaker wires.
• REM control input for wired switching on/off of the amplifier by supplying +12V voltage (e.g. from the output "Remote" of the radio player).
• "DC Auto Tutn On/Off" system - automatically switches on the amplifier if in the mode of operation with the input signal "HIGH" (signal taken from speaker wires) on the input wires there is a constant voltage of approx. 6V or higher in relation to the power mass (after turning on the radio player).
• Temperature control system with internal fan.

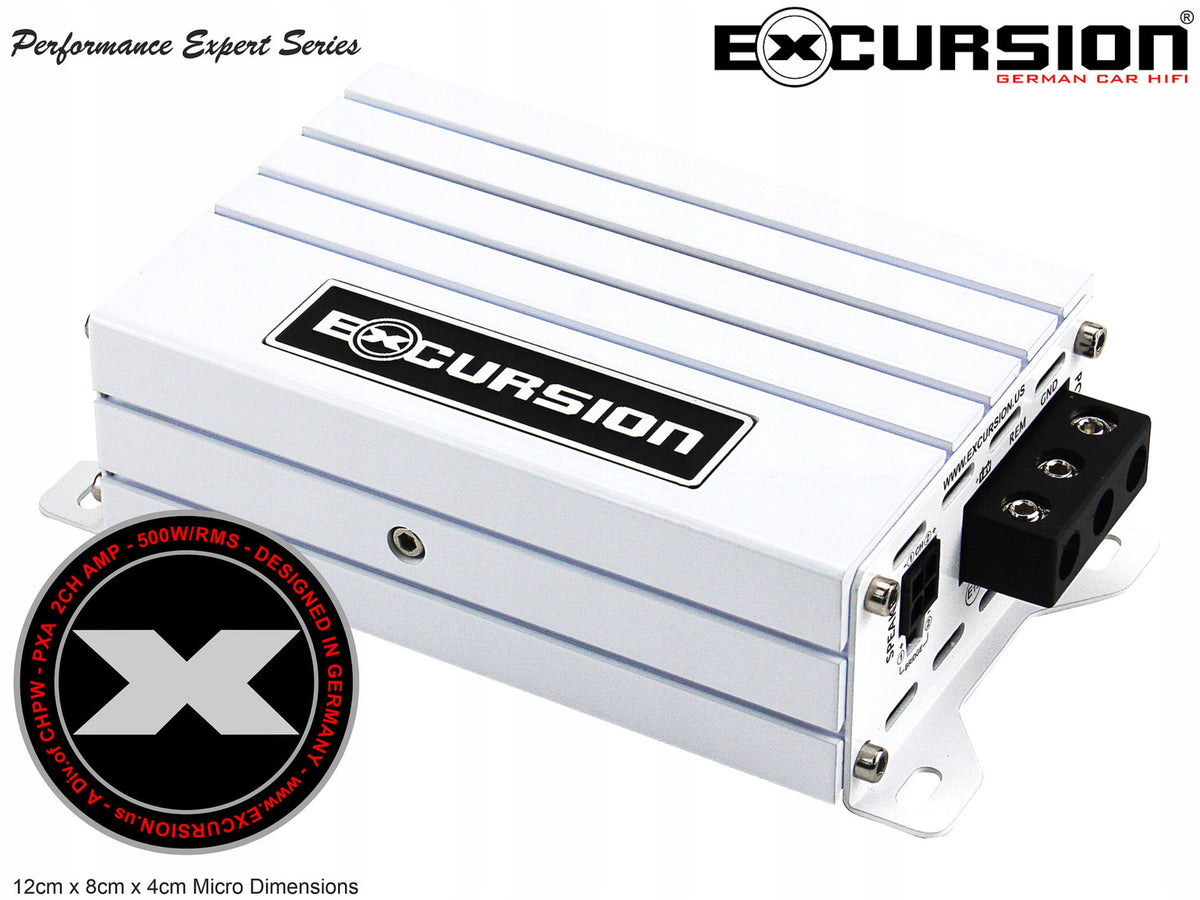

• Terminals with Allen screws for power cords up to 10 mm2 (12V / GND).

✅ SET CONTENTS:

• Car amplifier Excursion PXA-30
• 2-channel adapter with RCA signal inputs - 1 pc.
• 2-channel adapter with speaker outputs - 1 pc.
• Operating manual, 40A fuse, Allen key

✅ ACCESSORY (sold separately):

• Dedicated ISO DIN Plug & Play

  ➡ The installation of the Excursion PXA-30 amplifier is very fast, easy and convenient thanks to the available dedicated ISO DIN Plug & Play cable bundles (speaker signal input and output).

  The beams are sold separately, because depending on your needs, they are offered in two lengths: Excursion PXI-4 (length 1,2m) or PXI-16 (length 4,8m).

  ➡ In some car models, it may still be necessary to use an additional connector-adapter that allows the PXI beam to be connected (it has a standard ISO connector) to the electrical system of the factory radio player, in which the car manufacturer has provided connectors of another type.
