Stumdomų vartų pavara ARM1000, 6 m / 1000 kg, 2 pulteliai, 2 baterijos

Trumpai apie prekę

Prekė: Stumdomų vartų pavara ARM1000, 6 m / 1000 kg, 2 pulteliai, 2 baterijos. Kategorija: Kietieji diskai.

• Gamintojas: Arm GATES
• Modelis: ARM1000
• Įtampa: 24 V

🔥 We are the only ones on the market to include 2 PowerSafe™ FREE batteries in the set, thanks to which the drive works in the event of a power outage.

🔥 Technology SoftDrive™ makes the drive move smoothly, both when opening and closing.

🔥 System HeatProtect™ is the thermal protection of the engine, the drive can work in extreme conditions, even at 55 degrees.

🚨 Don't be fooled! 🚨

✅ We have our own service, which is always available to our customers with any questions about assembly.

❌ Avoid buying drives from companies that do not have service. You risk not helping with installation and difficulties with complaints in the event of a breakdown.

👉 Buy from professionals!

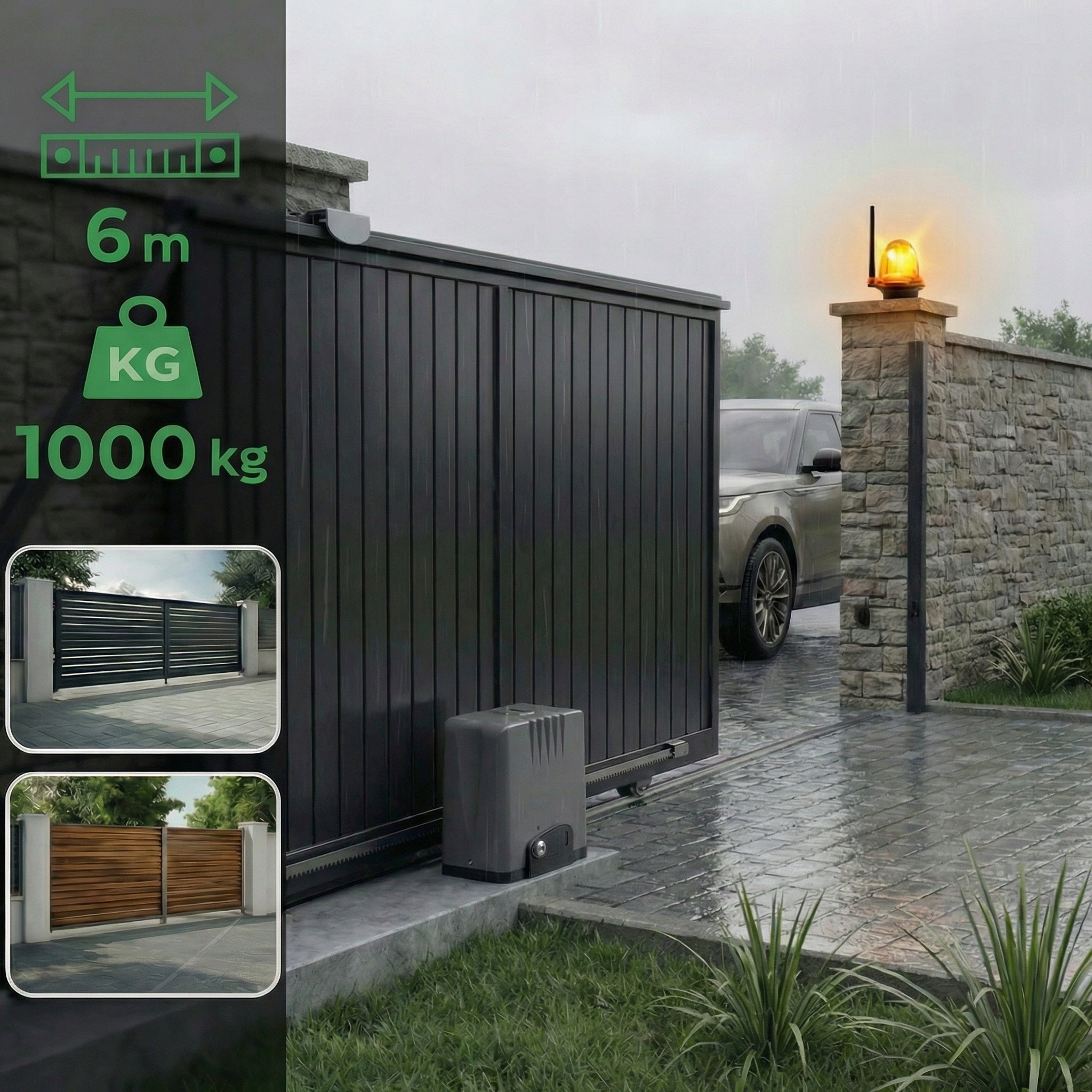

⚙ Thanks to high power, the drive supports gates with weight max. 1000kg and length 6m.

⚙ Quick and self-contained assembly, which is possible thanks to a simple and robust design.

⚙ Instant closing and opening with a speed of 15m/min ensures full opening of the gate in a maximum of 24 seconds.

⚙ Simple and fast programming of pilots.

⚙ Silent operation thanks to smooth operation, minimizing noise to a minimum.

✅ Convenient opening of the SmartControl™ gate- with the included remote controls.

✅ Soft start and stop SoftDrive™ - Reduces mechanical load on the gate, prolonging its service life.

✅ Automatic GateTimer™ - you can set the time after which the gate will automatically close.

✅ PowerSafe™ emergency power supply - the drive also works in the event of a power outage

✅ Crack protection - The anti-crush function stops the gate when an obstacle is detected, increasing the safety of users.

✅ Smooth torque adjustment - allows you to precisely set the force with which the drive motor is to work to the gate.

✅ Intelligent Obstacle Detection Sensitivity

✅ GatePass™ gate function - you can open part of the gate without having to open the gate wide.

✅ Unlock key - which you can use to open the gate in case of power outage.

✅ Magnetic limit stops - will stop the gate in the desired place without hitting the posts and straining the engine.

✅ Digital display - Menu with digital display informs about the current operating status of the device, facilitating its configuration and diagnostics.

✅ Our drive unit features MultiPanelTM technology, which allows for:

➡ Cooperation with GSM system

➡ Connection and control of video intercom

➡ Connection and power draw from a solar panel

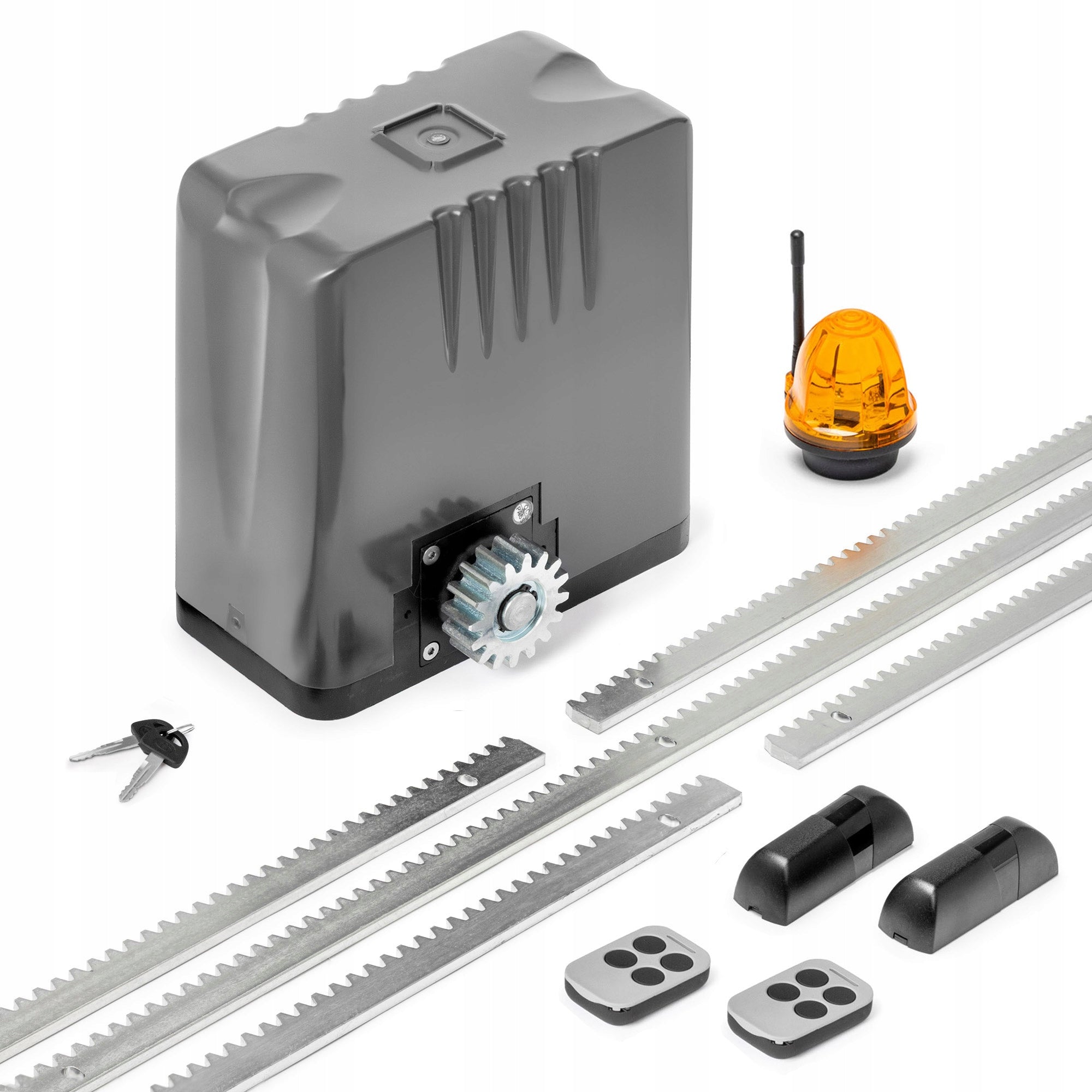

⚫ Drive ARM1000

⚫ 2 PowerSafe™ batteries

⚫ Built-in control board

⚫ Magnetic limit switches

⚫ Radio receiver

⚫ 2 pilots

⚫ Photocells

⚫ Signal lamp

⚫ 5 metal slats (can be changed to nylon on request)

⚫ 2 unlock keys

⚫ Mounting accessories

⚫ User Manual

⚫ Warranty card (in electronic form)

⏩ Emergency battery, is designed to power the drive in case of power outage.

⏩ The battery charges automatically when power is restored.

⏩ Battery does not require additional installation!

✅ Convenient tool for managing home automation

✅ Long range up to 100 meters

✅ You can buy u us additional remote controls (black) - auction number 12672222912

✅ Functional thanks to thoughtful sizes

✅ Built-in LED indicating correct operation

✅ Possibility to attach to the keychain

✅ You can open all ARM series drives with one remote control, for example ARM100 garage drive.

✅ Easy to install, thanks to thoughtful design

✅ IP 54 protection ensures tightness and safety

✅ Built-in interrupter

✅ Resistant to weather conditions and temperature changes

✅ Visible even from a distance

✅ Adjustable working angle o 180 degrees

✅ Increasing security of automated gateway

✅ The gate will not close when the photocell detects an object in it

✅ Resistant to severe weather conditions

✅ Can work at temperatures from -20 to 70 degrees

✅ The range between cells is approx. 20 meters

⭐Steel gear bar M4 / 8 mm⭐

✅ Solid gear ideal for gate drive

✅ The set includes sleeves and screws for mounting

✅ Made of high quality steel, making it durable

✅ One strip is 1 meter long, there are 5 pieces in the set

✅ If needs you can buy slats at the auction No. 15919277030

✅ Engine – failure-free and economical thanks to its simple design and lack of unnecessary electronics.

✅ Bearings made of the highest quality materials

✅ Product resistant to temperature changes

✅ Application of high quality materials

✅ Fast operation - the drive starts immediately after clicking the button in the remote control, without unnecessary delay.

✅ High performance - ensured by high power and robust construction.

✅ Waterproof housing HeatProtect™ - adapted to operate in harsh weather conditions.

✅ Smooth adjustment - the actuator will stop the gate when it encounters an obstacle.

✅ Protection - protecting the engine against mechanical damage.

✔ PowerSafe™

✔ Soft start - stop SoftDrive™

✔ GateTimer™ automatic shutdown function

✔ Output to signal lamp

✔ Easy programming of SmartControl™ remote control

✔ GatePass™

✔ Magnetic limit stops

✔ Max gate weight (kg): 1000

✔ Max gate width (m): 6

✔ Self-assembly possible: Yes

✔ Number of memorable pilots (pcs): 8

✔ Gear speed: 50 rpm

✔ Gate travel speed: 15 m/min

✔ Electric motor: 24V DC

✔ Operating temperature: from -20 ° to 55 °

✔ Dimensions (L x width x H ) (mm): 42 x 42 x 27 cm

✔ Type of power supply: 220V/110V AC or 24V DC

✔ Remote control range (m): 100

✔ Torque: 20 N.m

✔ Pulling force: 1000N

✅ Our drive has all the necessary functions and parameters, and at the same time has been designed in an extremely simple way, providing intuitive operation. Many drives are “overcombined”, which translates into their high failure rate.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Arm GATES
Parametry	Drive type	for sliding gates
Parametry	Maximum wing weight	1000 kg
Parametry	Maximum wing length	6 m
Parametry	Supply voltage	24 V
Parametry	Maximum opening angle	180°
Parametry	Operating temperature	from -20 to 55°C
Parametry	Opening time	24 s
Parametry	Manufacturer code	ARM1000
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Batteries included	yes
Parametry	Set contents	control unit,photocells,unlock key,magnetic limit switches,mounting elements,drive,remote control,warning light,toothed rail
Parametry	Additional features	automatic closing function,obstacle detection function,gate function,key switch opening function
