Stumdomų vartų pavara KSE180-DG, iki 1000 kg

Trumpai apie prekę

Prekė: Stumdomų vartų pavara KSE180-DG, iki 1000 kg. Kategorija: Kietieji diskai.

• Gamintojas: no brand
• Modelis: ELEKTROBIM_KSE_180

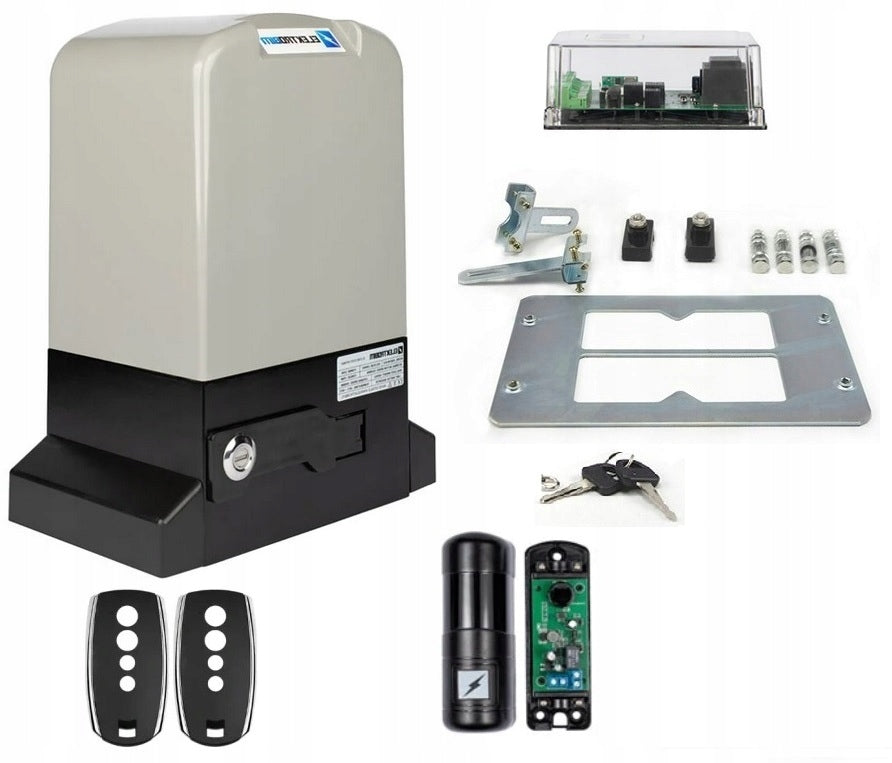

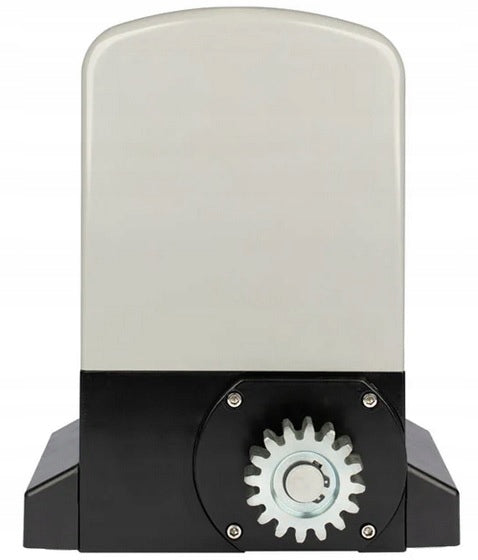

• Drive for sliding gate KSE180-DG
• Control panel ( built-in )
• Radio card ( integrated with the control panel )
• 2 x four-channel remote control
• Set of photocells with adjustable angle
• 2 x Wrench for unlocking the drive in the event of a power outage
• Steel Mounting Plate
• Set of fixings
• Magnetic limit switches
• 2-year warranty
• User manual (downloadable in the " additional information" tab)

Main functions and characteristics of the KSE180-DG gate machine:

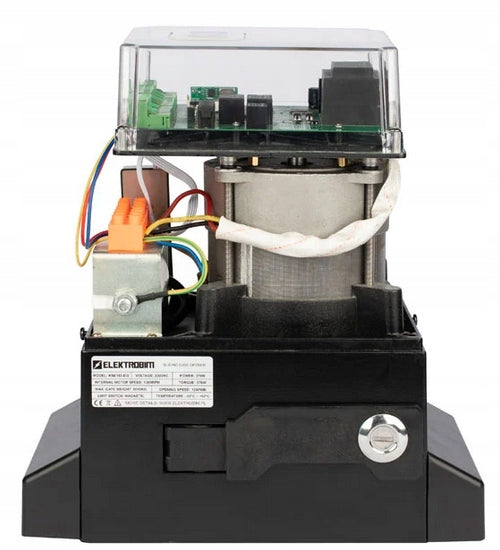

• Safe and functional digital control board

The new control board, designed by Polish engineers from Elektrobim, brings a new dimension of control and convenience to the gate drive. The digital display not only makes programming and configuration easy, but also allows easy access to a range of practical features. These include options such as gate function, automatic closing, soft start/stop, programmable digital inputs and buttons in the remote control. The controller also offers versatile connectivity options – from manual control buttons, through WiFi and GSM modules, to an encryption keyboard and video intercom. The drive radio allows you to program up to 99 remote controls.

• Solid and durable motor for gates

The KSE180-DG sliding gate drive, thanks to its induction brushless motor, is synonymous with trouble-free operation. The absence of traditional brushes eliminates the need for frequent replacement of parts, which makes the device virtually maintenance-free. Its 370W motor, cooperating with a durable transmission, ensures a reliable start even on the coldest winter nights. But that's not all. The KSE180-DG impresses with its safety – it is equipped with anti-crush, anti-overvoltage, optical, thermal and temporary protection, guaranteeing safe use even with high drive power.

• Don't worry about power outages

With the included wrench, you can easily decouple the drive transmissions to the KSE180-DG sliding gate. This feature is extremely useful in the absence of electricity and assembly, allowing you to manually open the gate.

(model KSE380 up to 2000kg available at other auctions)

• Supply voltage: AC230 [V] / 50 [HZ]
• Maximum gate weight: 1000 [kg]
• Engine power: 370 [W]
• Linear opening speed: 12 [m/min]
• Output moment of force: >37 [Nm]
• Weight: ~13 [kg]
• Limit switches: Magnetic
• Operating temperature: -30~+60 C
• Built-in crush protection

2 x PILOT PS-10 4-channel 433MHz

• Interference resistant remote controls operating at 433.92MHZ
• Seamless operating range up to 100m (in the right environment)
• Special manufacturer coding to ensure the safety of entry to the premises
• Remote controls equipped with a battery

Set of photocells protecting the entrance with angle adjustment

Mounting base + set of fixing elements

Magnetic limit switches

Gwar is valid only when purchasing from an authorized ELEKTROBIM Business Partner. Buying from an unofficial distribution, you are not sure that you will receive an original set of the highest quality.
