Apraksts
Trumpai apie prekę
Prekė: Stumdomų vartų ratukai bėgiui 70x70, 650 kg, 5 vnt.. Kategorija: Vežimėliai ir ratukai.
- Gamintojas: PSG
- Modelis: 60,003,70

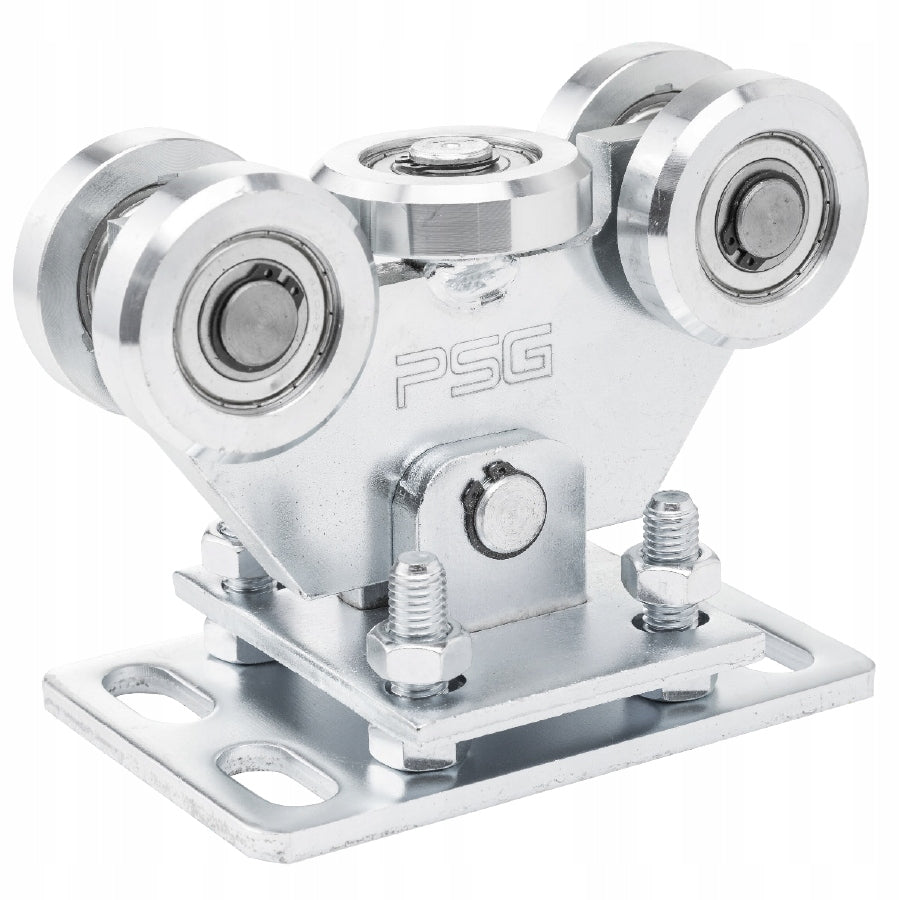

Professional trolley brand PSG dedicated to self-supporting sliding gates based on profile rail 70x70 mm. Thanks to the 5-roll design and full swing, the trolley ensures stability, smoothness of movement and longevity of the entire gate system.
⚙ TECHNICAL PARAMETERS:

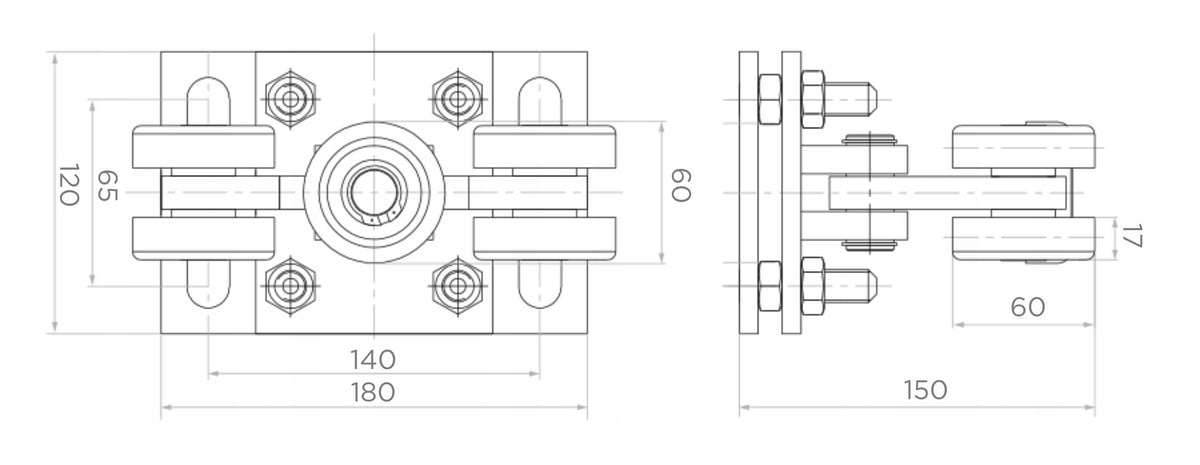

- External rail size: 70x70x4 mm
- Number of rolls: 5 (4 vertical, 1 horizontal centering)
- Roller size: FI 60
- Roller material: High-grade steel (bearing)
- Construction: Swinging (shanks)
- Capacity: up to 650 kg
- Height adjustment: Yes (using mounting screws)
- Coating: Galvanized zinc (corrosion resistance)
- Manufacturer: PSG
🛠 APPLICATION AND INSTALLATION:
- 🔹 Liquidity and precision: The horizontal roller performs a centering function – it eliminates the lateral clearance of the gate in the rail, which prevents it from "floating" when opening and closing.
- 🔹 Swing mechanism: The trolley connects to the base with a stem, which allows it to work in a horizontal axis. Thanks to this, the mechanism automatically eliminates minor inaccuracies in the mounting of the rail.
- 🔹 Easy adjustment: The base equipped with adjustment screws allows you to precisely adjust the height of the gate without having to disassemble the trolleys, which is crucial for the perfect hit in the overrun socket.
- 🔹 High strength: Steel rollers are resistant to point overload and abrasion. The load capacity of 650 kg allows for safe operation even with gates with full filling.
🛡 WHY CHOOSE PSG?
PSG trolleys are characterized by precise execution of bearing sockets, which prevents them from falling out under the influence of vibrations. A thick layer of zinc effectively protects the element from road salt and moisture, which is necessary for elements working right next to the ground.
📦 SET CONTENTS:

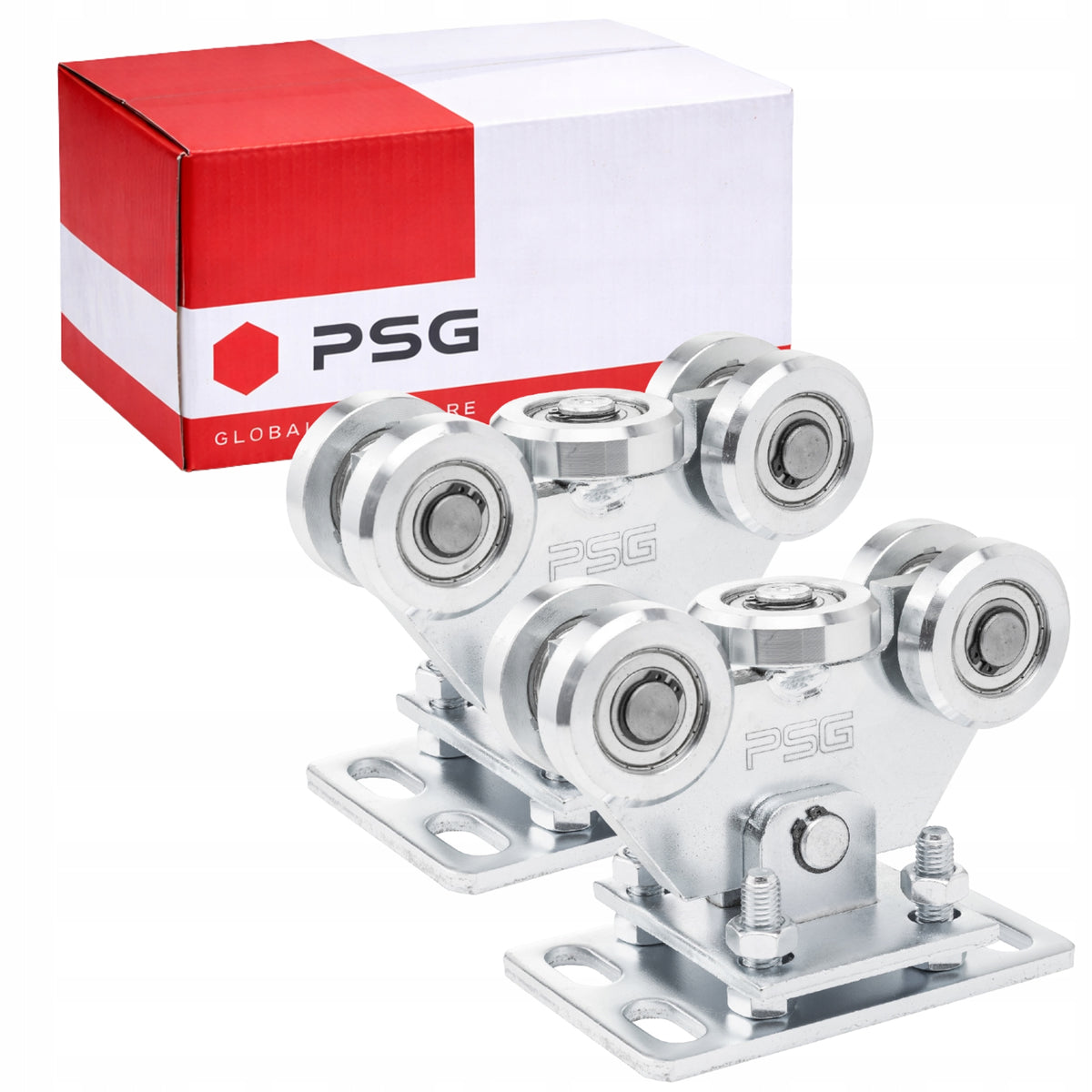

- 1 5-roll steel trolley (complete)
- 🔩 Adjustment bolts and mounting nuts
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With a VAT invoice |
| Parametry | Brand | PSG |
| Parametry | Product weight with unit packaging | 20 kg |
| Parametry | Manufacturer code | 60,003,70 |
| Parametry | Type | for sliding gates |
| Parametry | Kind | trolley |
| Parametry | Packaging status | original |
