SUPLA belaidis nuotekų bako lygio jutiklis

Trumpai apie prekę

Prekė: SUPLA belaidis nuotekų bako lygio jutiklis. Kategorija: Jutikliai.

• Gamintojas: no brand
• Modelis: CPS-5M

Cable 5m

• Preloaded software : Supla
• Wi-Fi connectivity in 802.11 b/g/n standard
• Adjustable sensor housing angle
• Power supply: USB port - just plug in e.g. charger from the phone
• Sensor cable length: 5mb

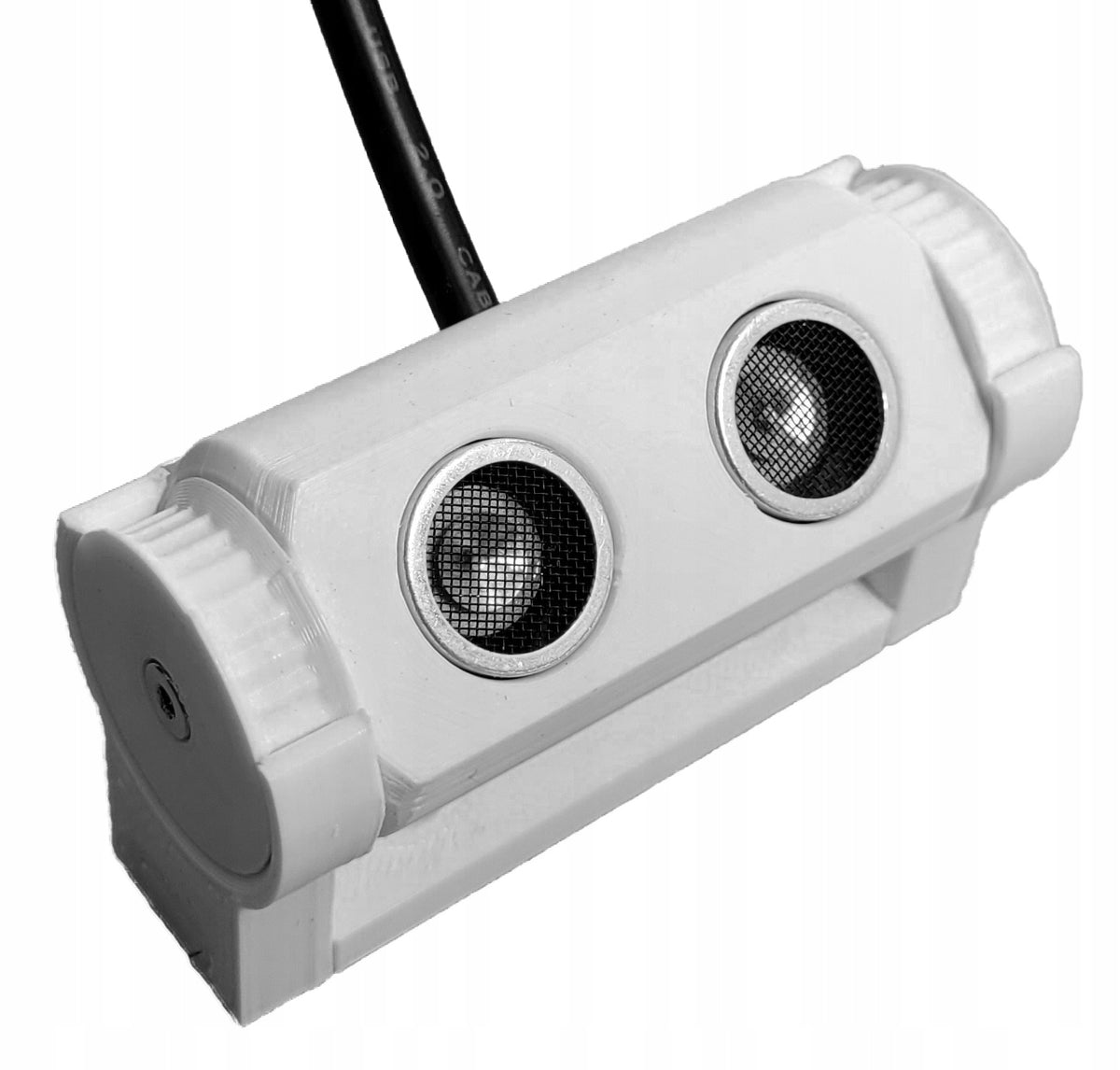

Sabre Level Sensor

It measures the distance from the water mirror to the sensor mounting location. Thanks to this, you can see the rising state of water in the tank on an ongoing basis.

The device provides continuous and accurate measurement of liquid levels.

Being within range of the WiFi network allows you to read the measurement on your laptop, phone, tablet.

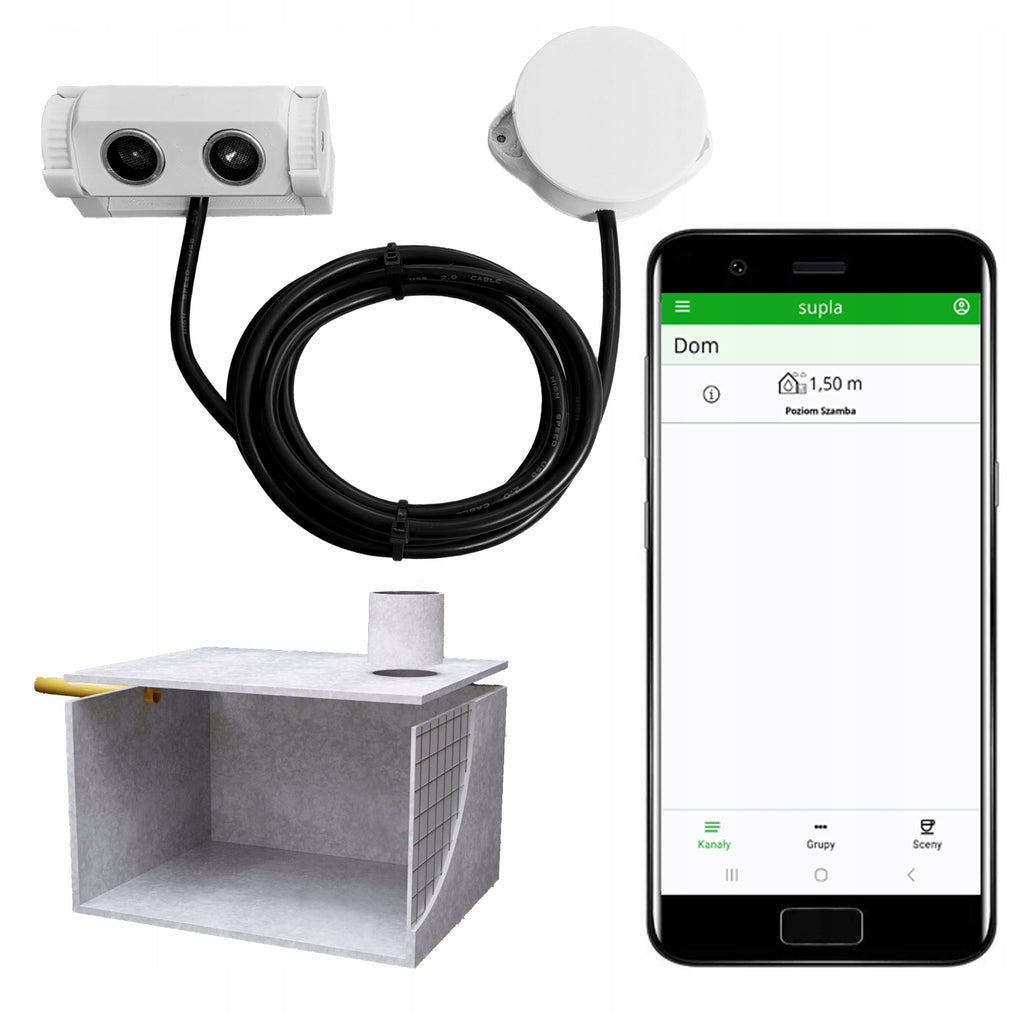

The sensor is mounted on the cover of the septic tank, or on the side wall of the tank - parallel to the level of the septic tank in the tanks.

The sensor housing has an adjustable rotation angle , which makes it easy to mount and adjust the sensor to different types of tanks.

The device in the SUPLA app will show you to what extent your septic tank has been filled.

You can control its status on an ongoing basis.

At the first start of the device, it is necessary to provide the depth of the tank. On this basis, the sensor will give the amount of filling of the tank.

Cable length between sensor and control system: 5 mb.

Sensors with a cable length of 3mb i10 mb are also available - on our other offers.

NOTIFICATIONS :

Supla allows you to send notifications to your phone.

This will allow you to receive a notification on the phone when it remains, e.g. 30 cm before the tank is fully filled, or when the level of filling of the tank is reached.

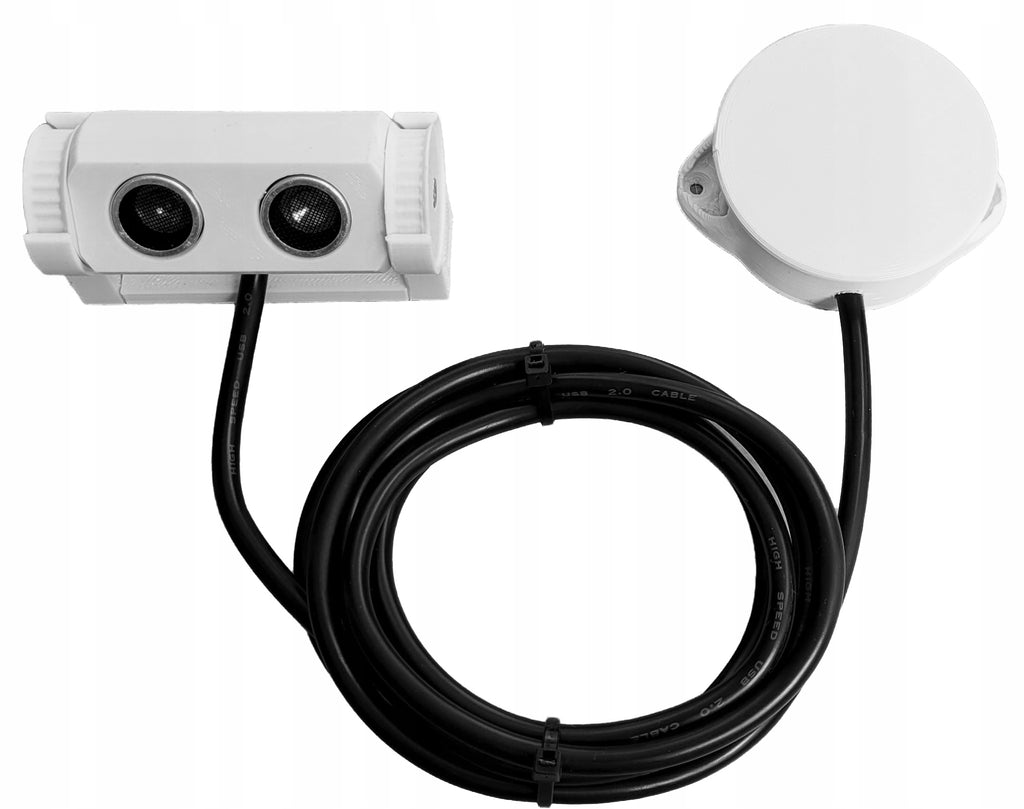

The control system which is responsible for the operation of the sensor is located in an ergonomic housing .

The case has a power socket, under which we connect the charger from the phone.

The housing has handles for mounting, e.g. on the wall.

The control system (round housing) must be within WiFi range. It must also not be exposed to weather conditions (water, moisture)

With the purchased product you will receive instructions!!

You will find a lot of valuable advice in it, including :

• How to add a device to SUPLA system.
• Information about device configuration.

The instructions are constantly updated and new topics and advice are added!!

As soon as the shipment is sent - the instructions will be sent by e-mail.

The device has preloaded Soft after cooperation with the SUPLA system. ALWAYS UPLOADS THE LATEST VERSION OF THE SOFTWARE.

UPLOADED SOFTWARE in Polish

The most important features of the SUPLA application:

SUPLA is a project developed on the principles of open software and open hardware that allows you to build a simple building automation system and allows you to control the equipment of your home or business.

With Supla, you can control:

• Lighting;
• Electrical equipment;
• Entry gate/garage gate/gate with notification of their open/closed condition;
• Roller shutters;
• Irrigation of the garden;
• Heating system;
• Emergency installation;
• Valves.

In your SUPLA account, you can change device names, thermometer names.

It is possible to set schedules so that you can plan the day and time of operation of the devices.

In a word, anything could be built into a simple smart home system

Control module specification :

• Wi-Fi connectivity in 802.11 b/g/n standard
• WiFi Frequency: 2,4 GHz
• Power Supply: 5V via USB port
• 80MHz RISC processor (also operating at 160MHz)
• Humidity: 5%-70% RH, non-condensing
• Operating temperature: 0 o C-40 °

Sensor Specifications :

• Measurement angle " from 0 to 15 degrees
• Measurement range :from 2cm to 450cm
• Current consumption < 2mA
• Operating frequency ~40KHz
• Measurement accuracy: +5%

This offer includes the following items:

• Wemos D1 Mini - 1 piece
• HC-SR04 - 1 piece

This offer includes a product with factory software. This offer does *not* include a finished, ready-to-use product with modified software.

A service to change the software / upload publicly available OpenSource code and adapt (modify) the device is performed *after* the device is purchased, at the customer's request. This service is provided free of charge. By purchasing, the buyer agrees to the adaptation (modification) of the device after purchase and to use the device with the consequences resulting from the modification.

The buyer can opt out of the modification and software upload by sending us a message after purchase.

This device is intended for private, personal use only.

The Supla software, Supla logo, and Supla name are the property of AC SOFTWARE SP. Z O.O.

The Supla name is used for informational purposes only. It is not intended to offer the sale of a Supla branded product. This offer is *not* for a Supla branded product.

In accordance with regulations, we must inform you: The buyer is aware of the risks associated with using this type of device. The buyer takes responsibility for the connection and use of this device.

Safety and Installation:

• Device installation should be performed by qualified personnel.
• If using the device as a security measure, for certainty and safety, the device should not be the only security measure.

OpenSource software source:

• Supla: https://www.supla.org/pl/
• Supla Forum GUI-Generic Builder
