Sūpynės vartų komplektas FORCE SW300LS su magnetiniais jungikliais, 2 x 3 m, 600 kg

Trumpai apie prekę

Prekė: Sūpynės vartų komplektas FORCE SW300LS su magnetiniais jungikliais, 2 x 3 m, 600 kg. Kategorija: Kietieji diskai.

• Gamintojas: Force
• Modelis: SW300 LS
• Įtampa: 230 V

The maximum length of one wing 3m, the weight of one wing 300 kg, so the total gate can be 6 meters long and 600 kg. It is perfect for narrow metal posts as well as for wider concrete posts.

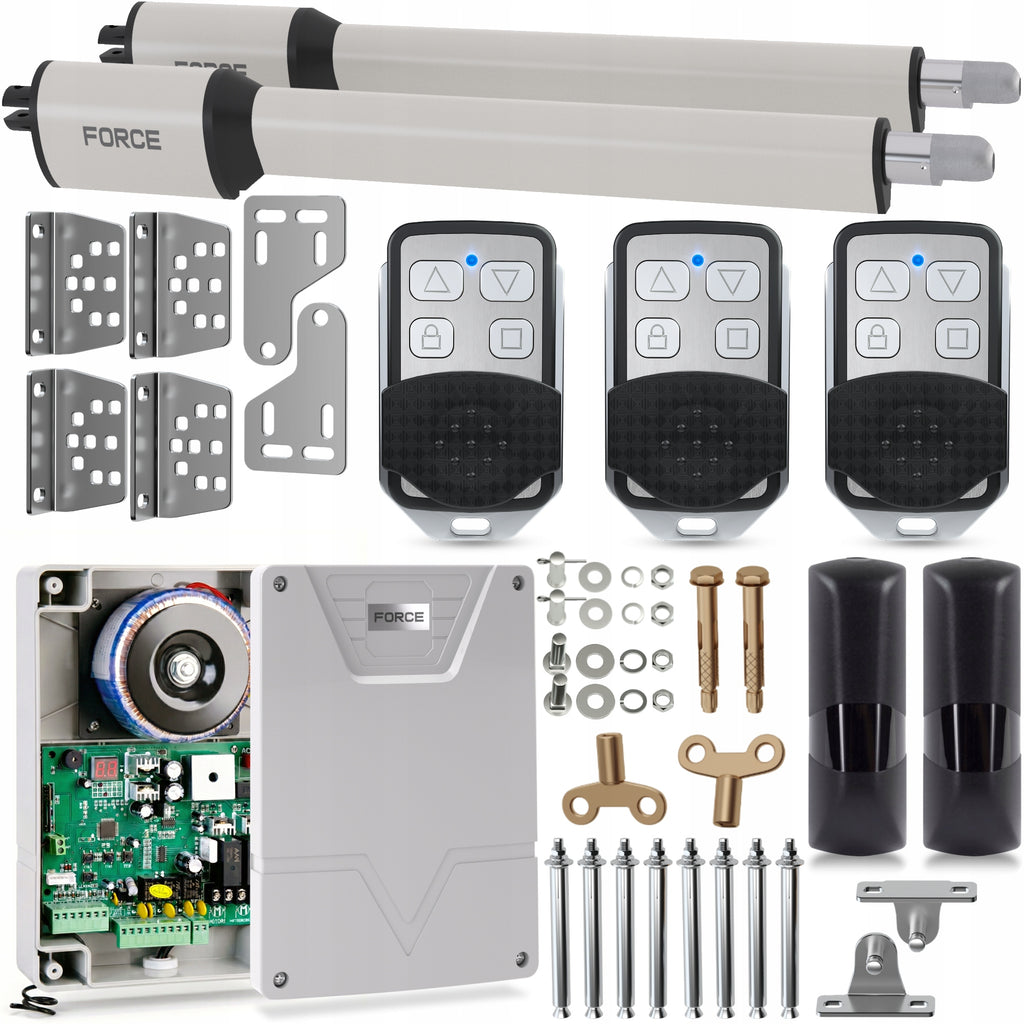

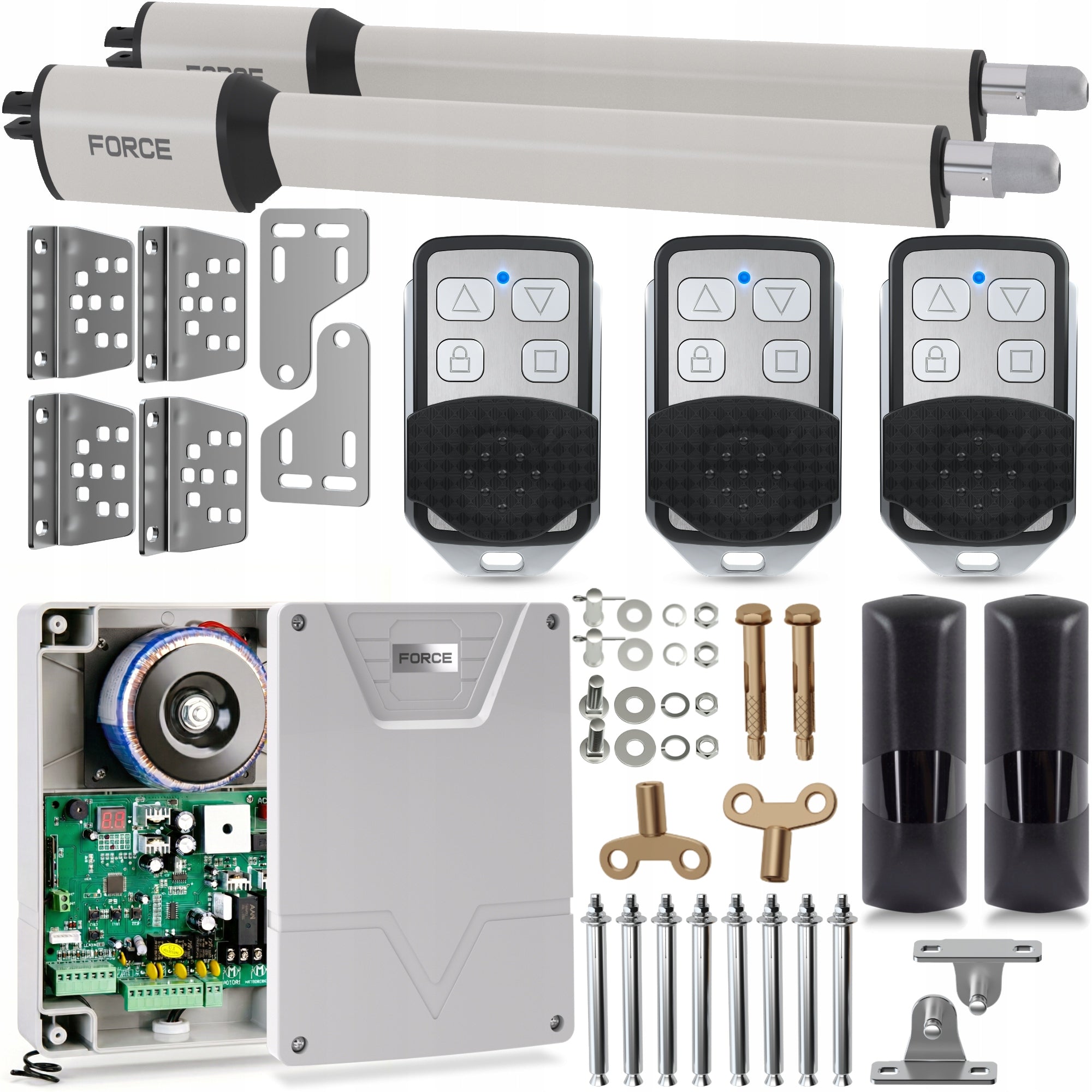

The set includes:

• 2x FORCE SW300 LS electromechanical actuators with built-in limit switches for opening and closing
• Control panel CB300
• Housing for control panel - hermetic
• 3x 4-channel remote control FORCE with sliding flap
• Photocells FORCE rotating 180 degrees
• Multi-position mounting brackets for posts and handles for gate wings
• 2x Key for emergency gate opening in case of lack of electrical power
• Mounting accessories
• User manuals in Polish
• Warranty card - 24 months

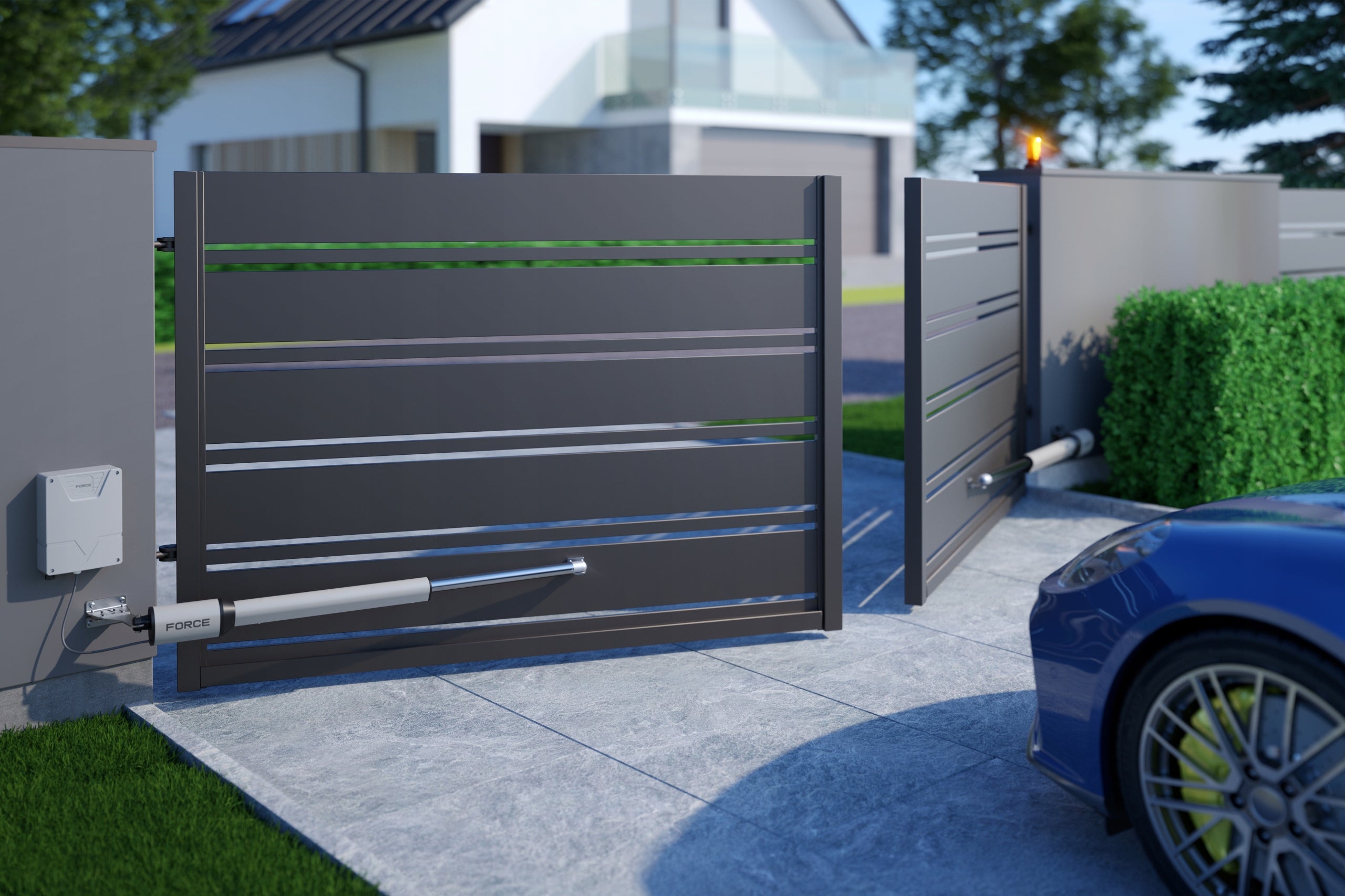

• PERFECT SOLUTION FOR HOME GATES The FORCE SW300 LS with 400 mm piston extension is the most practical and economical solution when automating a gate with a wing length of up to 3 m (two wings together support 6 m). The set is equipped with self-locking horn actuators. FORCE SW300 LS actuators have a 150W motor and a thrust of 1200 N! Which makes this model the strongest on the market in its price class.
• EASY INSTALLATION AND RELIABLE OPERATION Due to its tube design and the way the actuators are attached to the gate (from the front), the FORCE SW300 LS drive is quick and easy to install, without the need for expensive adaptive modifications. The great advantage of the SW300 LS actuator are the built-in wing movement limiters on the opening and closing. Thanks to this, there is no need to mount fenders / stops to the ground which are designed to stop the wings in extreme positions. Often, the installation of such fenders can be troublesome and time-consuming, especially when the lower part of the gate is at a considerable distance from the ground, such a high fender would be impractical and often visually undesirable. However, with the FORCE SW300 LS, you can quickly and easily set where the gate should stop at the abrasion and at the closure, without mounting anything to the ground. With the FORCE SW300 LS, you can install it quickly, easily and aesthetically.
• SECURITY - AMPEROMETRIC OBSTACLE DETECTION SYSTEM - is used to detect possible obstacles that may appear during the movement of the gate. Thanks to this function, when encountering an obstacle through the gate leaf, the control panel stops the gate and changes the direction of its movement.
• MINIMUM OPERATING COSTS, HIGH RELIABILITY The cost of operating the FORCE SW300 LS electromechanical drive is definitely minimal. The device works reliably in all weather conditions, in the range of external temperatures from-20°C to +55°C.

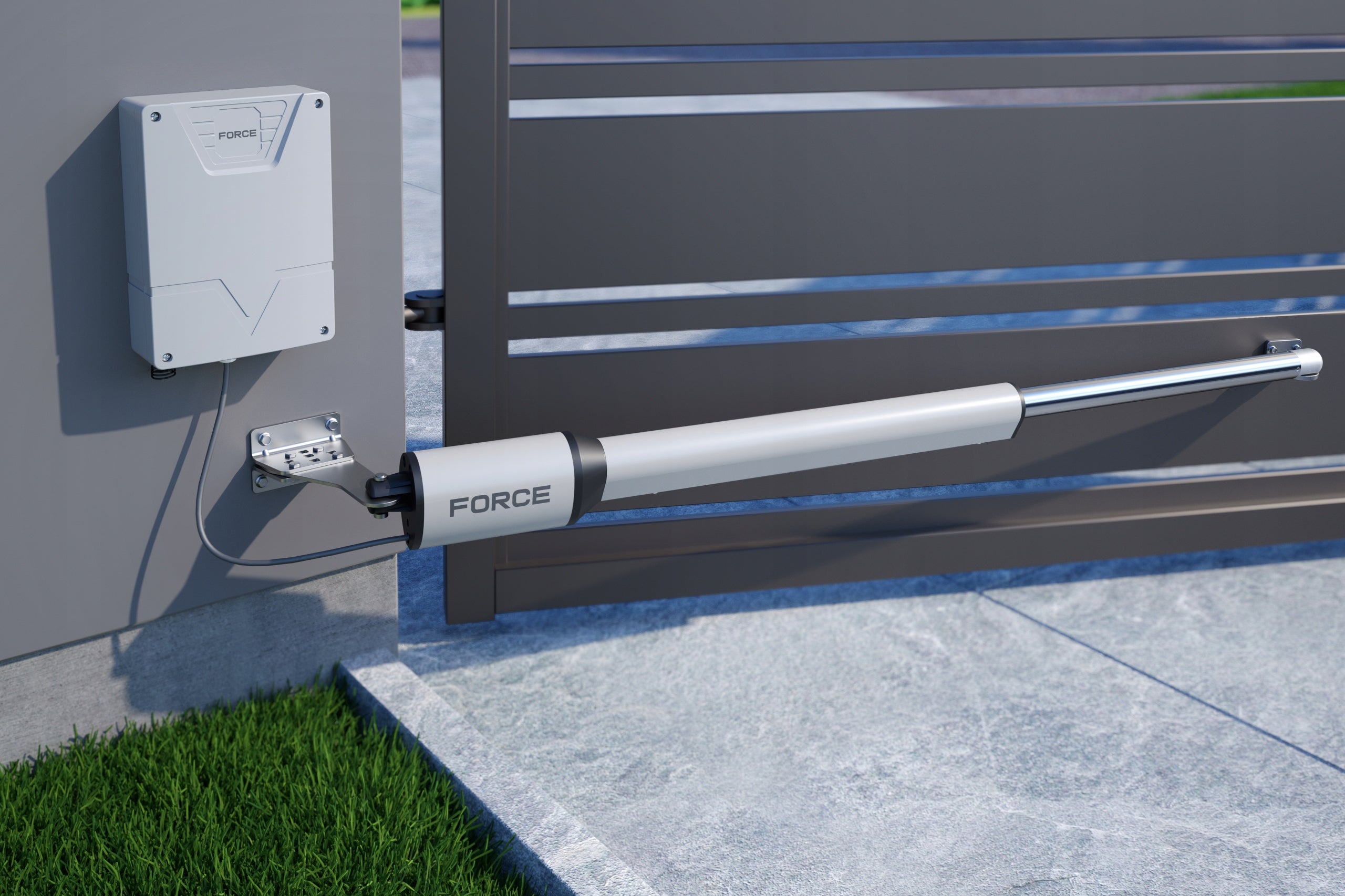

The FORCE SW300 LS actuator is a robust and durable design. The slim shape of the actuator also allows mounting to gates where there is not much space and the post is narrow. The slender shape of the actuator means that it fits into any type of gate without significantly affecting its aesthetics. And thanks to the universal multi-position handles included in the set, installation is very simple.

The actuator housing made of aluminum provides high resistance to weather conditions, while the sprockets and gears are made of high-quality metal alloys, which ensures that the product is robust and durable.

FORCE SW300 LS is a strong, robust and durable product that has been popular among individual customers and professional installers for many years.

• Actuator dedicated to metal and concrete posts or others where the hinges on the post are not larger than 19 cm see Fig. below.
• Installation on gates with high breathability.
• The kit is equipped with solid, multi-position universal mounting brackets, which makes it very easy to install and reduces its time. Universal mounting brackets are perfect for double-leaf gates in virtually any configuration.

In the event of an electrical power outage, we attach two emergency unlock keys to the set, so you can manually open the gate easily and quickly.

The control panel also provides the possibility of connecting an emergency battery power supply, which will open the gate when there is a power outage in the network.

The control panel is powered by a high-quality toroidal transformer connected to the 230V network, which eliminates unwanted voltage spikes. The control panel is intuitive and easy to connect. The Force SW300 LS kit will be programmed even by a person who has not had contact with electronics before, all thanks to a simple, intuitive LED display.

• "Soft Start" and "Soft Stop" - soft start and stop actuators guarantees smooth operation during the opening of the gate and braking of the gate wings in the final phase of work, thanks to which we get a gentle quiet closing of the gate (avoid slamming). Thanks to these functions, a high working culture of actuators is guaranteed.
• Automatic closing - allows you to program the time after which the gate will automatically close.
• Support for various types of m.in gates. gates in which one of the wings has a closing strip where the gate works "on the tab". This allows you to set the time of overtaking one of the wings in relation to the other.
• Gate function opening only one gate leaf if there is no need to open the entire gate e.g. When we want to go by bike or go for a walk with the dog, we can open only one wing of the gate.
• Indication of the operating status of the device with LEDs, which helps in device configuration and diagnostics.
• Possibility of connecting emergency powered (24v), which will ensure uninterrupted operation of the device even in the event of an interruption in the supply of electricity.
• External control: Need to open the drive from your garage or home with the push of a button? No problem. We can easily connect devices to the control panel with which we will be able to open the m.in gate: videophone, intercom, code keyboard, phone control from anywhere in the world using a WiFi controller, universal radio. Thanks to the universal radio, we can also control this device using remote controls of another brand.

• Overload protection: during the operation of the automatic gate, the electronics measure the operating intensity of the actuator on an ongoing basis. After exceeding the value set in the control panel (when encountering an obstacle e.g. car) the gate automatically stops.
• Optical protection: safety photocells are included in the kit. There is an infrared beam between the photocells. When the photocell line is broken (even before physical contact with the gate), the gate will automatically stop.
• Auto-locking the actuator after stopping: you do not need to use additional locks on the gate to protect it from intruders. The construction of the automatic transmission makes the actuator lock when the gate is closed, keeps the gate in a closed position.

• Power supply for actuators: 24VDC
• Actuator power: 40W
• Maximum length of one wing: 3 meters
• Maximum weight of one wing: 300 kg
• Maximum opening angle: 110 degrees
• Plunger extension: 400 mm
• Arm extension speed: 25 mm/s
• Built-in limit switches for opening and closing
• Sturdy transmission made of high quality metal alloy
• Protection class: IP55
• Operating temperature range: -20 to +50 degrees C

• Automatic closing of the gate
• Gate function
• Delay function of one wing relative to the other
• Soft start and stop function of actuators
• Amperometric protection (anti-crush)
• N.O. type control inputs for gate control from: WIFI controller, GSM, video intercom, code keyboard, button, etc.
• Easy connection and programming
• Up to 126 pilots can be uploaded
• Power supply of control panel: 230V
• Actuator supply voltage: 24VDC
• Max. Remote control range: 150 meters
• Option to connect emergency power supply via battery (optional)
• Protection Class: IP55
• Operating temperature: -25°C ~ +65°C
• Thermal protection

Remote control for 4-channel gateway, with dynamically randomly variable code with a frequency of 433.92 MHz. Gateway remotes will help manage home automation. Each gate remote has its own identity code – so that the remotes can be copied to the remote control. FORCE drive remotes are not compatible with other 433,92 MHz gate remotes.

Technical specification:

• Dimensions: 108mm x 35mm x 30mm
• Power Supply: 12-24V DC/AC
• Range: max 15meters
• Current Consumption: RX 15Ma - TX 30mA
• Relay: 1A max 36V
• Frequency: 1,92Khz
• Wavelength: 940nm
• Operating temperature: -20 to +55°C
• Viewing angle: 180 degrees (adjustable)
• Operation: from all angles (vertical and level)
• Weight: 105g
• Pins for mounting included

Convenient to install, because on narrow metal posts they can be mounted on the planes of the post from the outside (from the side of the road) and only rotate the electronics element 90 degrees towards the second photocell so that the photocells "see each other".

• set of anchors and mounting screws

To manually unlock the gate drive in case of an interruption in the supply of electricity

• Factory multi-position handles. Multi-position brackets allow the installation of actuators on both narrow metal posts and wider concrete posts, without welding or other adaptive modifications of the handles. With multi-position handles, the installation of actuators is easy, fast and aesthetically pleasing.
• anti-corrosion protected - galvanized

Diagram showing the length of the piston extension and the dimensions of the SW300 actuator.
