Suvirinimo aparatas WELDMAN SPOTTER 9900 su balansuojančiomis rankenomis

Trumpai apie prekę

Prekė: Suvirinimo aparatas WELDMAN SPOTTER 9900 su balansuojančiomis rankenomis. Kategorija: Sandarikliai.

• Gamintojas: Weldman
• Modelis: ZGRZEWARKA SPOTER BLACHARSKI DO KAROSERII
• Įtampa: 400 V

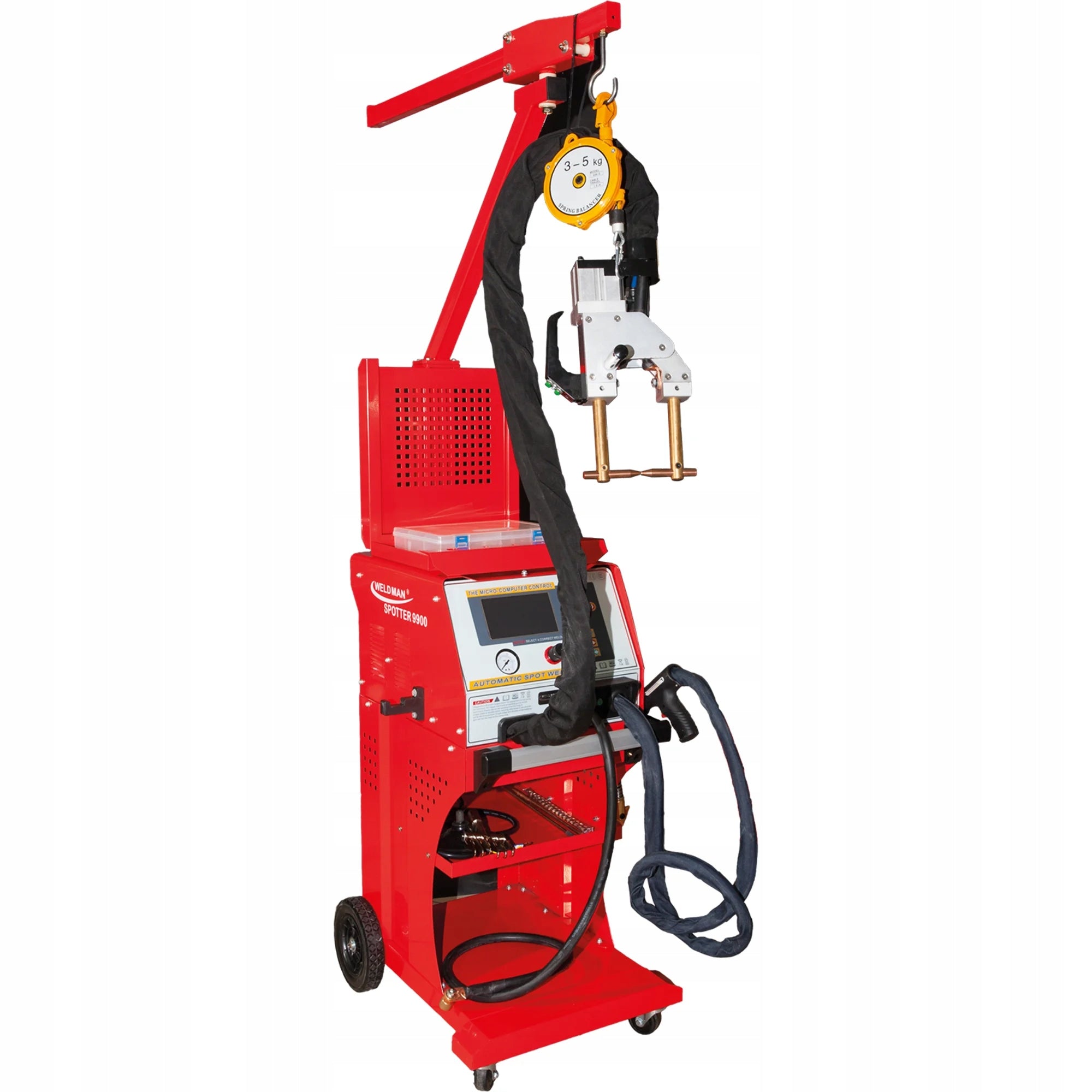

BODYWORK SPOTTER FOR BODY REPAIRS WITH BALANCER AND PNEUMATIC FORCEPS

WLDMAN SPOTTER 9900 is an advanced device designed for bodywork repairs. The SPOTTER type welding machine is designed for pulling out dents, welding one-sided and double-sided, patching and warming with carbon electrode blach. It is the perfect solution for car body repairs, offering exceptional versatility and performance. The set includes pneumatic pliers with ballander for double-sided welding!

The offered welding machine has a power supply 400V and has a huge power of 9900A which allows double-sided welding o thickness 4mm+4mm! The extensive equipment of the set allows you to immediately start working with the device!

The device has built-in operating modes for each tool, and the operating parameters are set using solid function buttons. The LCD display graphically presents the current program and work tool, which makes the operation of the device simple and intuitive. After selecting the type of tool, the device will adjust the welding current and optimal duty cycles. There is also the ability to manually set the welding time and current.

The device has a wide range of functions, making it ideal for body repair. Built-in work modes significantly facilitate the work. All settings of the welder are available from the control panel. After selecting the type of tool, the device will adjust the welding current and optimal work cycles. There is also the possibility of manual setting the time and current for welding.

AVAILABLE OPERATING MODES:

1. WELDING ROUND WASHERS
2. TRIANGULAR PADS
3. HEATING CORRUGATED WIRE
4. WELDING SINGLE-SIDED SHEET
5. WELDING BLACH ON TAB
6. SWELLING / WARMING UP / TEMPERING BLACH
7. SPINS/PINS
8. SURFACE ALIGNMENT (FLATTENING)
9. DOUBLE-SIDED WELDING
10. SIMPLE PADS

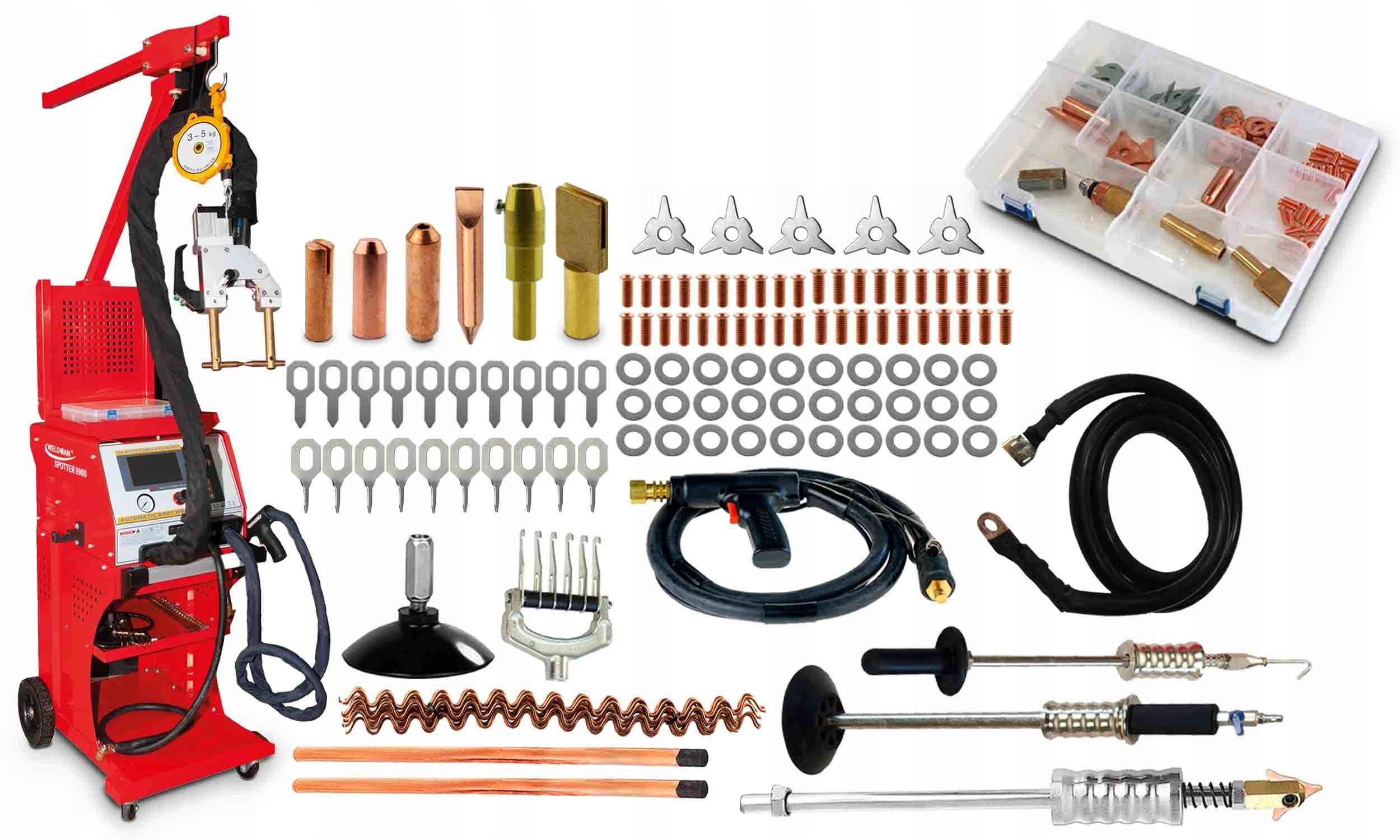

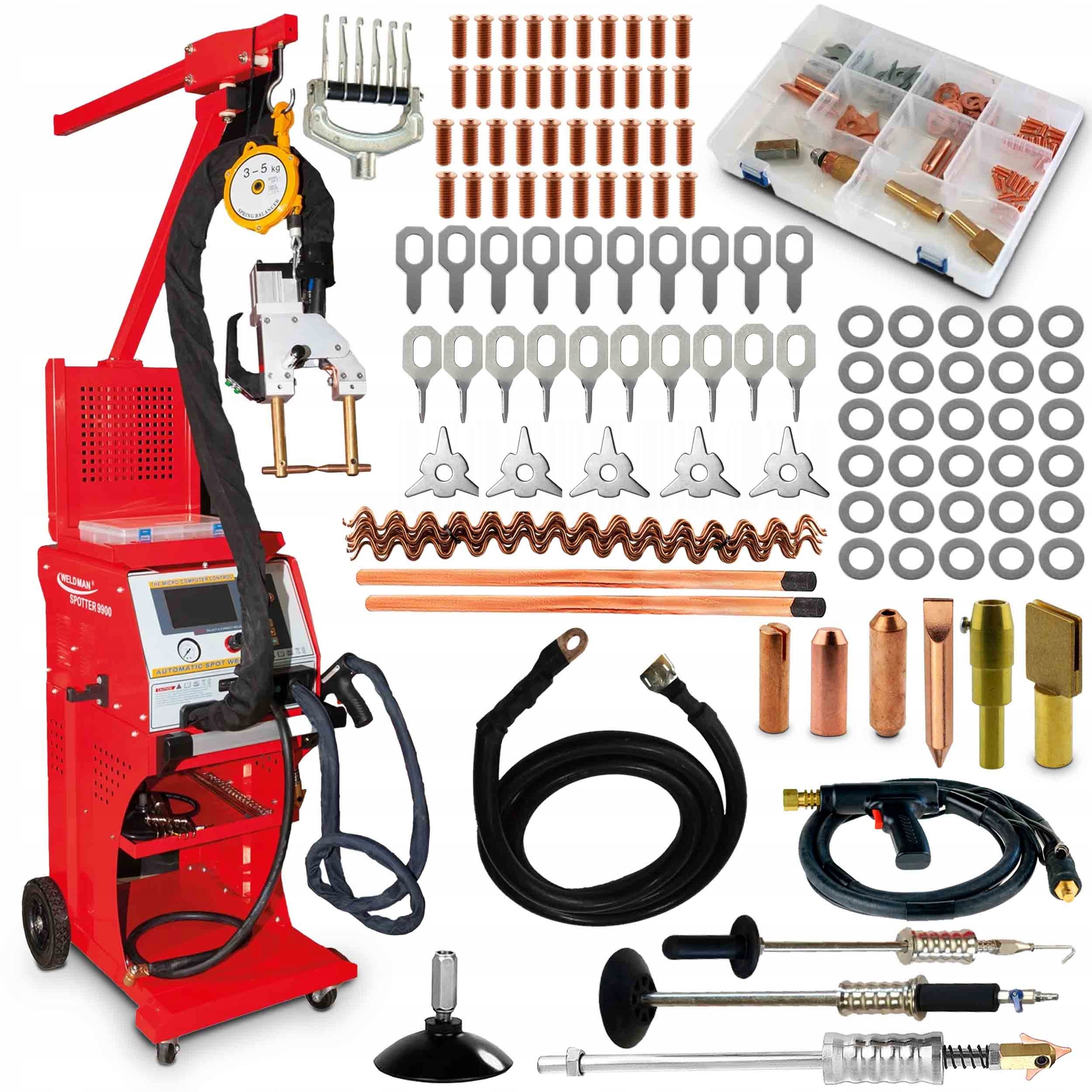

WELDMAN SPOTTER 9900 has all the necessary tools for body repair. The set also includes accessories, which are necessary for body repair. The whole is complimented in a box with compartments, thanks to which all accessories are in one place.

• WELDMAN SPOTTER 9900
• TRANSPORT TROLLEY
• BOOM WITH ADJUSTABLE EXTENSION AND BALANCER EW-5 L=1,5M 3-5 KG
• CABLE L=2 M WITH PNEUMATIC FORCEPS TYPE X
• KINETIC HAMMER FOR HANDLE (GUN) FOR TRIANGULAR WASHERS
• KINETIC HAMMER WITH HOOK FOR CORRUGATED WIRE OR ROUND AND STRAIGHT PADS
• KINETIC HAMMER WITH PNEUMATIC VACUUM SUCTION CUP
• CARBON ELECTRODES 2 PCS.
• WORKING CABLE WITH HANDLE (GUN) 2,2 M
• POWER CORD 2.5 M
• MASS CABLE WITH MASS TIP 2 M
• HANDLE FOR COMB WELDING 6 FINGERS

IN ADDITION, A BOX OF CONSUMABLES CONTAINING:

• WASHERS ROUND 12 MM - 30 PCS.
• TRIANGULAR WASHERS - 5 PCS.
• WASHERS SIMPLE - 10 PCS.
• WASHERS SIMPLE TWISTED - 10 PCS.
• SCREW M5 L=16 MM - 20 PCS.
• SCREW M6 L= 16 MM - 20 PCS.
• CORRUGATED WIRE L= 300 MM -10 PCS.
• ELECTRODE FOR SCREWS
• ELECTRODE FOR ROUND WASHERS
• ELECTRODE FOR STRAIGHT WASHERS
• ELECTRODE FOR CRUSHING IRREGULARITIES (CREATED AFTER PULLING OUT THE SHEET METAL)
• ELECTRODE TWO-SIDED FOR CORRUGATED WIRE AND SPOT WELDING
• HANDLE FOR CORRUGATED WIRE ELECTRODE
• HANDLE FOR TRIANGULAR WASHERS
• TIP MASSES

• DEVICE TYPE: SPOTTER 9900
• SUPPLY VOLTAGE: 400V
• POWER SUPPLY: 22,8kVA
• SUPPLY CURRENT: 20-125A
• WELDING CURRENT: 11000A
• WELDING CURRENT VOLTAGE: 1-15,5V
• REGULATION OF WELDING TIME: 0-9900MS
• MAX. THICKNESS OF WELDED MATERIAL: 4+4MM
• PROTECTION CLASS: 21IP
• DIMENSIONS OF THE WELDING MACHINE: 62X55X136cm
• DIMENSIONS OF THE WELDING MACHINE WITH TROLLEY: 140X55X198cm
• WEIGHT OF WELDING MACHINE: 92kg

OPERATING PARAMETERS:

• MAXIMUM WELDING CURRENT: 9900A
• REGULATION OF WELDING TIME: 0 - 9900MS
• MAXIMUM THICKNESS OF WELDED ELEMENT: 4 + 4mm

Below is a description of the most important functions of the device. It presents the possibilities of using the elements and tools included in the set!

HEATING OF CORRUGATED WIRE

To remove wider dents, we use corrugated wire, which we heat to the repaired element, and then we make deformation thanks to puller devices (this type of device we offer at other auctions). We can also use the 6-pin claws included in the set.

HEATING OF STRAIGHT AND TWISTED WASHERS

We can also use simple pads to pull out dents. After heating the right amount of pads, we can use e.g. 6 pin handle (so-called. claws) very easy to repair the damaged element.

HEATING OF TRIANGULAR WASHERS

Pulling out dents with triangular pads is very simple. It is enough to heat the triangular tip into the damaged element, and with a kinetic hammer we "pull out" the dent.

HEATING OF MANDRELS (PINS)

To the damaged element, simply heat the pin with a gun and the appropriate tip, and then pull out the dent with a punch. The offered spotter allows you to no heat the studs to steel.

PULLING OUT DENTS WITHOUT DAMAGING THE PAINT

Using a punch with a pneumatic suction cup, we can repair the excited element without damage to the paint using a punch with a vacuum suction cup included in the set!

SURFACE LEVELLING (FLATTENING)

Surface leveling, also known as flattening, is a process used in metalworking that allows for a smooth and uniform sheet surface.

WELDING OF SHEETS ON THE TAB

Welding sheets on a tab is a method of joining in which two sheets of sheet metal are applied to each other at a certain width and welded along their tab. This technique provides strong, durable connections, ideal for applications where high mechanical stress resistance and resistance to environmental factors are required.

DOUBLE-SIDED WELDING OF SHEETS 4mm+ 4mm

Double-sided welding of sheets is an advanced technique of joining two or more sheets of sheets by simultaneously welding them from both sides. This method provides a strong, durable and aesthetic connection that is resistant to mechanical and thermal loads.

SWELLING / WARMING / TEMPERING OF SHEETS

SWELLING: The swelling process involves local compaction of the material, which leads to an increase in its thickness. This is especially useful in bodywork repairs, where it is necessary to strengthen or increase the strength of a given area.

HEATING: Sheet metal heating is used to facilitate the forming and bending of metal. By raising the temperature of the material, its hardness and plasticity are reduced, which allows for easier and more precise shaping.

DRAINING: Tempering is the process of controlled heating of a sheet metal to a certain temperature and then slow cooling. This is to reduce internal stresses that could lead to cracks or deformation. Tempering also increases the flexibility and strength of the material, which is crucial for long-term use of metal components.
