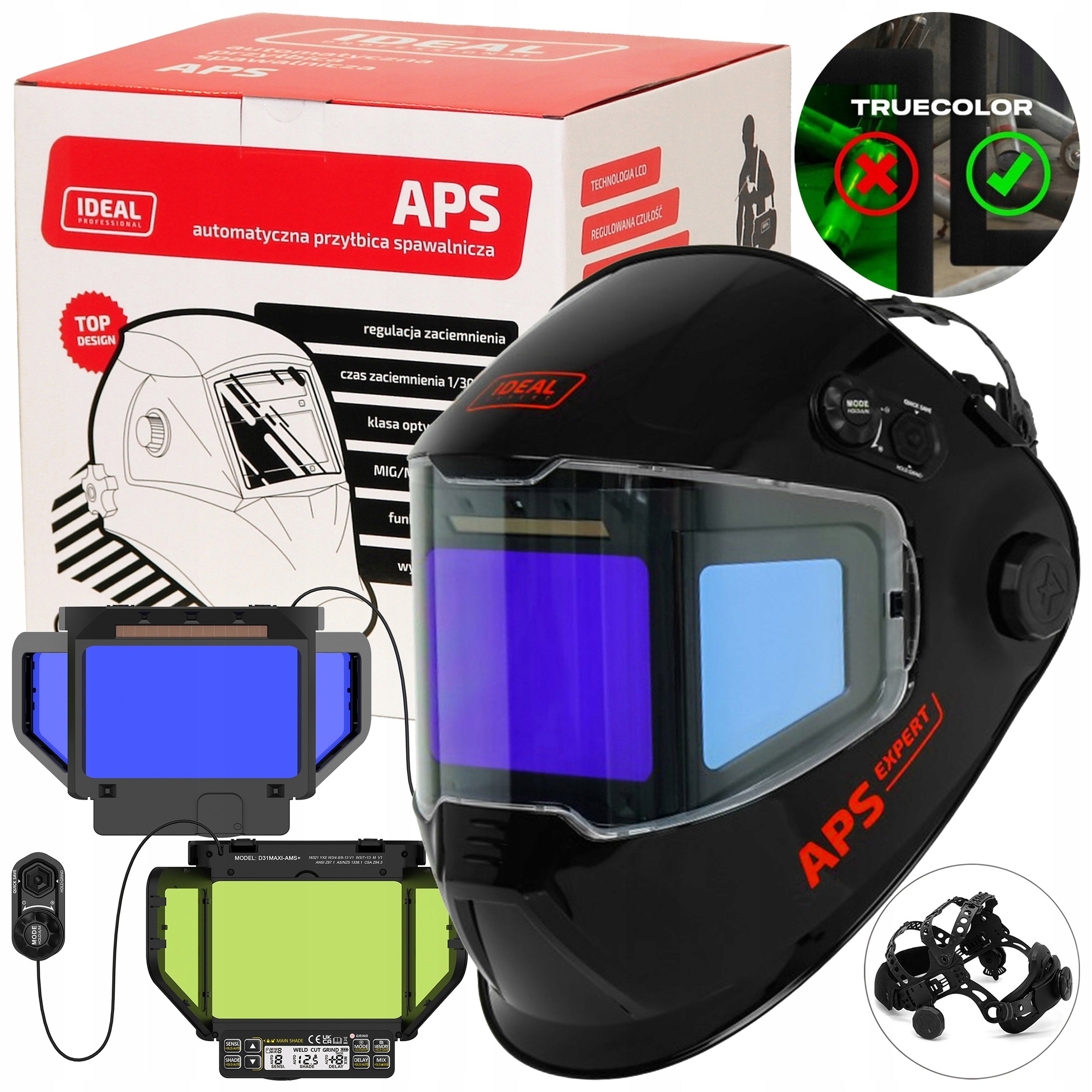

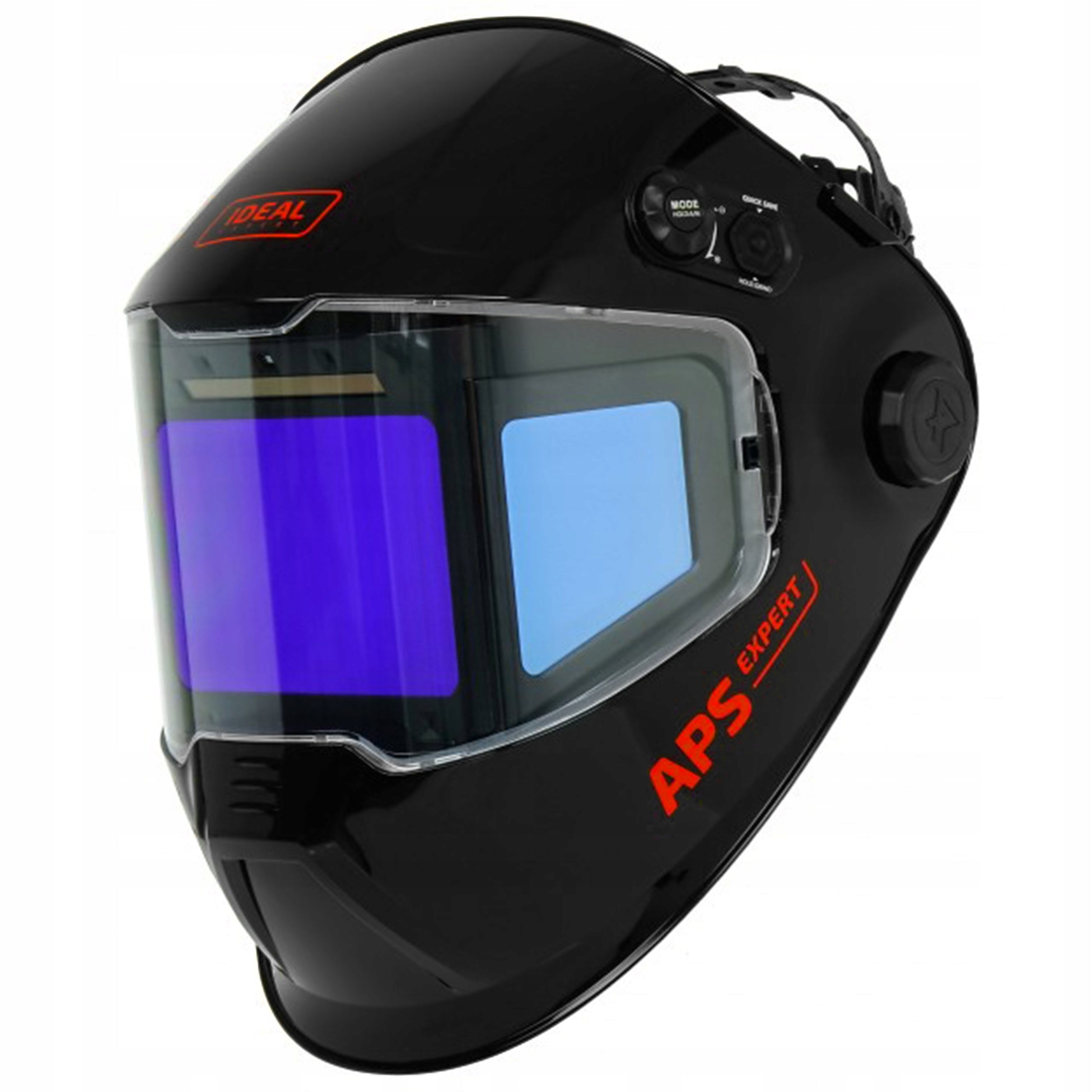

Suvirinimo skydelis IDEAL APS EXPERT D31, panoraminis, juodas, 1/1/1/1 LCD

Trumpai apie prekę

Prekė: Suvirinimo skydelis IDEAL APS EXPERT D31, panoraminis, juodas, 1/1/1/1 LCD. Kategorija: Kaukės.

• Gamintojas: IDEAL
• Modelis: APS EXPERT D31 PANORAMIC
• Spalva: black

• Purpose: MIG/MAG, TIG/TIG PULSE and MMA welding; plasma cutting
• Equipped with grinding function
• Optical class - 1/1/1/1
• Response time - < 1/30000s
• Field of view - 116 x 81 mm + 2 active side welding filters
• Variable degree of protection DIN 3/4-8/9-13 and lightening time
• Possibility to set sensor sensitivity
• LCD True Colour filter
• Four independent sensors - welding with small TIG currents
• Adaptive optical sensor in synergistic mode
• External control, change to GRIND mode, dimming level correction, enable AUTO SHADE function, save settings (10 save places)
• MIX (GRADIENT) function - gradual blackout extinction after finishing work
• 5-arm adjustable header
• High impact resistance (EN175B standard)
• Power supply with photovoltaic cell + replaceable battery
• Battery Depletion Indicator

WORK WITHOUT INTERFERENCE - TRUE COLOR TECHNOLOGY

The TRUE COLOR technology used in the visor offers real color reproduction, while the automatic darkening degree adapts to current welding conditions, ensuring eye protection. Optical class 1/1/1/1 provides the highest quality image, and the grinding mode prevents the visor from dimming.

OPTICAL CLASS 1/1/1/1

EN 379 defines four key parameters that define the optical class of a welding visor:

Optical class – determines the type and degree of image distortion.

Light dispersion – assesses the quality of the filter material and its purity, without contamination.

Differences in light transmission – refer to the self-tinting capabilities of lenses and even dimming over the entire surface.

Angle dependence on light transmittance – provides a clear view from every angle.

Each of these parameters is evaluated on a scale from 1 to 3, where 1 is the best score and 3 is the weakest.

The better the parameters, the higher the optical class, but also the price. For professional applications, a visor with parameters of 1/1/1/1/1 will be fully sufficient.

SAFETY AND HIGH QUALITY

The welding visor meets the requirements of the EN175B standard, which provides greater impact resistance. It also provides UV/IR radiation protection up to 16 DIN.

Made of high quality materials, with ergonomic, adjustable, 5-arm head, which can be adapted to individual needs, is an essential accessory designed for welding work

⚙ TECHNICAL SPECIFICATION:

• Response time: < 1/30000s
• Number of sensors: 4 + 1
• Optical class: 1/1/1/1
• UV/IR protection: up to 16 DIN
• Dimming adjustment: automatic or manual, 3/4-8/9-13 DIN
• Adjustable sensitivity: automatic or manual
• Adjustable delay: automatic or manual, 0.04-2.00 s
• Standard: CE, UKCA, EN175B, EN379, EN166, ISO EN16321
• Battery depletion rate: √
• Power supply: photovoltaic cell and 2xCR2450 battery
• Field of view: 116 x 81 mm + 2 active side welding filters
• Type of welding filter: filter APS-D31-MAXI-AMS+ TrueView+
• Plasma cutting: √
• MIG/MAG; MMA: √
• Grinding: √
• TIG, minimum current: √, >2A
• Weight: 680g
