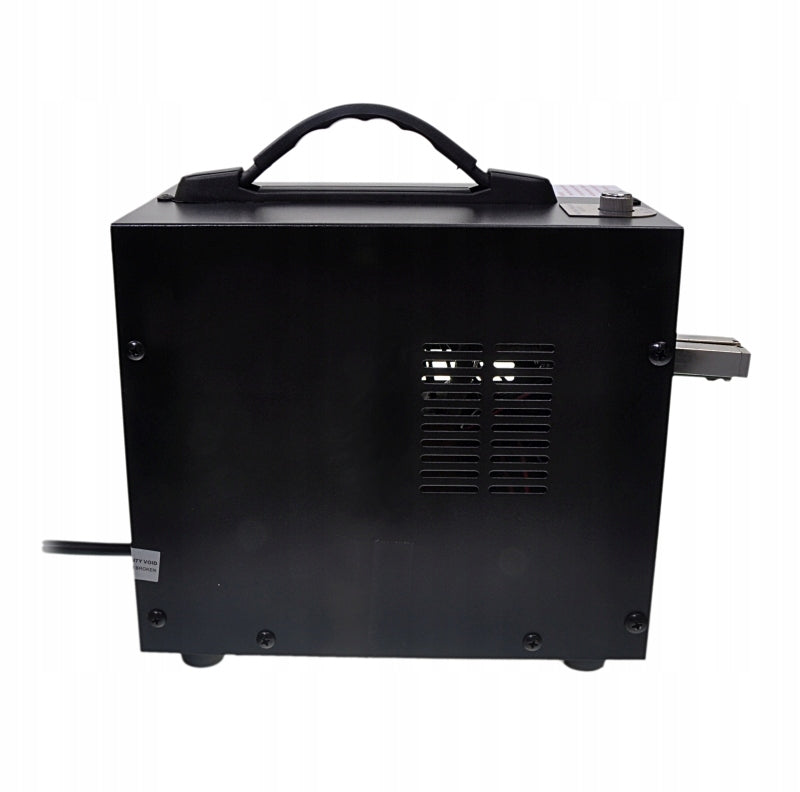

Taškinio suvirinimo aparatas Sunkko 737G, 2,88 kW, su LED

Trumpai apie prekę

Prekė: Taškinio suvirinimo aparatas Sunkko 737G, 2,88 kW, su LED. Kategorija: Sandarikliai.

• Gamintojas: no brand
• Modelis: Zgrzewarka punktowa impulsowa spawarka 737G
• Įtampa: 220 V

Modernity meets functionality in our latest product - SUNKKO 737B/G Pulse Point Welding Machine. This is an innovative device, created for professionals and enthusiasts who appreciate precision and durability in the process of connecting nickel strips in battery batteries.

❇ What sets our welding machine apart? ❇

✓ Two Electrode Working Points: The welding machine is equipped with two electrode working points, permanently attached to the device housing, which allows welding of nickel strips o different thicknesses (0.03 ~ 0.2 mm, 0.15 mm for pure nickel). Adjusting the current level in the range 0 ~ 99 provides precise adjustment to individual needs.

✓ Pulse Power Adjustment: Thanks to the pulse power adjustment function and the inumber of repetitions, you have full control over the welding process. This ensures durable and reliable connections that meet the highest demands.

✓ Set with Foot Pedal: Working comfort is our priority. The set includes a foot pedal, thanks to which operation of the welding machine becomes even more convenient.

✓ Ideal for Lithium Battery Packs: Our device is perfect for building small sets of lithium batteries, ensuring reliability and durability of connections.

➡ Welding pressure knob

Our welding machines are equipped with advanced welding pressure knob, which allows you to adjust the value in the range of 200g~700g. It is an intuitive and precise solution that allows you to adjust the welding parameters to your specific needs. This makes the welding process even more flexible and adaptable to different types of materials.

How to adjust the pressure?

1. Material Thickness: Look at the material you are going to weld.
2. Observe Welding Point: During welding, keep a close eye on the welding point.
3. Settings Compliant with Thickness:

• Thicker Material: Turn the knob according to the clock directions.
• Thinner Material: Turn the knob counterclockwise.

4. Customize According to Indications: When adjusting the pressure, follow the indications for material thickness.

➡ Welding torque control

Our advanced device also provides control over the welding torque, which translates into even more precise and durable connections.

Why is Welding Moment Control Key?

• Precision in Welding: Welding torque control allows you to adjust the strength and depth of the weld to your specific needs. This is a key element in achieving excellent results, especially when welding different thicknesses of materials.
• Better Durability: Precise adjustment of the welding torque ensures that the joints are not only strong but also durable. This is important, especially for battery packs, where connection robustness is critical to performance and safety.
• Safety in Use: Control of welding torque also affects the safety of use, eliminating the risk of excessive pressure or too intensive welding.

➡ Welding with Foot Pedal

This is the new era of convenience and professionalism in the world of welding. Foot pedal, allows you to control the welding process, allowing to maintain full control over the device.

• Freedom of movement: Thanks to the foot pedal, Your hands remain free, which increases freedom of movement and precision during welding.
• Safety of Use: The foot pedal guarantees safety of use, allowing instant interruption of the welding process if necessary.

➡ Welding with Head

This is an innovative feature that introduces a new standard in welding efficiency.

• Reinforced Current Output Structure: Thanks to the reinforced current output structure, we provide not only robustness, but also unrivaled welding performance.
• Increased Output Power: We offer a power output much higher than the original - 1,3-1,5 x higher, which translates into a faster and more efficient welding process.

➡ LED Lighting

The reinforced version of the LED light better illuminates the welding site. This allows you to work in low-light areas.

❗ Technical Specification

⚙ Power supply voltage: 220V/110V

⚙ Power 2.88 KW (instantaneous)

⚙ Current 800 A (max)

⚙ Time 1 pulse: 0,5 - 5 ms (variable)

⚙ Time 2 pulses: 1 - 10 ms (variable)

⚙ Appropriate thickness of washers 0,03 - 0,2 mm for fixed head

⚙ Dimensions: 200 x 140 x 245 mm (H x W x Long)

✴ How to use the welding machine? ✴

✴ Stable Power Supply: For best results, we recommend connecting the welding machine to the wall socket, ensuring stable power supply.

✴ Current Protection: The rated operating current of the circuit breaker should be 40-63A to meet the instantaneous high welding current. By ensuring proper current protection, you will maintain safe working conditions and extend the life of the welding machine.

✴ Precise Settings: The Pressure regulator should be set to appropriate value as needed. This guarantees efficient welding.

✴ Cleanliness: Regular cleaning of needle surfaces with abrasive paper will keep the device in excellent condition.

✴ Sharpness of Welding Needles: Keep welding needles sharp for optimal results.

❗ Attention! During use, there may be momentary flashes of light associated with high power and immediate discharge of high intensity. This is a normal phenomenon and does not affect the effectiveness of the welding machine.

✅ Set includes ✅

• Impulse welding machine 737B (Or 737G depending on delivery)
• Control pedal
• 4 x Welding Machine Needles
• The key to replacing needles
• 2 x Fuse 30A
• Basket for 4 AA batteries
• Nickel strips: 30pcs 0,1x4x100mm and 30pcs 0,15x5x100mm.

⭕ Invest in the SUNKKO 737B/G Pulse Spot Welding Machine and you will see how easy and efficient it is to create lasting connections. Don't wait - take advantage of this great technology today! ⭕

Symbol: 00043922

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Maximum power	2880 W
Parametry	Power supply	mains
Parametry	Supply voltage	220 V
Parametry	Device weight	5.4 kg
Parametry	Manufacturer code	Zgrzewarka punktowa impulsowa spawarka 737G
Parametry	EAN (GTIN)	5908272003307
Parametry	Batteries included	no
Parametry	Packaging status	original
