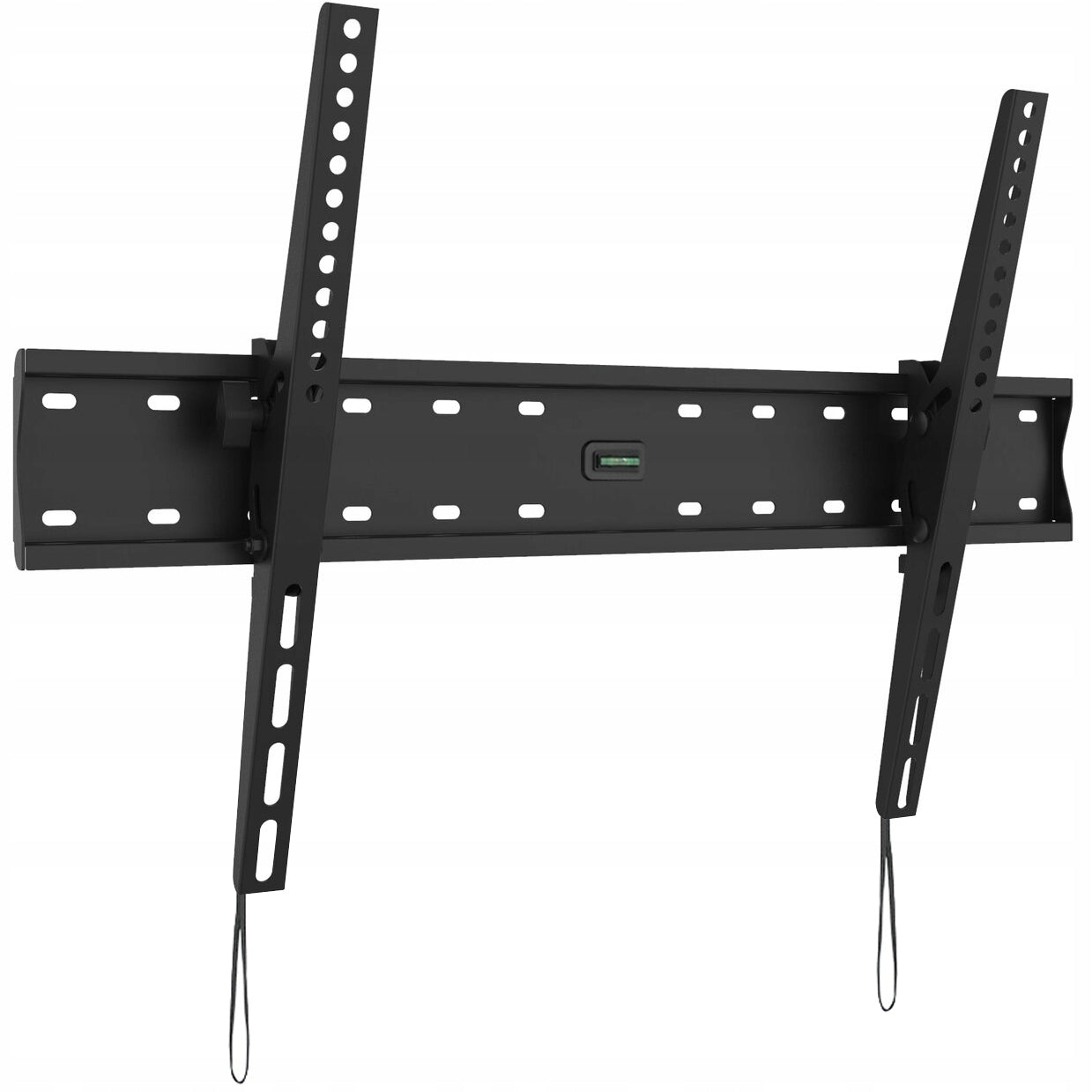

Televizoriaus laikiklis, reguliuojamas, pakreipiamas, 32–75 colių

Trumpai apie prekę

Prekė: Televizoriaus laikiklis, reguliuojamas, pakreipiamas, 32–75 colių. Kategorija: Rankenos.

• Gamintojas: LTC
• Modelis: LXLCD89

✅ LOAD CAPACITY 40 KG ✅ VESA 600 X 400 ✅ BUILT-IN LEVEL ✅ REPUTABLE POLISH BRAND "LTC"

✅ REINFORCED NEW DESIGN FROM 32 TO 75 INCH

This holder can be safely used for TVs with a larger screen diagonal. The condition that must be met by the mounted TV is:

1. Maximum spacing of mounting holes: VESA 600x400
2. Minimum spacing of mounting holes: VESA 75x75
3. TV WEIGHT: UP TO 40KG

• Incredibly strong TV mount with an adjustable inclination angle of +/- 15 ° (up / down), which is able to meet the requirements of even the most demanding users.

• Thanks to its unique design, the hanger protrudes only 56 mm from the wall , which makes it incredibly versatile and attractive.

The manufacturer states that the maximum load of this holder is 40 kilograms. We tested it for a month in, under a load of 50 kilograms. After a month, the handle didn't even budge.

The presented handle is incredibly strong and universal - it has a smoothly adjustable spacing of mounting holes from 75x75mm to as much as 600x400mm (the first value is the distance between the horizontal holes, the second value is the distance between the vertical holes). If your TV has mounting holes in this range and does not exceed the weight of 55 kg, the presented hanger will definitely fit.

The universal TV mount stands out from the rest with a durable and strong construction made of reinforced metal alloy.

The hanger easily withstands a load of up to 40 kg, and thus provides an optimal level of safety for each mounted device.

Will this mount also fit curved screens? Usually, special spacers are added to such TVs in the set, which allow you to mount TV sets with a curved matrix to a standard bracket.

• Fits TVs: 32 to 75 inches
• Maximum load: up to 40 kg
• Distance from the wall: 56 mm
• Vertical adjustment: + / - 15° (up / down)
• Movable arms: Yes
• Colour: Powder coated black
• Built-in spirit level: Yes
• Mounting parts included: Yes

STANDARD WITH VESA (spacing of mounting holes):

• VESA 100x100 (horizontal 100mm x vertical 100mm)
• VESA 200x100 (horizontal 200mm x vertical 100mm)
• VESA 200x200 (Horizontal 200mm x Vertical 200mm)
• VESA 200x300 (horizontal 200mm x vertical 300mm)
• VESA 200x400 (horizontal 200mm x vertical 400mm)
• VESA 300x200 (horizontal 300mm x vertical 200mm)
• VESA 300x300 (horizontal 300mm x vertical 300mm)
• VESA 400x200 (horizontal 400mm x vertical 200mm)
• VESA 400x400 (Horizontal 400mm x Vertical 400mm)
• VESA 600x400 (horizontal 600mm x vertical 400mm)
• And all intermediate ones, e.g. horizontally 431 x vertically 378

SAMSUNG, PHILIPS, LG, SONY, SHARP, PANASONIC, KRUGER & MATZ, BLAUPUNKT, KIANO, SENCOR, MANTA, HYUNDAI, JVC, HISENSE, LTC, TECHNISAT, THOMSON, HITACHI, FERGUSON, GOGEN, SKYMASTER, TELEFUNKEN, LIN, TCL AND ALL OTHERS WITH MOUNTING HOLE SPACES FROM 75 X 75 TO 600 X 400 MILLIMETERS NOT EXCEEDING THE PERMITTED WEIGHT OF 55 KILOGRAMS.

FOR EXAMPLE:

• SAMSUNG 32" (VESA 200x200)
• SONY 40" (VESA 300x200)
• SAMSUNG 49" (VESA 400x400)
• PHILIPS 50" (VESA 400x400)
• LG 55" (VESA 400x400)
• SONY 60" (VESA 600x400)
• SAMSUNG 65" (VESA 600x400)

* VESA - spacing of mounting holes in millimeters (horizontal x vertical)

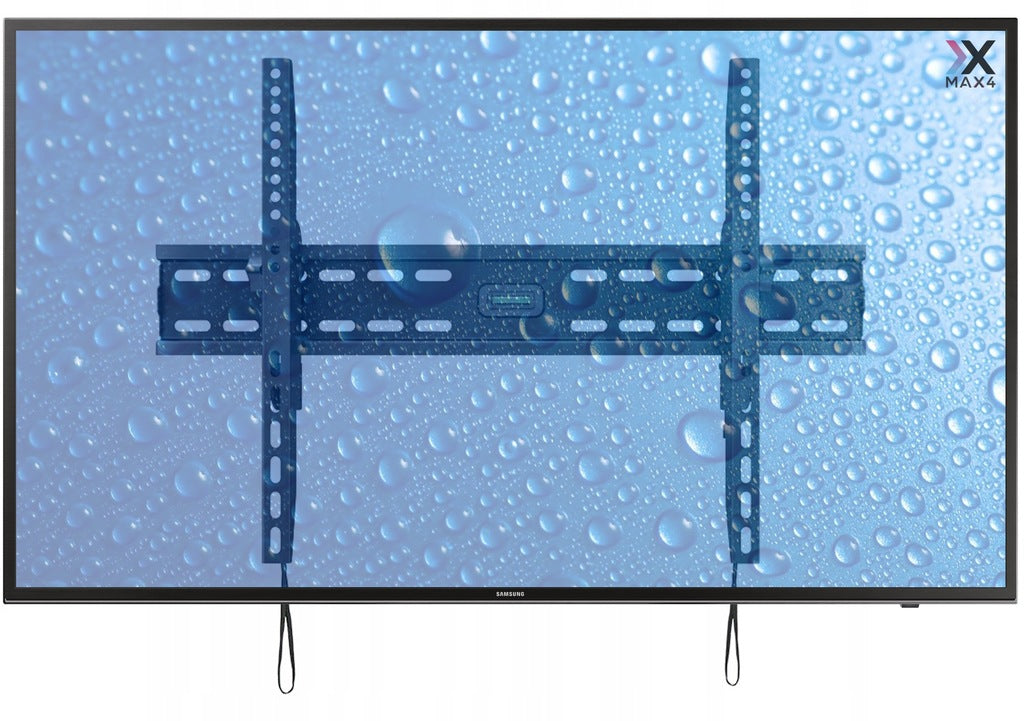

In order to precisely match the bracket to your TV, measure the spacing between the holes horizontally and vertically , they are used to mount the rails, which are then hung on the front plate mounted on the wall. The created graphics present different sizes depending on the colors.

• WHITE: 200 x 200
• RED COLOR: 400 x 200
• YELLOW: 400 x 400
• BLUE COLOR: 600 x 400

In the set with the bracket, you get universal mounting accessories that should be suitable for most mounted TVs. If it happens that some screws turn out to be too short, you should buy them yourself at a nearby hardware store.

The manufacturer recommends that the person installing the TV use their own wall plugs that will be suitable for the wall on which the bracket is mounted. Choosing the right dowels is the basis for proper assembly.

A good example are the wing pins , which are designed for walls made of materials containing voids or for fixing in walls made of plasterboard.

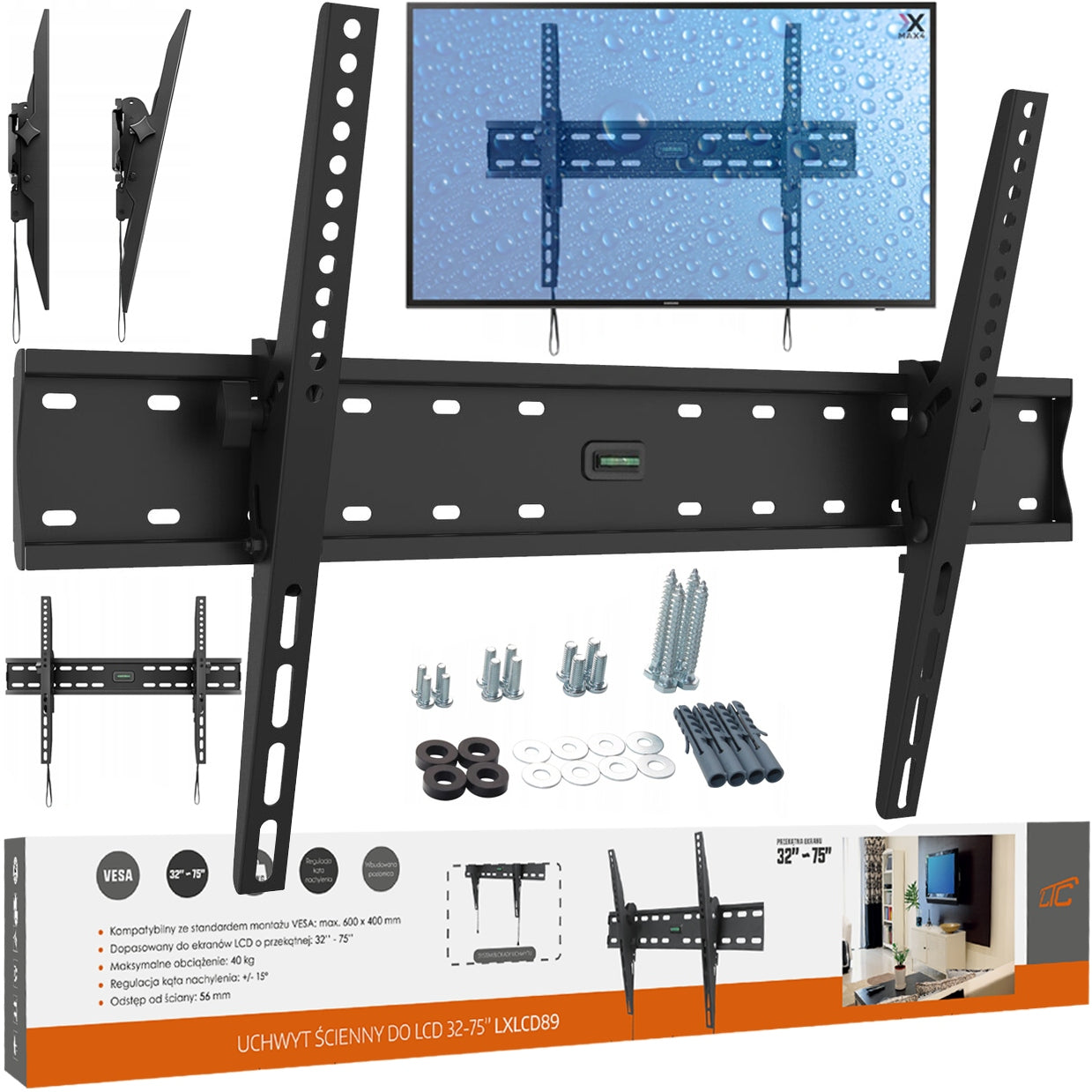

• Handle
• Simple, intuitive assembly instructions
• A set of bolts and nuts needed for assembly
• Warranty Card

If within two years of purchasing this hanger you notice a problem, don't panic - we will replace it with a new one for free.

If we are already sure about the decision to mount the TV on the wall, then in the first step we should choose the appropriate (matching) hanger for it. To avoid problems, the assembly went smoothly, and the mounted TV was stable, you should pay attention to a few important issues before buying.

• VESA standard (Video Electronics Standards Association) - This is a mounting standard that informs what spacing of mounting holes must have a hanger on which we want to hang the TV. The type of holes is very easy to check : it is described in the manual. If this information is not available, you can measure the distance between the mounting holes on the back of the TV yourself. The most common are: VESA 200 x 200, VESA 100 x 100, VESA 300 x 300, VESA 400 x 400, VESA 600 x 400, where the first number defines the spacing between the left and right holes in the same row (horizontally), and the second between the bottom and the top (horizontally).

• Weight of the mounted TV - This is one of the key information. Check the manufacturer's weight in the manual. Importantly, however, you have to take into account the value that does not include the TV stand. Of course, the weight of the TV must be lower than the maximum weight of the bracket. In this way, we will be sure that the entire structure will withstand, and our equipment will not land with a bang on the floor. The handle presented on this auction can be loaded up to 40 kg.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	LCD89
Parametry	Model	LXLCD89
Parametry	Maximum TV size	75"
Parametry	Brand	LTC
Parametry	Maximum load	40 kg
Parametry	Product weight with unit packaging	2.7 kg
Parametry	EAN (GTIN)	5902270757132
Parametry	Kind	solid,retractable
Parametry	VESA Standard	75 x 75,100 x 100,150 x 100,200 x 100,200 x 150,200 x 200,200 x 300,300 x 200,300 x 300,300 x 400,400 x 200,400 x 400,600 x 300,600 x 400
