Temperatūros ir drėgmės jutiklis Zigbee, juodas, veikia su baterija, Tuya ZIGBEE2MQTT

Trumpai apie prekę

Prekė: Temperatūros ir drėgmės jutiklis Zigbee, juodas, veikia su baterija, Tuya ZIGBEE2MQTT. Kategorija: Jutikliai.

• Gamintojas: Sone
• Modelis: SB1286

Zigbee gate required

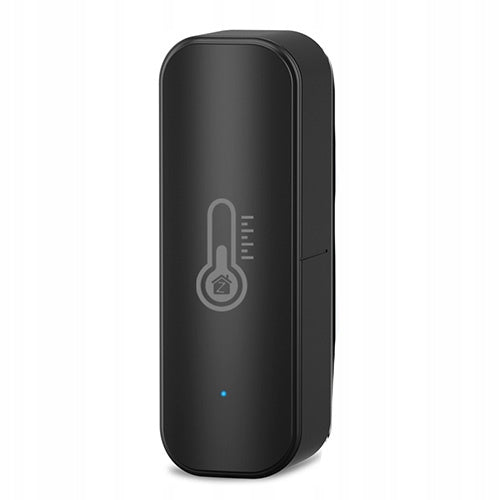

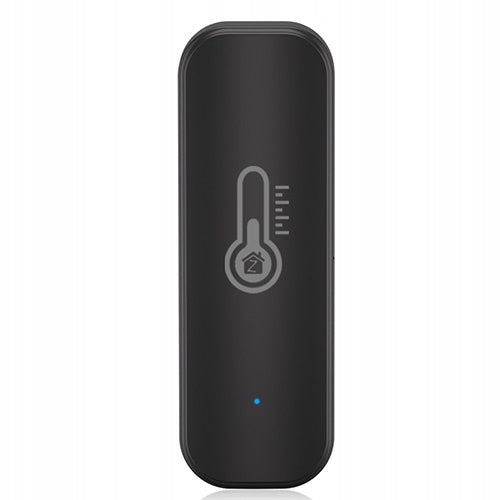

Our 72 × 25 × 20 mm black ZigBee sensor is a practical solution for monitoring temperature and humidity in living spaces, offices, garages, warehouses or wherever you need it.

The device operates in a ZigBee system, which provides stable communication and low power consumption, which translates into a long working time on one set of batteries. The sensor is powered by standard 2×AAA batteries (not included), which can be easily replaced.

Thanks to cooperation with Tuya Smart and Smart Life applications, it is possible to remote access to measurements, data history, export to a file and create intelligent scenes. Simply connect your device to the ZigBee gateway (physical device) to start using all the features.

TUYA TEMPERATURE AND HUMIDITY SENSOR ZIGBEE Key Information

• Communication in ZigBee standard (gateway required)
• Support by Tuya Smart/Smart Life app
• Color: Black
• Dimensions: 72 × 25 × 20 mm
• Power Supply: 2×AAA (not included)
• Ability to add a device to Home Assistent via ZIGBEE2MQTT
• Temperature measurement: -10°C to +50°C (accuracy ±0,3°C)
• Humidity measurement: 0 to 95% RH (accuracy ±3%)
• Data history and charts: day / month / year
• Export data to Excel file (XLSX) – sending to e-mail
• Push notifications on the phone (alarms about exceeding or decreasing the value, low battery)
• Assembly: double-sided tape (included) or position
• Create scenes with other devices in the app

Remote readings and compact size

The sensor is designed to be small, lightweight and easy to install – its size of 72 × 25 × 20 mm allows it to be placed virtually anywhere: on the wall, shelf, in a cabinet or on a device. With the included double-sided tape, installation is quick and hassle-free.

When you connect to the ZigBee gateway and add Tuya Smart or Smart Life to the app, you get full remote access to sensor data. No matter where you are – all you need is a phone with Internet access to check the current temperature, humidity and battery level. All in real time, without the need for physical presence at the device.

Preview in the application and send data to e-mail

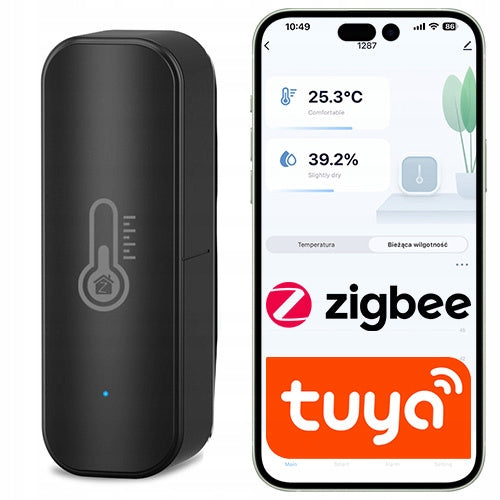

In the Tuya Smart or Smart Life app, you have access to all measurements in real time. You can quickly check the current temperature, humidity and battery level – both in the form of numbers and clear charts.

The data is presented in three views:

• daily chart,
• monthly chart,
• Annual chart.

If you need to save data or analyze it, you can send a measurement history to your e-mail address at any time. The XLSX (Excel) file contains a clear table with dates and values – perfect for creating your own charts or reports. Just click on the icon in the application (the icon marked with a red circle), and then enter the e-mail address.

Alarm functions and settings

The sensor offers a range of practical features that allow you to customize the operation of the device to your needs:

• Temperature alarms – the ability to set the minimum and maximum temperature
• Humidity alarms – setting minimum and maximum humidity thresholds.
• Push notifications – immediate alerts on the phone if it detects exceeding the set values or low battery level.
• Alarm history (log alarm) – access to the list of previous alarm events directly in the application.
• Battery level preview

Creating Smart Scenes

ZigBee temperature and humidity sensor allows you to create smart scenes in the Tuya Smart or Smart Life app that automatically start other devices in response to changing conditions in the room.

You can set, for example:

• Turn on the heating when the temperature drops below a certain level
• Starting the air conditioning or fan when the temperature exceeds the set threshold
• Turning on the humidifier when the humidity drops below the set minimum

All scenes can be freely configured and combined with other devices in the Tuya ecosystem. After setting them, they work fully automatically – without the need for additional interference.

• Communication protocol: ZigBee ( ZigBee gateway required)
• App Compatibility: Tuya Smart, Smart Life (Android/iOS)
• Color: Black
• Power Supply: 2xAAA (not included)
• Dimensions: 72x25x20mm
• Temperature measurement range: -10°C to +50°C (accuracy ±0,6°C)
• Humidity measurement range: 0 to 95% RH (accuracy ±6%)
• Mounting: double-sided tape (included) or position
• Notifications: push on phone (temperature, humidity, low battery)

Our sensor is compatible with Home Assistant and works via Zigbee2MQTT.

In the following screenshot you can see its parameters.

The sensor was added to Home Assistant using:

• Zigbee2MQTT
• Version Zigbee2MQTT: 1.42.0-2
• Zigbee dongles: SLZB-06

• Quick response between devices
• Frequency NOT blocking WIFI
• Reliability (Connected devices can communicate with each other even when the Gateway does not have a wifi connection)
• Lower power consumption - that's why battery-powered devices use this communication protocol
• Topology Mesh, each module powered by 230V amplifies the signal for other devices
• Automation works without WIFI.

Application and ecosystem TUYA and SMART LIFE

The device works with Tuya Smart and Smart Life – popular applications for IoT devices (Internet of Things)

Simple addition of the device - just hold down the button on it and search for it in the application.

The TUYA and SMART LIFE ecosystems are:

• The application works in Polish, you can add and control various smart devices in it
• The application works with a very wide range of devices
• Nearly 10 000 manufacturers
• 310 000 devices compatible with the app
• 30 categories that can include, among others: lighting, monitoring, air conditioning, heating
• The application is free and constantly developed with new features.
• Applications can be downloaded to iOS and Android devices.

Above all, it is intuitive operation and simple installation

Specifications
