Piegādes termiņš visā Lietuvā: 5-7 darba dienas.
Piegādes cena uz norādīto adresi: 3 eiro
Apraksts
Trumpai apie prekę
Prekė: Tempimo kablys su 7 PIN moduliu Opel Corsa D 2006–2014, 1350 kg. Kategorija: Pilnas vilkimo kablys (sija + rutulys).
- Gamintojas: Imioła Hak-Pol
Complete tow hook kit with 7-pin installation and module for Opel Corsa D. The same hook also fits the Opel Corsa E — full list below. It allows you to safely tow the trailer and mount the bicycle rack on the hook, and thanks to the use of a module that works with CAN-Bus and LED lighting, you have the correct operation of the trailer lights in a modern car. Parameters: bollard 1350 kg, pressure 55 kg, E20 approval (e20*94/20*0673*00).
TOWING HOOK FROM HAK-POL IMIOŁA
Towing Hook Fits Cars:
✅ Opel Corsa D — 09/2006 - 11/2014
You can also mount the Imioła Hak-Pol O/033 towbar to:
- ✅ Opel Corsa E — 12/2014 - 06/2019
Except for OPC and GSi versions.
COMPLETE HOOK for mounting — Towbar + 7Pin Module Company: IMIOŁA HAK-POL ✅
TOGETHER WITH AN ELECTRIC BEAM AND A UNIVERSAL MODULE WITH A SOCKET FOR 7 PIN
Key benefits
- Drawing capacity: 1350 kg — solid base for cargo trailers, tow trucks and campsites (the limit depends on the car anyway).
- Ball pressure: 55 kg — more stable under bike racks and trailers (less "rocking").
- Hook approval: E20 (e20*94/20*0673*00) — legal installation and use (inspection / review).
- Module + beam 7 PIN included — dedicated electronics for modern installations.
- The module works with CAN-Bus and LED – less risk of errors after connecting the trailer.
- Trailer connection detection — the module "knows" when the trailer is connected.
- Assembly at factory points — requires removal of the bumper and its undercutting.
TECHNICAL SPECIFICATION OF THE HOOK:
- ✔ Catalog No.: O/033
- ✔ Drawing: 1350 kg
- ✔ Pressure on the hook ball: 55 kg
- ✔ D-value: 7,66 kN
- ✔ 7pin MODULE is included
- ✔ Hook approval: E20 (e20*94/20*0673*00)
- ✔ Installation information: requires removal of the bumper and undercutting of the bumper
Free reduction from 7 pin to 13 pin
Towing Hook + Module 7 Pin Kit for Opel Corsa D Includes
Towing hook (assembly kit) + mounting hardware.
Electric set 7 PIN:
- module (12VDC control panel),
- 7-pole socket + gasket / gasket under the socket,
- bundle with fuse,
- connectors + mounting accessories (screws, nuts, bands),
- instruction PL,
- Certificate of Approval/Compliance E/20.
The manual shows the components and mounting points and the order of assembly step by step.
Free reduction from 7 pin to 13 pin
We know how important safety and security are to you – that’s why our hooks have the required approvals and certificates.
This allows you to install a compliant product and can tow legally and without stress during inspection or inspection.
The E20 approval (e20*94/20*0673*00) is peace of mind for you: you assemble a product approved for use and use the hook legally – without stress during inspection or inspection.
It is also a signal that the hook meets the strength requirements and has been evaluated in accordance with applicable standards.

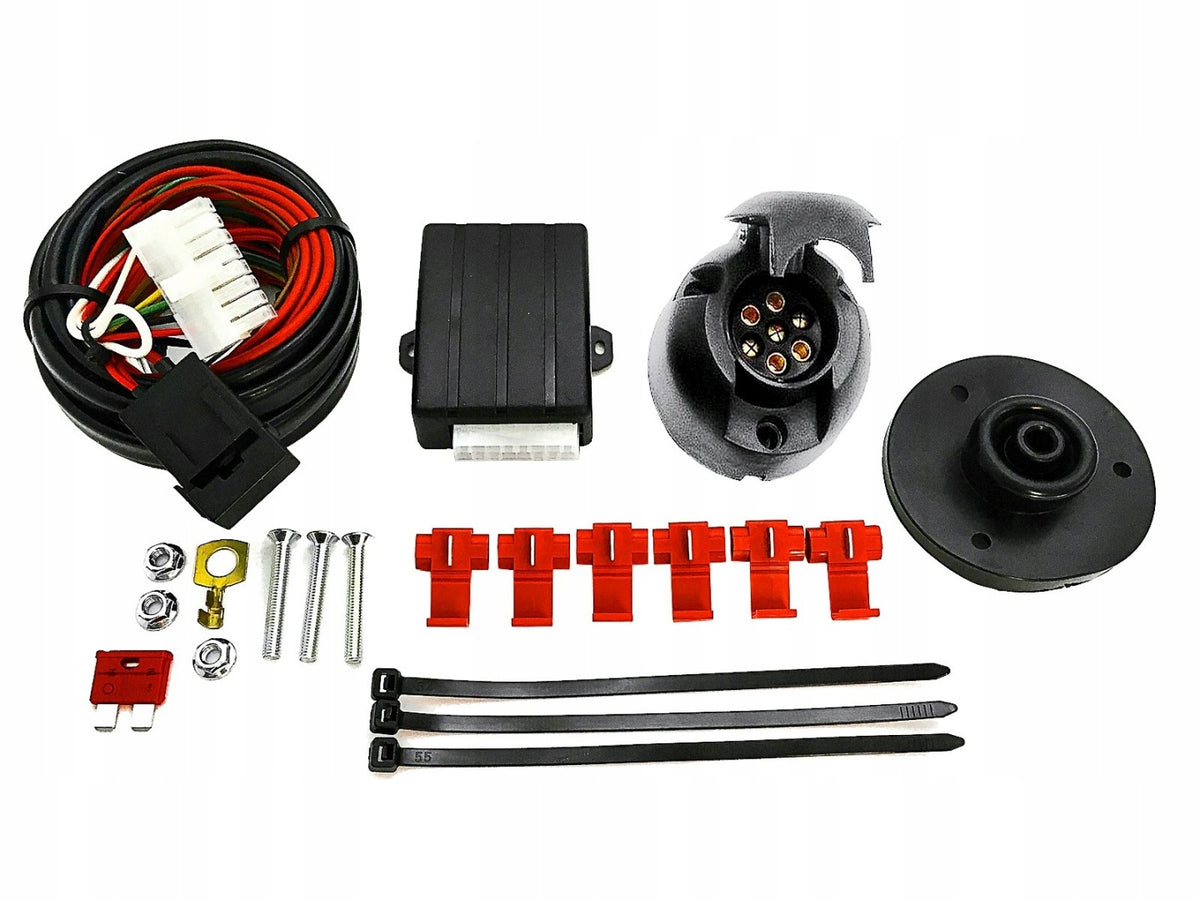

7-Pin Module Kit with Wiring Harness and Accessories
Module Kit Includes:
- Connectors
- Fuse
- Screws
- Nuts
- Cable ties
- Instructions
Specifications
- Compatible with CAN-Bus systems;
- Works with LED and single-filament lighting;
- For connecting a 7-PIN socket;
- Trailer connection detection;
- E20 Homologation (e20*94/20*0673*00)
MODULE CONTROL UNIT FUNCTIONS
- Fog lights - YES
- Reverse lights - NO
- STOP brake lights - YES
- Tail lights - YES
- Turn signals - YES
- Trailer module - YES
- LED light support - YES
- CAN BUS - YES
- Works with parking sensors - NO (We offer modules that support parking/reverse sensors in a separate listing)
- Trailer light operation check - NO
- Homologation - YES, E20 (e20*94/20*0673*00)
Contents of the 7-pin module kit:
- Electronic module - 12VDC control unit,
- 7-pin socket with gasket,
- Wiring harness with fuse,
- Accessories needed for installation,
- Instructions in Polish,
- GASKET FOR SOCKET
Imioła Hak-Pol – polish manufacturer since 1991.
Modern production (laser/robot/CNC) and confirmed quality: E20/e20 approvals + PIMOT certificate
Imioła Hak-Pol is a polish manufacturer of tow hooks operating since 1991, offering solutions tailored to over 500 models of passenger cars and vans.
You choose a brand that focuses on precision and repeatable quality: production is based on m.in. o laser cutting, robotic welding and CNC, which translates into a secure fit and durability.
Why does this matter to you?
- Peace and legality: products have the required approvals (E20/e20) and PIMOT certificate of conformity, and the hitches are tested in the laboratory of the Industrial Automotive Institute (PIMOT).
- Durability for years: anti-corrosion protection includes blasting, phosphating and powder coating with polyester paint — important if the car drives all year round and sees salt/winter.
- Repetitive build quality: modern technologies (laser/robots/CNC) mean less risk of "fighting during assembly" and greater certainty that the elements are evenly made.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Imioła Hak-Pol |
| Parametry | Ball type | screw‑off |
| Parametry | Harness included | 7 PIN z modułem |
| Parametry | Dedicated harness | no |
| Parametry | Type approval | yes |
| Parametry | Maximum vertical load of ball | 55 kg |
| Parametry | EAN (GTIN) | 5900000624051 |
| Parametry | Packaging status | original |
