Tinklo vaizdo įrašymo įrenginys Hilook NVR-108MH-D(D), 8 kanalai, 4MP

Trumpai apie prekę

Prekė: Tinklo vaizdo įrašymo įrenginys Hilook NVR-108MH-D(D), 8 kanalai, 4MP. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: HiLook
• Modelis: NVR-108MH-D HiLook by Hikvision

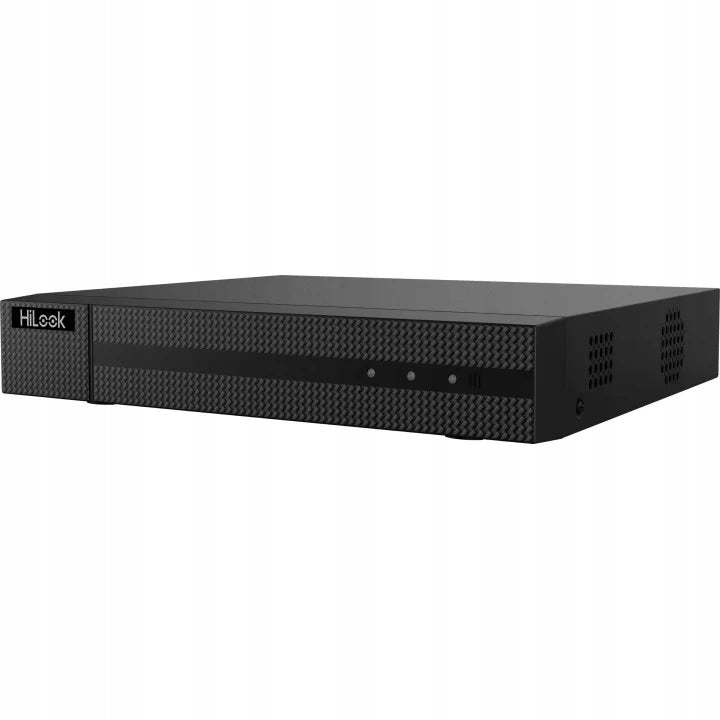

IP Recorder HiLook NVR-108MH-D(D) 8 channels

H.265+ | HDMI/VGA | 4MP | 60 Mbps

The HiLook NVR-108MH-D(D) IP recorder is an efficient and reliable monitoring management center designed to support up to 8 IP cameras. The device offers modern H.265+ compression, smooth operation and easy configuration, making it ideal for both home and small and medium-sized CCTV installations.

Thanks to the high bandwidth and support for cameras up to 4 MP, the recorder ensures stable recording and playback of high-quality images, guaranteeing safety and convenience of everyday use.

Key features of the product:

• Support for up to 8 IP cameras – possibility of expanding the monitoring system
• Compatibility with third-party cameras – greater installation flexibility
• H.265+/H.265 compression – saving disk space and lower storage costs
• Record up to 4 MP on all channels – clear and detailed image
• HDMI/VGA outputs (1080p) – convenient monitor connection
• Recording playback – 1 channel 4 MP or 2 channels Full HD simultaneously
• Support SATA drive up to 6 TB – ample space for archiving recordings
• Intelligent functions (VCA) – detection of line crossings and intrusions
• Intelligent search and playback – quick finding of events in recordings
• Automatic camera configuration – quick one-click device addition
• Hik-Connect remote access – view and manage your system from anywhere
• Network interface 100 Mbps – stable data transmission

This device is an excellent choice for those looking for a reliable IP recorder. Thanks to advanced H.265+ compression, you will save disk space, and intuitive operation and remote management support will allow you full control over the monitoring system from anywhere. By choosing the Hilook NVR-108MH-D(D) IP recorder, you are investing in safety and convenience.

Support for 8 IP cameras – extensive monitoring

The device allows you to connect up to 8 IP cameras, which allows you to create a comprehensive monitoring system for your home, business or service facility.

This allows you to cover a larger area and manage all your cameras from one central location.

​

Efficient storage – H.265+ compression

The HiLook NVR-108MH-D(STD)(D) recorder uses modern H.265+ compression technology, which significantly increases the efficiency of recording.

Thanks to it, it is possible to store more video without the need to expand storage, while maintaining high image quality.

The most important advantages of H.265+:

• greater space saving – smaller video files with the same quality
• longer archiving time – more recordings on the same disk
• lower energy consumption – lower system load and more efficient operation
• This solution is ideal for people who want to optimize data storage costs and increase the efficiency of the monitoring system.

P2P function – quick and easy remote access

The HiLook NVR-108MH-D(STD)(D) recorder is equipped with P2P technology, which allows direct connection to the device without complicated network configuration.

With this feature, you can access live views and recordings from your smartphone or computer – from anywhere in the world.

The most important advantages of P2P:

• direct connection – image transmission without the need to configure the server
• easy setup – quick addition of the device by QR code or ID
• remote access 24/7 – preview and manage your system from any location

This solution is ideal for users who value simplicity of use and immediate access to monitoring.

Intelligent image analysis – detection of people and vehicles

The HiLook NVR-108MH-D(STD)(D) recorder offers motion detection 2.0, which enables image analysis with human and vehicle recognition (up to 4 channels).

Thanks to this, the system effectively filters false alarms triggered, e.g. through the movement of trees or animals, focusing exclusively on significant events.

1. LAN interface
2. AUDIO OUT and AUDIO IN
3. HDMI interface
4. VGA output (DB9 connector)
5. USB interfaces
6. Power supply
7. GND

Technical specification

• Motion detection 2.0 (people/vehicles): 4 channels
• IP video input: 8 channels
• Capacity (in. /out. ): 60 Mbps / 60 Mbps

Video outputs

• HDMI: 1 × (up to 4K 4096×2160 / 30 Hz)
• VGA: 1 × (up to 1920×1080 / 60 Hz)
• Output mode: simultaneous HDMI/VGA

Audio

• Audio Output: 1 × RCA
• Two-way audio: 1 × RCA
• Audio compression: G.711u-law / G.711a-law / G.722 / G.726

Video and decoding

• Compression: H.265+, H.265, H.264+, H.264
• Recording Resolution: 4 MP/3MP/1080p/720p and lower
• Synchronous playback: up to 8 channels
• Stream Type: Video/Video + Audio

Network

• Interface: 1 × RJ-45 (10/100 Mbps)
• Protocols: TCP/IP, DHCP, IPv4/IPv6, DNS, RTSP, HTTP, HTTPS and more
• Remote connections: up to 32 users

Memory and ports

• Drive: 1 × SATA
• Capacity: up to 8 TB
• USB: 2 × USB 2.0
• Emergency Inputs/Outputs: None

Power supply and power consumption

• Power supply: 12 V DC, 1.88 A
• Power consumption: ≤ 10 W (without disk)

Working conditions

• Temperature: -10°C to +55°C
• Humidity: 10% – 90%

Housing and dimensions

• Dimensions: 265 × 225 × 48 mm
• Weight: ≤ 1 kg (without HDD)

Certificates

• FCC, CE
