Traukos jėgos matuoklis BLT150T

Trumpai apie prekę

Prekė: Traukos jėgos matuoklis BLT150T. Kategorija: Baterijų testeriai.

• Gamintojas: DeltaTech Electronics
• Modelis: BLT150T

2V BLT150T Cell Tester

BLT150T is a professional 2 V cell load tester designed by DeltaTech Electronics for the diagnosis of traction and stationary batteries. It enables quick detection of damaged cells, assessment of wear and reliable processing of battery complaints.

Application:

• diagnostics of 2 V cells in traction batteries and energy storage
• checking cells in battery services and complaint departments
• quality control at battery manufacturers and distributors
• car workshops and service points for forklift trucks and industrial machinery

Key technical parameters:

• cell operating range: 2 V
• current load: up to 150 A in three ranges 50 A, 100 A, 150 A
• voltmeter approximately ±18 V with an accuracy of ±0,5% and two digits
• power supply: two AA LR6 batteries
• length of measuring cable about 70 cm, cross section 25 mm²
• body dimensions approximately 280 × 195 × 80 mm, weight approximately 1,4 kg

How the load test works:

BLT150T allows you to perform a quick manual test and a semi-automatic test with time controlled.

• The tester excites automatically when connected to a cell with a voltage above about 1 V
• If necessary, the user can start the device manually with a button on the panel
• the load range is selected with knobs, each winding adds another 50 A
• for an efficient cell, the voltage under load usually stabilizes above about 1,75 V
• voltage falling towards zero indicates clearly damaged cell
• the time of a single load test is maintained in the typical range of several seconds

Semi-automatic mode and presentation of results:

• After starting the semi-automatic mode, the device measures the test time and signals its completion

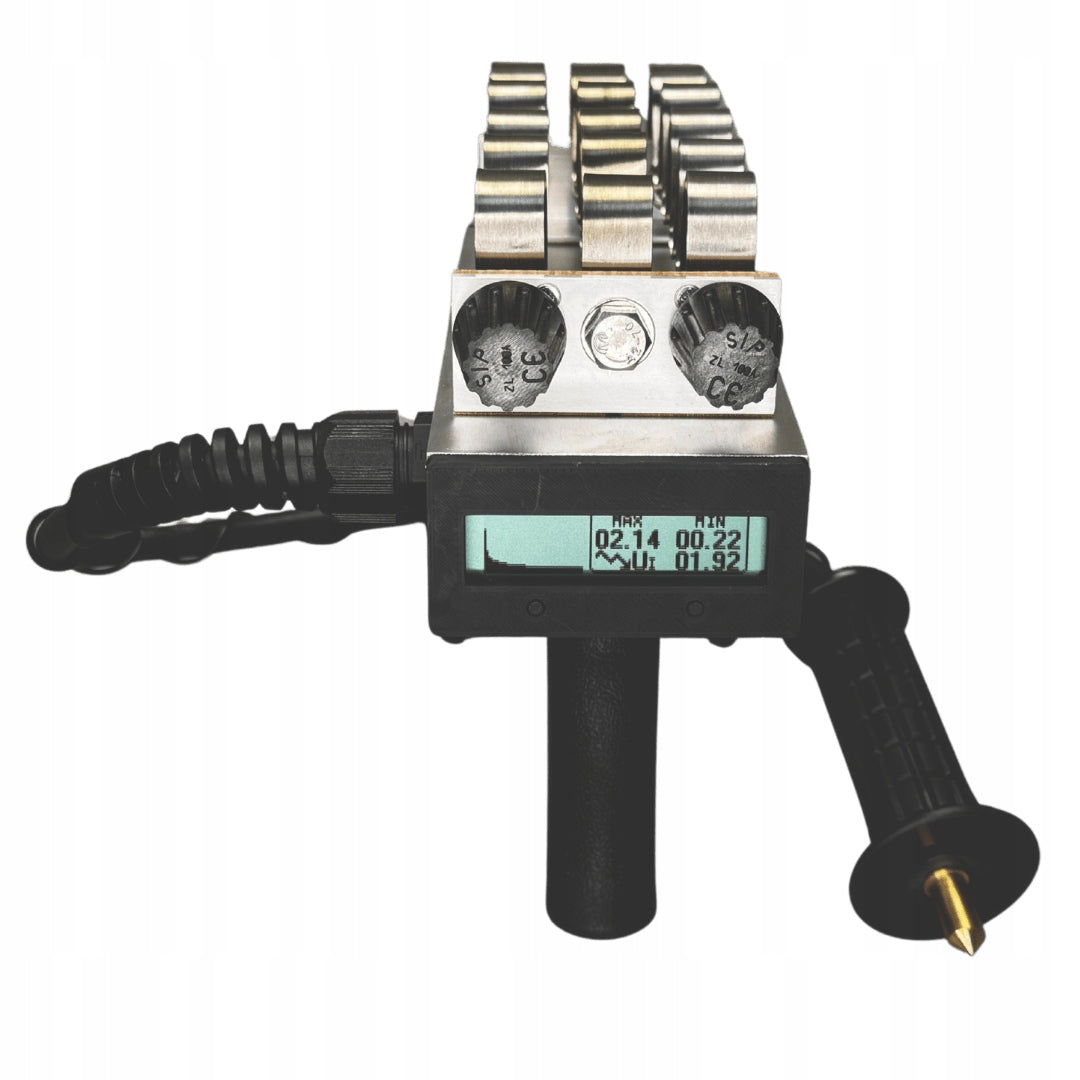

• A graphical voltage waveform appears on the display during load
• values of resting voltage, voltage under load and voltage difference are presented
• After the measurement is completed, it is possible to generate a double QR code with data from the test
• QR code data reads the BLT QR mobile application on Android and allows you to create a PDF report from the measurement

The application can be downloaded from the Google Play store under the name BLT-QR.

Electronic functions of the tester:

• advanced voltmeter module with graphical presentation of voltage waveform
• available precision mode with fast refresh rate and averaged mode for stable reading
• self-test of the measuring system after starting the device
• automatic shutdown after a few minutes of inactivity to save battery
• sound signalling of start, end of test and excessive load time
• icons on the display informing about the mode of operation and the status of power batteries

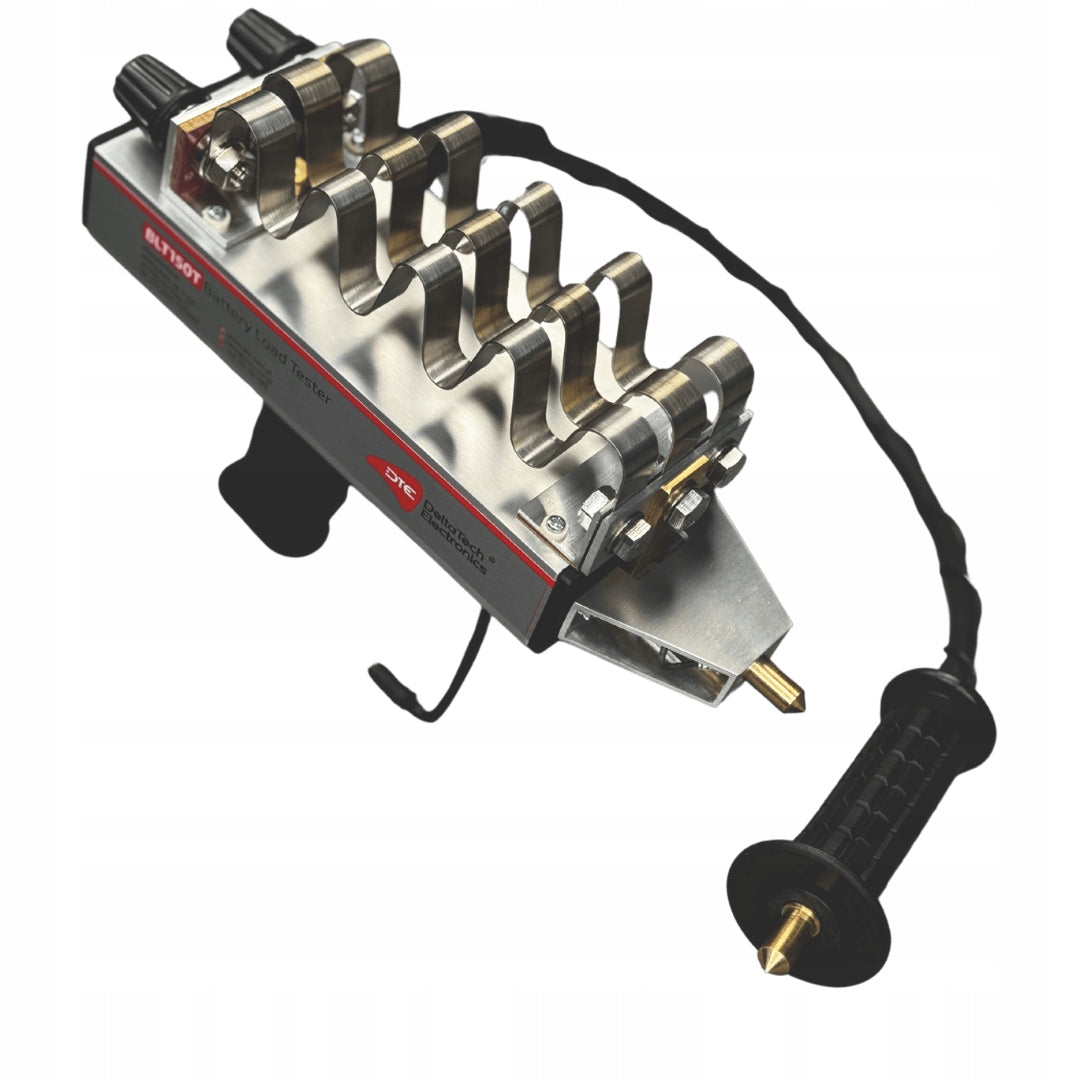

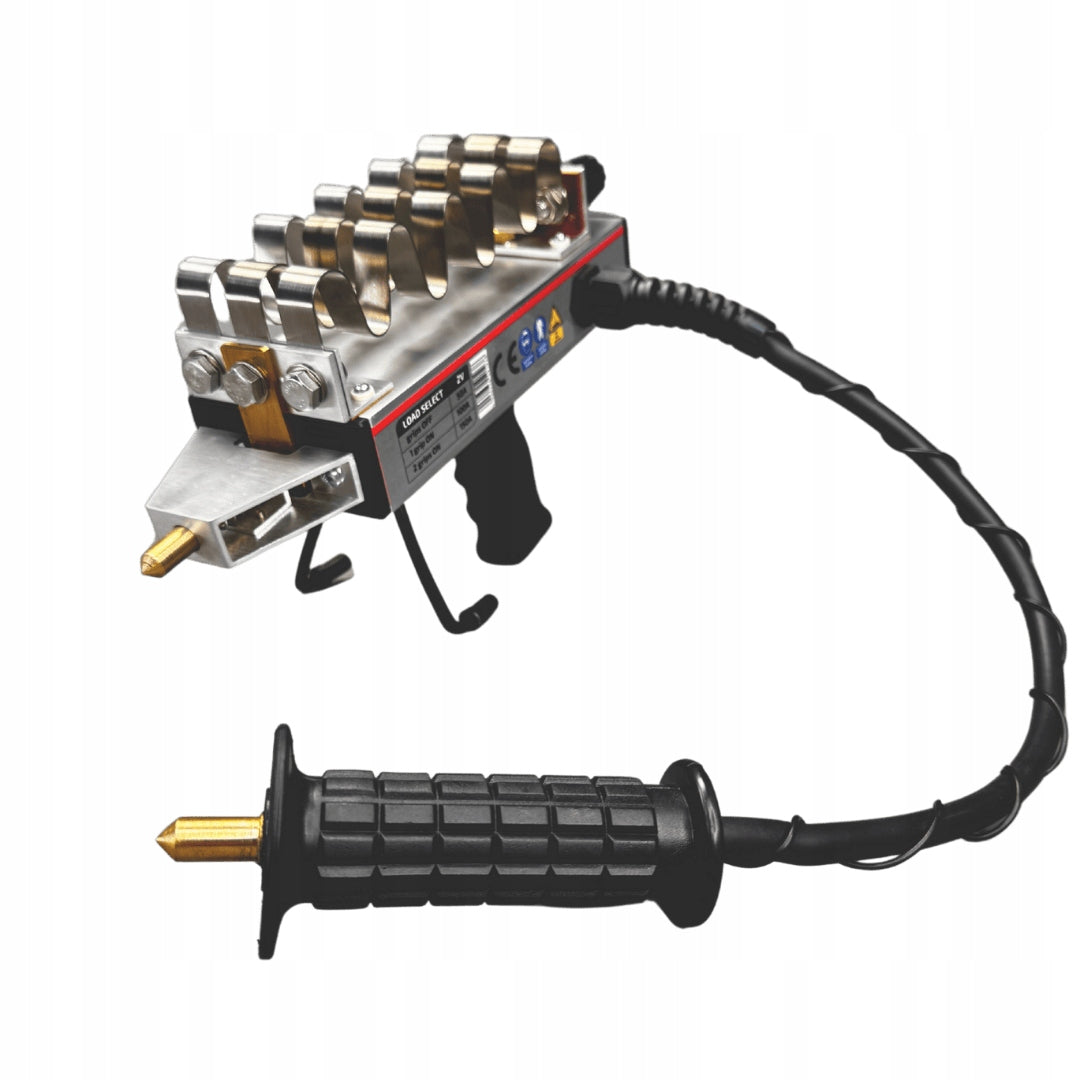

Mechanical functions and design:

• aluminium body with thick walls and high heat capacity
• elongated, low profile facilitates work in hard-to-reach places and increases stability
• 25 mm² connection cable adapted to high load currents
• modular resistance springs with the possibility of selecting the load for the test cell
• SecureSpring mechanism to reduce pressure on the battery poles and improve tip stability
• individual serial number of each unit for easy identification

Safety and ergonomics:

• controlled test time and acoustic signalling reduce the risk of overheating of the cell
• warnings on the body remind you of the warming up of resistance windings
• tip and spring design reduces slipping on clamps and facilitates secure clamping

The perfect choice for professionals:

The 2V BLT150T cell tester is compact and robust and is designed for intensive use in battery services and workshops. In combination with the DBT 12+ tester, it creates a complete battery diagnostic system, from the condition of the entire battery to the condition of individual cells.

After registering your purchase, you can take advantage of the extended warranty and full technical support of DeltaTech Electronics.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	DeltaTech Electronics
Parametry	Rated voltage	12 V
Parametry	EAN (GTIN)	5906236591938
Parametry	Manufacturer code	BLT150T
