Trifazis dvikryptis elektros skaitiklis 100A SUPLA MEW-2 ETH/SC-16 ZAMEL

Trumpai apie prekę

Prekė: Trifazis dvikryptis elektros skaitiklis 100A SUPLA MEW-2 ETH/SC-16 ZAMEL. Kategorija: Rinkiniai.

• Gamintojas: Zamel
• Modelis: MEW-02 ETH/SC-16

ATTENTION!

3F+N MEW-02 ETH/SC-16 WI-FI ELECTRICITY MONITOR

Product Description:

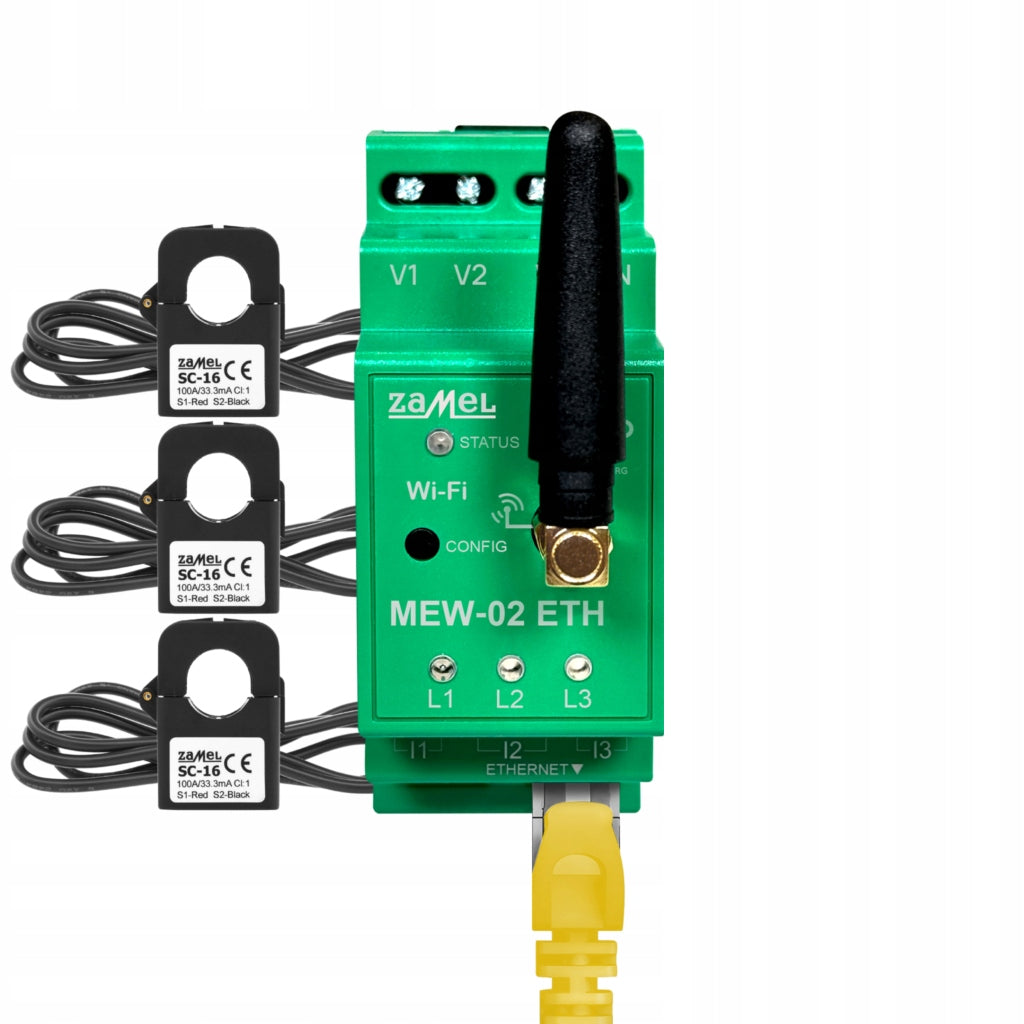

• The MEW-02 ETH Electricity Monitor with three SC-16 transformers (100 A) is a ready-made set for two-way monitoring of electricity wherever communication requires stability and a wired connection.
• The MEW-02 ETH also supports other types of current transformers: SC-24 (200A), SC-36 (400A), SC-2000 (more information coming soon) – available separately.

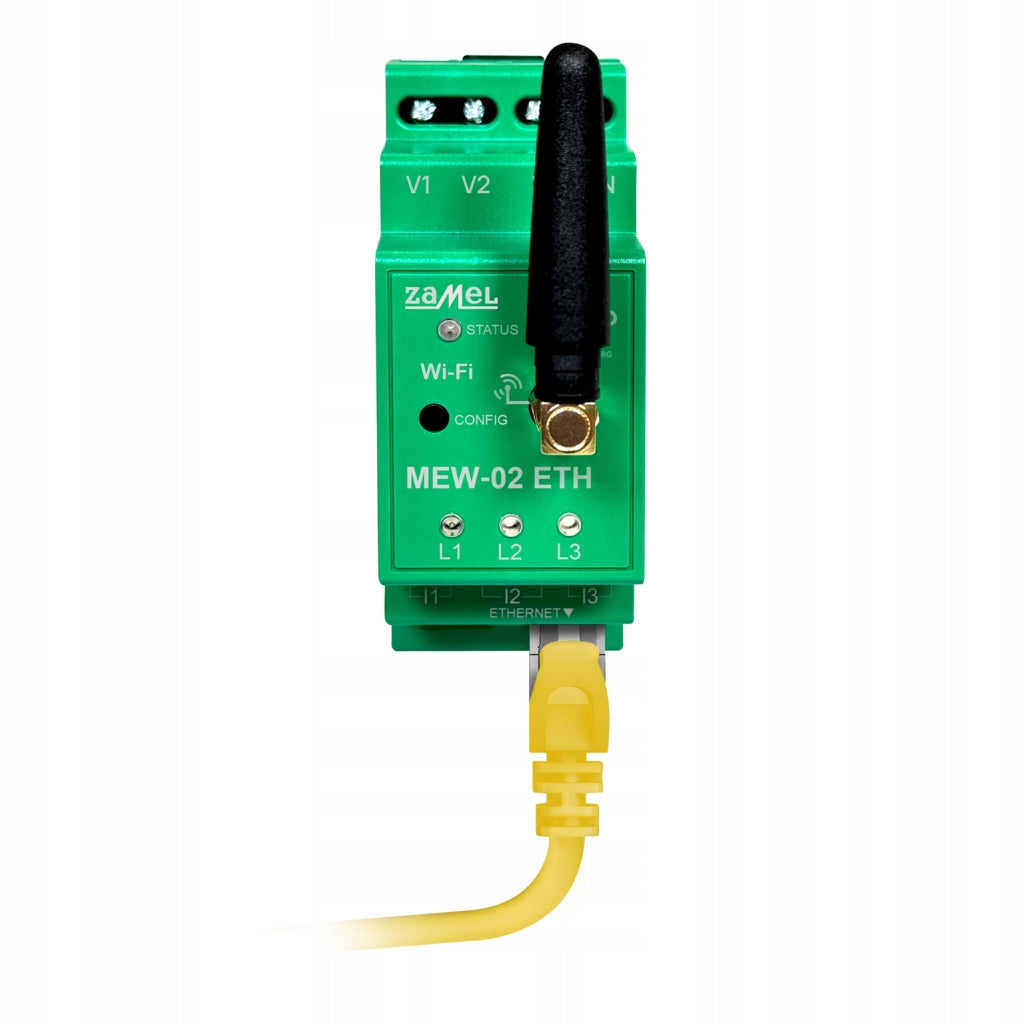

• The monitor is equipped with a Wi-Fi module and an RJ-45 socket, thanks to which we have the possibility of wireless and wired connection. Settings in configuration mode can be made through both connections, i.e. Wi-Fi or Ethernet.
• With the Supla app available for iOS and Android devices, you can monitor installation parameters in real time, analyze data related to energy consumption and production, and receive anomaly notifications.
• MEW-02 ETH is particularly useful in enterprises, offering a broad spectrum of integrations through APIs, MQTT protocol support and the ability to export measurements to a file.
• The measurement data collected by the device can also be analyzed in the extensive Supla Cloud measurement history panel offering various data sets and charts.

Product Features:

• set MEW-02 ETH + 3x SC-16 current transformers (100A)
• measurement of electricity consumption and production and current, voltage, power intensity on 3 phases
• graphs of the history of current, active power and voltage readings
• support for transformers with values of 100 A, 200 A and 400 A (200A and 400A available separately),
• simple configuration,
• access to measurement data in the cloud,
• broad integration opportunities.

Product characteristics:

• Rated voltage: 3 x 230 / 400 V ~ (50/60 Hz)
• Voltage tolerance: – 20 % to 15 %
• Rated Power Consumption: 1,6 W
• Measurement accuracy: Class 2 (±2%)
• Transmission: Wi-Fi 2.4GHz 802.11 b/g/n, ETHERNET IEEE 802.3 10/100 Mb/s
• Transmission power: ERP < 20 mW
• Operating temperature range: -10°C to 55°C
• Optical power signaling: LED for each of the power supply phases
• Environmental resistance: IP20
• Maximum wire cross-section: 10 (wires up to 2,5 mm2)
• Mounting method TH-35 rail, 2-modules
• Voltage supply terminals: V1; V2; V3; N
• Current transformer terminals: S1 S2 – I1; S1 S2 – I2; S1 S2 – I3
• Height 90 mm
• Width 35 mm
• Depth 66 mm
• Weight with transformers 0,435 kg
