Trifazis dvikryptis elektros skaitiklis su 3 TUYA WiFi 80A transformatoriais

Trumpai apie prekę

Prekė: Trifazis dvikryptis elektros skaitiklis su 3 TUYA WiFi 80A transformatoriais. Kategorija: Automatizavimo moduliai.

• Gamintojas: no brand
• Modelis: Krasław

Three-phase two-way energy meter WPC-80A Tuya

The WPC-80A three-phase current meter is an advanced measuring device designed for modern electrical installations, including photovoltaic systems. It enables very precise, two-way measurement of current taken from the network and transferred to it. Thanks to the built-in Wi-Fi module and seamless cooperation with the free Tuya application, the user gains remote access to statistics, the ability to analyze consumption history and the option to create advanced home automations.

Key features:

• two-way measurement: precise monitoring of energy consumed and delivered to the grid (necessary in PV installations).
• Safety and convenience: non-invasive measurement made using the included 80A current transformers.
• Versatile application: full support for three-phase installations and the ability to measure up to three separate single-phase circuits.
• Tuya ecosystem: live data preview, schedules and control of external relays from a smartphone.
• Advanced analysis: extensive history of measurements stored in the application for 365 days.

Scenes and automations in the Tuya app

Thanks to the collected data, the WPC-80A provides an excellent base for building a smart home. You can optimize your energy consumption and create rules (e.g. turning on the water heater at the time of large production from solar panels). You can use the parameters separately for each phase to trigger scenes:

• Voltage (less, greater or equal)
• Current power consumption (less, greater or equal)
• Energy consumed (less, greater or equal)
• Energy produced (less, greater or equal)
• Power factor

Connection diagrams of the device

The device is distinguished by flexibility of installation, adapting to the current installation in the facility.

Connection in a classic 3-phase installation:

Connection in 1-phase installation:

Technical specification

• Power supply: AC 110-230V ±10%, 50/60 Hz
• Measuring gears: 3x 80A included
• Internal diameter of the transformer: 10 mm
• Wireless connectivity: Wi-Fi 802.11 b/g/n 2.4 GHz (1 mW signal strength)
• Antenna: External on the cable (improves the range inside closed switchgears)
• Power consumption of the device: < 1 W
• Working environment temperature: from 0°C to +40°C
• Dimensions: 86 x 86 x 37 mm
• Assembly method: DIN rail or wall mount
• Target application: Tuya Smart / Smart Life

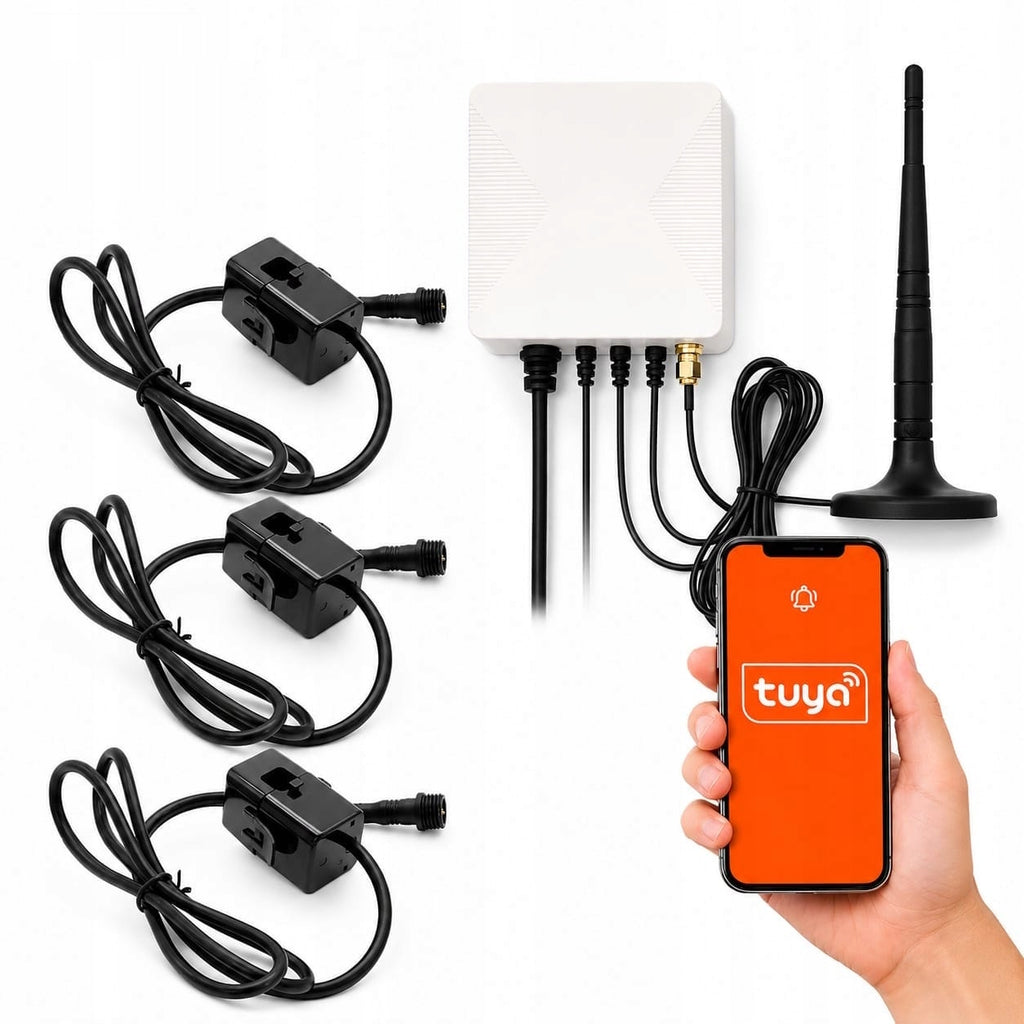

Contents of the set

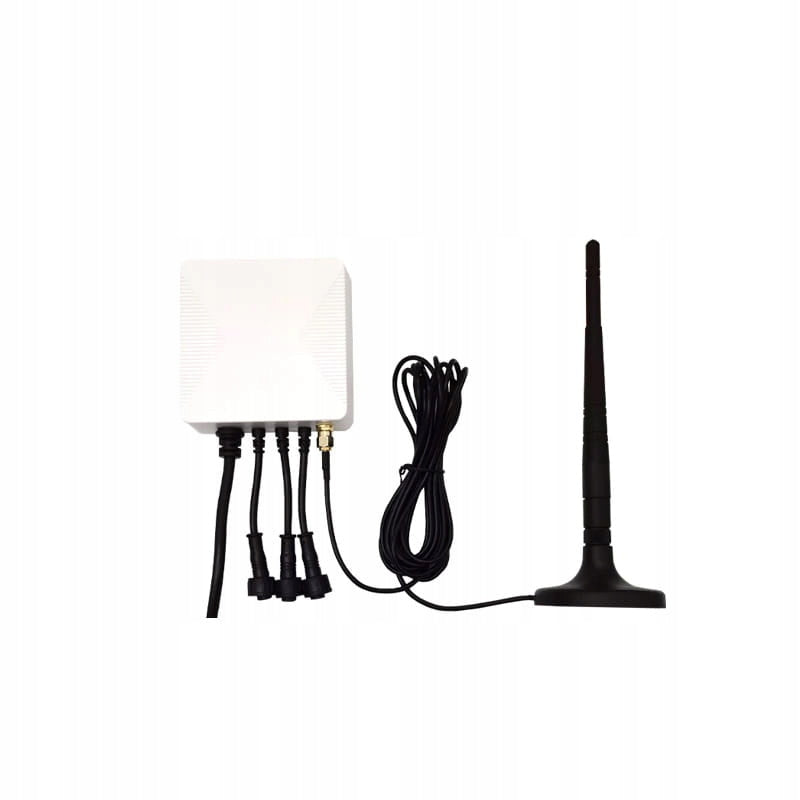

1. Measuring module WPC-80A

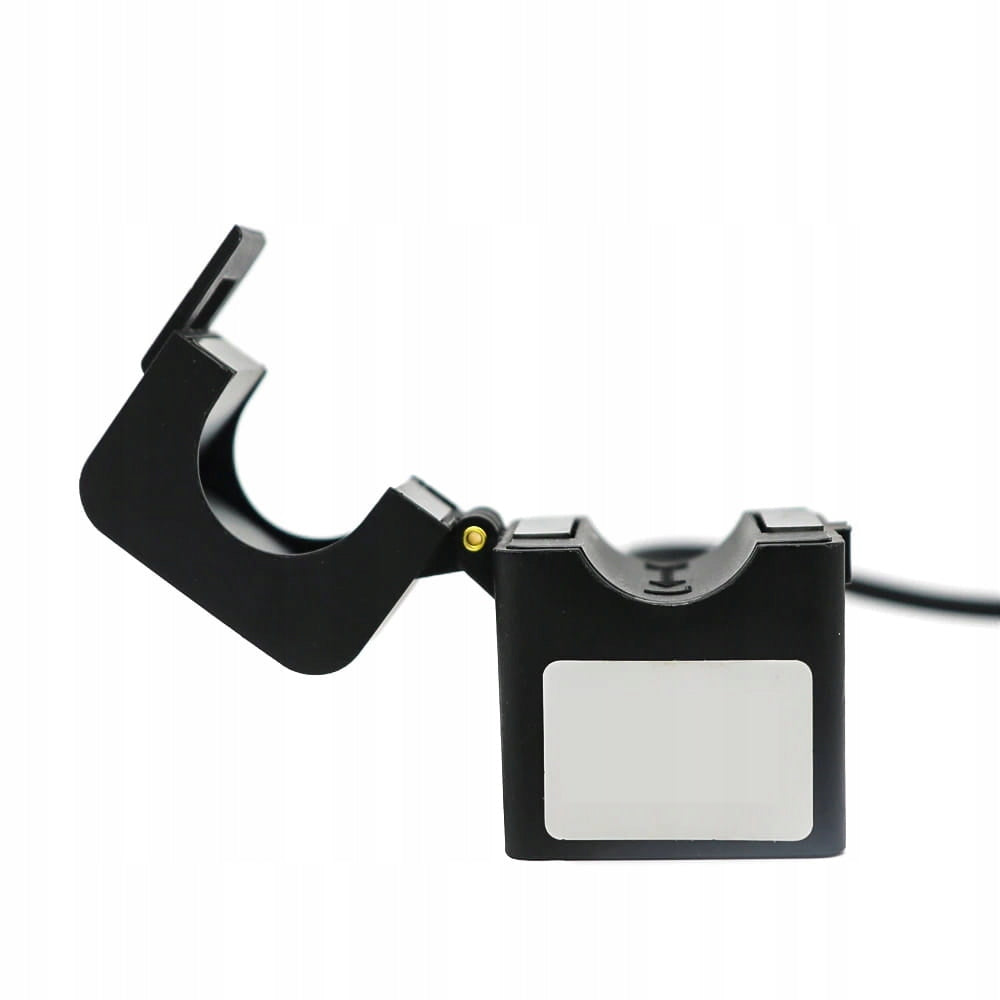

2. Three non-invasive 80A current transformers
3. External Wi-Fi Antenna
4. Hanger for mounting on a wall (or DIN rail)
