Tvirtas sieninis laikiklis televizoriui 32–70 colių, su pasukama funkcija

Trumpai apie prekę

Prekė: Tvirtas sieninis laikiklis televizoriui 32–70 colių, su pasukama funkcija. Kategorija: Rankenos.

• Gamintojas: Vetouson
• Modelis: VX-505 Uchwyt na telewizor Wieszak na telewizor

• ▶ SAFE construction on double arms - recommended by TV installers
• ⭐ ⭐ ⭐ ⭐ ⭐ The handle has been tested and tested by our technicians on a load of 40kg!
• ▶ The mount is UNIVERSAL and fits all TV models that have VESA mounting hole spacing in the range : from 75 x 75 to 400 x 400 mm and weigh up to 40 kg
• ▶ ROBUST AND SAFE CONSTRUCTION – Double reinforced arms and solid steel
• ▶ Protection against accidental knocking down of the TV
• ✅Full adjustment: inclinations in the range of 15° , rotation of 120° and distance from the wall 63-360 mm
• ✅The holder also fits TVs with curved housing
• ✅Strong joints and perfect varnishing
• ✅Wide strong wall plate for even distribution of TV weight on the wall
• ✅Complete mounting kit in the package. Package includes: pegs, screws, washers needed to screw the mount to the wall and screws and washers needed to screw the TV to the mount as well as level and Velcro to organize cables)

✅SPECIFICATIONS:

• ▶️ Series: PREMIUM
• ▶️ Model: VX-505
• ✅ TV Size: 25"- 70"
• ✅ Maximum TV Weight: Up to 40 kg (88 lbs)
• ✅ Universal VESA Standard (mounting hole pattern on the back of the TV): 75x75, 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 300x400, 400x300, 400x400 mm and all intermediate sizes
• Swivel Adjustment (left/right): 120°
• Mount with corner installation option - also allows for straight-on wall installation
• Tilt Adjustment (up/down): +5° / -10°
• Adjustable Wall Distance: 36-360 mm (1.4-14.2 inches)
• Mounting Error Correction: -5° / +5°
• Strong and Solid Construction
• Full Set of Mounting Accessories – everything needed to install the mount and TV, in one package.
• ▶️ Level included
• ▶️ Two cable ties included for organizing cables
• ▶️ Anti-Tip Safety Lock
• Color: Black

✅Full-range TV mount

• right/left rotation adjustment: 120°
• up/down tilt adjustment: +5° / -10°
• TV mount with corner installation option - also allows installation on direct walls
• the ability to set any position of the TV both very close and far from the wall

✅Tilt adjustment

• In the handle, you can set the tilt level both up and down in the up/down range: +5° / -10°

✅TESTED at 40kg!

• ▶ The holder has been tested by our technicians on a load of 40 kg for a period of 2 months - so we can assure you of its highest quality!
• ⭐ ⭐ ⭐ ⭐ ⭐ SAFE design on double arms - recommended by TV installers

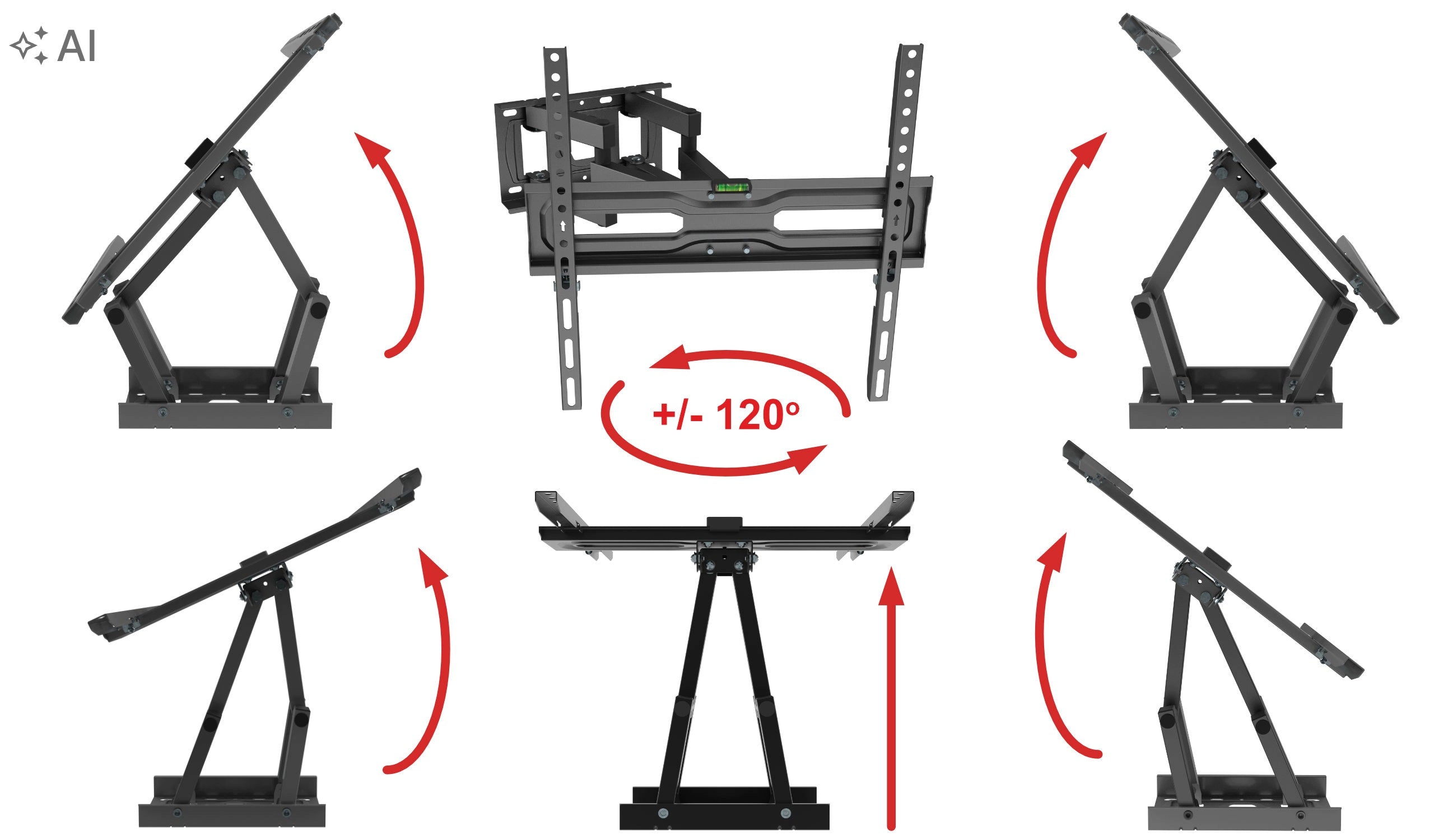

✅ 120 degree ROTATING

• thanks to the long double arms, the TV can be installed in any position
• enables installation in front of the wall as well as at different angles of rotation and tilt
• ▶ you can also easily and smoothly set the selected distance from the wall

✅ PURPOSE

• ▶ mount is universal and can be installed on all the most popular TV brands, which have VESA mounting hole spacing in the range : 75 x 75 to 400 x 400 mm and weigh up to 40 kg
• VESA 75x75 (horizontal 75mm x vertical 75 mm)
• VESA 100x100 (horizontal 100mm x vertical 100 mm)
• VESA 200x100 (horizontal 200mm x vertical 100 mm)
• VESA 200x200 (horizontal 200mm x vertical 200 mm)
• VESA 200x300 (horizontal 200mm x vertical 300 mm)
• VESA 200x400 (horizontal 200mm x vertical 400 mm)
• VESA 300x200 (horizontal 300mm x vertical 200 mm)
• VESA 300x300 (horizontal 300mm x vertical 300 mm)
• VESA 400x200 (horizontal 400mm x vertical 200 mm)
• VESA 400x300 (horizontal 400mm x vertical 400 mm)
• VESA 400x400 (horizontal 400mm x vertical 400 mm)
• and all intermediate values, e.g. 330mm x 350mm
• ▶ handle also fits TVs with curved housing

✅Corner Mount

• thanks to the long arms, the handle can be installed in the corner of the room
• Of course, it also allows installation on the directly to the wall
• easily and smoothly set the selected angle of rotation and tilt of the TV

✅CABLE MANAGEMENT SYSTEM

• handle includes special two Velcro to organize cables

✅Why is it worth it?

• Strong stable construction
• High quality workmanship
• Universal
• Easy to assemble
• Full set of adjustments

✅Blockade

• The holder includes a mechanical lock to protect the TV from accidental knocking down

✅MOUNTING ERROR CORRECTION SYSTEM

The handle allows you to adjust the level needed, e.g. with inaccurate drilling of holes in the wall in the range of -5° / +5°

Correction is done by loosening the 4 screws located on the plate below the level, then setting the appropriate position and tightening the screws.

✅Wide wall plate that evenly distributes the weight of the TV

• If you already have your new TV, you know that it is really large, which is why a wide wall plate is so important that if necessary, it will allow you to install the holder even on ▶ 6 studs ensuring even distribution of its weight on the wall - this is especially important for not too massive and strong walls
• The wall plate includes two 65 x 33mm holes

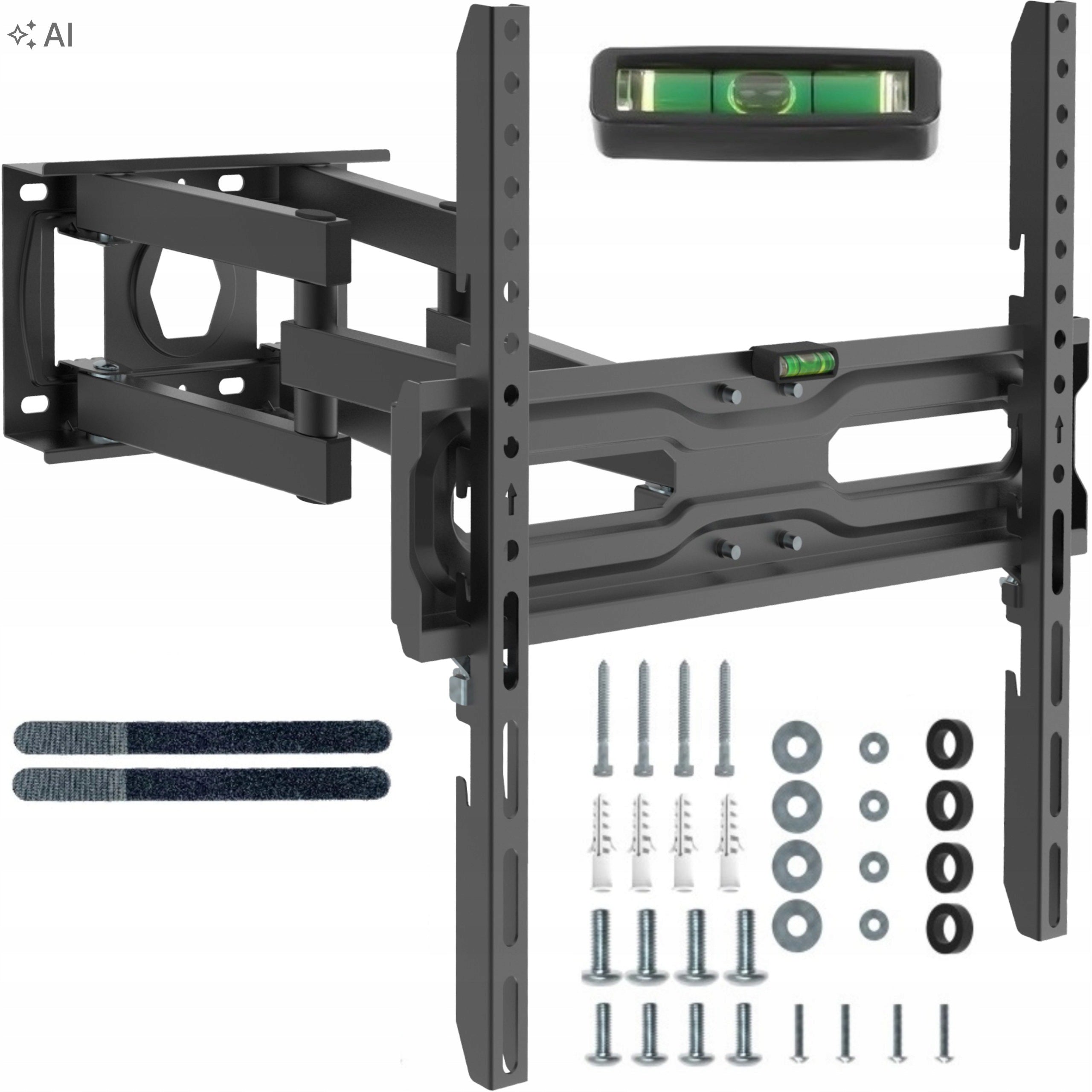

✅SET COMPOSITION

• ▶ TV mount with necessary mounting accessories
• ▶ simple and intuitive installation
• mounting accessories for wall mount:
• Large strong screws M8X55 4 pcs
• Dowels 10X50 4 pcs
• Washers 4 pcs
• TV mount mounting accessories:
• Screw for TV/monitor installation M4X20 4 pcs (choose the screw suitable for the holes in your TV)
• Screw for TV/monitor installation M6X20 4 pcs
• Screw for TV/monitor installation M8X25 4 pcs
• Washers M4, M6, M8 for the above screws 4 pcs
• Bushing/distance M4,M6,M8 10 mm 4 pcs - for TVs with recessed mounting holes
• ➡ level and ➡ Velcro for organizing wires
• instruction in Polish, English and German

Attention. The mount includes a universal set of TV mounting screws that fits most TVs on the market. It may happen that your TV will need other screws, then you need to purchase them on your own.
