Piegādes termiņš visā Lietuvā: 5-7 darba dienas.
Piegādes cena uz norādīto adresi: 3 eiro
Apraksts
Trumpai apie prekę
Prekė: Tvirtas televizoriaus laikiklis C6F, 55–120", maks. 120 kg. Kategorija: Rankenėlės.
- Gamintojas: Fiber Novelty
- Modelis: C6F
Very Strong Wall Mount for Large LCD LED TVs

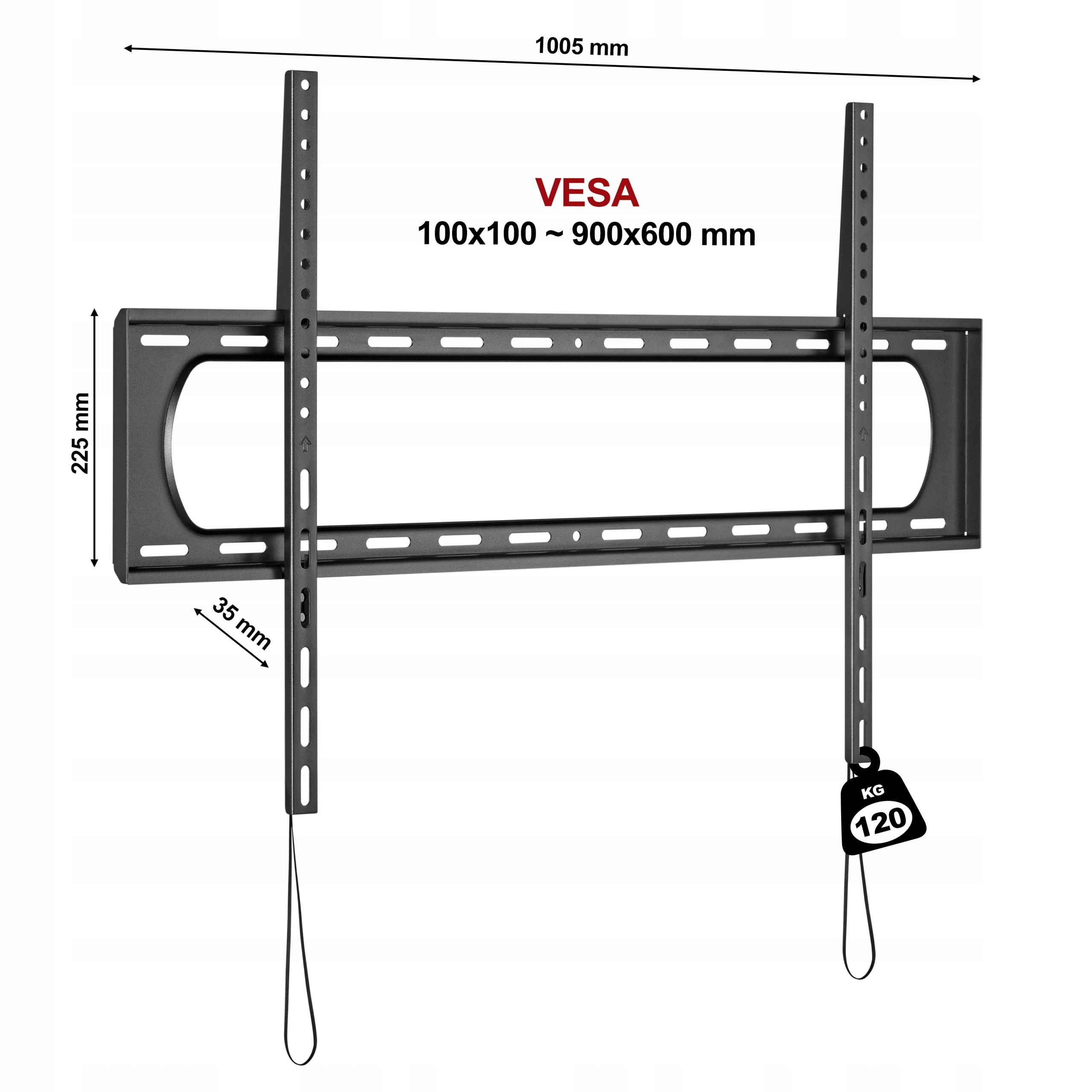

- TV size: 55"- 120"
- maximum TV weight: 120 kg
- VESA: 50x50 ~ 900x600 mm
- distance from wall 35 mm
Original product from the official Polish distribution.
Full service and post-warranty support.
Product of a reputable brand, new, originally packed.
CHARACTERISTIC:
- universal ultra-flat mount for LCD LED TVs Plasma weighing up to 120 kg
- high quality workmanship with attention to detail
- Suggested for 55"-120" TVs
- Quick and easy installation
- automatic lock of the TV against accidental photo
- ultra-flat - short distance from the wall
- reinforced construction - very solid workmanship
TECHNICAL PARAMETERS
- maximum lifting capacity: 120 kg
- for TVs: 55"-120"
- maximum VESA mounting width: 974mm
- distance from the wall: 35 mm
- Finish: powder coated
- colour: black
- VESA compatible (mounting hole spacing) standard:
- VESA 50x50
- VESA 100x100
- VESA 200x100
- VESA 200x200
- VESA 300x200
- VESA 300x300
- VESA 400x200
- VESA 400x300
- VESA 400x400
- VESA 600x400
- VESA 800x400
- VESA 800x600
- VESA 900x600
- and all other spacings in the range 50x50~900x600 mm
MOUNTING KIT
- Screw M6×14mm - 4 pcs.
- Screw M8×16mm - 4 pcs.
- Screw M6×30mm - 4 pcs.
- Screw M8×35mm - 4 pcs.
- Distance Ø15×Ø8×15mm - 4 pcs.
- Distance Ø15×Ø8×5mm - 4 pcs.
- Washer - 4 pcs.
- Screw ST8×90mm - 6 pcs.
- Pin Ø12×60mm - 6 pcs.
- Mini level - 1 pcs.
COMPOSITION OF THE SET
- handle
- set of screws*
- installation instructions
* standard/universal screws are included to fit most TVs, if they do not fit, then you should buy the appropriate screws on your own.
AUTOMATIC SAFETY LOCK
The mechanism with straps at the bottom allows for tool-free mounting and disassembly of the TV.
FLAT DESIGN
Distance from the wall is only 35 mm.
When choosing the right TV mount, you should first of all pay attention to the weight of the TV and the VESA mounting hole spacing, the screen size itself is given by the manufacturers indicatively. Information on the VESA compatibility of the TV can be found in the user manual or on the manufacturer’s website. You can also check and measure the hole spacing yourself.
The VESA standard specifies the locations of the four mounting holes from the back of the TV. The spacing of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes horizontally (left - right), and the second parameter the distance between the mounting holes vertically (upper - lower).
EXAMPLE
To better understand how to measure VESA mounting holes, we have prepared an example photo of a TV with a hole spacing of VESA 400x200. In this example, the distance between the horizontal holes is 400 mm, and the distance between the vertical holes is 200 mm.
Product Series and No.: FNC6FBLK STL
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | C6F |
| Parametry | Model | C6F |
| Parametry | Maximum TV size | 120" |
| Parametry | Brand | Fiber Novelty |
| Parametry | Maximum load | 120 kg |
| Parametry | Kind | solid |
| Parametry | Product weight with unit packaging | 5 kg |
| Parametry | EAN (GTIN) | 5901597301165 |
| Parametry | Packaging status | original |
| Parametry | VESA Standard | 75 x 75,100 x 100,150 x 100,200 x 100,200 x 150,200 x 200,200 x 300,300 x 200,300 x 300,300 x 400,400 x 200,400 x 400,600 x 300,600 x 400,800 x 400,800 x 600,600 x 500,900 x 600,400 x 300 |
