Apraksts
Trumpai apie prekę
Prekė: Universali 13 kontaktų priekabos kablio modulis su ETK 13.01 montavimo rinkiniu ir lizdu. Kategorija: Laidai ir lizdai.
- Gamintojas: PiAir
UNIVERSAL MODULE WITH EXTENDED ELECTRICAL HARNESS AND 13 PIN SOCKET. THE ELECTRIC SET IS EASY TO INSTALL, ALL WIRES TO THE MODULE ARE CONNECTED WITH ONE EXTENDED CUBE.
THE MODULE IS INSTALLED ANALOGUE, IT SHOULD BE GIVEN APPROPRIATE PULSES TO THE MODULE, WHICH TRANSMITS THEM DIRECTLY TO THE SOCKET
The device controls the lighting of the trailer through information taken from the rear lamps of the car.
The device is designed to work with ordinary bulbs and LED lamps in the trailer.
The device also works with a single-fiber installation (PWM), where the parking light and stop or parking and fog light are on one wire. In this case, connect the input of the position lamp and the input of the stop lamp to the cable on which both signals occur, or take information about the stop lamp from the third stop lamp.
Recommended for cars with an on-board computer.
Required if the car has a light failure indicator or so many lamps in LED technology.
Offered electric set also works with trailers with LED lighting
Suggested connection:
- Installation of the control panel in a dry and best invisible place
- Connecting the electrical harness to the device
- Connection of the control unit mass to the vehicle body
- Connection of input wires according to the scheme (next to)
- Information from the Reversing light is connected in the case of mounting a 13 pin socket
- Installation of the trailer socket and connection of wires according to the scheme (below)
- Connecting the power cord to the positive pole of the battery and inserting the fuse
- All connections should be soldered and insulated or used for this purpose quick couplers,which are included.
The installation of the device should be carried out by a specialized plant.

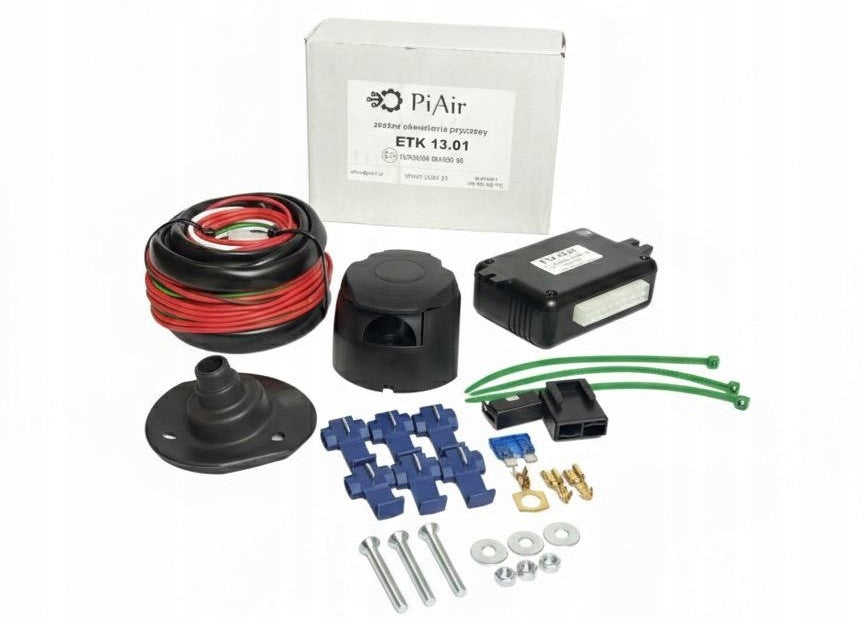

Contents of the set:
- CONTROL UNIT
- COMPLETE ELECTRICAL HARNESS
- 13 PIN SOCKET
- RUBBER (SEAL)TO THE SOCKET
- QUICK COUPLERS
- MOUNTING SCREW, NUT AND WASHER
- CLAMP TIES
- CONNECTORS
- CONNECTOR EYE
- 15A FUSE
- FUSE HOLDER
WHEN IT IS WORTH USING THE HOOK MODULE
- For towing cargo trailers
- For towing car tow trucks
- To operate the lighting of the bicycle rack
The module can cooperate with installations in which some car lighting circuits are implemented on a single-fiber bulb, where different lighting intensity is obtained by PWM control (variable fill factor).
This allows you to operate various trailer or trunk electrics packages.
Certainty that there will be no accessibility issue in the future.
- Works with CAN-Bus installation;
- Works with LED and single-fiber lighting;
- For connecting a 13 PIN socket (Pin No.8 reverse light);
- Detection of trailer connection;
- E20 approval (available at the device control panel)
FUNCTIONS OF THE MODULE:
- fog lamps - YES
- reverse lights - YES
- brake lights STOP - YES
- position lamps - YES
- direction indicators - YES
- trailer module - YES
- CAN BUS - YES
- approval - YES, E20
MODULE WORKS WITH VIRTUALLY EVERY CAR MODEL PRODUCED FOR THE EUROPEAN MARKET

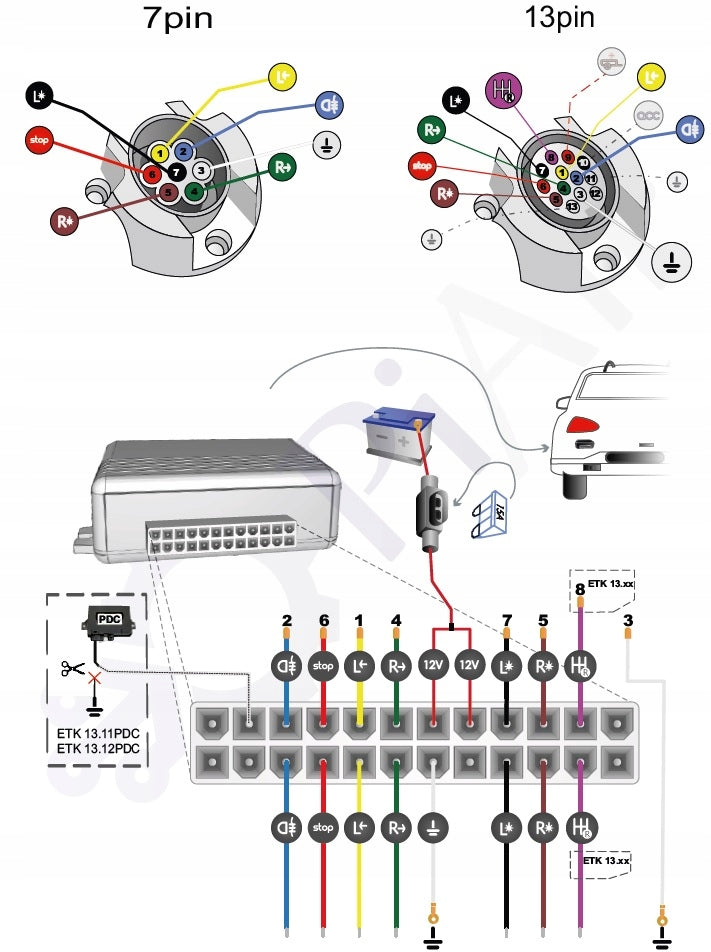

IN THE APPENDIX BELOW INSTRUCTIONS FOR CONNECTING THE MODULE WITH THE DIAGRAM !
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With a VAT invoice |
| Parametry | Kind | 13 PIN |
| Parametry | Product weight with unit packaging | 1 kg |
| Parametry | EAN (GTIN) | 5904569539214 |
| Parametry | Manufacturer | PiAir |
| Parametry | Packaging status | original |
