Universali 7 kontaktų priekabos jungties modulių rinkinys

Trumpai apie prekę

Prekė: Universali 7 kontaktų priekabos jungties modulių rinkinys. Kategorija: Laidai ir lizdai.

• Gamintojas: Micromel

+ CONNECTORS + FUSE + SCREWS + NUTS + BANDS + MANUAL + BALL COVER + SOCKET SEAL

Recommended for cars with an on-board computer.

Required if the car has a light failure indicator or so many lamps in LED technology.

The offered electric set also works with trailers with LED lighting

• Works with CAN-Bus installation;
• Works with LED and single-fiber lighting;
• For connecting a 7 PIN socket;
• Detection of trailer connection;
• Approval E20

FUNCTIONS OF THE MODULE CONTROL UNIT

• fog lamps - YES
• reversing lamps - NO
• brake lights STOP - YES
• position lamps - YES
• direction indicators - YES
• trailer module - YES
• LED light support - YES
• CAN BUS - YES
• cooperation with parking sensors - NO (we have modules supporting parking / reversing sensors in another offer)
• control of the operation of the trailer lights - NO
• approval - YES, E20

The 7 Pin electronic module is designed to connect the towbar's electrical system in cars that use computer-based lighting control systems. In such cars, connecting the 7-pin trailer socket directly to the rear lights may result in damage to the on-board computer. The use of the module does not pose any additional burden on the car's installation, as each module input is characterized by a very low current consumption of 1mA. Each module output is protected against possible short circuits from the trailer's electrical system.

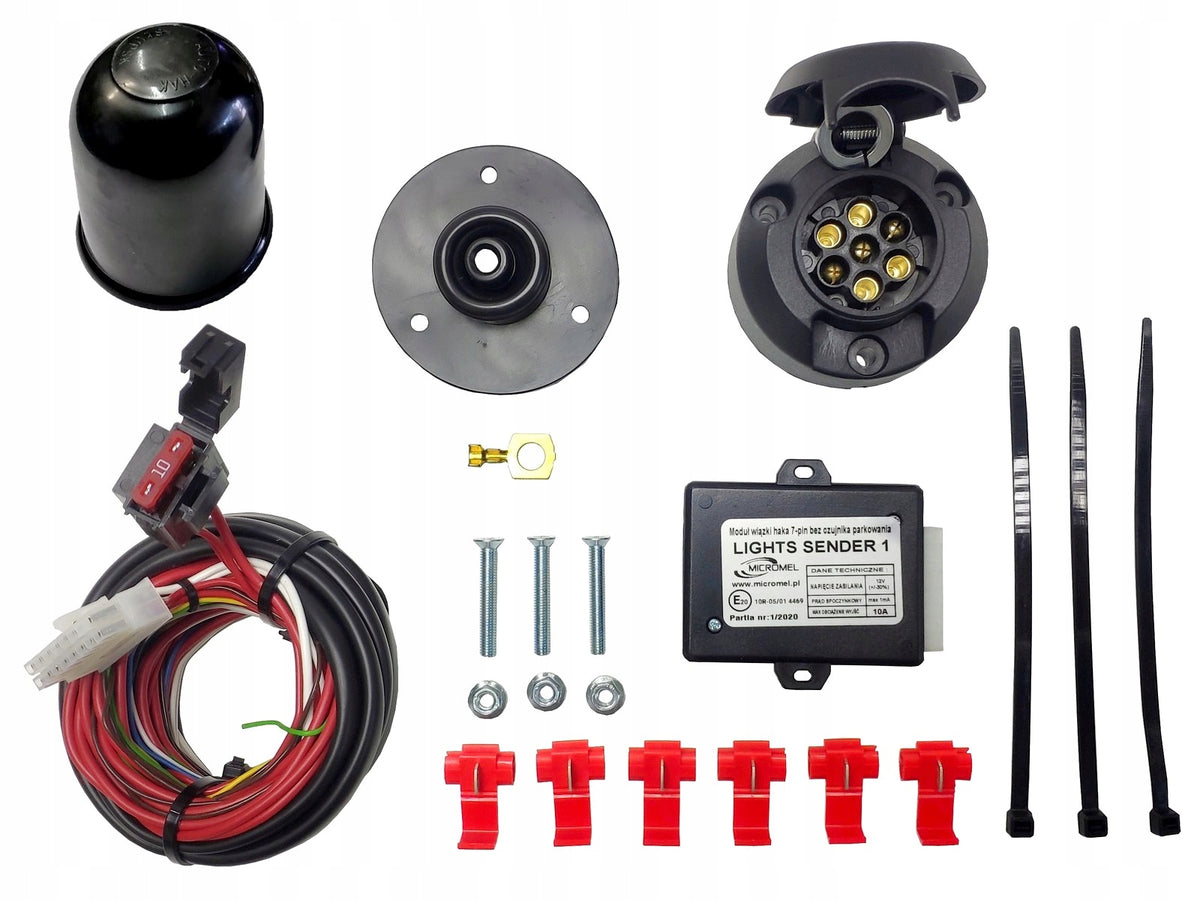

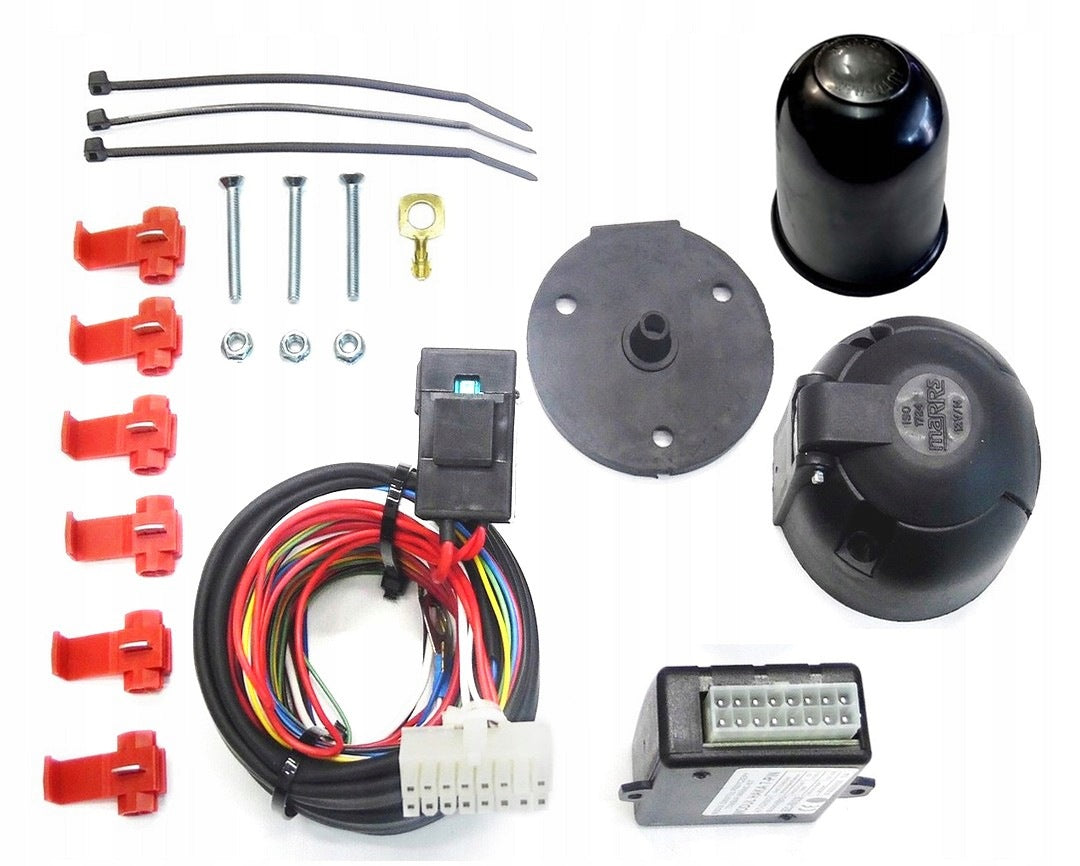

Set contents:

• electronic module - 12VDC control unit,
• 7-pole socket with seal,
• harness with fuse,
• accessories needed for assembly,

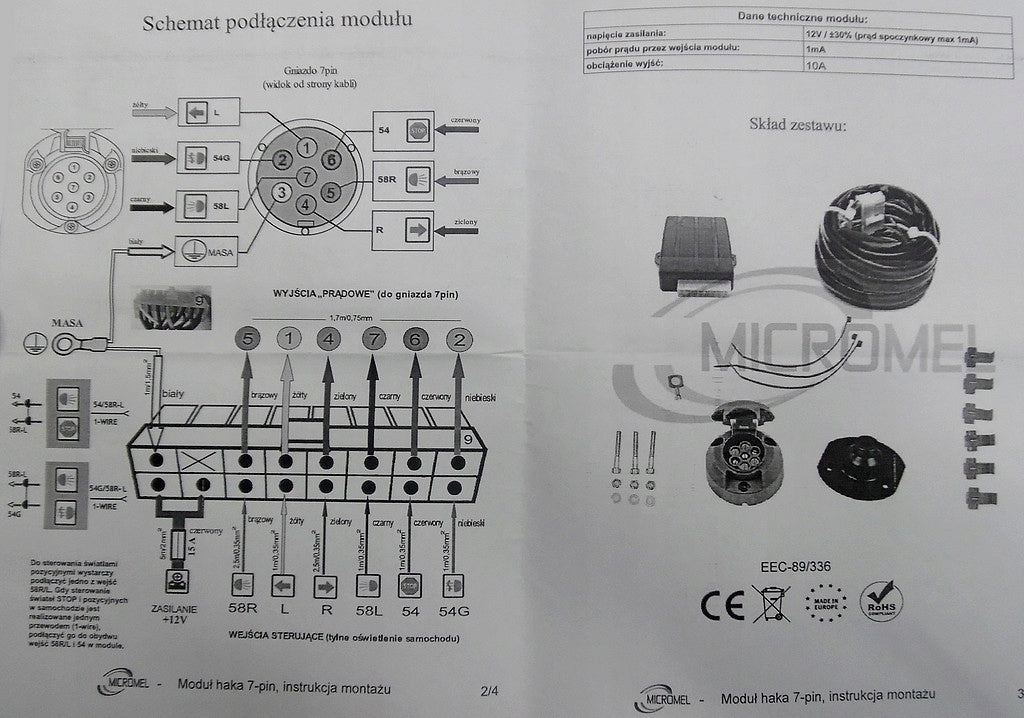

• instructions in Polish ,
• SEAT GASKET
• TOW HITCH COVER

MODULE WORKS WITH VIRTUALLY EVERY CAR MODEL PRODUCED FOR THE EUROPEAN MARKET

EXAMPLE LIST OF CAR MODELS TO WHICH OUR MODULE FITS

147 2004›

159 2005›

Brera 2005›

GT 2004›

166 2005›

A2 2004›

A3 2004›

A4/S4 2005›

A4 2008›

A5 2007›

A6/S6 2005›

A8/S8 2005›

TT 2005›

Q5›

Q7 2005›

1 2004›

3 2005›

X3 2005›

5 2004›

X5 2004›

6 2005›

X6 2008›

7 2005›

Z4 2005›

Sebring 2005›

PT Cruiser 2004›

300 C 2004›

Voyager 2004›

Crossfire 2004›

CITROEN

C1 2004›

C2 2004›

C3 2005›

C4 2005›

C5 2003›

C6 2005›

C8 2005›

Xsara 2005›

Jumper 2005›

C-CROSSER 2007›

Panda 2004›

Punto II 2003›

Grande Punto 2005›

Idea 2005›

Stilo 2005›

Sedici 2006›

Doblo 2005›

Multipla II 2005›

Croma 2005›

Linea 2007›

Strada 2006›

Albea 2005›

Palio 2005›

Ulysse 2005›

Focus II 2005›

Fiesta 2005›

Transit Courier 2005›

Mondeo 2004›

C-MAX 2005›

S-MAX 2005›

Galaxy 2005›

Ranger 2005›

Explorer 2005›

Maverick 2005›

Transit Tourneo 2005›

Kuga 2008›

CR-V 2002›

FR-V 2004›

Civic 2001›

Jazz 2003›

Accord 2004›

Legend 2006›

FX3 5/FX 45 2005›

G 35 2005›

M 35/ M 45 2005›

Q 45 2006›

Wrangler 2005›

Cherokee 2005›

Grand Cherokee 2005›

Commander 2005›

Carens 2000›

Carnival 2002›

Sorento 2005›

Joice 2000›

Sportage 2005›

Rio 2000›

Magentis 2001›

Mentor 2001›

Pregio 2002›

Cee'd 2008›

Lybra 1999›

Thesis 2002›

Ypsilon 2003›

Musa 2004›

IS 2005›

GS 2006›

ES 2006›

LS 2005›

SC 2005›

RX 300/RX 400 2005›

GX 2006›

LX 2006›

Pajero 2000›

Pinin 1999›

L200 2005›

Outlander 2003›

Lancer 2003›

Grandis 2004›

Colt 2004›

A 2005›

B 2005›

C 2004›

CL 2005›

CLK 2005›

CLS 2005›

E 2004›

GL 2006›

ML 2005›

R 2005›

S 2006›

SL 2005›

SLR 2005›

SLK 2005›

Sprinter 2005›

Vito 2005›

Vaneo 2003›

Viano 2005›

Maxima 2000›

Note 2005›

Primera 2002›

Almera 2003›

X-Trail 2001›

Patrol 2002›

Pathfinder 2005›

Murano 2005›

Navara 2005›

Primastar 2005›

Interstar 2005›

Astra III 2005›

Vectra C 2004›

Signum 2004›

Sintra 2003›

Meriva 2004›

Movano 2004›

Zafira 2004›

Vivaro 2004›

Antara 2006›

Corsa 2006›

Tigra 2005›

Cayenne 2004›

107 2005›

207 2006›

307 2005›

407 2004›

607 2005›

807 2005›

1007 2005›

Partner/New Partner 2005›

Boxer 2005›

4007 2007›

Clio 2005›

Modus 2005›

Trafic 2005›

Megane 2005›

Scenic 2005›

Laguna 2005›

Espace 2005›

Vel Satis 2005›

Master 2006›

Land Rover

Freelander 2005›

Discovery 2005›

Range Rover Sport 2005›

Range Rover 2005›

Fabia 2004›

Roomster 2006›

Octavia 2005›

Superb 2005›

SSANG YOUNG

Rexton 2005›

Rodius 2005›

Kyron 2005›

9,3 2005›

9,5 2005›

Alhambra 2005›

Altea 2005›

Ibiza/Cordoba 2005›

Leo 2005›

Toledo 2004›

Swift 2005›

Splash 2007›

SX4 2006›

Grand Vitara 2005›

Grand Vitara XL-7 2005›

Yaris 2006›

Corolla/Corolla Verso 2006›

Prius 2005›

Matrix 2006›

Hilux 2005›

Avensis 2005›

Camry Solara 2006›

Avalon 2006›

RAV4 2005›

FJ Cruiser 2006›

Tacoma 2006›

Tundra 2006›

Sequoia 2006›

Highlander 2007›

Land Cruiser 2005›

Polo 2005›

Golf 2005›

Beetle 2004›

Jetta 2005›

Touran 2004›

Eos 2005›

Passat 2004›

Tiguan 2007›

Touareg 2004›

Caddy 2005›

Sharan 2005›

Multivan 2005›

Crafter 2005›

Phaeton 2005›

S40 2004›

S60 2004›

S80 2004›

V50 2004›

V70 2004›

C70 2004›

XC70 2004›

XC90 2004›

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Kind	7 PIN
Parametry	EAN (GTIN)	5905386103176
Parametry	Manufacturer	Micromel
