Universali 8 kontaktų kablio sija su skaitmeniniu moduliu Auto-Hak (13 kontaktų G8)

Trumpai apie prekę

Prekė: Universali 8 kontaktų kablio sija su skaitmeniniu moduliu Auto-Hak (13 kontaktų G8). Kategorija: Laidai ir lizdai.

• Gamintojas: Auto-hak

✅Set with digital trailer hook beam module with 8 wires (for lighting lamps) in 13-pin socket (G13). Applicable to all cargo trailers and bicycle hangers. The kit includes a set of accessories necessary to mount the module to the vehicle's electrical system. The cable harness is characterized by one plug for connecting all wiring to the module, which simplifies installation.

The module performs the function:

✅Turn off the rear parking sensor (PDC) signalling by means of a cable with a "detachable mass" signal.

✅Sound signaling of the detection of a connected trailer.

✅ Possibility to turn off the parking sensor control unit (PDC).

✅Sequential control of the car fog light, leaving the light attached to the trailer.

✅Indication of faulty trailer direction indicator lamps (Blink Control) with a buzzer beep.

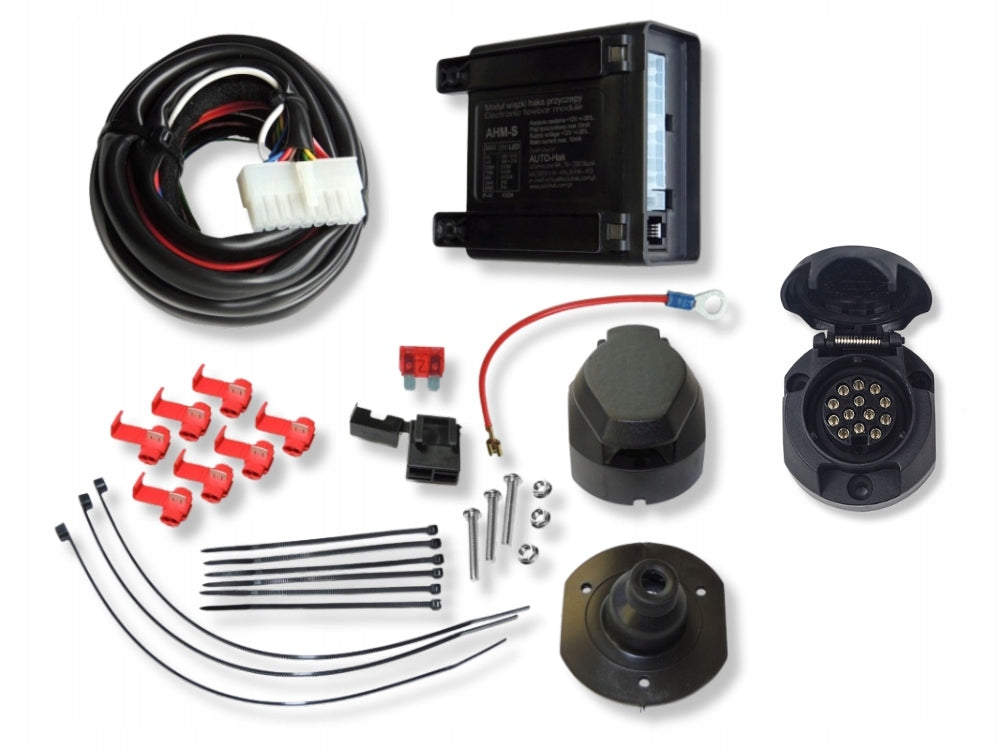

Elements of the set:

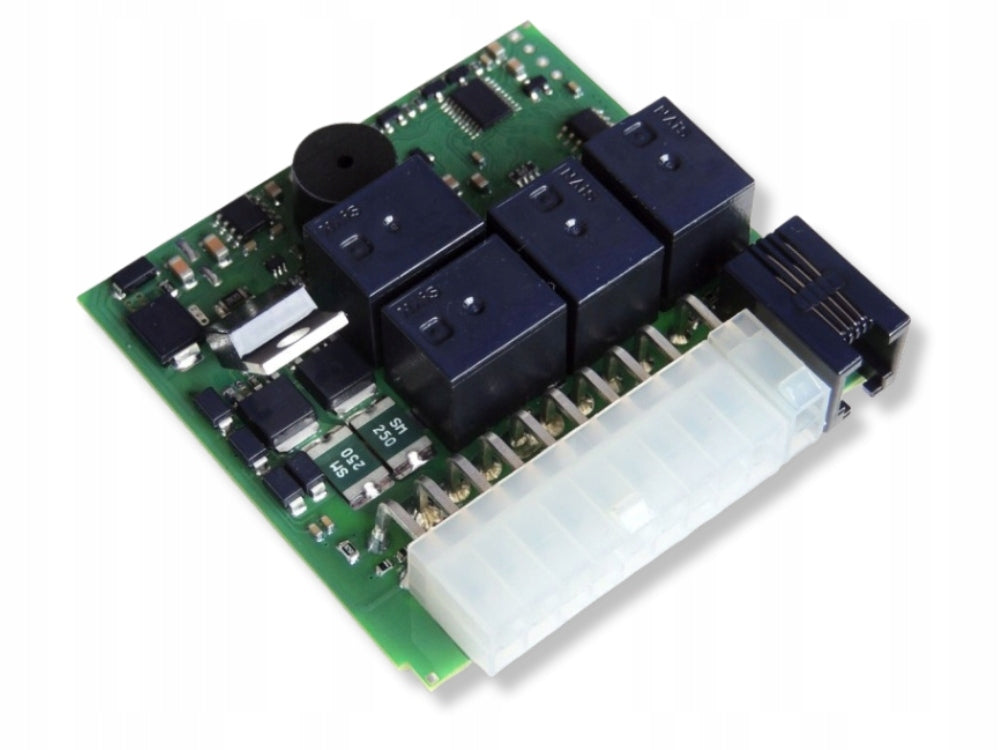

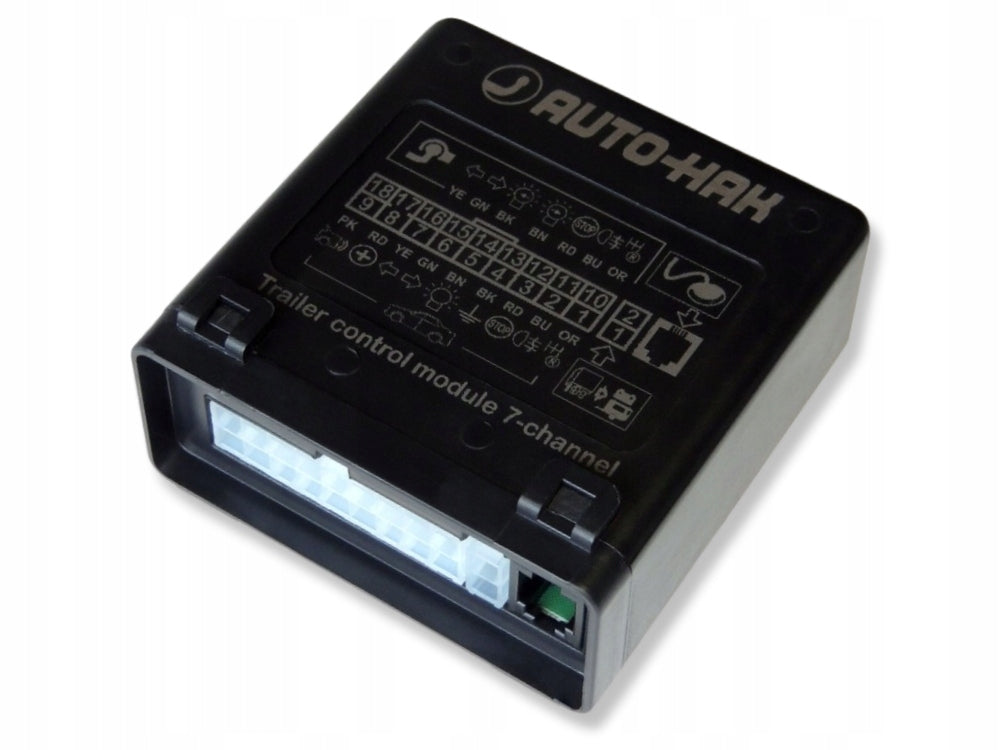

✅Control module (control panel) – 1 pc.

✅Integrated installation bundle ("all in 1 plug") – 1 pc.

✅Trailer socket 13-pin (G13) – 1 pc.

✅A set of mounting elements – 1 set.

✅Screw set – 1 set.

✅Short installation guide – 1 pc.

Electrical harness features:

✅Power beam length: 5,0 m

✅Beam length to socket: 1,7 m

✅Input signal beam length: L = 1,0 m, P = 3,0 m

Technical specification:

✅Power supply voltage: 10 – 18 V

✅Input current load (standby): ≤ 2 mA

✅Indication: Sound (optional visual LED-RGY-500)

Maximum Output Loads:

✅STOP lights: 3 × 21 W

✅Direction indicator lights: 21 + 10 W / side

✅Position lights: 3 × 5 W / side

✅Fog light and reversing light: 21 W

✅Reversing sensor output capacity: 0,5 A
