Universalus 13 kontaktų elektros jungčių rinkinys su moduliu kemperiams

Trumpai apie prekę

Prekė: Universalus 13 kontaktų elektros jungčių rinkinys su moduliu kemperiams. Kategorija: Laidai ir lizdai.

• Gamintojas: Quasar Electronics

Supports constant power supply and charging of trailer battery.

Complete hook harness kit with installation accessories.

Virtually all models of cars.

The MP5-DS digital module is the most extensive trailer lighting controller that also supports camping trailers (with its own battery) with bulb and LED lighting.

• sound signal of the detection of a connected trailer,
• function of sequential control of the trailer fog lamp which allows you to turn off of this light in the car when at the same time it is attached to the trailer,
• correct operation with "PWM" lighting control in the car (i.e. when one cable is signaling for two lights, e.g. "stop" and "position"),
• output controlling the operation of the control panel of rear parking sensors which allows their deactivation with the trailer connected,
• function of intelligent battery charging control camping trailer,
• indication damage to the light bulb direction indicator na of the trailer with faster flashing of the direction indicator lights in the car.

The module does not load the electrical circuit of the car, because the current consumption on each of the signal inputs is about 1mA, which excludes interference of the electronic system vehicle. It can be connected both to the installation of a vehicle with filament bulbs and LED lamps.

The module detects the connection of a trailer equipped with both filament bulbs and LED lamps.

Sequential control of the fog lamp allows, by turning the switch on and off, to turn on the light in the trailer with the vehicle fog light off, which prevents glare of the driver in the rear-view mirror.

CIRCUIT FUSES

• 10A - trailer lighting
• 10A - constant power supply for trailer
• 10A - charging the trailer battery
• 1A - voltage control in the car installation

BASIC FUNCTIONS OF THE MODULE

• Input current load: ≤2 mA
• cooperation with LED and single-fiber car lighting: yes
• support for automotive installation with variable lamp supply voltage (PWM): yes (digital)
• cooperation with LED lighting and incandescent trailer: yes
• detection of trailer connection with incandescent lighting: yes
• detection of trailer connection with LED lighting: yes
• possibility to control the operation of the car parking sensor module: yes
• detection of damage to the direction indicator lamp of the trailer: yes
• trailer reverse light control: yes
• constant power supply on the trailer socket: yes
• trailer battery charging circuit: yes
• intelligent charging of the trailer battery: yes
• separate protection of trailer socket circuits: lighting, constant power supply and trailer battery charging power: yes

DIAGNOSIS AND SIGNALLING

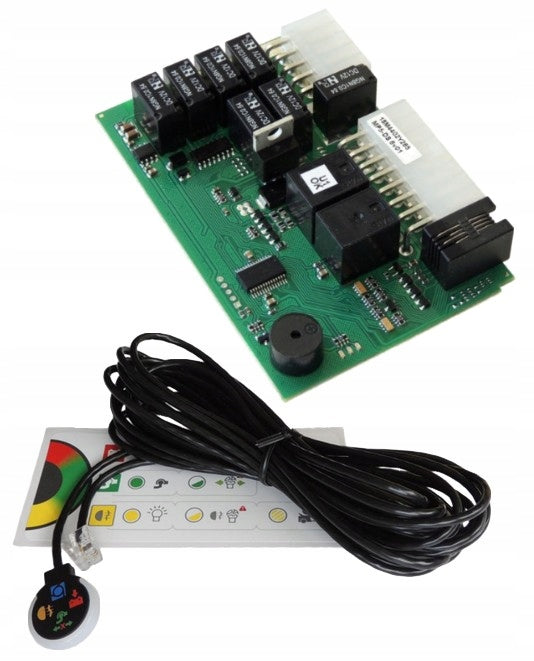

The MP5-DS-G13 module has information functions (using the three-color information light LED-RGY-500):

• trailer connection signal: sound signal, LED-RGY-500
• Indication of failure of trailer direction indicators: sound signal, LED-RGY-500
• Indication of failure of trailer direction indicators by faster flashing of car direction indicators: yes
• trailer fog lamp switch-on signal: sound signal, LED-RGY-500
• trailer battery charging switch signal: LED-RGY-500

METHOD FOR OPERATING THE REAR FOG LAMPS OF A CAR

• method of controlling the trailer fog lamp: sequential
• complete shutdown of the rear fog lamp of the car: this is the possibility

CHARACTERISTICS OF THE ELECTRICAL HARNESS

• length of power harness: 5,5 m
• beam length to socket: 1,7 m
• length of input signal beam: left=1,0 m, right=3,0 m

TECHNICAL DATA

• supply voltage: 10-18V
• maximum output load of position lamps: 3 x 5 W (each side)
• maximum load output of stop lamps: 3 x 21 W
• maximum output load of direction indicator lamps: 21+10 W (each side)
• maximum fog lamp output load: 21 W
• maximum load output of reversing lamps: 21 W
• maximum output charging current of the trailer battery: 10 A
• load capacity of the output controlling the operation of the car reversing sensor: 0,5 A

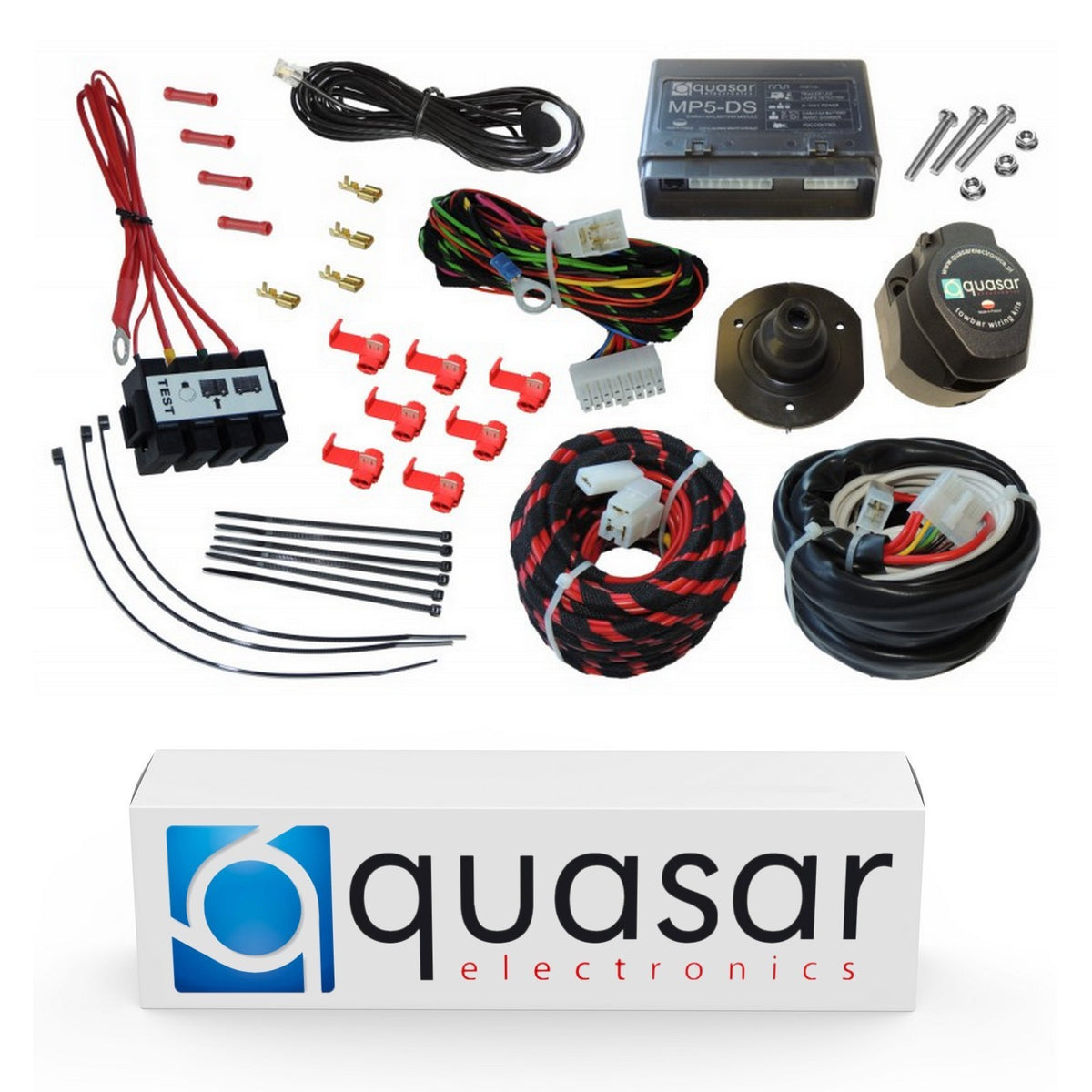

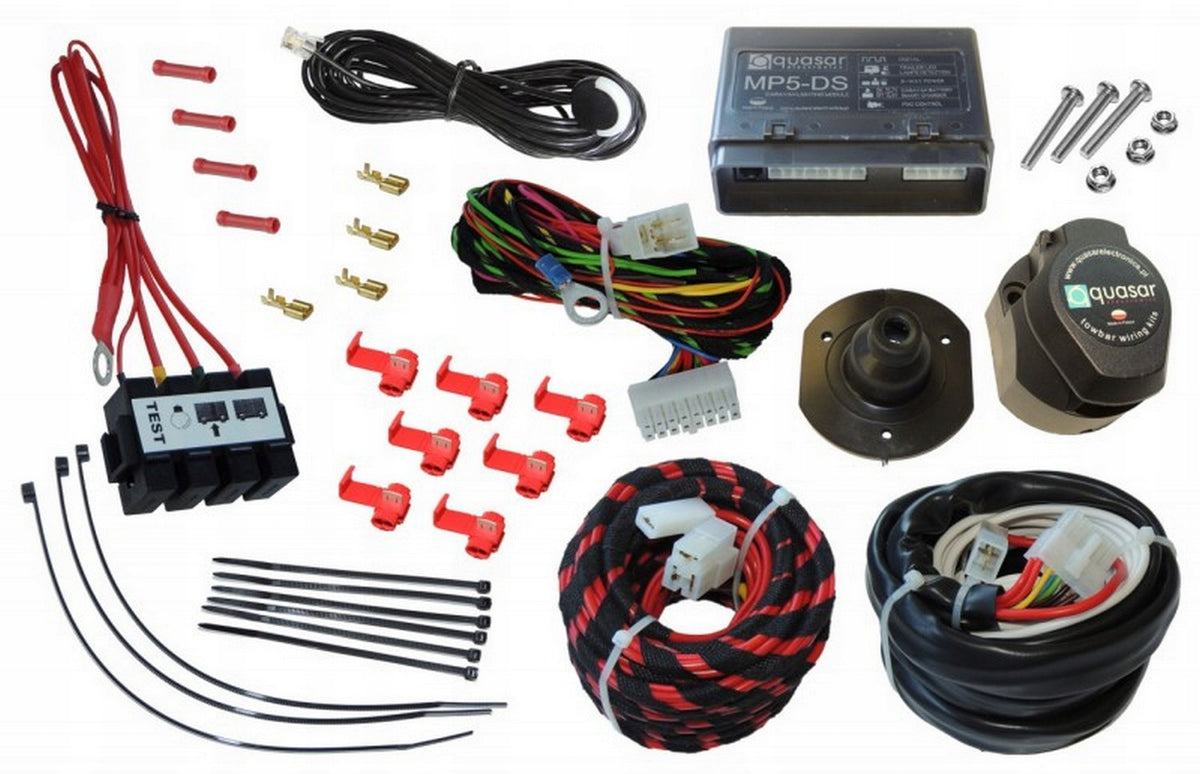

• control module (control panel),
• main beam (to the socket),
• 13-pin socket,
• power harness,
• power harness with luminaire for 4 fuses,
• signal beam,
• LED information light (3-color),
• screw set,
• mounting kit,
• connection scheme.

It is a fully complete ready to assemble set.

Each purchased beam is accompanied by a assembly instruction in the form of a more than 20-pagej brochure. The manual allows fast and hassle-free assembly. Instructions can be downloaded in the additional information section under the listing description.

If you are not sure whether the offered beam fits your car, please provide us with the following information:

• brand,
• model,
• year of manufacture,
• VIN number.

We will verify before shipping. If you have any additional questions we will contact you.
