Universalus 8 kontaktų kablio adapteris su 13-pin G8 ir skaitmeniniu moduliu

Trumpai apie prekę

Prekė: Universalus 8 kontaktų kablio adapteris su 13-pin G8 ir skaitmeniniu moduliu. Kategorija: Laidai ir lizdai.

• Gamintojas: Auto-hak

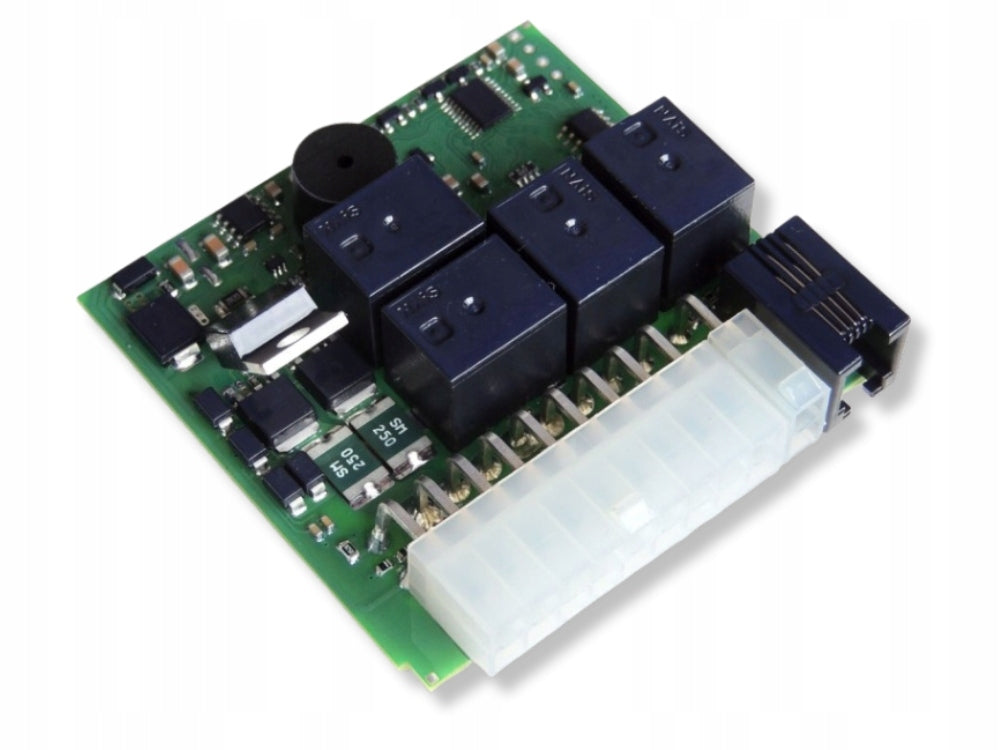

Set with digital module (with basic functionality) trailer hook harness with 8 wires (for lighting lamps) in 13-pin socket (G13). It is a module with basic functionality - the module "copies" the input signals from the car lamps to the trailer socket. Applicable to all cargo trailers and bicycle hangers. The kit includes a set of accessories necessary to mount the module to the vehicle's electrical system. The cable harness is characterized by one plug for connecting all wiring to the module, which simplifies installation.

The module performs the function:

✅Input current load ≤2 mA

✅Cooperation with LED and single-fiber car lighting

✅Support car installation with variable lamp supply voltage (PWM)

✅Cooperation with LED lighting and incandescent trailer

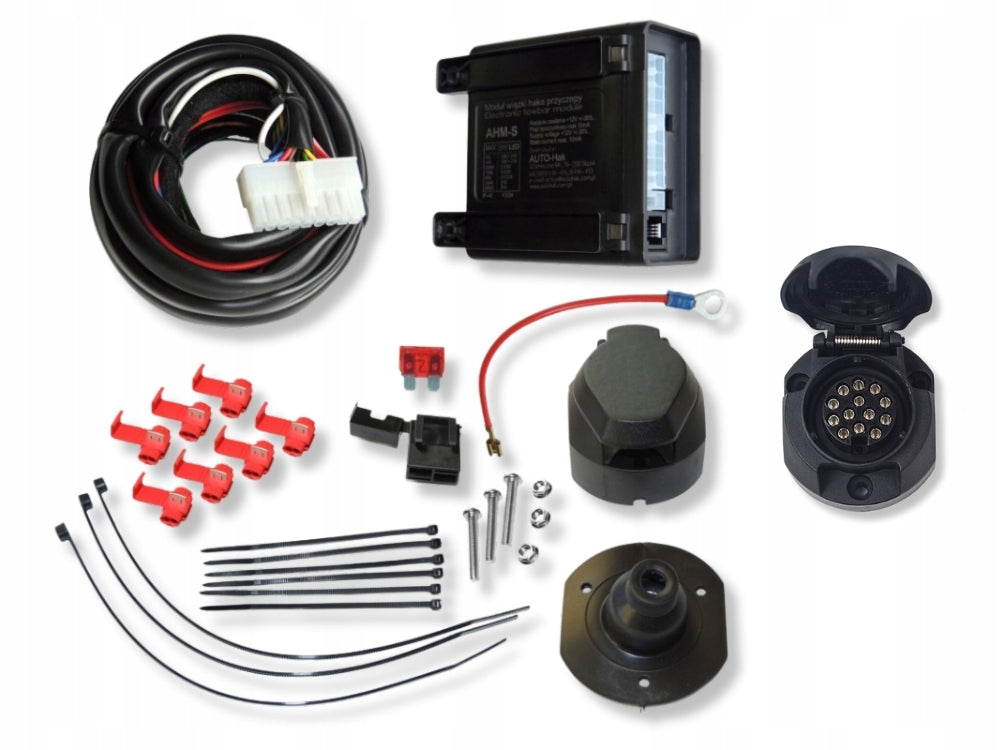

Elements of the set:

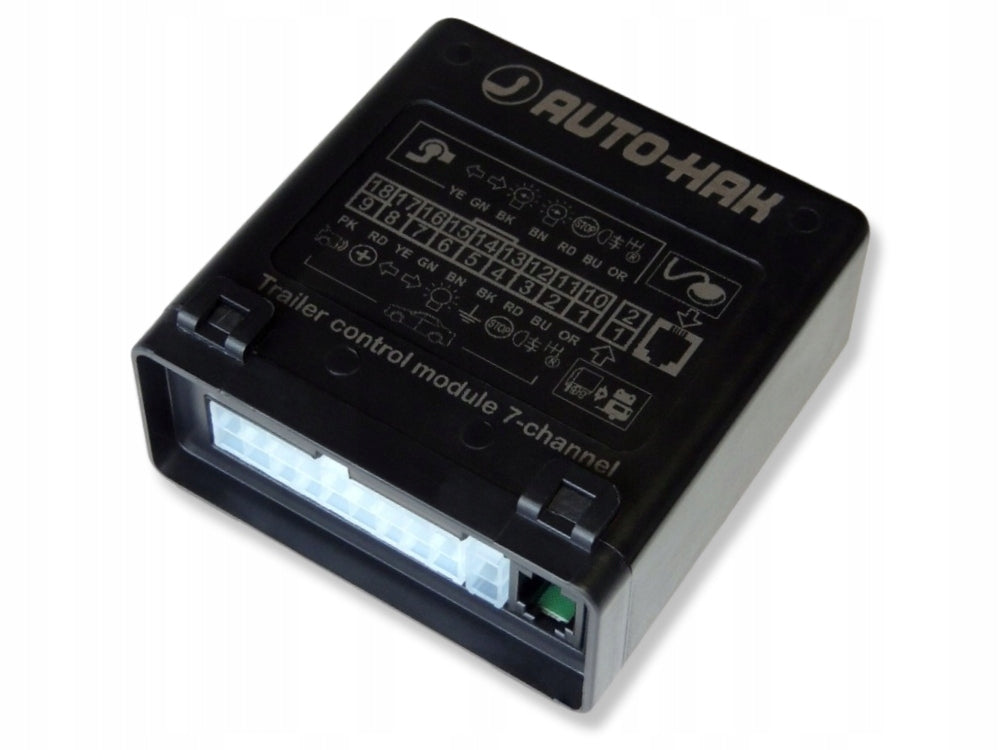

✅Control module (control panel) – 1 pc.

✅Integrated installation bundle ("all in 1 plug") – 1 pc.

✅Trailer socket 13-pin (G13) – 1 pc.

✅A set of mounting elements – 1 set.

✅Screw set – 1 set.

✅Short installation guide – 1 pc.

Electrical harness features:

✅Power beam length 5,0 m

✅Beam length to socket 1,7 m

✅Input signal beamlengthL=1,0 P=3,0 m

Technical data:

✅Power supply voltage1 0-18 V

✅Maximum output load of position lamps(each side) 3 x 5 W

✅Maximum output load of stop lights 3 x 21 W

✅Maximum output load of direction indicator lamps(each side) 21+10 W

✅Maximum fog light output load 21 W

✅Maximum load output of 21 W reversing lights

✅The load capacity of the output controlling the operation of the car reversing sensor 0,5 A
