Universalus kablio modulis WH0 Quasar, laidų rinkinys, 7/13 kontaktų, pagaminta Lenkijoje

Trumpai apie prekę

Prekė: Universalus kablio modulis WH0 Quasar, laidų rinkinys, 7/13 kontaktų, pagaminta Lenkijoje. Kategorija: Laidai ir lizdai.

• Gamintojas: Quasar Electronics

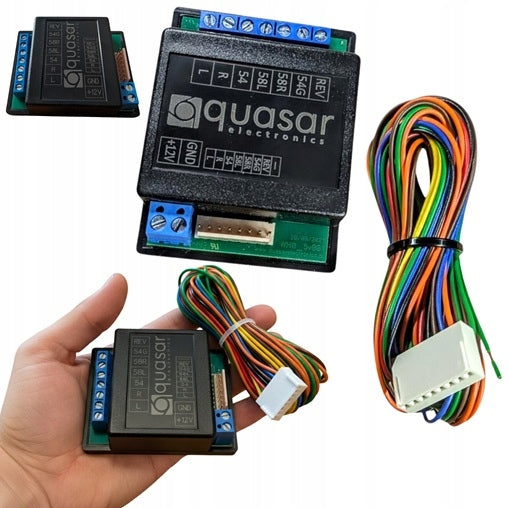

Universal hook module WH0 Quasar Wiring harness 7 13 pin polish product

The WH0 hook module with wiring harness is a cost-effective solution if you are looking for a simple and effective trailer lighting controller.

Compatibility with 7 and 13 pin installations and cooperation with LED and incandescent systems make the product great for various vehicles passenger and commercial vehicles with 12V installation.

Thanks to the support of PWM systems and low power consumption, the module does not negatively affect the car's electronics.

Easy installation without interfering with the vehicle's electrical system will allow you to fast and independent connection.

Product Features:

✅ The ability to connect a 7 or 13 pin socket gives you the flexibility to adapt the installation to different types of trailers, both with and without reversing lighting;

✅ Compatibility with LED, incandescent and PWM systems allows for trouble-free operation of the module in modern vehicles;

✅ Low power consumption on the input (≤ 2 mA) does not burden the electrical system of the car, eliminating the risk of errors of the on-board system;

✅ Support for reversing light and direct control of fog light provide you with full functionality of trailer lighting;

✅ Polish product made of solid components ensures durability, ease of use and full reliability.

Specification:

Product: Hook module

●Manufacturer: Quasar Electronics

●Model: WH0

●Type of installation: 7-pin or 13-pin

●Support 8-wire installation: yes (13-pin socket recommended)

●Power supply voltage: 10 – 18 V

●Input load: ≤ 2 mA

●Reversing light support: yes

●Support for fog lamps: yes (directly)

●Support for LED and incandescent systems: yes

●Support for PWM systems: yes (analog)

●Control of parking sensors: not

●Weight with packaging: 0,118 kg

Load:

•Positional (each side): 3 × 5 W

•STOP: 3 × 21 IN

•Indicators (each side): 21 + 10 W

• Anti-fog: 21 W

•Reversing: 21 W

Contents of the set: WH0 hook module, wiring harness, connection instructions

Trailer module

With support for 7-pin and 13-pin sockets, the WH0 module adapts to diverse types of trailers and installations.

In the case of the 13-pin socket, it is also possible to control the reversing light, increasing safety during manoeuvring.

The flexibility of application allows the module to be used in simple and more extended configurations of lighting.

Regardless of the type of trailer installation, you can be sure that the connection will run efficiently and seamlessly.

Cooperation with LED and PWM installation

The WH0 module has been designed to work with modern lighting systems of vehicles.

Thanks to PWM installation support and low power consumption, the product works without interference and does not cause errors in the on-board computer.

Compatibility with LED and traditional lighting means you can use it regardless of your vehicle configuration.

This solution allows you to enjoy hassle-free connection of the trailer without the need for additional adapters or filters.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Product weight with unit packaging	0.118 kg
Parametry	EAN (GTIN)	5907333330116
Parametry	Manufacturer	Quasar Electronics
Parametry	Packaging status	original
Parametry	Kind	13 PIN,7 PIN
