Universalus valdymo modulis su 13 kontaktų jungties laidu ir 13/7 kontaktų adapteriu

Trumpai apie prekę

Prekė: Universalus valdymo modulis su 13 kontaktų jungties laidu ir 13/7 kontaktų adapteriu. Kategorija: Laidai ir lizdai.

• Gamintojas: Quasar Electronics

The set includes:

• Electric harness of towing hook - universal 13 PIN with electronic module, producer QUASAR Electronics, model: WH1R-G13-8
• Reduction / adapter from 13 to 7 PIN - GRATIS
• Spare hook ball cover - GRATIS

The set is designed to provide lighting in:

• bicycle racks
• cargo trailers

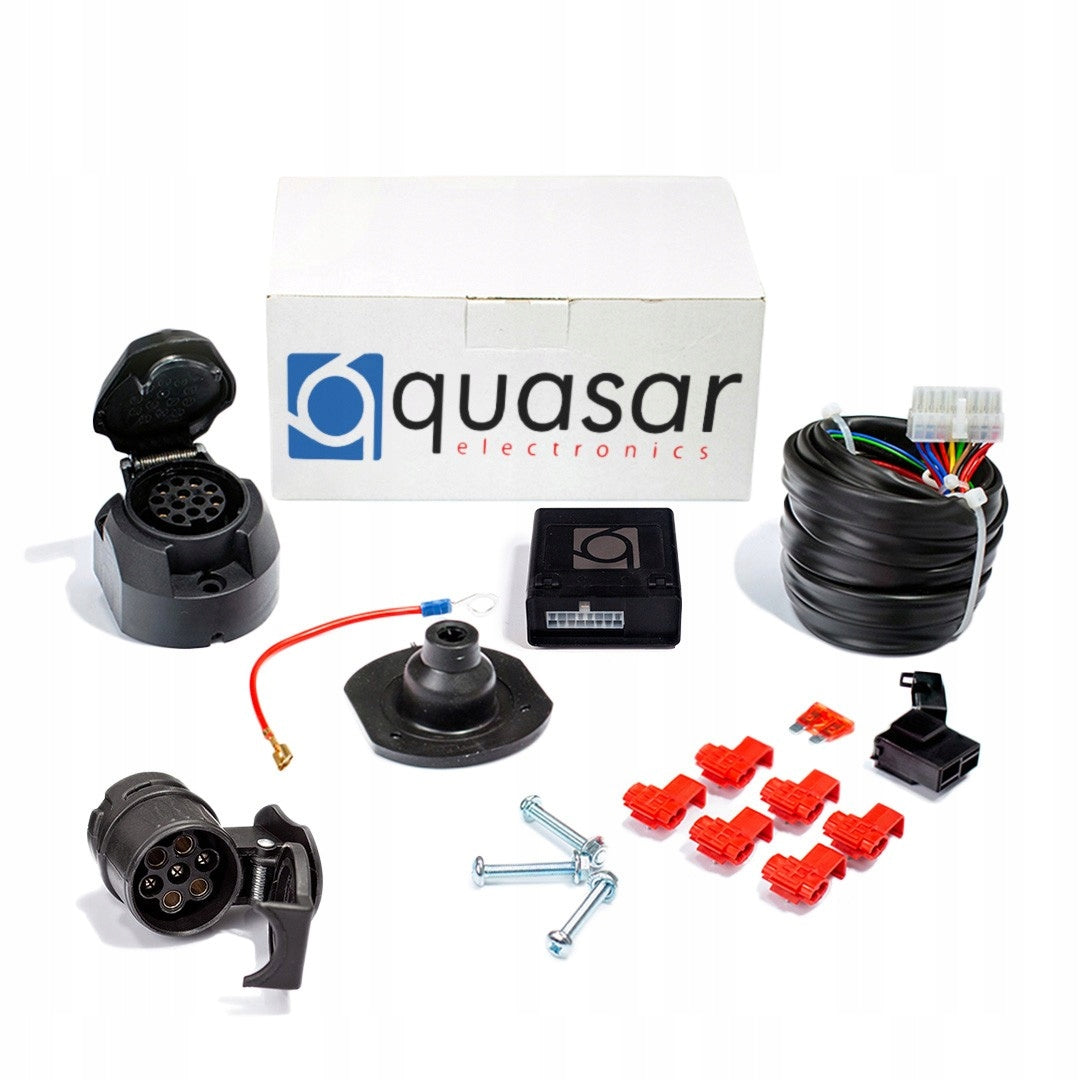

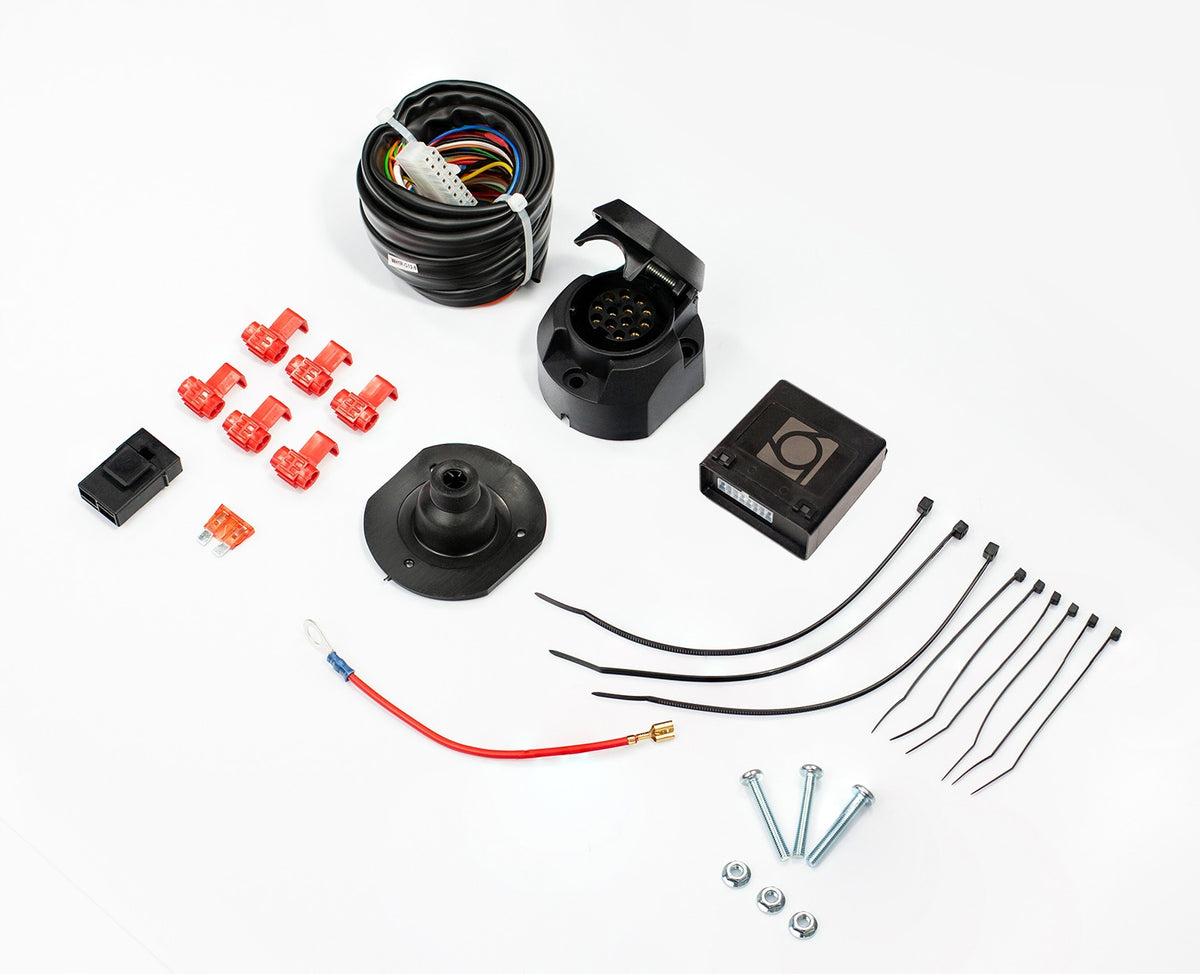

The 13 PIN universal beam mounting kit with electronic module includes:

• WH1R Quasar Electronics electronic module controlled by digital processor (DIGITAL)
• main wiring harness terminated with a connector to the module
• 13 PIN electrical socket and socket seal
• set of mounting accessories (fixture with fuse, quick couplers, screws, nuts)
• Detailed installation instructions of the "comic" type

The main harness is separated into the right and left sides of the vehicle, thanks to which the installation time is shortened

• Left side: L. signal wires: 1m
• Right side: L. signal wires: 3m
• power cord: 5m

Characteristics of module operation

The processor electronic module does not burden the electrical circuit of the car, because the current consumption on each of the signal inputs is about 2 mA, which excludes interference with the operation of the vehicle's electronic system.

The electrical harness provides:

• cooperation with LED lighting as well as one and two-fiber bulbs of the car
• cooperation with vehicles equipped with the CAN bus (digital multiplex)
• cooperation with vehicles equipped with a system for checking the correctness of vehicle lighting, so-called. CHECK CONTROL

The electrical wiring harness of the towing hook manufacturer QUASAR Electronics has the EU approval No. E20 10R-04 4019 which allows the goods to be placed on the automotive market and confirms compliance with the standards specified, among others. in the Road Traffic Law.

Features of the Quasar Electronics beam module model WH1R-G13-8:

Trailer lighting support:

• direction indicator lamps
• position lamps
• brake lights / stop
• fog lamp
• reverse light*

Additional beam functions:

• Disconnecting reversing sensors** - does not have
• 12V constant power line on the socket (fixed plus) - does not have
• trailer battery charging line - does not have

ATTENTION!

* reversing light - currently required by the Road Traffic Law for bicycle platforms and trailers with a load capacity exceeding 750 kg

** beam does not interfere with reversing sensors (description of this issue is included in "Questions and Answers" at the bottom of the offer)

Electrical harnesses with additional functions are available on our other offers

FREE!

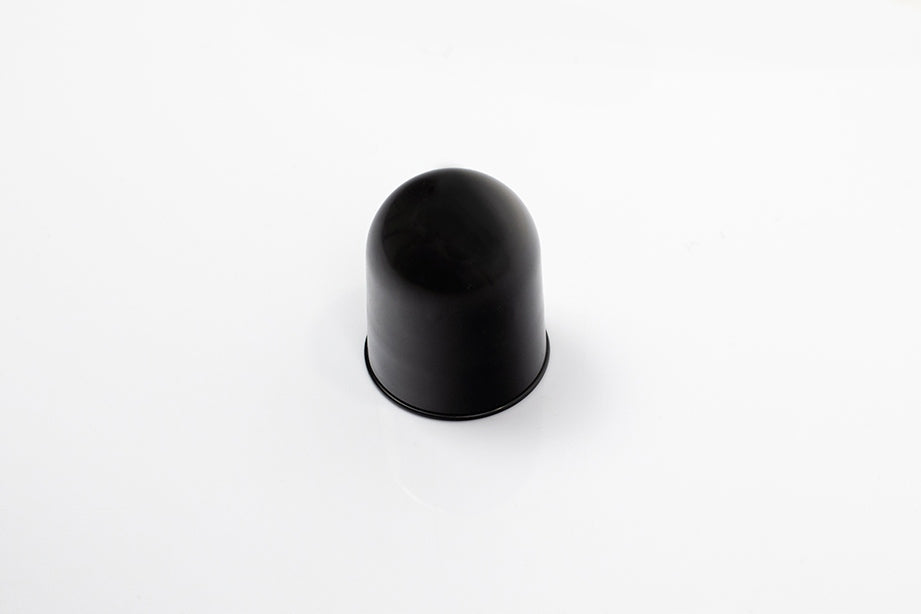

• hook ball cover (cap)
• adapter/adapter (1 pc. ) from 13 to 7 PIN

The adapter allows you to connect the 7 PIN plug of the trailer or trunk to the 13 PIN socket that the car is equipped with.

Quasar Electronics is a Polish manufacturer with several years of experience. It manufactures electronic equipment for motor vehicles with an electrical system operating in the range of 12-24V. Innovation in the creation of devices and their high and durable quality allowed the company to build an established position on the European market.

(towing hook and hook electrical harness)

1. Can I use the towbar immediately after installation in the car?

After installation, go to the Vehicle Inspection Station to perform a technical examination of the correctness of the installation of the towing hook. From that moment on, it can be used. Then, in order to complete the formalities, within 30 days of the technical examination, an appropriate entry should be obtained from the Communication Department (in the registration certificate and vehicle card if the vehicle has it).

2. Can any car tow a trailer?

Whether a vehicle can tow a trailer is specified in the vehicle approval. This is confirmed by the entry in box O.1 or O2 of the registration certificate. The figures in it indicate that the vehicle is approved for towing a trailer and what permissible gross vehicle weight it may have. If the car does not have the ability to tow trailers, it does not always mean that it cannot have a hook. Some versions of cars may have a hook only for mounting on it, for example, a bicycle rack

3. Is it necessary to install an electrical wiring harness for a towbar?

Yes. The electrical harness included with the towbar is designed to provide illumination in your trailer or bike rack. Its proper functioning is tested at the Vehicle Inspection Station. There are bundles with an electronic module or so-called. simple beams, without a module, which are sufficient in some car models. In our offers, the sets contain the right beam for the proper operation of lighting.

4. Bundle 7 or 13 PIN. Which one to choose?

In our listings, tow hook kits include a 7 or 13 PIN beam. The 7 PIN beam provides basic lighting for the trailer, i.e. positional, stop, fog, turn signals. The 13 PIN beam additionally ensures the operation of the reversing light in the trailer. We recommend choosing a 13 PIN beam if your car will be towing a trailer with a load capacity of more than 750 kg (with overrun brake) or for transporting a bicycle rack. In this case, the Road Traffic Law requires the operation of a reversing lamp in a trailer registered for the first time since 1 August 2016. Using the transition socket, you can change the vehicle socket from 7 PIN to 13 PIN and vice versa, however, if the vehicle is equipped with a 7 PIN socket, the use of a 13 PIN transition socket will not cause the trailer reversing light to work.

5. Universal or dedicated. Which one to choose?

The universal harness from Quasar Electronics or TESAT can be installed in a modern car without any worries. During installation, a small interference with the electrical system is required – we solder into the appropriate wires (recommended) or use quick couplers from the set. The advantage of the universal set is that we can mount it in various car models and a low purchase price.

Dedicated bundles are equipped with connection connectors with sockets of the vehicle electrical system, matched wires based on the technological formula of the original part. The disadvantage of this solution is the high purchase price and often the need to code the vehicle system due to the presence of a dedicated beam (additional cost).

6. Principle of operation and method of mounting a universal beam with a module (description abbreviated on the basis of the product Quasar Electronics model WH1R-G13-8).

Installation is simple and should not be difficult. To be sure, however, we recommend that the beam be mounted by a person with experience in such works. The principle of operation of the module is that it detects voltage in the cable through the "signal" cable, e.g. When the direction indicator is switched on in the car and then another cable running from the module to the electrical socket of the beam directs the voltage to the direction indicator light of the trailer. The module somehow copies the operation of the vehicle lights by turning on the twin trailer lights. The module must of course be powered by a constant plus. In order to properly connect the beam in the car, you need to connect the signal wires from the vehicle installation running to the module, i.e. direction indicators, lamps: positional, braking, fog (and reversing in the case of 13PIN beam). Then connect the wires running from the module to the electrical socket (according to the scheme). Finally, you need to connect the module to the power supply (tkz "fixed plus", preferably to a battery or other reliable voltage source). The lighting test should be performed at full load of the electrical socket, e.g. after connecting the trailer. Testing with a probe/meter or a less advanced tester often gives incorrect readings despite a properly connected installation.

7. What effect does the installation of a towbar in a car have on the operation of the reversing sensors?

The electrical harness included with the towbar is designed to provide illumination in the trailer or trunk and does not interfere with the operation of the car's reversing sensors. In such cases, the reversing sensors shall indicate the obstacle when the reverse gear is switched on when the vehicle is towing a trailer. The signal can be switched off with a button that turns off the sensors or simply ignored the signal while reversing the vehicle with caution. Some universal beams with the module have the function of turning off the reversing sensors. However, due to the complexity of such a solution, we advise against their installation. In many more modern cars, it is not possible to correctly disconnect the reversing sensors by a universal module. The vehicle control system reports errors after interfering with the parking assistance system. In very rare cases, reversing sensors read the presence of a hook ball (some of the latest Citroen, Peugeot models) as an obstacle. In this case, we recommend the installation of hooks with detachable balls.

8. Is the towbar approved?

All towing hooks from our offer have EU approval, which is necessary to obtain a technical test at the Vehicle Inspection Station. The possession of approval by the hook is evidenced by an approval plate (sticker) placed on the basis of an electrical socket or a hook beam. No approval document is required for the technical examination and it is sufficient to confirm it on the data plate.

9. Do I need to disassemble the hook ball when it is not in use?

The hook ball must be disassembled when it covers the license plate or car lighting. In other cases, no dismantling of the hook ball is required.

10. Who can install the towbar?

Actually, everyone. You can install the kit yourself or e.g. in the car service. The condition for obtaining a positive technical test is the correct installation of the towbar and electrical harness and it is not important who made it. No documents related to the assembly service are required.

11. What hook to choose for transporting a bicycle rack?

Any towbar that is approved is perfect for this task. It does not matter if the hook is unscrewed or removed.

12. Do I need to trim the bumper to mount the towbar?

Information about the need to undercut the bumper can be found in the technical data section of the offer. Included with the towbar is an installation manual with a template or exact dimensions of the bumper undercut. In most cases, undercutting, if necessary, is located in the lower, invisible part of the bumper, in a place factory prepared for this.

13. Are there assembly instructions included?

Yes. Instructions and installation diagrams are included with the towbar and electrical harness. We recommend that you read them carefully before making an installation.

List of car models to which the electric harness of the towing hook with electronic module should be mounted:

• ALFA ROMEO model: 147 from 2004, 159 from 2005, Giulia Veloce from 2016, Giulietta from 2010, MiTo from 2008, Stelvio from 2016 and all produced after 2010.

• AUDI model: A3 from 2004, A4 from 2005, A5 from 2007, A6 from 2005,A7, A8 from 2005, Q2, Q3, Q5, Q7, A7 and all produced after 2005.

• BMW model: series 1 from 2004, series 3 from 2005, X3 from 2005, series 5 from 2004, X5, X6, series 7 from 2001, X1 from 2009, X2, series 2, X4 and all produced after 2010.

• CHEVROLET model: Aveo from 2011, Captiva from 2006, Cruze from 2009, Orlando from 2011, Trax from 2013

• CHRYSLER model: Sebring from 2005, PT Cruiser from 2004, 300C from 2004, Voyager from 2004

• CITROEN model: C1 from 2004, C2 from 2004, C3 from 2005, C4 from 2005, C5 from 2003, C8 from 2005, Jumper from 2006, C-CROSSER from 2007, Berlingo from 2008, C4 Picasso, C4 Aircross, DS3, DS4, DS5, C-Elysee, Jumpy from 2007, Nemo, SpaceTourer and all produced after 2007.

• DACIA model: Duster from 2012, Logan from 2012, Sandero from 2012 and all produced after 2012.

• DODGE model: Avenger, Caliber, Journey, Nitro

• FIAT model: Panda from 2004, Punto from 2003, Grande Punto from 2005, Idea from 2005, Stilo from 2005, Sedici from 2006, Doblo from 2005, Multipla from 2005, Croma from 2005, Linea from 2007, Ulysse from 2005, 500 500L, 500X, BRAVO from 2007, Scudo from 2007, Qubo, Fiorino, Doblo Work Up, Ducato from 2006, Freemont, Fullback, Talento from 2016, Tipo from 2016 and all produced after 2010.

• FORD model: Focus from 2008, Fiesta from 2008, Transit Courier from 2014, Mondeo from 2007, C-MAX from 2010, S-MAX from 2006, Galaxy from 2006, Ranger from 2012, Explorer from 2011, Transit Tourneo from 2014, Kuga from 2012, B-Max from 2012, Edge from 2015, Escape from 2013, Transit from 2014, Transit Custom from 2012 and all produced after 2014.

• HONDA model: CR-V from 2012, HR-V from 2016, FR-V 2004-, Civic from 2012, Jazz from 2015, Accord from 2008

• HYUNDAI model: Elantra from 2011, i10 from 2011, i20 from 2012, i30 from 2012, i40, ix20 from 2010, ix35 from 2010, ix55 from 2008, Kona, Santa Fe from 2012, Tucson from 2010,

• INFINITI model: all models

• IVECO model: all models from 2006

• JAGUAR: all models

• JEEP model: Cherokee from 2014, Compass II from 2017, Grand Cherokee from 2011, Renegade from 2014, Wrangler from 2017

• KIA model: Carens from 2013, Carnival II from 2006, Cee'd from 2007, Niro, Optima, ProCeed GT, Rio from 2011, Soul from 2014, Sorento from 2009, Sportage from 2010, Stinger, Stonic, Venga, Xceed and all produced after 2014.

• LANCIA model: Delta from 2008, Phedra from 2005, Voyager from 2011

• LAND ROVER/RANGE ROVER model: Discovery, L322 from 2002 (large Range), Evoque, Sport, VELAR, Freelander from 2012

• LEXUS model: all models

• MAZDA model: 2 from 2015, 3 from 2013, 6 from 2013, CX-3, CX-5 from 2012, CX-9 from 2012

• MITSUBISHI model: L200 from 2015, Outlander from 2007, ASX from 2012

• MERCEDES model: A-Class from 2005, B-Class from 2005, C-Class from 2007, E-Class from 2002, X-Class, S-Class from 1998, GL from 2006, ML from 2005, R-Class from 2005, Sprinter from 2006, Vito/Viano from 2003, GLC, GLK, GLE, GLA, CLA, Citan and all produced after 2010.

• MINI model: COOPER COUNTRYMAN since 2010, COOPER CLUBMAN, COOPER PACEMAN and all produced after 2010.

• NISSAN model: Juke from 2019, Micra from 2017, Murano from 2014, Note from 2013, NV 400 from 2010, Pathfinder from 2013, Pulsar from 2014, Qashqai from 2014, X-Trail from 2014 and all produced after 2014.

• OPEL model: Antara from 2007, Astra from 2004, Corsa from 2006, Combo from 2012, Crossland X, Grandland X, Insignia, Meriva from 2010, Mokka, Movano from 2010, Vectra C from 2002, Vivaro from 2014, Zafira from 2005 and all produced after 2012.

• PORSCHE model: Cayenne, Macan

• PEUGEOT model: 207 from 2006, 307 from 2005, 407 from 2004, 607, 807 from 2005, Partner from 2008, Boxer from 2006, 4007 from 2007, 308, 508, 2008, 3008, 5008, Bipper, Expert from 2007, Rifter, Traveller and all produced after 2010.

• RENAULT model: Captur, Clio since 2012, Espace since 2015, Fluence, Scenic since 2009, Kadjar, Koleos since 2016, Laguna since 2007, Latitude, Master since 2010, Megane 2008, Talisman, Trafic since 2014 and all produced after 2015.

• SKODA model: Citigo, Fabia since 2010, Kamiq, Karoq, Kodiaq, Octavia since 2004, Rapid, Roomster since 2010, Scala, Superb, Yeti and all produced after 2010.

• SSANG YOUNG model: Korando from 2010, Rexton from 2014, Rexton Sports, Rodius from 2013, Tivoli, XLV

• SAAB model: 9-3 from 2002, 9-5 from 2010.

• SEAT model: Alhambra from 2010, Altea from 2004, Arona from 2017, Ateca from 2016, Exeo, Ibiza from 2008, Leon from 2005, Mii, Toledo from 2005 and all produced after 2010.

• SUBARU model: Forester from 2013, Legacy from 2009, Levorg, Outback from 2015, Trezia from 2011, XV

• SUZUKI model: Baleno since 2016, Celerio, Ignis since 2016, Jimny since 2018, Swift since 2017, SX4 S-Cross, Vitara since 2015

• TOYOTA model: Auris from 2012, Avensis from 2009, Aygo, C-HR, Corolla from 2018, Highlander from 2008, Hilux from 2016, Landcruiser from 2008, Prius, Proace from 2016, RAV-4 from 2013, Verso from 2009, Yaris from 2011,

• VW model: Amarok, Arteon, Caddy from 2004, Crafter from 2006, Golf from 2003, Jetta from 2005, Passat from 2005, CC, Polo from 2009, Sharan from 2010, T-Cross, T-Roc, Tiguan, Touareg, Touran, Transporter from 2009, UP and all produced after 2010.

• VOLVO model: C30, S40 from 2004, S60 from 2004, S80 from 2004, S90, V40 from 2012, V50 from 2004, V60, V70 from 2004, V90, XC40, XC60, XC70 from 2004, XC90 from 2004 and all produced after 2010.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Kind	13 PIN
Parametry	Product weight with unit packaging	1 kg
Parametry	EAN (GTIN)	5906327044480
Parametry	Manufacturer	Quasar Electronics
