Universalus WH1-PRO-G7 7 kontaktų kablio modulis su laidų rinkiniu

Trumpai apie prekę

Prekė: Universalus WH1-PRO-G7 7 kontaktų kablio modulis su laidų rinkiniu. Kategorija: Laidai ir lizdai.

• Gamintojas: Quasar Electronics

WH1-PRO-G7

NEW TOWING HOOK MODULE

UNIVERSAL WITH 7-PIN SOCKET AND FULL WIRING

INCLUDED ACCESSORIES + GASKET FOR SOCKET AND CONNECTION SCHEME

AFTER PURCHASING IN OUR STORE, YOU GET A 3-YEAR WARRANTY!

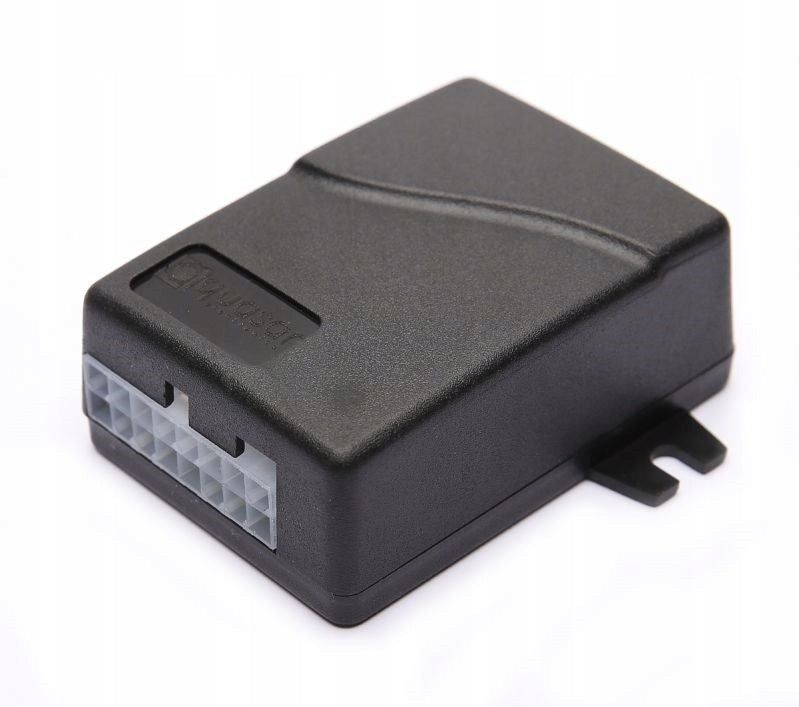

The WH1 module is the basic trailer lighting controller that provides "repeat" of active lights on the rear of the car on the trailer lighting.

WH1-PRO-G7 is the most economical but also complete (i.e. with full wiring and socket) set with support for all lights on a "light" trailer (i.e. without reverse light). The length of cables in bundles is sufficient for a "typical" installation.

It should be noted that WH1x modules are adapted to incandescent and LED lighting of the car and what is more, they work correctly with the control of "PWM" lighting in the car (i.e. when one cable is signaling for two lights, e.g. "stop" and "position").

NOTE: Please note that the G7 socket does not have a reverse light signal and in Poland it can only be used with light trailers, i.e. with a permissible gross weight of up to 750kg.

SPECIFICATION:

• Works with CAN-Bus installation
• Works with LED and single fiber lighting (PWM)
• For connecting 7-PIN socket
• Detection of trailer connection;
• Approval E20

FUNCTIONS OF 7-PIN MODULE:

• fog lamps - YES
• reversing lamps - NO
• brake lights STOP - YES
• position lamps - YES
• direction indicators - YES
• trailer module - YES
• LED light support - YES
• Single-fiber bulb (PWM) support - YES
• CAN-Bus - YES
• cooperation with parking sensors - NO (we have modules supporting parking sensors in another offer)
• control of the operation of the trailer lights - NO
• approval - YES

BASIC FUNCTIONS OF THE MODULE:

• Input current load: ≤2 mA
• Works with LED and single-fiber car lighting: YES
• Support car installation with variable lamp supply voltage (PWM): YES (analog)
• Cooperation with LED lighting and incandescent trailer: YES
• Possibility to control the operation of the car parking sensor module: NO
• Trailer reverse light control: NO

WAY OF OPERATING THE REAR FOG LAMPS OF THE CAR

• Method of controlling the trailer fog lamp: DIRECT
• Sequential way of controlling the trailer fog lamp: NO

FEATURES OF THE ELECTRICAL HARNESS

• Power harness length: 5,0 m
• Beam length to socket: 1,7 m
• Input signal beam length: L=1,0 P=3,0 m

TECHNICAL DATA

• Supply Voltage: 10 - 18V
• Maximum output load of position lamps: (each side) 3 x 5 W
• Maximum load output of stop lights: 3 x 21 W
• Maximum output load of direction indicator lamps: (each side) 21+10 W
• Maximum fog light output load: 21 W

THIS IS A COMPLETE HOOK BUNDLE KIT WITH INSTALLATION ACCESSORIES!

PRODUCT Polish!

The 7-PIN electronic hook module is designed to connect the electrical system of the towing hook in cars where computer lighting control systems are used and in cars with a lighting failure indicator or equipped with LED bulbs. In such cars, direct connection to the rear lamps of the 7-pin trailer socket may result in damage to the on-board computer. The use of the electronic 7-PIN module does not constitute additional loads for the installation of the car, because each module input is characterized by a very low current consumption of 1mA. Each module output is protected against possible short circuits from the side of the trailer electrical system.

Our electronic modules of the towbar are adapted to incandescent and LED lighting of the car and what's more, they work correctly with the control of "PWM" lighting in the car (i.e. when one cable is signaling for two lights, e.g. "stop" and "position").

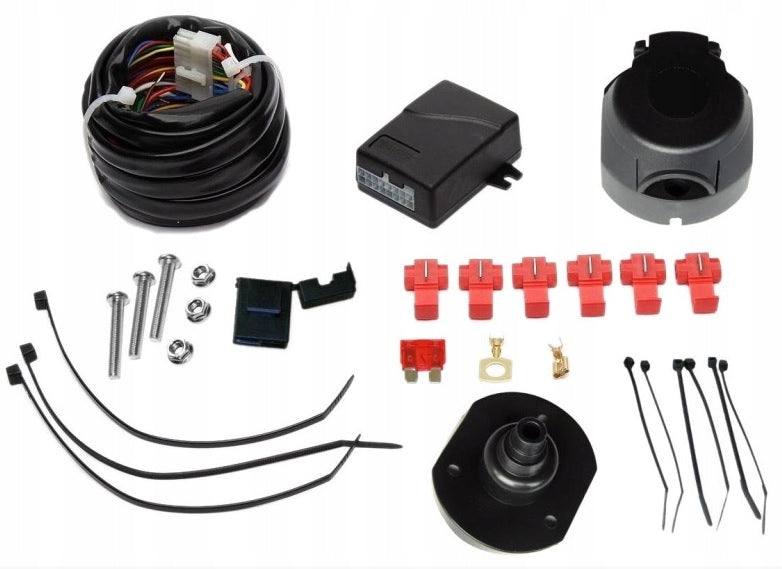

Contents of the set:

• electronic module - 12V control panel
• 7-PIN socket
• full wiring with fuse
• accessories needed for assembly
• connection scheme in Polish
• gasket under the socket

Connection diagram:

FULL INSTRUCTIONS IN THE APPENDIX BELOW!
