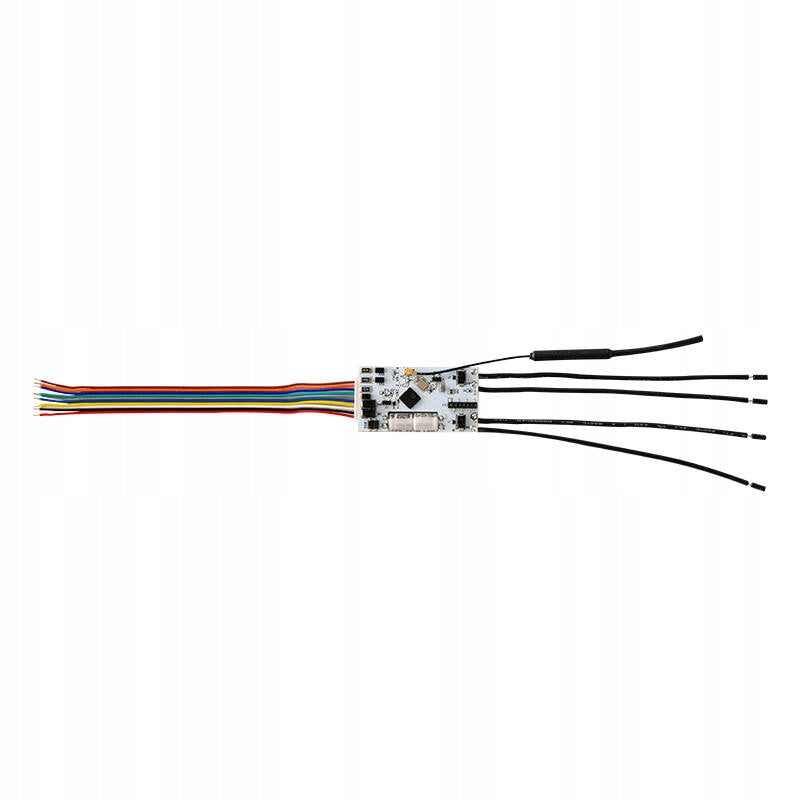

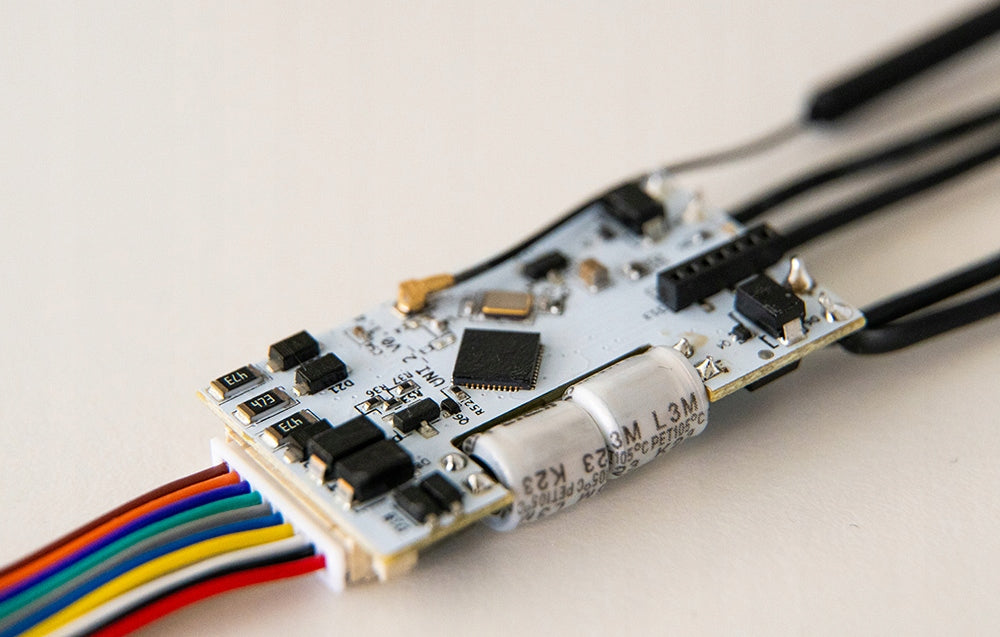

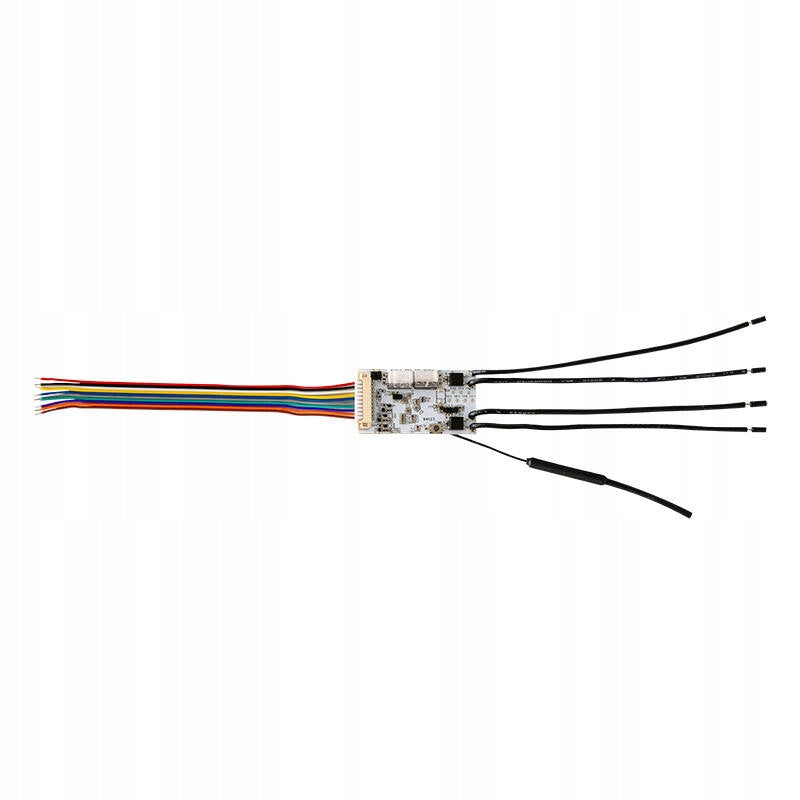

Universalus Wi-Fi valdiklis SHELLY, Bluetooth 4.2, 30V

Trumpai apie prekę

Prekė: Universalus Wi-Fi valdiklis SHELLY, Bluetooth 4.2, 30V. Kategorija: Automatizavimo moduliai.

• Gamintojas: Shelly
• Modelis: PlusUNI

Thanks to the controller, you can remotely control lighting, heating or ventilation using your smartphone, tablet, computer or home automation system. It is equipped with two semiconductor relays with potential-free contacts, pulse counter, analog inputs and two digital inputs. It can operate on its own on an on-premises Wi-Fi network or be controlled using cloud-based home automation services. It also has a built-in interface, which allows you to monitor and control the device, as well as adjust its settings.

• Manufacturer: Shelly
• Model: Plus UNI
• Power supply: 8-24 VAC; 9-28 VDC; 5 VDC (stabilized, by +5 VDC and GND)
• Power consumption: < 1 W
• Resistance of digital inputs: 50 kΩ
• Voltage triggering digital inputs: 1,5 V (low active level)
• Maximum switching voltage: 30 V
• Maximum switching current: 300 mA
• Voltmeter: 0-15 VDC / 0-30 VDC (two-band)
• Pulse input of trigger voltage meter: 1,5 V (low active level)
• Maximum meter pulse frequency: 1 kHz
• Supported external sensors: One DHT22 or up to five DS18B20

• Wi-Fi protocol: 802.11 b/g/n
• Wi-Fi range: Up to 30 m inside and up to 50 m outside
• Bluetooth protocol: 4.2
• Bluetooth range: Up to 10 m inside and up to 30 m outside
• CPU: ESP32
• Flash memory: 4 MB
• Schedules: 20
• Webhooks (URL actions): 20 with 5 URLs per webhook
• Scripts: Yes
• MQTT: Yes
• CoAP: No
• Dimensions: 40 x 21 x 7 mm
• Weight: 8,5 g
• Ambient temperature: -20°C to 40°C
• Moisture: 30% to 70% RH

✔ Versatility of functionality: The controller is equipped with two solid-state relays with potential-free contacts, pulse counter, analog inputs and two digital inputs.

✔ Low power consumption: The Shelly Plus UNI controller is characterized by a low power consumption of less than 1 W, which makes it an economical and energy-efficient solution.

✔ Flexibility and compact size: With its compact size and versatility of functions, the Shelly Plus UNI can be easily mounted in a variety of locations, giving you complete control over your electrical appliances without taking up much space.

✔ Support various sensors: The controller supports various sensors, including DHT22 and up to five DS18B20 sensors, which allows you to monitor temperature and other environmental parameters.

This universal module is also compatible with popular platforms such as Google, Samsung SmartThings, and Alexa. This allows you to easily integrate it into your existing systems and enjoy an even greater range of capabilities.
