Vaizdo įrašymo įrenginys Hikvision DS-7608NI-Q1/E, 8 kanalų, iki 8MP, 80 Mbps

Trumpai apie prekę

Prekė: Vaizdo įrašymo įrenginys Hikvision DS-7608NI-Q1/E, 8 kanalų, iki 8MP, 80 Mbps. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: Hikvision
• Modelis: DS-7608NI-Q1(E)

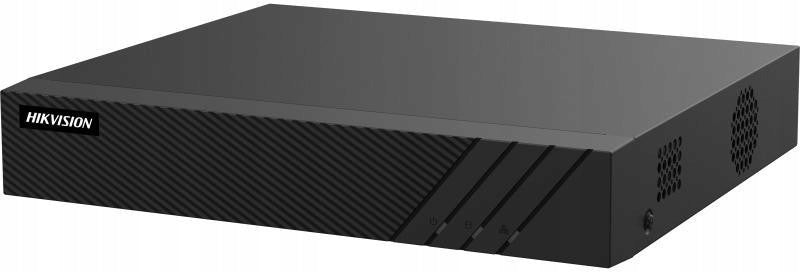

IP Recorder Hikvision DS-7608NI-Q1 E 8 Channel to 8MP 80Mbps Recorder

Key features:

• 8 channels of IP cameras: support up to 8 IP camera inputs, in one Q series NVR.
• 80 Mbps bandwidth: incoming bandwidth up to 80 Mbps, making it easy to work with multiple video streams.
• H.265+ support: H.265+, H.265, H.264+ and H.264 compatibility, for flexible quality and bandwidth configuration.
• HDMI 4K and VGA output: 1-channel HDMI with support for up to 4K, and VGA, with simultaneous HDMI/VGA output.
• 8-channel playback: synchronous playback up to 8 channels, useful in event analysis.
• SATA drive up to 8 TB: 1 SATA port, with support for up to 8 TB per drive, allowing you to choose the capacity of your archive.
• Motion Detection 2.0: human/vehicle analysis for 4 channels, for more useful detection.
• Remote access: support for up to 32 remote connections and protocols, including Hik-Connect and HTTPS.
• Contents of the set: IP recorder Hikvision DS-7608NI-Q1 E PL.

Hikvision DS-7608NI-Q1 E PL is an 8-channel NVR recorder in 1U housing, designed to build IP monitoring with up to eight cameras. It is for people and companies who want to have central recording, convenient playback and preview from multiple cameras in one place. It solves the problem of distributed camera operation because it collects the image, records it and provides preview on the monitor and remotely over the network.

The device supports H.265+/H.265/H.264+/H.264 formats, and the incoming bandwidth is up to 80 Mbps. Display and operation are convenient thanks to HDMI and VGA outputs, with simultaneous HDMI/VGA output, and maximum HDMI supports resolutions up to 4K. The recorder allows synchronous playback of up to 8 channels, which makes it easy to quickly check events from multiple locations at once.

In practice, the DS-7608NI-Q1(E) works well at home, in the office, in the store, in the warehouse and at service points, where IP monitoring must be stable and easy to use. For recordings, there is a 1 SATA interface with disk support up to 8 TB, which allows you to adjust the archiving time to your needs. The recorder supports remote connections to 32 sessions and network protocols, including Hik-Connect and HTTPS.

The device is ready to run out of the box, but requires SATA drive to record, and IP cameras and network are also needed to operate the system. Depending on the installation, you may need: SATA drive, IP cameras, network cables, router or switch, and for local preview monitor with HDMI or VGA input. The power supply is made of 12 VDC.

FAQ - Frequently Asked Questions

• How many IP cameras can be connected to the DVR? The recorder supports 8 IP camera inputs, which is up to 8 channels.
• What video compression formats does it support? H.265+, H.265, H.264+ and H.264 are supported.
• Can I connect the monitor directly to the DVR? Yes, the device has HDMI and VGA output, and the video output mode is simultaneous HDMI/VGA.
• Does the recorder record audio? Yes, the stream type is video or video and audio, and audio compression includes G.711ulaw, G.711alaw, G.722 and G.726.
• What is the maximum bandwidth for cameras? Inbound and outbound bandwidth is up to 80 Mbps.
• Is it possible to connect remotely, and how many sessions does it support? Yes, remote connection is available and limit is 32.
• What disk can be used for recording? The recorder has 1 SATA interface and supports up to 8 TB of capacity for each drive.

Step-by-step configuration instructions:

• Mount the recorder at the destination, provide ventilation and easy access to ports.
• Connect the 12 VDC power supply, then start the device.
• Connect the DVR to the network via RJ-45 10/100 Mbps port to access network configurations and services.
• Connect the monitor to HDMI or VGA to perform the setup locally.
• Add IP cameras to the DVR, according to the limit of 8 channels, and check the live preview.
• Set recording and decoding parameters by selecting resolutions according to installation requirements.
• Configure notifications and network services using available protocols including NTP, SMTP, and HTTPS.
• If you want remote access, run Hik-Connect and add the device to the app, according to the login method you selected.

Do I need to buy additional products? SO that the system works as a monitoring: IP cameras, SATA drive for recording, network cables, and network infrastructure, for example, a router or switch; an HDMI or VGA monitor is needed for local viewing, and a suitable 12 VDC power supply is needed to power it.

Gallery:

Specifications:

• Model: DS-7608NI-Q1(E)
• Series: Q
• Chassis: 1U
• IP Video Input: 8-channel
• Motion Detection 2.0: 4-channel Human/Vehicle Analysis
• Supported Video Formats: H.265+/H.265/H.264+/H.264
• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 80 Mbps
• HDMI Output: 1-channel, 4K (4096 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output: 1-channel, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1280×720 /60Hz
• Video Output Mode: Simultaneous HDMI/VGA output
• Audio Output: 1-channel, RCA (linear, 1 KΩ)
• Two-Way Audio: 1-channel, RCA (2.0 Vp-p, 1 k Ω)
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726
• Decoding Format: H.265+, H.265, H.264+, H.264
• Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Decoding Capacity: AI & 4K Off: 8-ch@1080p(30fps), AI/4K On: 6-ch@1080p(30fps), *: Camera resolution length or width (each path) cannot exceed 4096 pixels
• Synchronous Playback: 8-channel
• Remote Connection: 32
• Network Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPTM, HTTPS
• Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• SATA: 1 SATA interface
• Capacity: Up to 8TB capacity for each disk
• USB Interface: 2 × USB 2.0
• Alarm I/O: N/A (4/1 is optional)
• Power Supply: 12 VDC or ≤ 18 W
• Power Consumption: ≤ 10 W (without PoE enabled)
• Working Temperature: -10 to +55° C (+14 to +131° F)
• Working Humidity: 10 to 90 %
• Dimensions (W × D × H): 263 × 223 × 48 mm (10.34" × 8.76" × 1.87")
• Weight: ≤ 1.5 kg (3.3 lb)
• CE Certification: 55032/55035/61000-3-2/61000-3-3/50130-4
