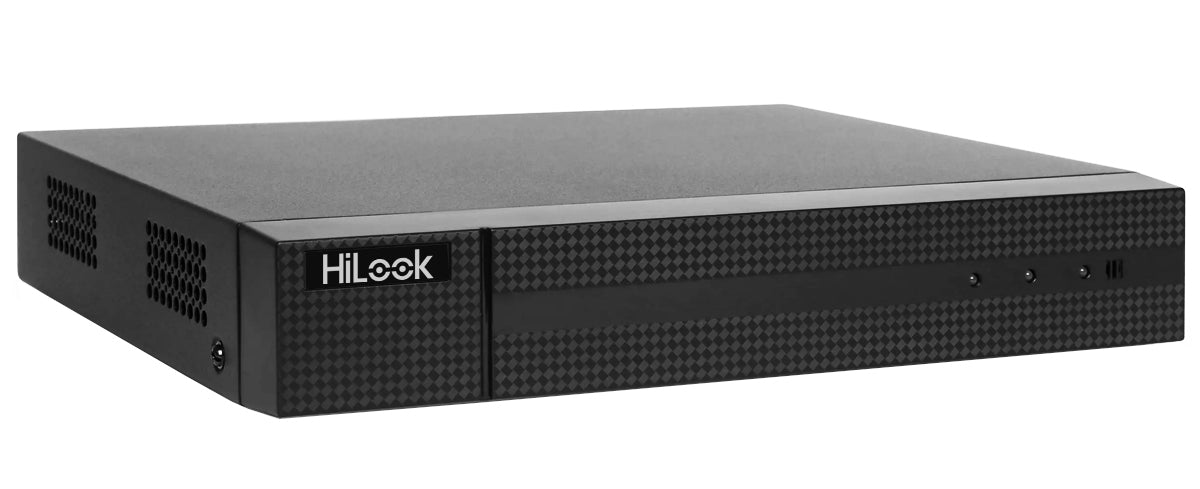

Vaizdo įrašymo įrenginys HiLook NVR-4CH-4MP/4P, 4 kanalų, PoE, iki 4 MP, tinka Hikvision kameroms

Trumpai apie prekę

Prekė: Vaizdo įrašymo įrenginys HiLook NVR-4CH-4MP/4P, 4 kanalų, PoE, iki 4 MP, tinka Hikvision kameroms. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: HiLook
• Modelis: NVR-4CH-4MP/4P

4-channel / Switch 4x PoE / up to 4Mpx / 1 HDD slot / in-app support

Key features of the recorder:

• support for up to 4 IP cameras, with a resolution of max. do 4Mpx
• configuration and operation of the device is intuitive - through graphic menu, PC program and mobile application
• has the ability to install 1 HDD drive to a capacity of up to 6TB
• enables connection and power supply via PoE 4 cameras
• is equipped with H.265 data compression technology, saving disk space

Technical parameters:

• Model: NVR-4CH-4MP/4P
• Number of channels: 4 IP channels with PoE power supply
• Resolution supported: up to 4Mpx 2560x1440p
• Decoding: 1-ch @ 4 MP / 2-ch @ 1080p
• Motion detection: Yes, supported
• Video outputs: 1xHDMI, 1xVGA
• Video compression: H265+,H265,H264+,H.264
• USB connectors: 2x USB 2.0
• - Subwoofer number of disks: 1
• - Subwoofer Disk capacity: 6TB
• Mobile application: Hik-Connect / HiLook App
• Remote support: IVMS-4200, WEB Interface, application
• Switch PoE: Built-in
• PoE power budget: < 50W
• Supported protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™,HTTPS
• Ethernet speed: RJ45 10M/100M
• Power Supply: 48VDC

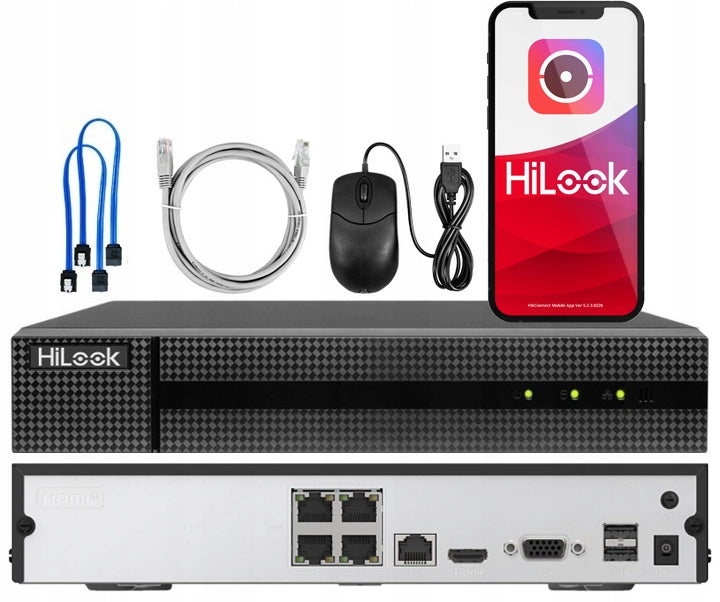

Includes power supply and mouse.

HiLook monitoring systems can be controlled, configured and operated using the intuitive mobile application HiLook App for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• Live image preview
• remote playback of recordings
• Creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications of events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The recorder supports motion detection from network cameras. This function allows you to send immediate notifications to the user (in the application or program) about detecting changes in the camera image, and also allows you to search the recordings for detected movement in the area protected by monitoring.

The recorder supports an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

• IP video input: 4-channels
• Resolution: to 4MPx
• In/out bitrate: 40 / 40 Mbps
• HDMI output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Recording resolution: 4 MP/3MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Video compression: H.265/H.265+/H.264/H.264+/MPEG4
• Live view/playback resolution: 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Simultaneous playback: 4-channels
• Image decoding: 1-ch @ 4 MP / 2-ch @ 1080p
• Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Motion detection: supported
• SATA interface: 1
• Capacity: up to 6 TB
• Network interface: RJ-45 10/100Mbps Ethernet
• Number of PoE ports: 4
• Power budget: < 50W
• USB connectors: 2 × USB 2.0
• Power Supply: 48 VDC
• Working temperature: -10 ºC to +55 ºC
• Dimensions: 260 × 225 × 48 mm
• Weight: ~1 kg
