Apraksts
Trumpai apie prekę

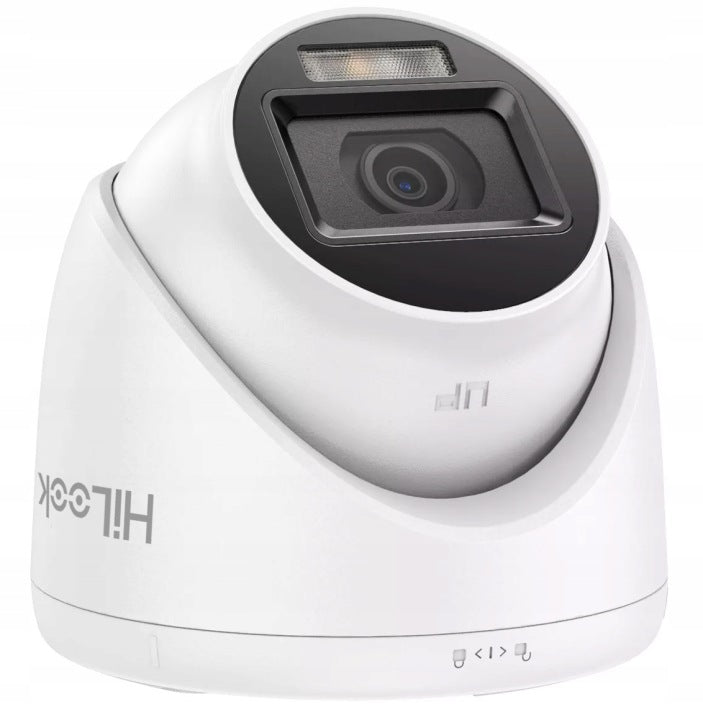

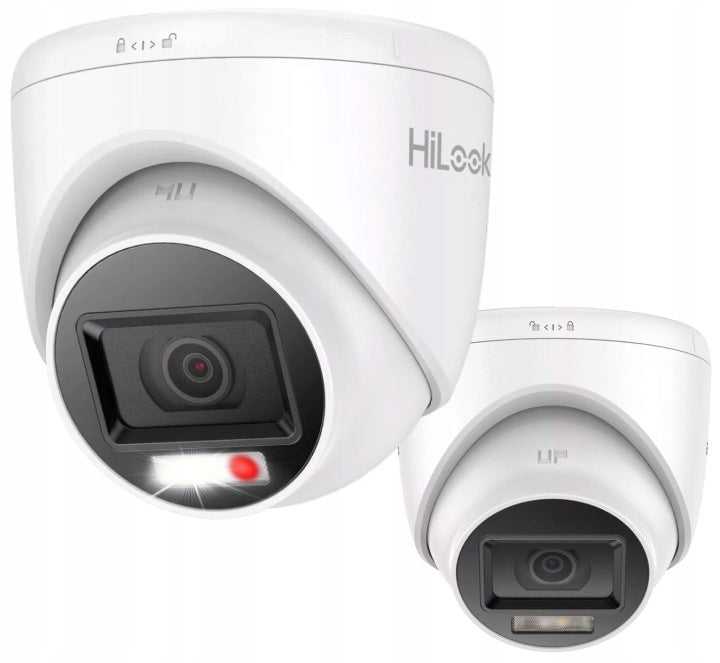

Prekė: Vaizdo stebėjimo kamera HiLook by Hikvision, 8MP, pilnų spalvų, AHD/TVI/CVI/analoginė. Kategorija: Fotoaparatai.
- Gamintojas: HiLook
- Modelis: TVI-T8M-20DL
4in1 / 2Mpx / 2.8mm / Hybird Light 20m / Metal housing IP66
The TVICAM-T2M-20DL model of the HiLook series is a modern 2-megapixel dome camera, operating on the basis of the 4in1 system - TVI, CVI, AHD and CVBS.
The camera has a built-in dual illuminator (white + IR), which allows you to record images at night both in color and infrared.
The most important features of the camera:
- High resolution image - FullHD 1920x1080p
- Two illuminators - IR and white light, with a range of 20 meters
- Metal tube housing IP66, providing full protection against dust and moisture, allowing the camera to be mounted outdoors
- Easy installation and control from the intuitive on-screen menu (OSD menu)
- Converter: CMOS 2 Mpx
- Recording resolution: 1920x1080p
- Fixed-focal lens: 2,8 mm
- Angle of view: ~100°
- Day/night automatic switch: Yes
- Dual Light Technology: YES
- Infrared illuminator: up to 20m
- White light illuminator: up to 20m
- Working mode: 4in1 (HD-TVI/AHD/HDCVI/CVBS switch)
- Protection class: IP66
- Image functions: dWDR, DNR, BLC
- Automatic white balance: Yes
- Application: external or internal
- Power Supply: 12V
- Material: metal
- Dimensions: Ø82.6 mm × 69.16 mm
- Weight: 0.3 kg
The camera is sold without a 12V power supply. Compatible power supply is available at auction No. 16007754465.
Construction of the camera:
- A - outer casing
- B - fixed focal length lens 2.8mm
- C - Infrared illuminator
- D - White light illuminator
- E - operating mode switch - AHD/TVI/CVI/CVBS
- F - BNC video connector
- G - power socket 12V
The camera is equipped with a high-quality CMOS sensor with a resolution of 8Mpx - such a large number of pixels on the image allows you to record all the details and make digital close-ups, facilitating the identification of recorded objects. High resolution, and thus sharper image, increase the quality of the system and allow to protect the property even more effectively.
Thanks to the dual Smart Hybrid Light, the TVI-B8M-20DL will allow you to record at night in three modes, which you can adjust to your needs:
✅ IR Infrared Mode - in this mode, the camera captures images in black and white using an IR illuminator to illuminate the scene
✅ 24/7 color mode - in this mode, the camera observes the scene all the time in color, permanently starting the white light LEDs after dark
✅ *Intelligent mode - in this mode, the camera watches, recording the image in infrared, after which it activates white light illumination as soon as it detects movement in the image. Thanks to this, it can quickly capture e.g. clothing colors or body color while remaining discreet when nothing happens in the image
*smart mode is only available in conjunction with the HiLook / Hikvision DVR, which supports this function.
- Converter: 4K CMOS
- Maximum resolution: 3840 (H) × 2160 (V)
- Minimum lighting: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter time: PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
- Day and night: color or infrared
- Angle adjustment: Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
- Signal system: PAL/NTSC
- Lens type: Fixed focal length 2.8 mm
- Focal length and FOV: 2.8 mm, horizontal FOV: 108°, vertical FOV: 59°,
- Lens mount: M12
- Type of additional lighting: White light, IR
- Additional lighting range: IR: Up to 30 m, White light: Up to 20 m
- Image settings: Brightness, Focus, Smart IR
- Frame rate: TVI: 8 MP @12.5 fps, 8 MP @15 fps, 4 MP @25 fps, 4 MP @30fps, 2 MP @25 fps, 2 MP @30 fps AHD: 8MP@15fps CVI: 8MP@12.5fps, 8MP@15fps CVBS: PAL/NTSC
- Day/Night Mode: Auto/Color/Black and White
- Wide Dynamic Range (WDR): Digital WDR
- Image improvement: DWDR/BLC/HLC/Global
- White Balance: Auto/Manual
- AGC: Yes
- Video output: Switchable TVI/AHD/CVI/CVBS
- Power supply: 12 VDC ± 25%, 0.38 A, max. 4.6 W,
- Material: Metal+plastic
- Dimensions: 80 mm × Ø85.1 mm
- Weight: Approx. 310 g (0.68 lb.)
- Working conditions: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
- Application: HiLook App / Hikconnect (using HiLook / Hikvision DVR)
- Protection class: IP66
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | TVI-T8M-20DL |
| Parametry | Model | TVI-T8M-20DL |
| Parametry | Brand | HiLook |
| Parametry | Product width | 8.5 cm |
| Parametry | Product height | 8 cm |
| Parametry | Product weight | 310 g |
| Parametry | Housing | dome |
| Parametry | Transducer size | other |
| Parametry | Resolution | 8 Mpx |
| Parametry | Sensitivity | 0.01 lx |
| Parametry | Lens | fixed-focus |
| Parametry | Camera waterproof rating | IP66 |
| Parametry | Class of mechanical resistance | other |
| Parametry | Number of infrared LEDs | 1 |
| Parametry | Infrared range | 30 m |
| Parametry | EAN (GTIN) | 6942160487557 |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
| Parametry | Batteries included | no |
| Parametry | Camera type | black and white,colorful,infrared |
| Parametry | Technology | AHD,ANALOG,CVBS,HD-CVI,HD-TVI |
| Parametry | Functions | automatic electronic shutter (AES),automatic gain control (AGC),automatic white balance (AWB),digital noise reduction (DNR),high light compensation (HLC),rear light compensation (BLC),wide dynamic range (WDR) |
