Vaizdo stebėjimo rinkinys Dahua, 5 kameros, 4 Mpx, spalvotas vaizdas dieną ir naktį, dirbtinis intelektas, NVR 8 kanalai

Trumpai apie prekę

Prekė: Vaizdo stebėjimo rinkinys Dahua, 5 kameros, 4 Mpx, spalvotas vaizdas dieną ir naktį, dirbtinis intelektas, NVR 8 kanalai. Kategorija: Rinkiniai.

• Gamintojas: Dahua
• Modelis: IPC-HDW1439V-A-IL(x4)

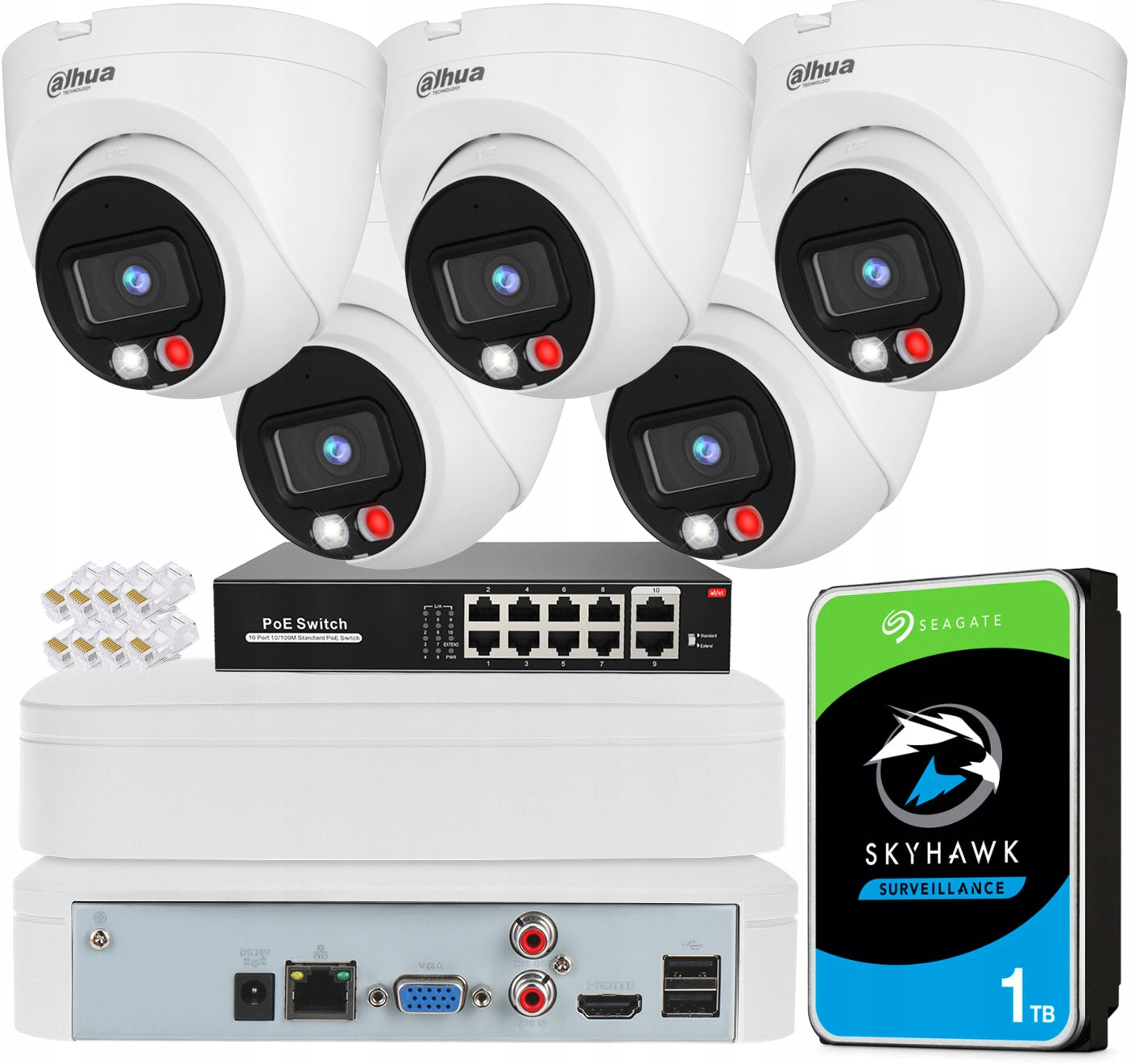

5 x 4Mpx Full-Color IP Camera | 8CH IP Recorder | 1TB HDD | 8x PoE Switch | Plug Set

The most important features of the set:

✅ Dahua PoE surveillance kit with 5 external 4Mpx cameras

✅ Smooth and sharp image in high resolution 4Mpx (2560 x 1440)

✅ Camera with the possibility of mounting inside and outside

✅ Quick and convenient installation of the camera thanks to PoE power technology

✅ Smart Dual Light technology that allows you to record in color even in complete darkness up to 30 m from the camera

✅ Cameras with automatic mode day / night

✅ Motion detection function that sends notifications about key events straight to your application

✅ Overwrite video on disk

✅ Hard Drive Seagate Skyhawk with large capacity included

✅ Live view and access to recordings via internet on computer, cell, tablet

✅ P2P support (cloud) - a function that allows remote access without port forwarding and public IP address

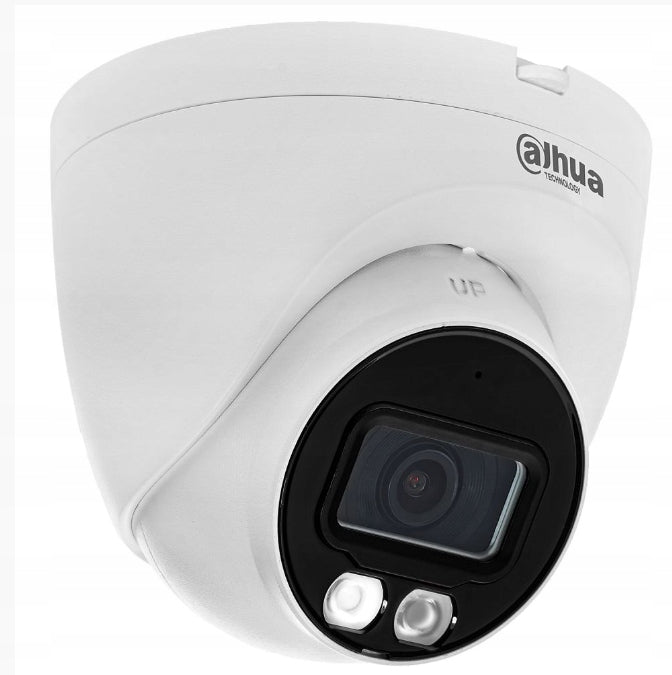

• 5 x High Resolution IP Camera o 4Mpx - Dahua IPC-HDW1439V-A-IL

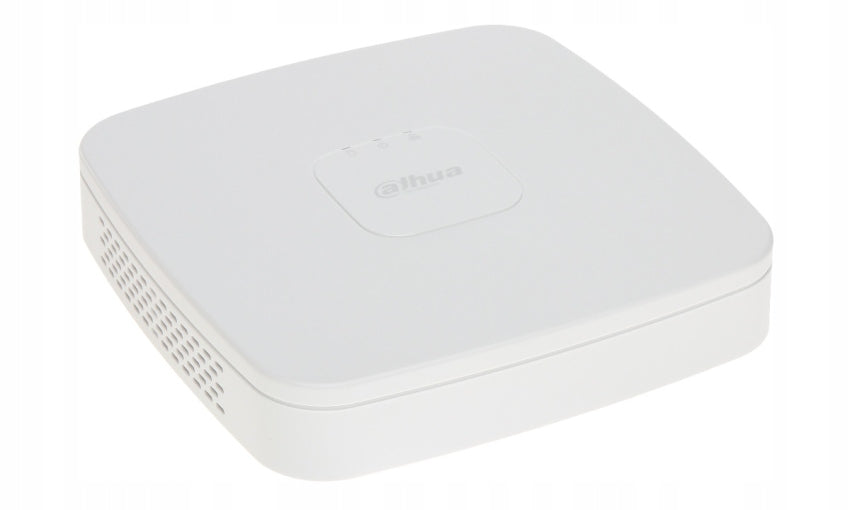

• 1 x IP recorder with support for up to 8 cameras - Dahua NVR2108-4KS3
• 1 x Seagate Skyhawk hard drive with 1TB capacity, designed to work 24/7
• 1 x Switch 8 x PoE - EI-H1108PL
• 10 x RJ45 plug

The offered monitoring set can be operated and configured using the intuitive mobile application DMSS (smartphones) and the Smart PSS (PC) program. Thanks to this, the user receives constant access to recordings and live view from anywhere with access to the network. An additional advantage of the software is the ability to receive alarm notifications through the motion detection function in cameras.

The DMSS application is available for smartphones with Android and iOS. The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The monitoring system has a built-in motion detection algorithm - when moving objects are detected on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard drive, which positively affects its lifespan.

The camera has double night mode - it allows you to record at night images in shades of gray in infrared mode and in full color, using a white light illuminator. Thanks to this function, you can easily recognize the colors of an intruder's clothes , even when he sneaks in complete darkness.

• Converter: 1/2,9" PS CMOS
• Resolution: 4Mpx (2560 x 1440)
• Lens: 2.8mm
• Angle of view: H: 94°
• Smart Dual Light - the use of a double illuminator
• Full-Color - color image technology around the clock: IR/LED radiator: dual, range up to 30m
• Built-in microphone: Yes
• Image functions: AWB, AGC, BLC, HLC, 3D NR, WDR 120dB, RoI
• Configuration and remote operation: VMS software (Smart PSS, DSS Express, DSS PRO), WEB browser, mobile applications
• Image compression: H.265, H.264, H.264H, H.264B, MJPEG
• Example intelligent functions: object classification - object detection
• Protection class: IP67
• Power Supply: 12V DC
• Power consumption: < 5.7 W
• Dimensions: 100.9 mm × Φ109.9 mm
• Weight: 44g

• Number of channels: 8 IP channels
• Resolution supported: up to 12Mpx (up to 8Mpx with AI funds)
• Video outputs: 1xHDMI, 1xVGA
• Video compression: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
• USB connectors: 2x USB 2.0
• Max. number of disks: 1
• Max. Disk capacity: 20TB
• Mobile application: DMSS, Smart PSS
• Support for ONVIF: Yes
• PoE power budget: < 36W
• Ethernet speed: RJ45 10M/100M
• Dimensions; 204.6 mm × 206.4 mm × 45.6 mm
• Power Supply: 48VDC

The disk in the set is a model from the Skyhawk series, dedicated to monitoring, characterized by a higher service life.

• Capacity: 1 TB
• Cache: 64 MB
• Interface: Smart SATA 6 Gb/s
• Size: 3,5”
• Fig. /min: 5700 rpm. /min

Industrial switch is a universal PoE switch, dedicated to work in network monitoring systems that require power supply in the PoE standard.

Technical parameters:

• Number of PoE power ports: 8
• Number of Uplink ports to expand the system: 2

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 10x RJ45 plug
• A set of instruction manual
