Valdymo blokas 13 kontaktų + universalus priekabos jungties laidynas

Trumpai apie prekę

Prekė: Valdymo blokas 13 kontaktų + universalus priekabos jungties laidynas. Kategorija: Laidai ir lizdai.

• Gamintojas: PiAir

Electronic hook module 13-pin, is designed for installation in cars in which computer lighting control systems are used for:

• LED lighting
• Power supply and diagnostics of light bulbs (Check Control)
• lighting with single-fiber bulbs

• DESCRIPTION OF ELECTRICS:
• Product Condition: New
• Manufacturer : PiAir
• Number : ETK 13
• Socket: 13-Pin
• Beam with module: YES
• Reverse light support: YES
• Support for parking sensors: NO
• Disabling parking sensors: NOT
• Beam coding required: NOT
• Fixed plus on the trailer: NOT !
• Full compatibility with LED lights in the car: YES
• Full compatibility with LED lights in the trailer: YES

If you are looking for additional options such as sensors or camping support, you will find them in offers on our other auctions.

UNIVERSAL ELECTRIC KIT WITH 13 PIN MODULE :

An electric set extended with a module that fits cars with the CAN bus, performing all the necessary functions. The 13 PIN socket allows you to tow heavier trailers over 750 kg, campsites and bicycle racks equipped with a reverse light. Economical option with complete mounting hardware. The module is adapted to bulb and LED lighting and cooperates with a single-fiber installation (PWM), i.e. when one cable is signaling for two lights, e.g. "stop" and "position"

IMPORTANT : The electric kit is not equipped with a power supply in the "Permanent plus" socket recommended in caravans.

ASSEMBLY :

Universal electrical harnesses require interference with the electrics of the car. Most often, they are connected using quick couplers to wires leading to the lights. The second option is soldering if we want the connections to be more durable. The set comes with an instruction manual.

Trailer Lighting Control

• Left turn signal
• Right turn signal
• Left position light
• Right position light
• STOP light
• Rear fog light
• Backup light

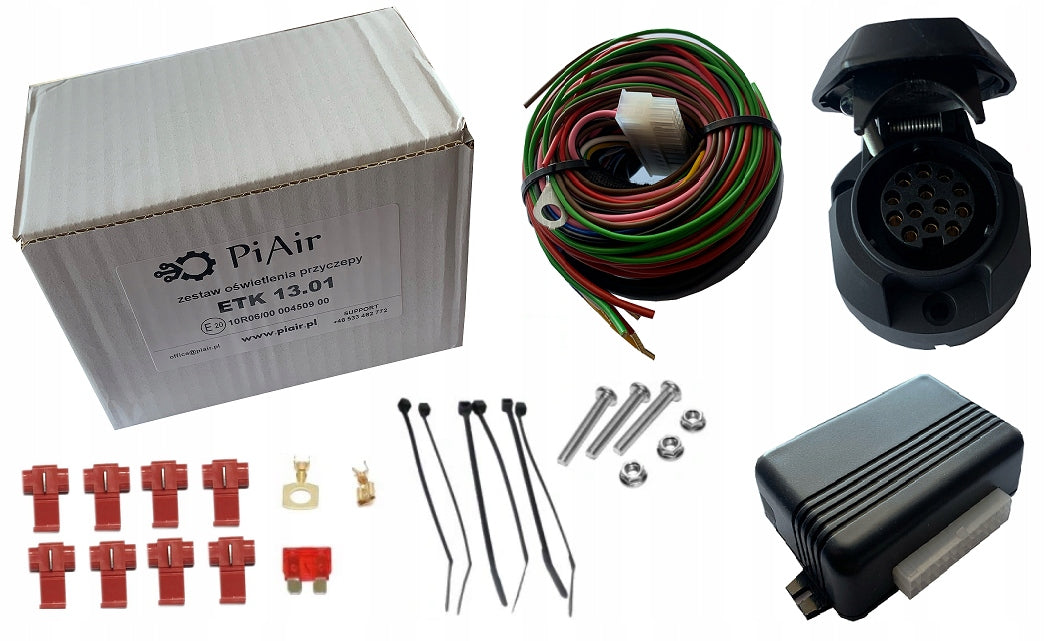

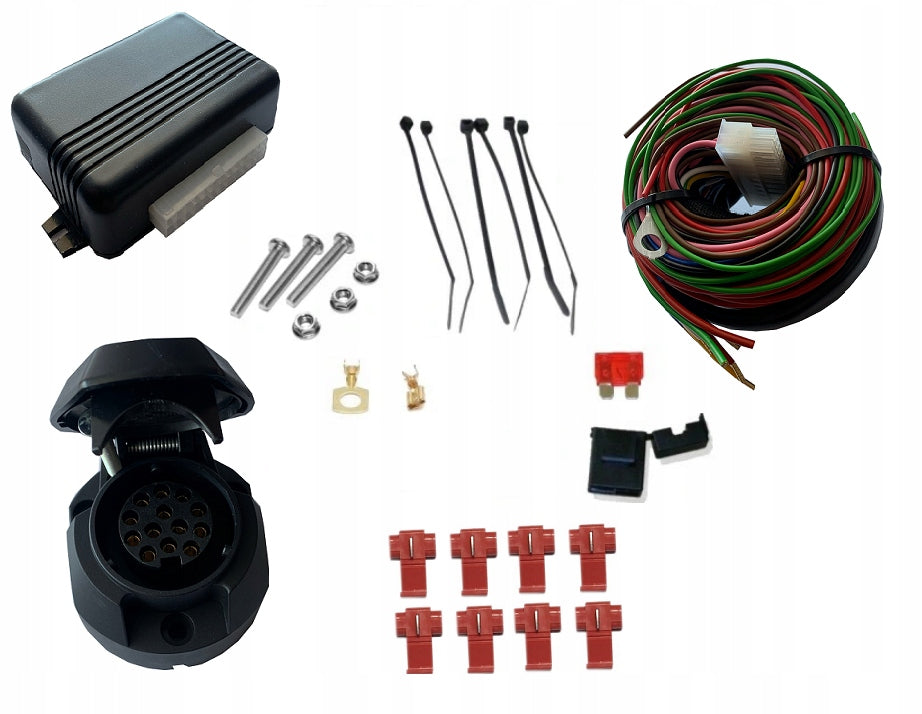

• Complete 13 pin electrical kit with module and mounting hardware
• All screws, washers and quick couplings and fuses needed for electrical installation
• Nominal plate with E20 approval
• Installation instructions for the electrical kit

Each kit comes with detailed instructions that describe the entire electrical harness assembly process step by step.

The electrical rating plate bears the EU approval number, which is necessary to obtain a technical test at the Vehicle Inspection Station.

Installation instructions can be downloaded in the "Additional information" tab under the listing description.
