Vamzdžių išplėtiklis su spaustuvu ir vamzdžių pjaustytuvas 16–32 mm

Trumpai apie prekę

Prekė: Vamzdžių išplėtiklis su spaustuvu ir vamzdžių pjaustytuvas 16–32 mm. Kategorija: Spaudimo replės.

• Gamintojas: no brand
• Modelis: AC-HJCXX-3296
• Svoris: 2 kg

Description

tools these made mainly of durable aluminum alloy, making them solid and durable. Combiners, pipe cutters and expansion pliers can greatly improve performance work and allow easy installation and repair of underfloor heating pipes. With the plastic case, you can easily take it to the workplace with less effort.

This product is for installation and repair of underfloor heating pipes.

Specification

• Model: SD-1632Y
• Type: Hydraulic
• Handle Type: Ergonomic
• Material: Aluminum Alloy
• Color: Silver, Black
• Assembly Required: Yes
• Pressure: 3T
• Stroke: 28mm/1.1in
• Crimping dies: φ16-20mm/0.63-0.78in, φ25-32mm/0.98-1.25in
• Clamping range: φ16-32mm/0.63-1.26in
• Expansion Range: Φ16, 20, 25, 32mm( Φ 0.63", 0.78", 0.98", 1.25" )
• Expansion heads: Φ16*2.2, 20*2.8, 25*3.5, 32*4.4mm( Φ 0.63", 0.78", 0.98", 1.25" )
• Spreader Size (D*L*H): 8*12*37cm/3.15*4.72*14.57in
• Crimper Size (D*L*H): 3*23*27cm/1.18*9.06*10.63in
• Crimper Weight: 2.5kg/5.5lbs
• Spreader Weight: 1kg/2.2lbs

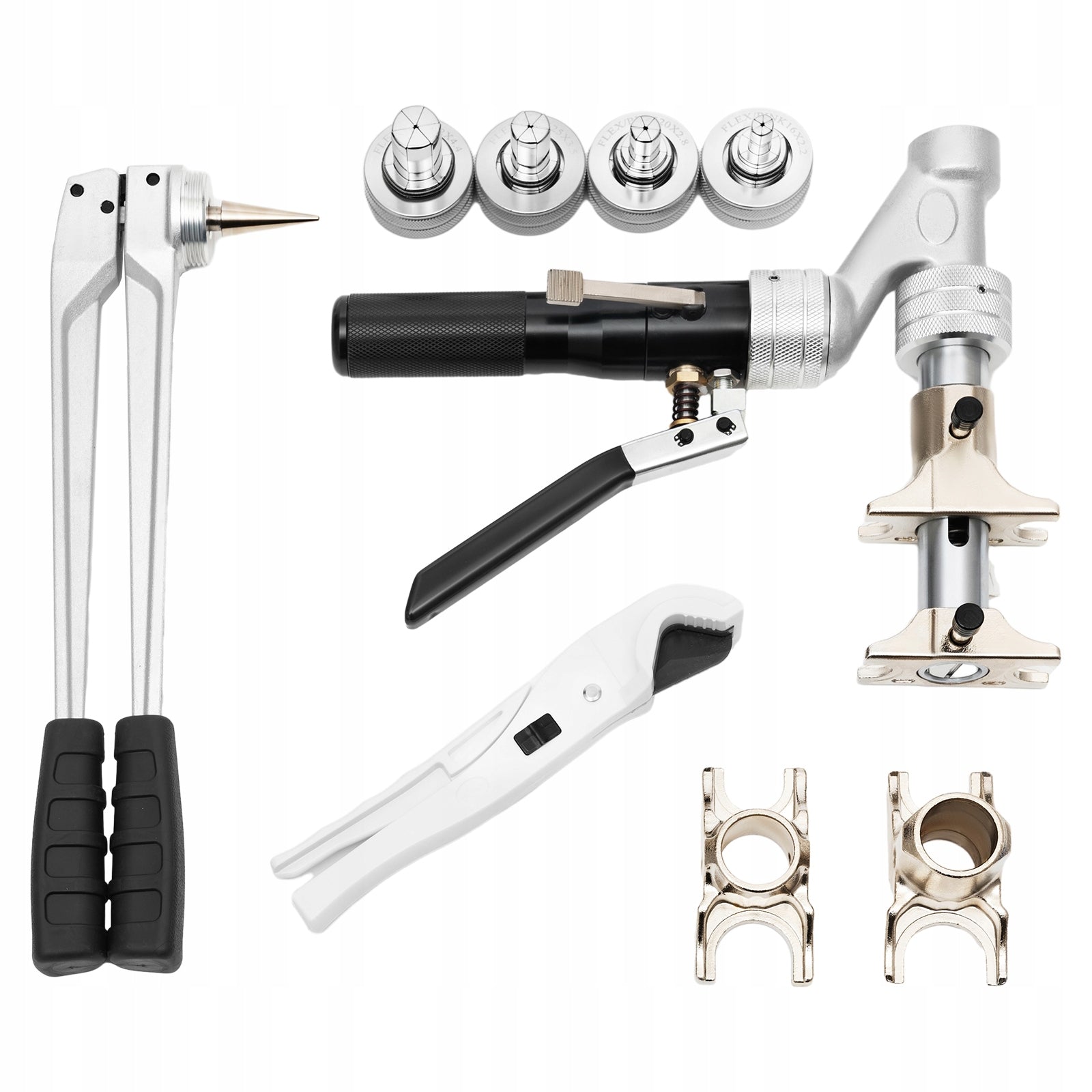

In the package

1* Expansion Pliers

1* Crimping pliers

1* Pipe cutter

2* pressure forks (up to 0,63" and 0,78", 0,98" and 1,25")

4* Expansion heads

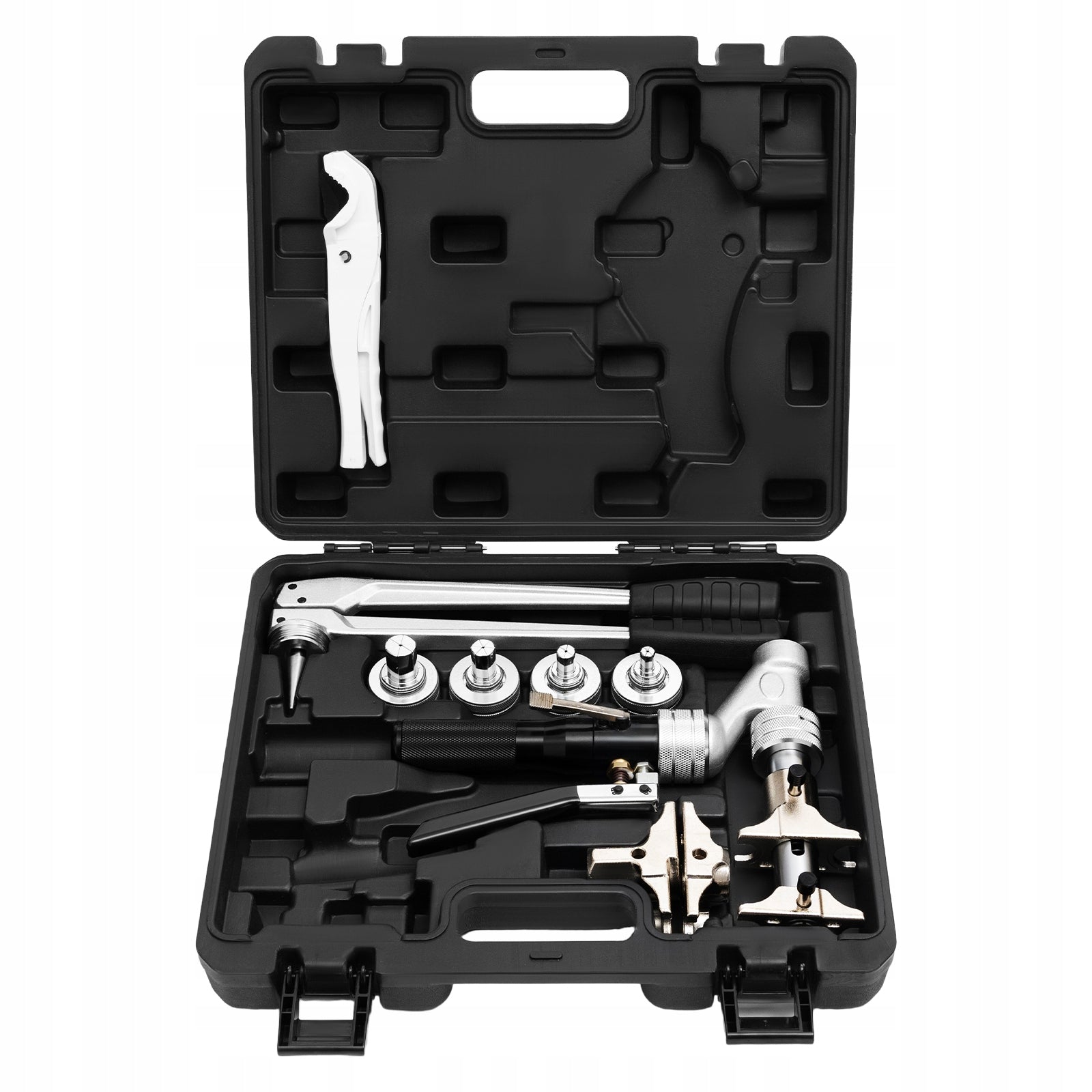

1* Case Plastic

Main features

Built to last a long time: Made of aluminum alloy, the product is corrosion resistant and very durable, which guarantees long-term use.

User-friendly design: The clamping pliers have a 360° rotating head for easy access and handling, and thanks to its compact size, it is ideal for narrow spaces.

Excellent Performance : Thickened oil cylinder and 3T pressure allow easy clamping. The pliers with 4 different tip sizes make it easy to expand pipes and pipe cutter can cut through the PEX pipe bridge with ease.

Replaceable expansion heads: Expansion heads can be replaced, allowing you to choose the right expansion heads (Φ 0,63", 0,78", 0,98", 1,25"), according to your actual needs.

Easy to carry: plastic case with grooves and buckles can organize and safe storage tools, making it easy to take to the workplace with less effort.

Details

Long Handles: Ergonomic handles of pressing pliers and expanding pliers are just the right length for a comfortable grip and labor-saving work. What’s more, the point pressure switch for pressing pliers allows for convenient operation.

Check Valve: This allows the pressure inside the hydraulic system to be released, avoiding damage to the equipment.

How to use

1. Cut a square of PEX tube, leaving a clean, even edge.

2. Run the pipe through the copper ring.

3. Expand the nozzle with expanding pliers.

4. Insert the connector.

5. Use ironing pliers to push the copper ring to a specific position.

6. Until the copper ring reaches a certain position, press the oil return.

Comments

Under normal circumstances, the goods will be delivered to the address provided within 4-7 days.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Maximum jaw diameter	16 mm
Parametry	Minimum jaw diameter	32 mm
Parametry	Power supply	handheld
Parametry	Weight	2 kg
Parametry	Additional features	non-slip handles
Parametry	Product weight with unit packaging	2.5 kg
Parametry	Manufacturer code	AC-HJCXX-3296
Parametry	EAN (GTIN)	746270933128
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE
