Ūdens sildītājs FLOWAIR LEO S3 32,7 kW ar termostatu

Trumpai apie prekę

Prekė: Vandens šildytuvas FLOWAIR LEO S3 32,7 kW su termostatu. Kategorija: Oro šildytuvai.

• Gamintojas: Flowair
• Modelis: LEO S3

• Capacity up to 32,7 kW with a maximum airflow of 1800 m3/h
• Easy installation with included console and speed controller
• Resistance to external factors with protection class IP54

The set includes: heater, mounting console and regulator with thermostat.

⬇ Product Description ⬇

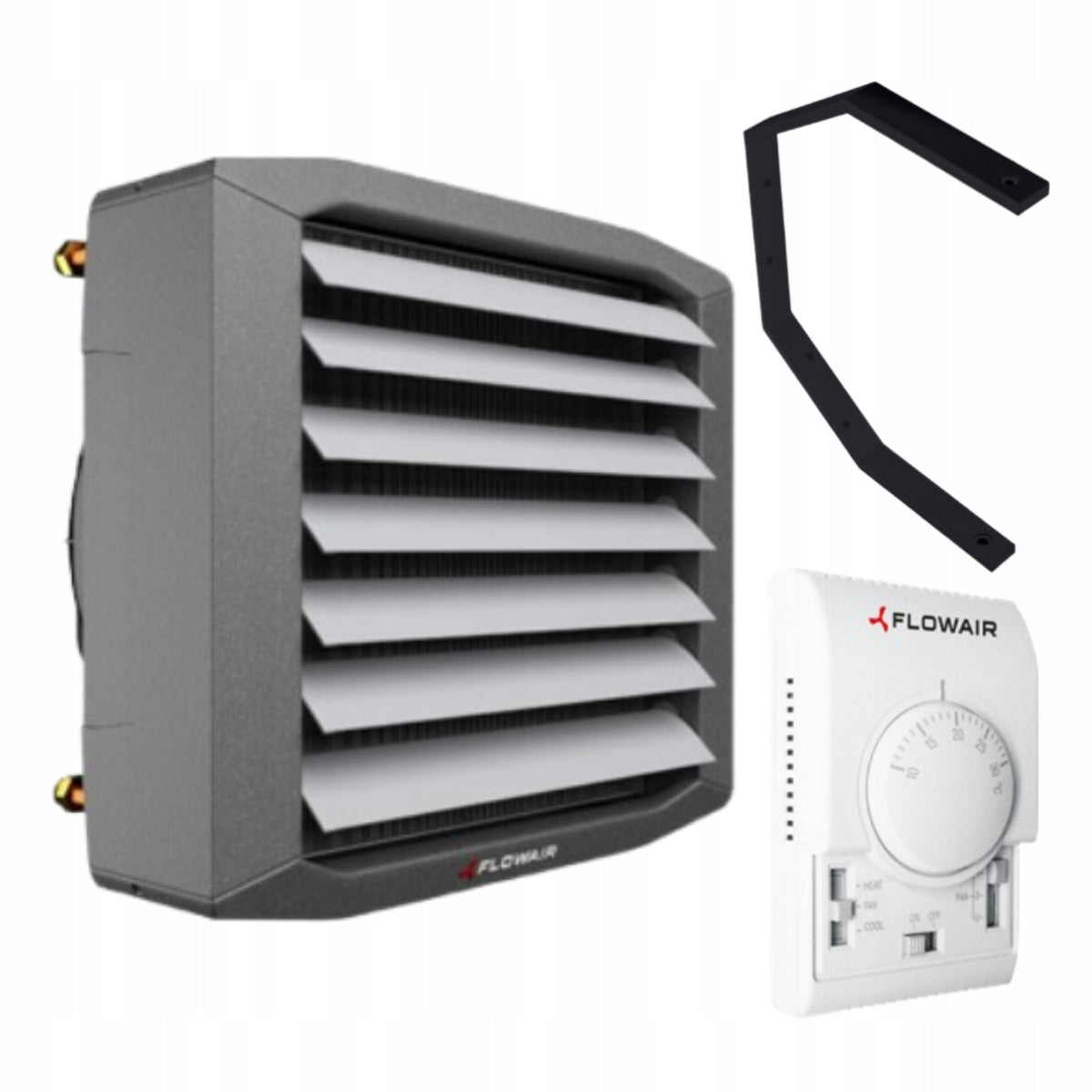

SET: LEO S3 32,7 kW water heater + mounting console + thermostat - FLOWAIR

Included: Water heater (LEO S3), mounting console (LEO S), speed controller (TS)

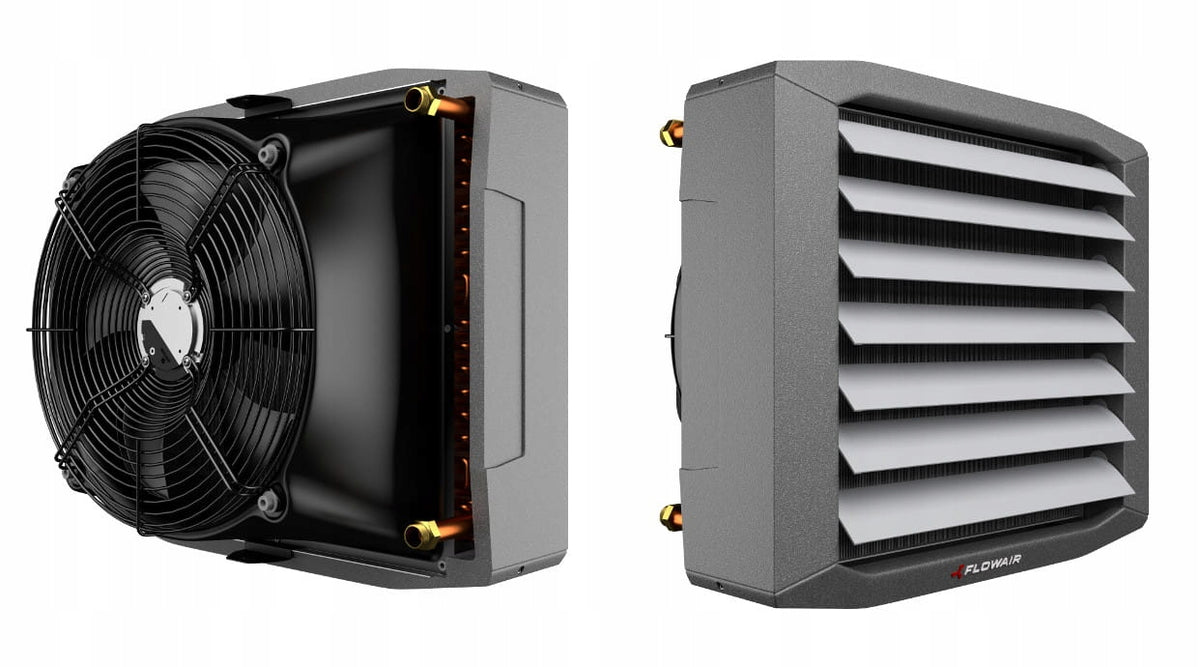

The FLOWAIR LEO S3 water heater is a modern device with a wide power range of 1,7 – 32,7 kW, which will work well in heating a variety of objects. Thanks to the efficient air flow of 1800 m³/h, the heater distributes heat quickly and evenly, and the horizontal range of 12,5 m and vertical range of 4,9 m allows you to effectively heat even larger rooms. The device operates at a maximum heating water temperature 120°C and an operating pressure of 1,6 MPa, which guarantees high efficiency and safety of use. Robust housing with protection class IP54 protects components against dust and moisture, and low noise level 56,3 dB(A) ensures acoustic comfort. The LEO S3 heater combines durability, simplicity of installation and efficient operation, which is why it is an ideal solution for industrial, commercial and wherever fast and reliable heating is needed.

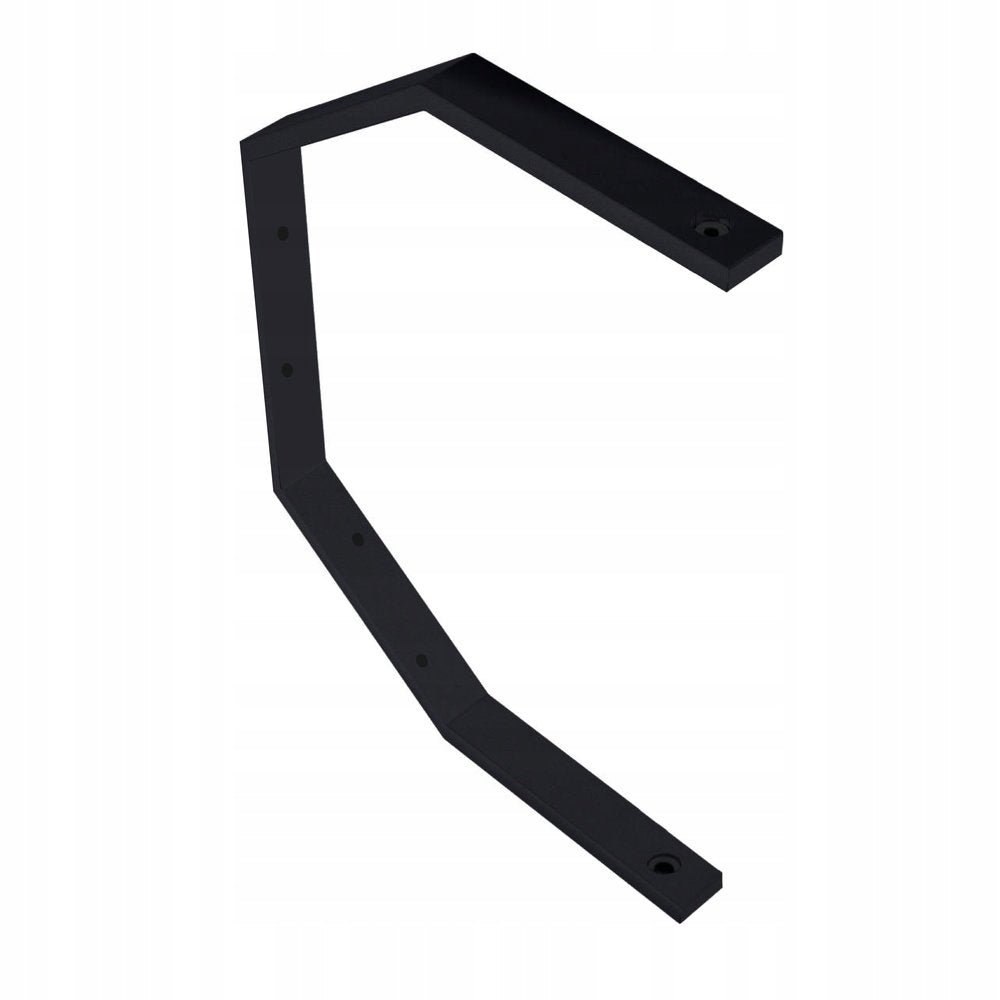

The LEO S FLOWAIR mounting console is a robust solution for installing LEO series heaters (S2, S2 BMS, S3, S3 BMS). It facilitates and accelerates assembly, ensures stability and durability of the entire structure. Thanks to its universal compatibility and high quality of workmanship, it guarantees reliability and long system life.

RPM controller with 3-stage thermostat TS FLOWAIR enables precise temperature control in the range of +10 to +30°C. It operates in conditions 0 to 40°C, supports loads up to 5(6) A and has IP30 protection. Simple surface mounting and solid workmanship guarantee reliability and universal use in industrial and domestic installations.

Intelligent control with FLOWAIR SYSTEM

The LEO water heater offers a variety of control options: the TS controller provides basic functionality, the HMI adjustment extends the work possibilities and increases the comfort of operation, while the intelligent T-box controller with touch display and innovative algorithms enables integration with the FLOWAIR SYSTEM and BMS systems. The T-box ensures full cooperation of LEO devices with other FLOWAIR products, offering comprehensive and intelligent management of heating devices.

Versatile applications of the LEO heater

The LEO heater is a versatile heating solution, ideal for a variety of spaces:

• Large facilities: industrial halls, warehouses, shopping centers, sports and religious facilities
• Average spaces: car dealerships, shopping pavilions, production halls
• Smaller rooms: workshops, garages, shops, gas stations

Regardless of the volume, LEO provides efficient heating, adapting to the specifics of each facility.

Technical parameters

• Included: Water heater (LEO S3), mounting console (LEO S), speed controller (TS)
• Max. air flow [m3/h]: 1800
• Heating power range [kW]: 1,7 - 32,7
• Power supply [V/Hz]: 230/50
• Max. power consumption [A]: 0,6
• Max. power consumption [W]: 130
• IP/Isolation class: 54/F
• Max. sound pressure level [dB(A)]: 56,3
• Max. Acoustic power level [dB(A)]: 71,4
• Horizontal range [m]: 12,5
• Vertical range [m]: 4.9
• Connection: 1/2”
• Max. operating temperature: 60°C
• Weight of the device [kg]: 10,8
• Weight of water-filled device [kg]: 12,2
• Temperature setting range of the controller: From +10 to +30°C
• Controller operating temperature range: From 0 to +40°C
• Degree of regulator protection: IP30
• Method of mounting the regulator: Surface mounted
• Manufacturer: FLOWAIR

➡ On our other auctions you will also find other products of the FLOWAIR brand. We also offer an assortment related to air conditioning, ventilation and recuperation.
