Motors bīdāmajiem vārtiem ARMGATES ARM350, 4 m, 400 kg, ar 2 tālvadības pultīm

Trumpai apie prekę

Prekė: Variklis stumdomiems vartams ARMGATES ARM350, 4 m, 400 kg, su 2 pulteliais. Kategorija: Diskai.

• Gamintojas: Arm GATES
• Modelis: ARM350S

SERIES ARM350 BASIC SET

Discover the unique ARM350 double-leaf gate opener – built without compromise! Get full control and ultimate comfort with robust actuators, digital control panel, 2 remote controls and a gate fender!

✅Quiet and stable operation – 24V DC motors provide a smooth, optimized and quiet operating culture for both gate wings.

✅Ready for battery power – the built-in AC CHARGE function allows you to connect a 24V emergency power supply, thanks to which the gate will open even in the event of a power outage.

✅Full property safety – the included set of photocells, LED signal lamp and fender effectively protects children, animals and vehicles.

✅Polish brand and official service – the product comes from the official distribution and has full service support of the manufacturer.

✅ We have our own technical facilities and authorized service, which is used to help our customers with any questions regarding assembly.

❌ Avoid buying drives from companies that do not have service. You run the risk of not helping with installation and difficulties in emergency situations.

Buy from professionals!

⚙ Efficient 24V DC motors – 2x 30 W power efficiently supports double-leaf gates with a total weight of up to 400 kg (200 kg per wing) and a length of up to 4 meters (2 m per wing).

⚙ Quick opening – the opening time of the wings to 90° is only 18 to 22 seconds.

⚙ Digital LED display – the panel built into the control panel facilitates precise configuration and programming of drive parameters.

⚙ ECO mode (Low Power) – intelligent energy saving system minimizes power consumption in standby mode.

⚙ Complete assembly – multi-position mounting brackets for posts and wings and a fender guarantee stable installation.

✅ Ammeter safety (FORCE System) – full control of force and sensitivity to obstacles; the drive will immediately stop the gate or change the direction of movement when resistance is detected.

✅ Adjustable wing delay – the ability to precisely set the closing "on the tab" in the range from 0 to 10 seconds.

✅ Gate function – the ability to open one pedestrian wing without the need to open the entire gate.

✅ Emergency manual unlock – in the set you will find 2 keys that allow you to quickly decouple the telescopic arm and manually open the gate.

✅ Expansion possibilities – the control panel has outputs for Wi-Fi module, 24V DC lamp, IR NC photocells, 12V DC electrolock and bell button.

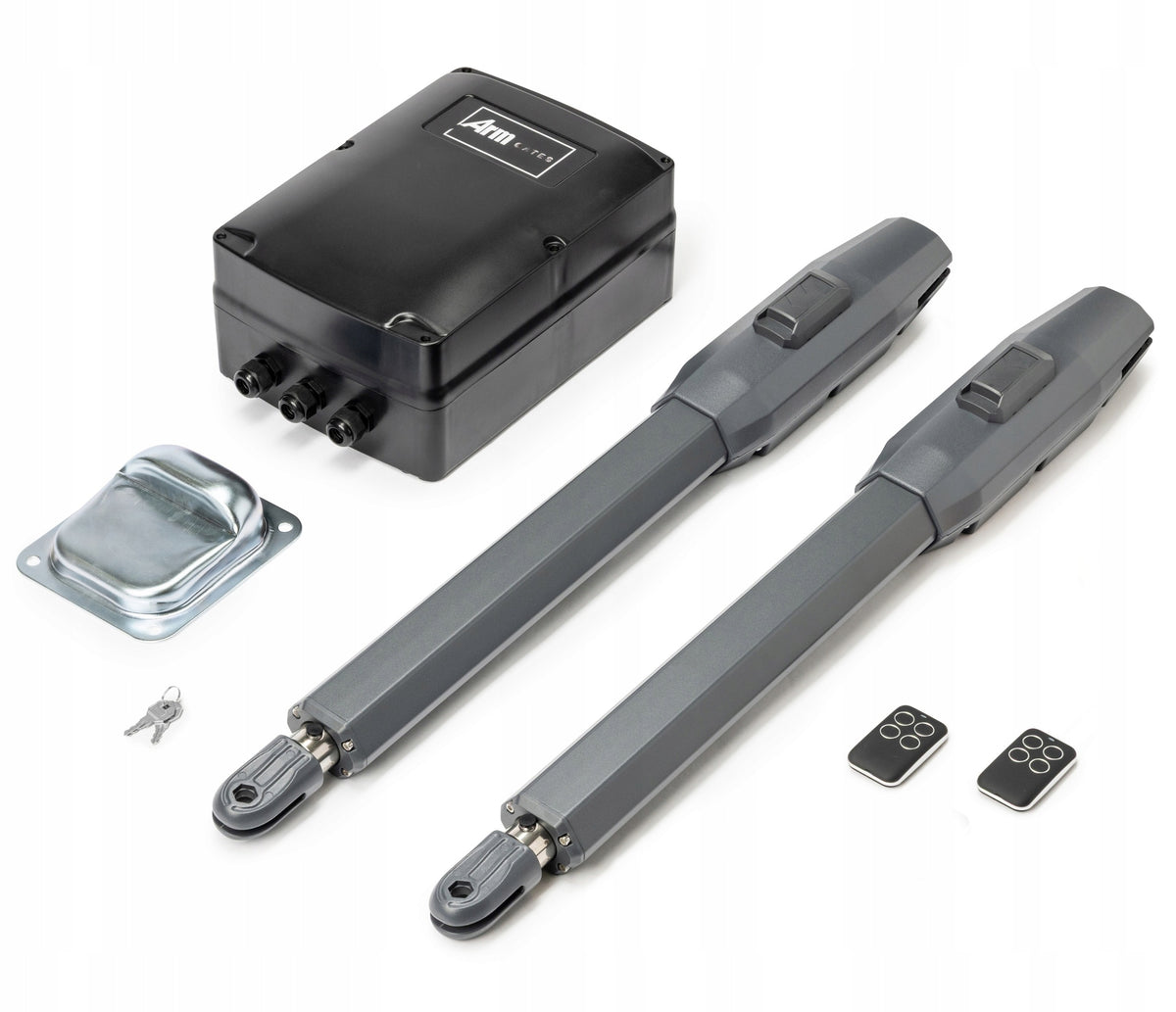

⚫ 2 ARM350 screw actuators

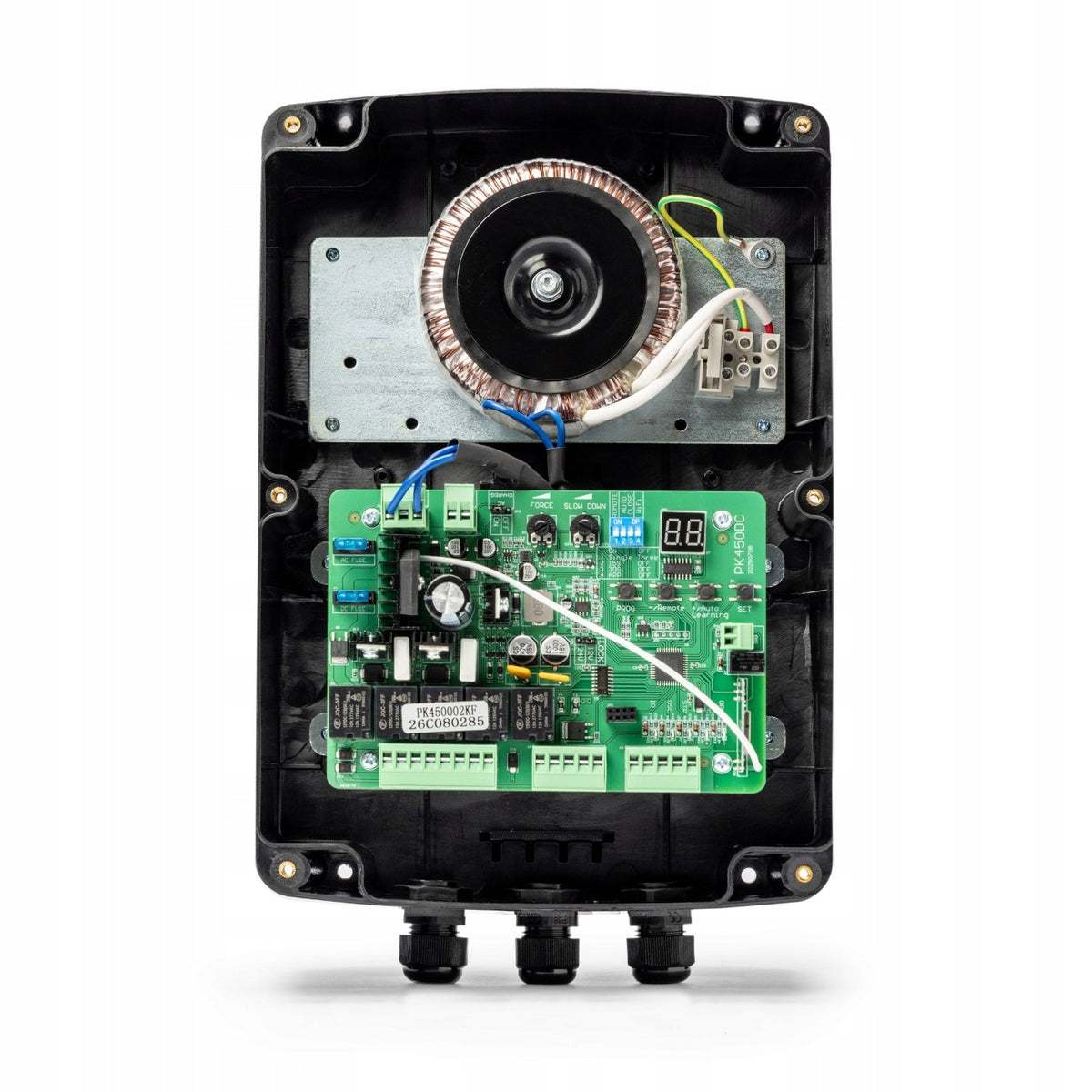

⚫ Digital control panel with LED display in waterproof housing

⚫ 2 4-channel remote controls (433,92 MHz)

⚫ Bumper / gate stop

⚫ 2 keys for manual emergency gate unlocking

⚫ Set of multi-position mounting brackets and accessories (screws, cylindrical pins, self-braking nuts)

✅ Convenient tool for managing home automation

✅ Long range up to 100 meters

✅ You can buy u us additional pilots - auction number 12672222912

✅ Functional thanks to thoughtful sizes

✅ Built-in LED indicating correct operation

✅ Possibility to attach to the keychain

✅ You can open all ARM series drives with one remote control, for example ARM100 garage drive.

✅ Robust stop for gate wings at the ideal end point

✅ Effective protection of actuators against excessive mechanical stress

✅ Durable construction adapted for installation in the ground

✔ Power of actuators: 30W x2

✔ Max wing width (m): 2 (4m total)

✔ Max wing weight (kg): 200 (400kg in total)

✔ Power supply / Motor power supply: 230V AC / 24V DC

✔ Opening time up to 90° (sec): 18-22

✔ Working temperature: -20°C to +70°C

✔ Battery powered: Yes (24V)

✔ Digital LED Display: Yes

✔ ECO mode (Low Power): Yes

✔ Adjustable wing delay: Yes (0-10 sec)

✔ Ammeter protection (FORCE system): Yes

✔ Manual unlock: Yes (2 keys included)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Arm GATES
Parametry	Product weight with unit packaging	11 kg
Parametry	Drive type	for swing gates
Parametry	Maximum wing weight	200 kg
Parametry	Maximum wing length	2 m
Parametry	Maximum number of cycles per day	50
Parametry	Maximum opening angle	110°
Parametry	Engine power	60 W
Parametry	Opening time	18 s
Parametry	Manufacturer code	ARM350S
Parametry	Certificates of conformity	CE
