Vārtu piedziņa Hörmann Liftronic 500 N, līdz 7 m², ar sliedi un divām RSC 2 pultīm

Trumpai apie prekę

Prekė: Vartų pavara Hormann Liftronic 500 N, iki 7 m², su bėgeliu ir dviem RSC 2 pulteliais. Kategorija: Diskai.

• Gamintojas: Hörmann
• Modelis: 4510471

Product description: EcoStar drive by Hormann – Liftronic 500

EcoStar brand:

• Reliable product at a very good price
• Established position on the Polish market of automation for gates
• Relatively cheap solution from Hormann with German quality
• Customers praise the high quality of workmanship and trouble-free, quiet operation of the drive

Advantages of Liftronic 500:

• High strength: Made of high quality weather resistant materials
• No need for maintenance
• Long-term durability of the product
• Certified drives: Meet all European standards

Installation:

• Self-assembly: Possible according to the included instructions
• Support from specialists: Telephone assistance if necessary

Emergency opening:

• Manual emergency unlocking mechanism

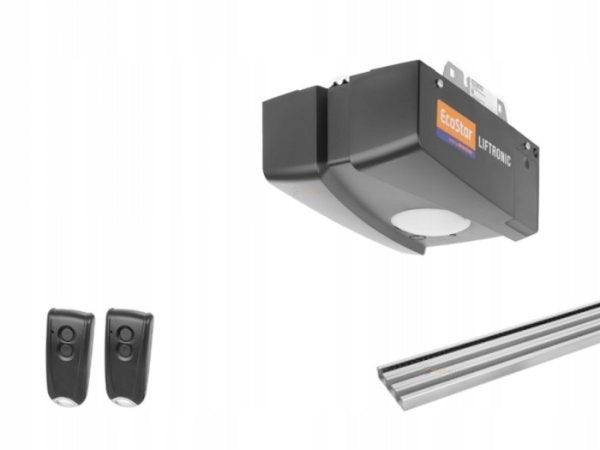

The complete drive set for the garage door (segmental or tilting) includes:

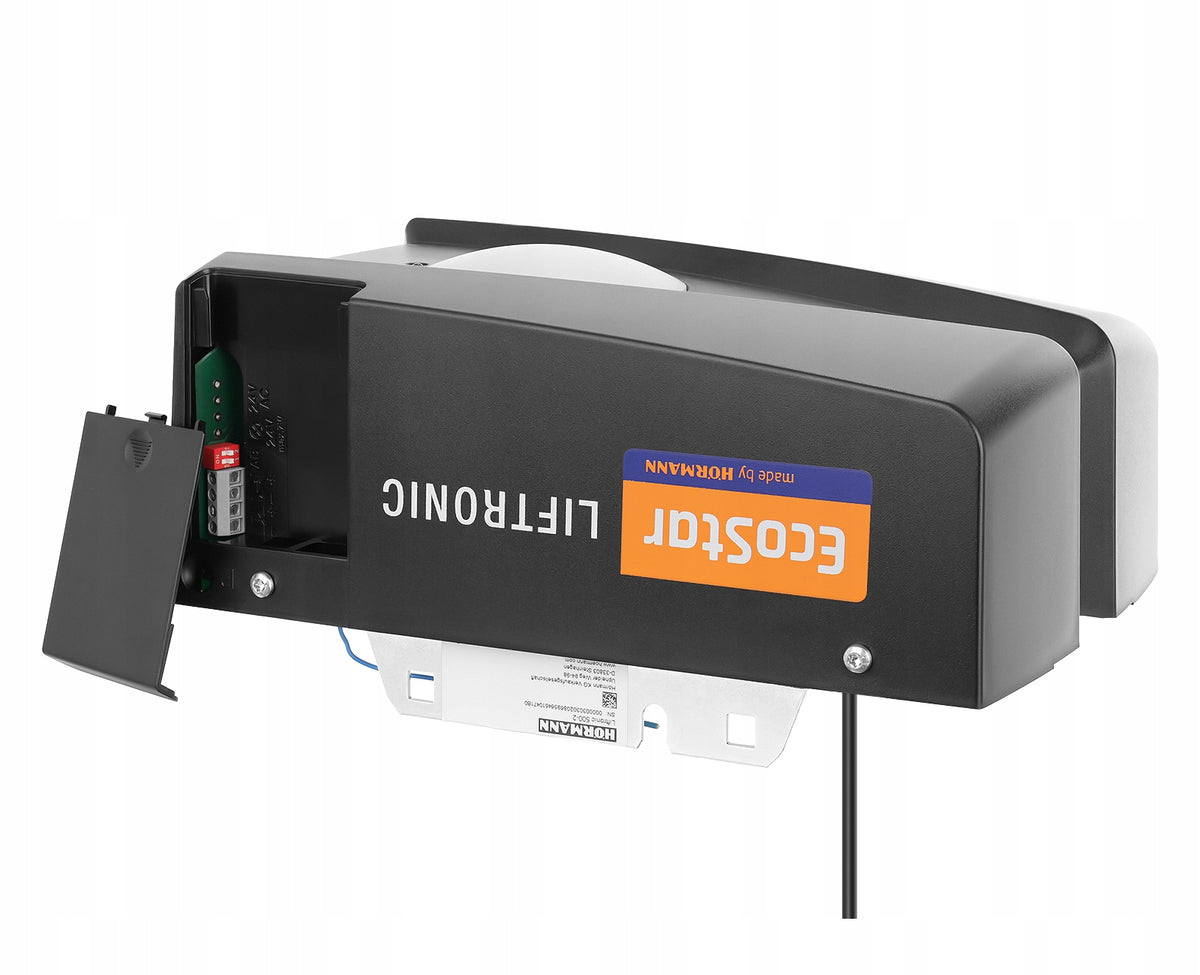

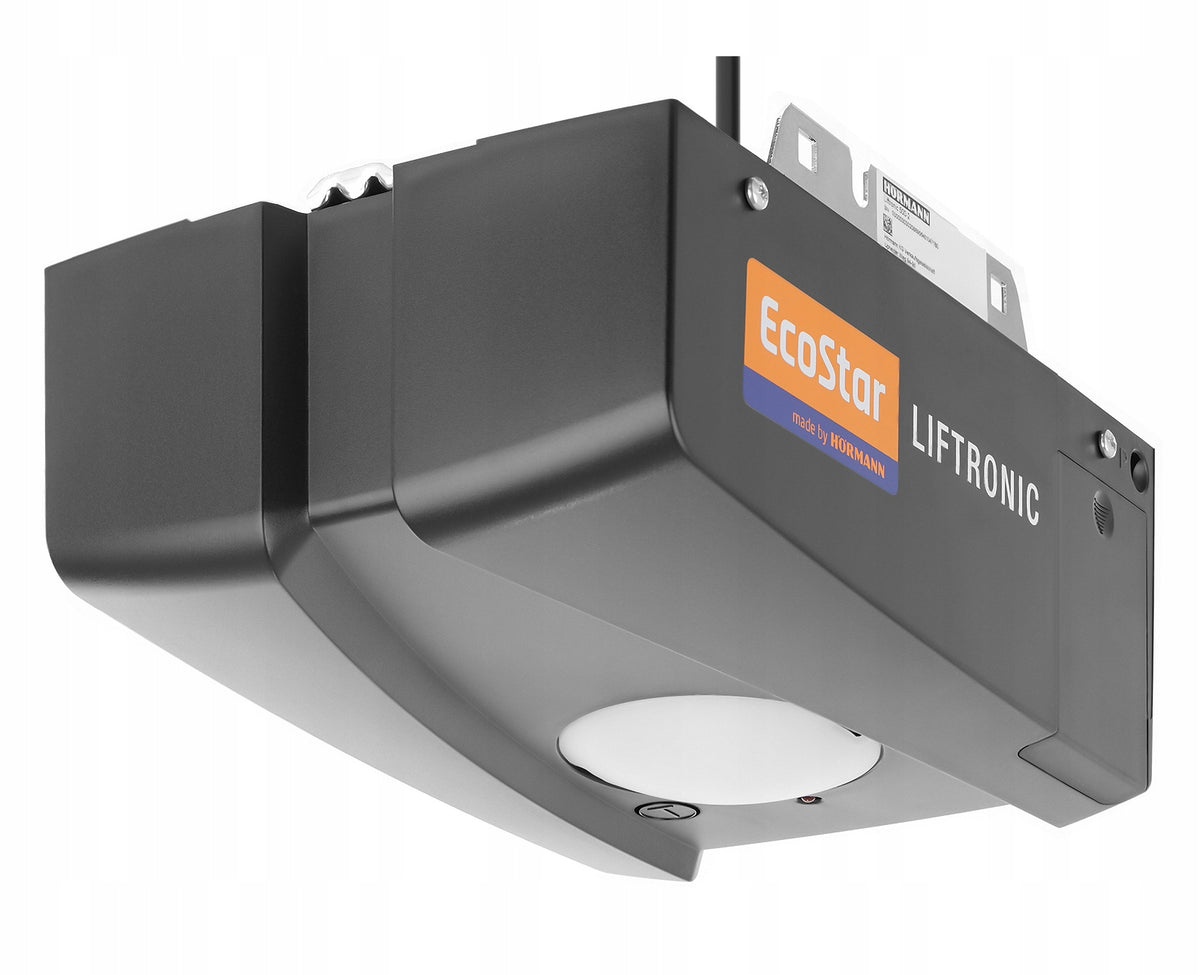

• Drive head Liftronic 500 EcoStar (500 N, up to 7 m² of gate area)
• Integrated radio receiver (433 MHz frequency)
• Remote control (transmitter) two-channel RSC 2 in black with key ring - 2 pieces
• Guide rail (universal for sectional doors up to a height of 2375 mm, for tilting gates up to 2750 mm) prepared for self-assembly
• Set of accessories for mounting the drive
• Instructions for assembly, operation and operation in Polish
• Online instructional video on the installation of the Liftronic 500 drive
• The EcoStar Liftronic 500 drive is an excellent choice for those who value reliability, ease of installation and high quality at an affordable price.

Why choose the Liftronic drive:

1. Silent operation - gear belt mechanism ensures quiet and smooth operation of the drive.

2. No maintenance required - unlike chain mechanisms, the Liftronic drive does not require oiling or lubrication.

3. Safety first - EcoStar LIFTRONIC drives are tested and certified in accordance with European standard 13241-1. Certified as separate devices, as well as in combination with all EcoStar and Hormann garage doors.

4. Safe disconnection mechanism - the gate stops automatically when encountering an obstacle, it is a latch protection function to maximize the safety of use.

5. Easy installation - just a few simple steps to easily mount the LIFTRONIC drive in any tilting and sectional gate.

6. Made in Germany - all EcoStar LIFTRONIC drives are entirely manufactured in Germany.

Technical data:

• Drives - garage doors
• Number of parking spaces: Max. 6
• Number of gate cycles per day: Max. 12
• Application: Backyard
• Maximum gate width: 3000 mm
• Maximum gate area: 7 m²
• Engine: 24 V DC gear motor
• Connection to the mains: 230 V - 240 V alternating current
• Power consumption power: 0,2 kW
• Drawing force and pressure: 150 N
• Maximum load: 500 N
• Opening speed: Standard 10,5 cm/s
• Standby: Up to 7 W
• Housing: Plastic
• Temperature range: -20°C to +60°C
• Degree of protection: For dry rooms only
• Pulse control: Yes
• Power limitation: Yes
• Gentle start and stop: Yes
• Indication of drive status: LED
• Drive lighting and partial opening: Yes
• Auto-closing function: No
• Stop time after activation: Not applicable

Equipment :

• Integrated receiver: 1-band 433 MHz, integrated into the control board, memory space for 6 transmitters
• Transmitter: Two 2-channel RSC 2 transmitters with key ring
• Functional buttons: On the drive housing
• Photocells: None
• Quick opening function: None
• Quick unlocking supported from the inside: Yes
• Connection cable with universal plug: Yes
• Adjustable, integrated garage lighting / factory set: Yes - without adjustment / 2 minutes
• Anti-burglary protection against undermining: No
• Universal guidance for tilting and sectional doors: Yes

Instructions for Mounting the Drive for Sliding Gates - Step by Step

• https://www.youtube.com/watch?v=7nEZBc123yc&t=68s
