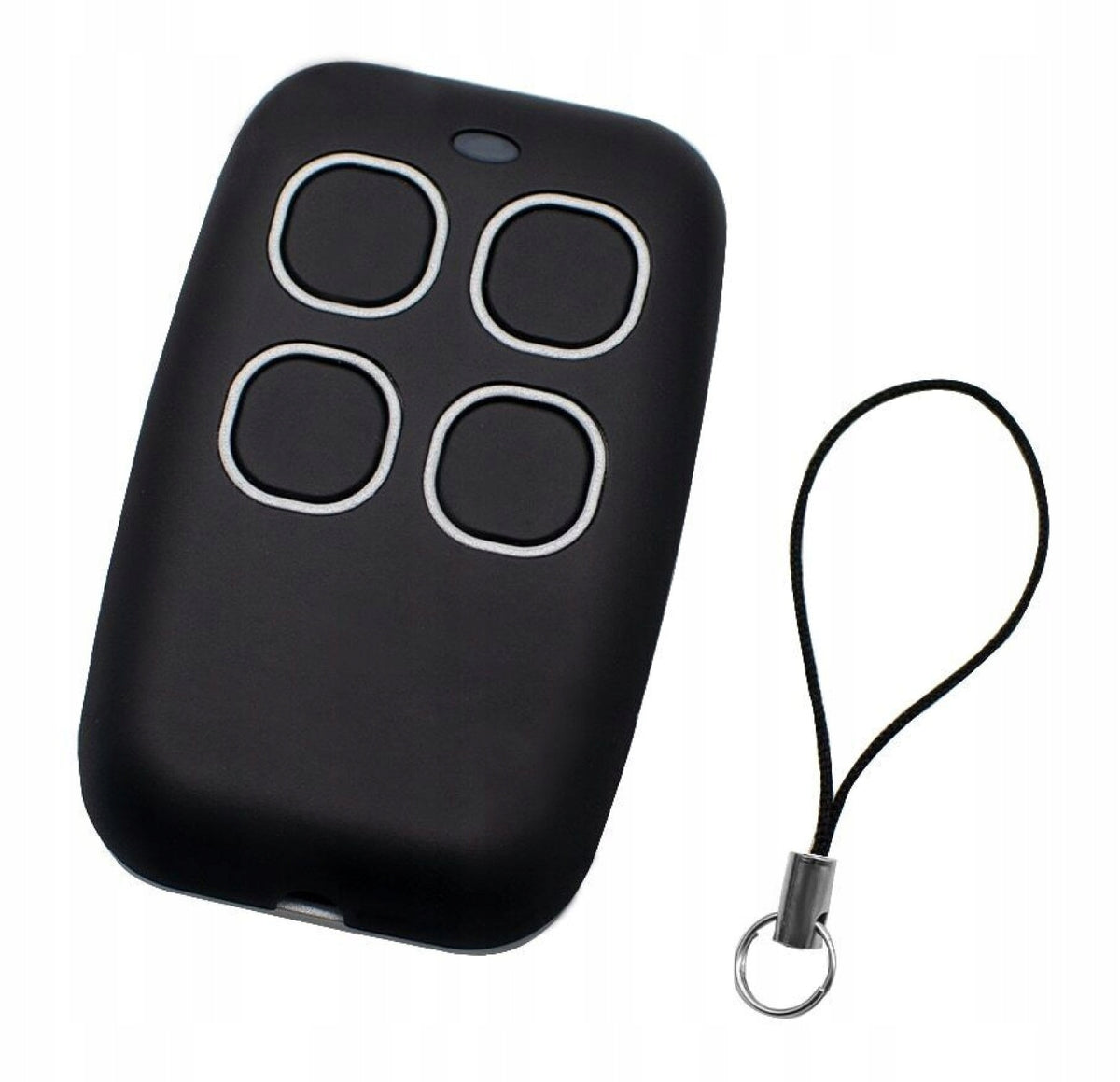

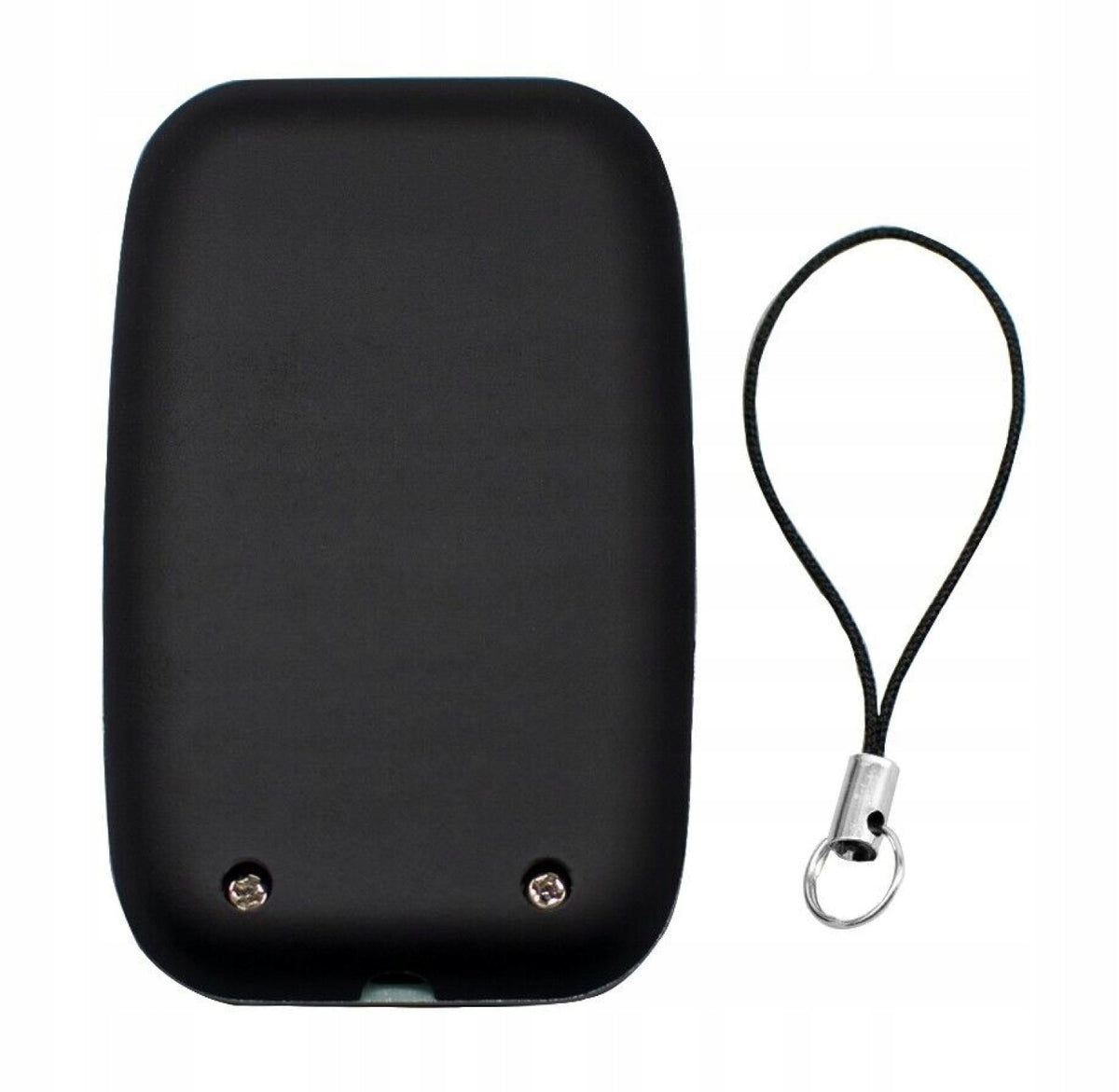

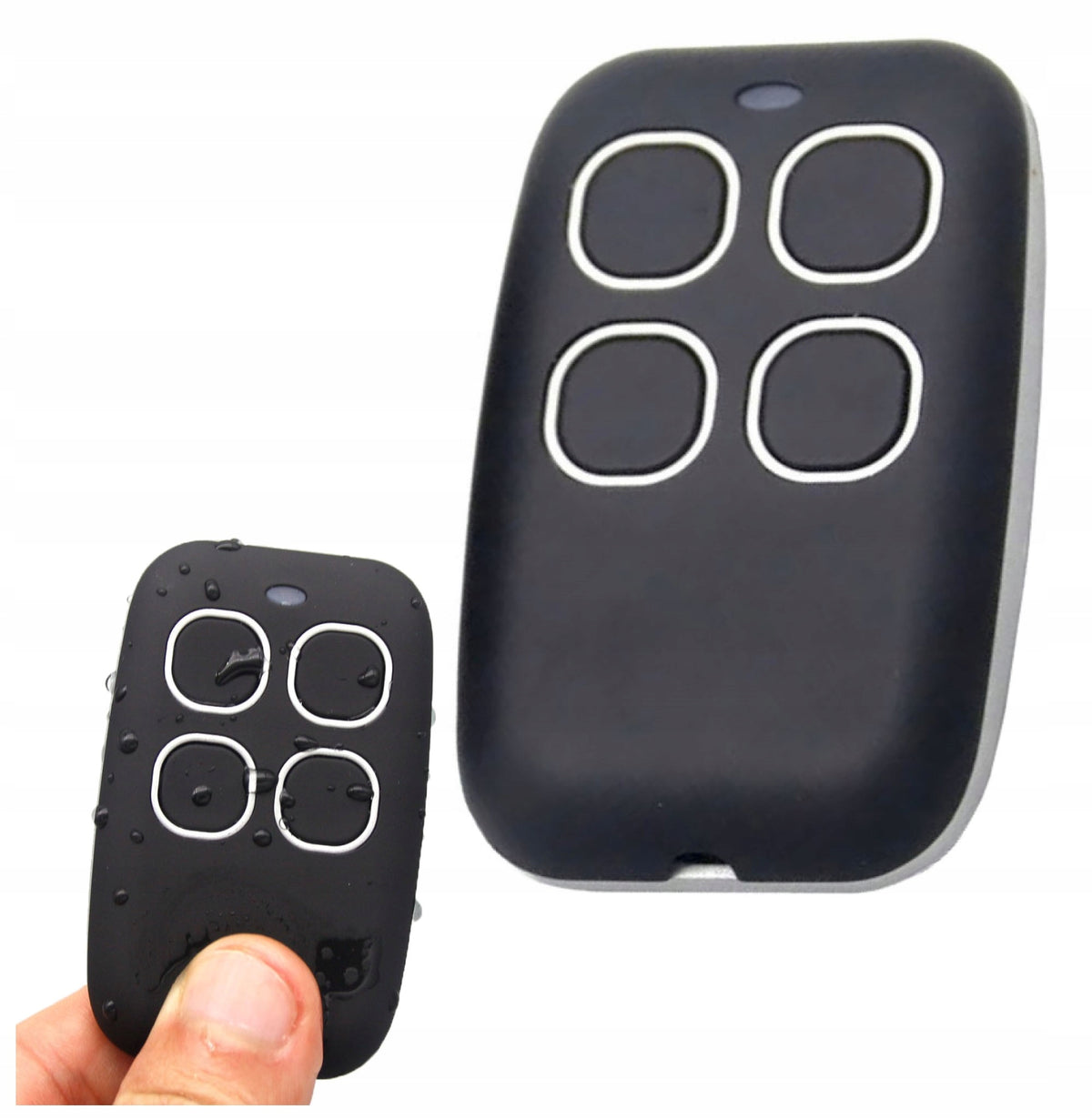

Vārtu pults 4in1 universāls, 280–868 MHz

Trumpai apie prekę

Prekė: Vartų pultelis 4in1 universalus, 280–868 MHz. Kategorija: Nuotolinio valdymo pultai.

• Gamintojas: Azaris
• Modelis: PILOT

✅ Universal self-copying remote control for gate 280 – 868 MHz – 5 channels, auto-scanning, one remote control for multiple devices

The universal self-copying remote control 280 – 868 MHz is a convenient solution when you want to have one remote control for several gates, garage, roller shutters or other radio controllers. Thanks to automatic scanning, it adjusts the frequency to the original remote control and allows you to save up to 5 independent codes (5-channel mode). It supports different types of encoding (fixed / variable / dynamic), so it works as a practical "replacement" or an additional remote control. This is a great option when you need spare control for household members or for the car.

• Universal self-copying remote control 280 – 868 MHz

• 5 channels (possibility of configuring an additional channel)

• Copying: fixed / variable / dynamic code

• Auto-scan and adjust the frequency to the original

• Range: up to 100 – 150 m (depending on obstacles)

• Battery CR2032 3V included

• Compact: 6,5 × 3,8 × 1,3 cm, 29 g

✅ Wide frequency range 280 – 868 MHz – maximum versatility

The remote control operates in a wide band, making it compatible with a wide range of gate and garage automation systems. You don’t have to guess the frequency – the device can match it based on the original.

• 280 – 868 MHz – one device for multiple installations

• Auto-match to the detected frequency

✅ Self-copying codes – constant, variable and dynamic

The remote control is designed to copy signals from other remotes, making it easy to create a backup control. It's practical when you have one working remote and want to add more pieces.

• Code handling: fixed / variable / dynamic

• Ideal as a duplicate for an existing remote control

✅ 5 channels in one remote control – one remote control, multiple devices

You have at your disposal a 5-channel remote control (with the possibility of configuring the "fifth channel" mode by a combination of buttons). It's convenient if you want to control e.g. entrance gate, garage and roller shutter without carrying several remote controls.

• 5 channels = more configuration options

• Order and convenience: one remote instead of several

✅ High compatibility – even up to approx. 300 models of pilots

This solution is aimed at users who want the most universal replacement. The manufacturer's description emphasizes the ability to operate a very wide base of remote controls (even ~300 models).

• Replaces many popular pilots

• One purchase, less selection problems

✅ Application not only for gates – also roller shutters and home controllers

The remote control can also be used with other radio devices in the home, depending on the compatibility of the receiver. This makes it a great element of a simple “mini smart home”.

• Potentially: rollers / switches / drivers

• One remote control for several applications

✅ Long working range – up to 100 – 150 m (depending on conditions)

In good conditions, the pilot can operate over a long distance, but the real range depends on obstacles and the environment. It’s a convenience when you want to open the gate earlier, without driving up to the contact.

• Range: up to 150 m (depending on obstacles)
• Stable operation in typical home conditions

✅ Set includes

• ✅ Universal self-copying remote control (5-channel)
• ✅ CR2032 3V battery

✅ TECHNICAL DATA

• Operating frequency: 280 – 868 MHz
• Number of channels: 5 (configuration depending on settings)
• Transmission rate: 50 – 60 kHz
• Range: up to 150 m (depending on obstacles)
• Power supply: CR2032 3V (included)
• Power consumption at rest: < 2 µA
• Dimensions: 6,5 × 3,8 × 1,3 cm
• Weight: 29 g
• Material: ABS + chrome elements
• Colour: black
• Certificates: CE (R&TTE), RoHS
• Example of system compatibility (as described): Beninca, BFT, CAME, DEA, DITEC, DoorHan, FAAC, Hörmann, NICE, Novoferm, Sommer, V2

1. Cleaning the pilot's memory

1. Press and hold buttons 1 and 2 at the same time until the LED flashes 3 times.
2. Release the 2 button (button 1 continue to hold), then slowly press the 2 button three times.

   The LED will start flashing fast.

3. Release both buttons.

   The remote control is ready to copy.

2. Copying remote controls with fixed code

1. Press and hold the button 1 of the original remote control.
2. Then press and hold the button 1 of the self-copying remote.
3. Hold both buttons until the LED in the self-copy remote signals the correct copy of the code.
4. Repeat the above steps for the other buttons.

✔ The remote control is ready to use after copying is complete.

3. Copying remote controls with variable code

1. Press and hold the button 1 of the original remote control.
2. Then press and hold the button 1 of the self-copying remote.
3. After copying button 1 correctly, the remaining buttons will be generated automatically.
4. Follow the receiver instructions to program the new remote control in the control panel.

4. Programming of MITTO2/MITTO4 BFT pilots (older versions)

1. Clear the remote control memory (see section 1).
2. Press and hold the button 1 of the self-copying remote until the LED flashes twice and goes out.

   Without releasing button 1, press button 2 once.

   The remote goes into copy mode.

3. On the BFT remote control:

   Press and hold buttons 1 and 2 simultaneously (code sending mode).

   The LED in the self-copy remote flashes twice and goes out.

   Release the BFT buttons and press the selected BFT button.

   The LED in the self-copy remote flashes three times and lights up with continuous light, which means that the copying is completed.

Note:

Transferring code between self-copying remote and BFT remote:

→ Press buttons 1 and 4 simultaneously.

5. Resume (restore) code

If the code was accidentally deleted:

1. Press and hold buttons 3 and 4 simultaneously for about 10 seconds.
2. The LED flashes twice and goes out.

✔ The code of the self-copying pilot has been restored.

✅ Gate Remote Compatibility List:

The following gate and garage door opener brands/models are compatible with this remote:

• ACM: TX2, TX2 COLOR, TX4
• ADYX: TE4433H BLUE, 433-HG BRAVO
• AERF: COMPACT, HY-DOM, MERCURI B, MERCURI C, SABUTON, MARS, SATURN, ST3/N, TERRA, TMP-1, TMP-2, UNITECH
• ALLMATIC: BROWN, BROWN RED, BRO.OVER, PASS, MINIPASS, TECH3
• APERIO: GO, GO PRO, GO MINI
• APERTO (Sommer): 4020-TX03-434, TX02-434-2, TX02-868-2
• APRIMATIC: TR, TM4, TXM
• ATA: PTX4 BLU, PTX4 PINK
• AVIDSEN: 104251, 104250, 104250 OLD, 104250 RED, 104257, 104350, 654250
• BALLAN: FM400, FM400E
• BENINCA: TO.GO.WV, TWV, ROLLKEY, APPLE, LOT WCV, CUPIDO, TO.GO.QV,
• BENINCA: IO
• BFT: MITTO, MITTO M, MITTO RCB, MITTO A, TRC, GHIBLI, MURALE, KLEIO
• CARDIN: TRQ S449, XRADO TRQ S449 GREEN (PRECODE),TXQ S449, TXQ S449 GREEN, TRQ S486, TXQ S486, S437 TX,
• CASALI: JA33 AMIGO, GENIUS/CASALI A252RC
• CAME: T432, T434, TOP432, TOP432A, TOP434A, TOP432, TOP432NA, TOP434NA, TOP432M, TOP434M, TAM432SA, TOP432SA, TOP432NA, TWIN2, TWIN4, TOP432S
• CHAMBERLAIN / LIFT MASTER MOTOR LIFT:  953ESTD, 371 LM, 971LM, 84330E, 94334CE,94333E/94334E/94335E, 9747E,1A5639-7, 1A5477, 1A6487, 132B2372,94330EML/9333EML/ 94335EML,84330EML/84333EML/84335EML,8747EML
• CLEMSA: MUTANCODE, T, T-8, E-CODE N, MASTERCODE MV
• DASPI: ZERO RC

• DEA SYSTEM: PUNTO 278, GOLDR, GENIE R 273, GENIE R-GT2N, MIO TR, GT2M, TRN
• DITEC: BIXLP, GOL4, BIXLG
• DOORHAN: TRANSMITTER 4
• DOORMATIC: MILENY, MILENY-EVO
• ECOSTAR: RSC, RSE, RSZERREKAIRIS, ROLLER 2, ROLLER 433, ROLLER 868, SOL433, SOL868, VEGA 433, VEGA 868
• ERREKA: IRIS, ROLLER 2, ROLLER 433, ROLLER 868, SOL433, SOL868, VEGA 433, VEGA 868
• FAAC: TML 433SLH, DL 868 SLH,XT 868 SLH, XT 433 SLH, T 868 SLH, T 433 SLH, XT 868 SLH BLACK, XT 433 SLH BLACK,XT 433 RC, TE433HG, XT4 433 RCBE
• FADINI: JUBI-SMALL, JUBI 433
• GENIE: GITR-3, GIT, GICT390, GIFT390-1, G3T-BX, G1T-BX, GM3T, GICTD, GIFTD
• GENIUS: AMIGOLD, AMIGO, KILO, BRAVO, ECHO
• GIBIDI / JCM: Au1600, AU1600 WOOD, AU1680, AU1680 WOOD, DOMINO
• Hormann: HSM2, HSM4, HSE2 868
• JCM: GO, GO PORTIS, GO NORTON, NEO, TWIN
• KBLUE: ETH-TEL01
• KEY: 900TXB-42R, TXB 44R, SUB 44R
• KING GATES: CLIPPER, STYLO
• KLING: KUA, KUA E, KUA S

• LABEL: SPYCO
• LIFE: FIDO
• LINEAR: MCT-11, ACT-21, ACT-22, STING RAY ACT-31, STING RAY ACT- MERLIN 2.0E945M, E943M, E940M
• MERLIN / PROLIFT: C945, C940, C943, M842, M844
• MHOUSE: TX3, TX4, GTX4
• MOOVO: MT4G
• NICE: SMILO, FLOR-S, VERY-VR, FLOR-S ERA
• NICE: ONE (ON), ON ERA, INTI, ERGO, PLANO, ONE (ON FM)
• NORTON: NEO, TXCD, GO NORTON, GO MINI NORTON
• NOVOFERM: MCHS, MICRO-NOVOTRON 502, MINI-NOVOTRON 504, MICRO-NOVOTRON 502,MICRO-NOVOTRON 504, MICRO-NOVOTRON 31, MICRO-NOVOTRON 51,MINI-NOVOTRON 30, MINI-NOVOTRON 50, MNHS,
• O&O: TX, T_COM R4-2, T_COM R8-2, TWIN, TX (NEO)
• PECCININ: TX MENBRANA
• PRASTEL: MTE, MPSTLE, MPSTP2E, TCE,BFOR,TRQ-P, SLIM-E
• RIB: LITHIO
• ROPER: NEO, GO ROPER, GO MINI ROPER

• SABUTOM: BROOVER, BROSTAR
• SEA: HEAD, SMART DUAL ROLL, SMART-3 ROLLING CODE, COCCINELLA
• SEAV: BE HAPPY RS
• SECULUX: NEO
• SILVELOX: MHz 2007, QUARZ SAW
• SIMINOR: CVXNL, MITTO, SIM433
• SOMFY: K-EASY, K-EASY NEW, K-EASY OLD, MITTO, KEY GO RTS, TELIS RTS, KEYTIS RTS, KEYTIS RTS NS, ALARMA
• SOMMER: 4010, 4011, 4014 TX03-434-2, 4013 TX03-434-4, 4020 TX03-868-4, 4026 TX03-868-2, 4022 TX02-434-2, 4025 TX02-868-2, 4031 TX08-868-4
• STAGNOLI: KALLISTO, VENUS AV223
• TAU: 250K-SLIMRP, 250K-SLIMR,250T-4RP
• TELCOMA: FM400E, FM400
• TOR LIFT: TORMIT4
• V2: TSC, TXC, TRC, HANDY, PHOENIX, PHOX 433
